Cantilever Carport Shade Built for Vehicles, Seating, and Everything In Between

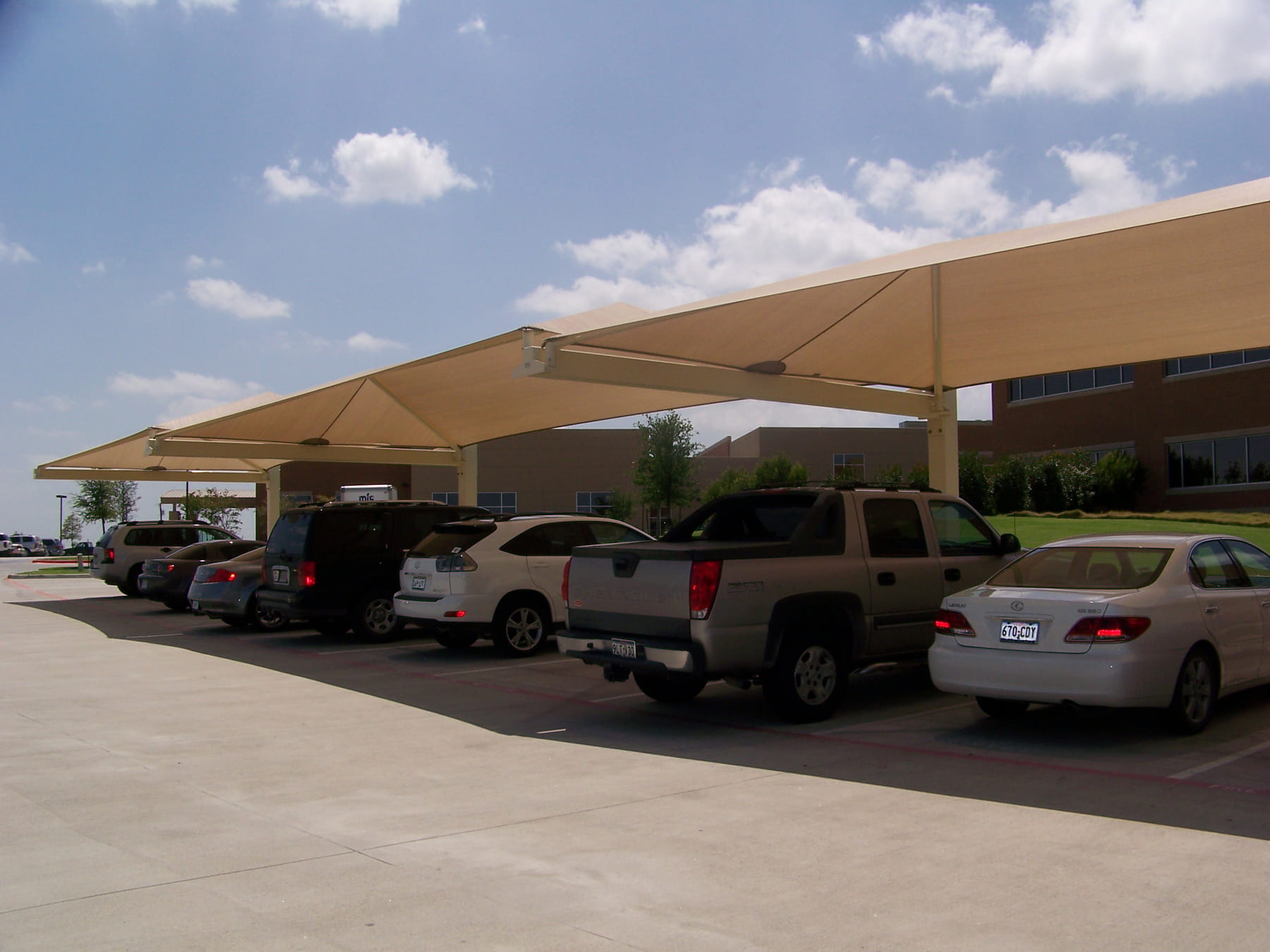

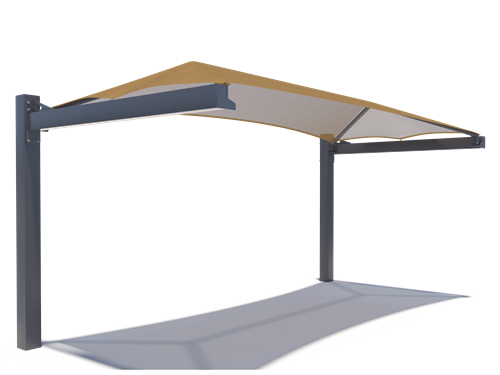

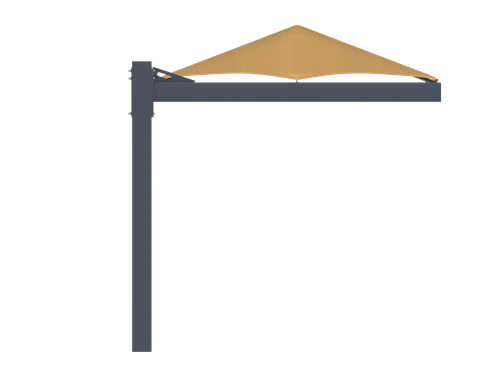

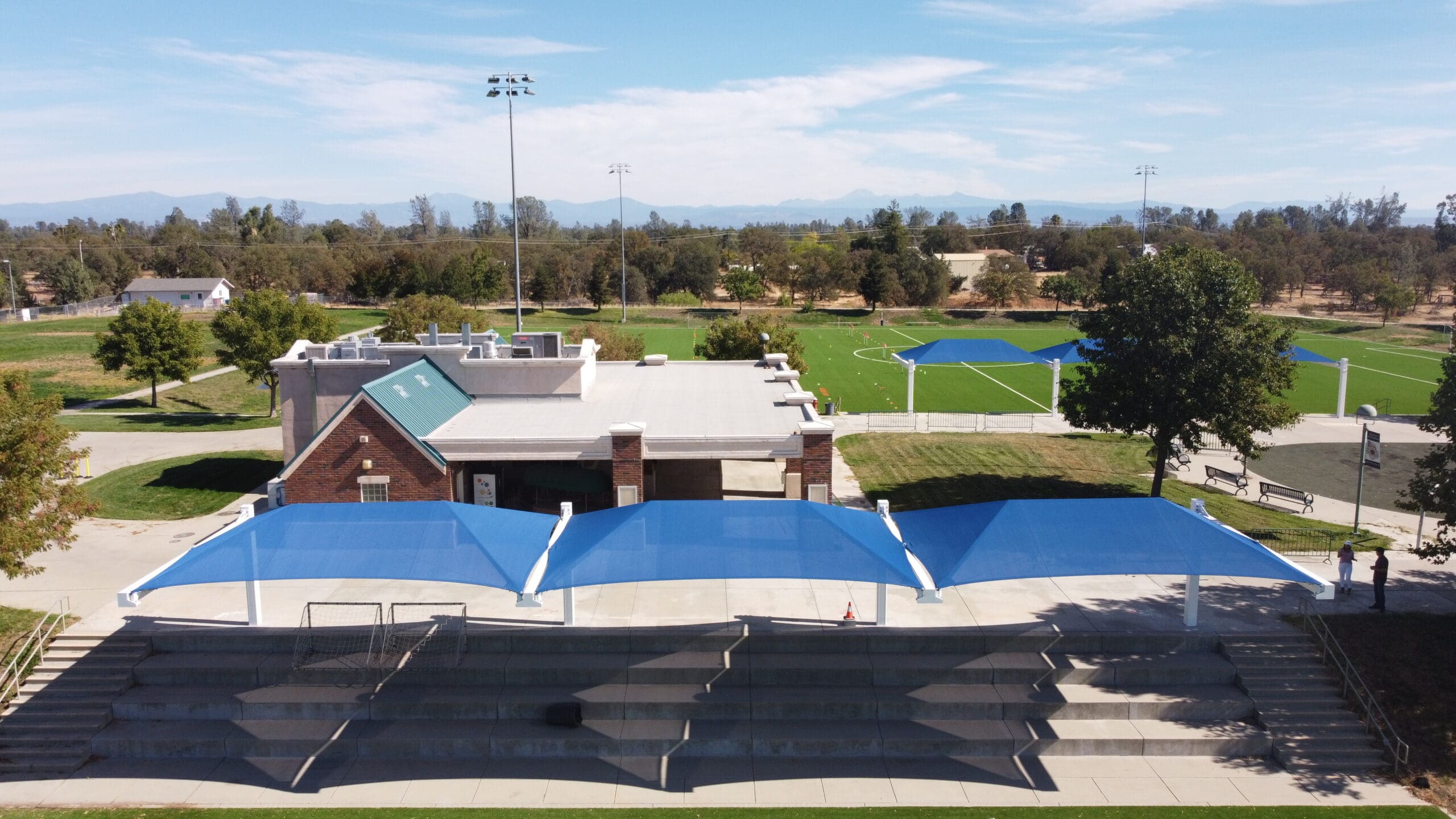

Your visitors and vehicles notice when shade gets out of the way. The USA Shade Full Hip Cantilever delivers substantial coverage with all support columns positioned to one side, leaving the entire area underneath completely unobstructed. Automotive facilities, golf courses, skate parks, soccer complexes, and commercial properties use it wherever an open, column-free footprint is as important as the shade itself.
Instead of structures that place posts in the middle of the shaded space, your property gets a hip roof cantilever engineered for 90 mph three-second wind gusts and a 5 PSF snow load. The Shadesure™ HDPE fabric delivers approximately 80% shade and up to 90% UV protection, with sizes ranging from 16 to 40 feet in length — enough to cover a full row of vehicles, a wide seating area, or an extended walkway from a single structure.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor. All products are manufactured in the USA and backed by a 10-year structural warranty on steel and a 10-year limited fabric warranty.
Cantilever Awning Design That Works Across Commercial Applications

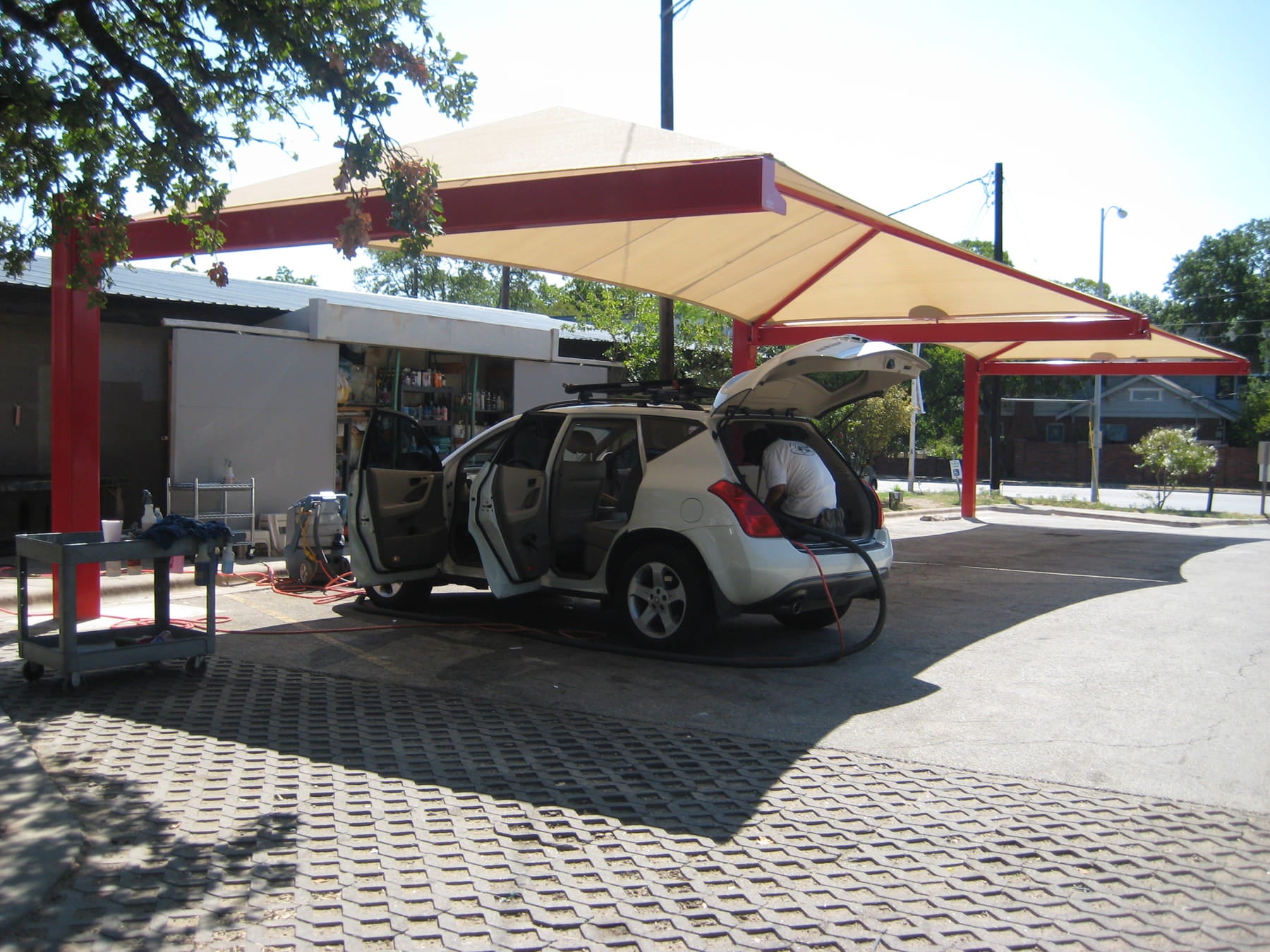

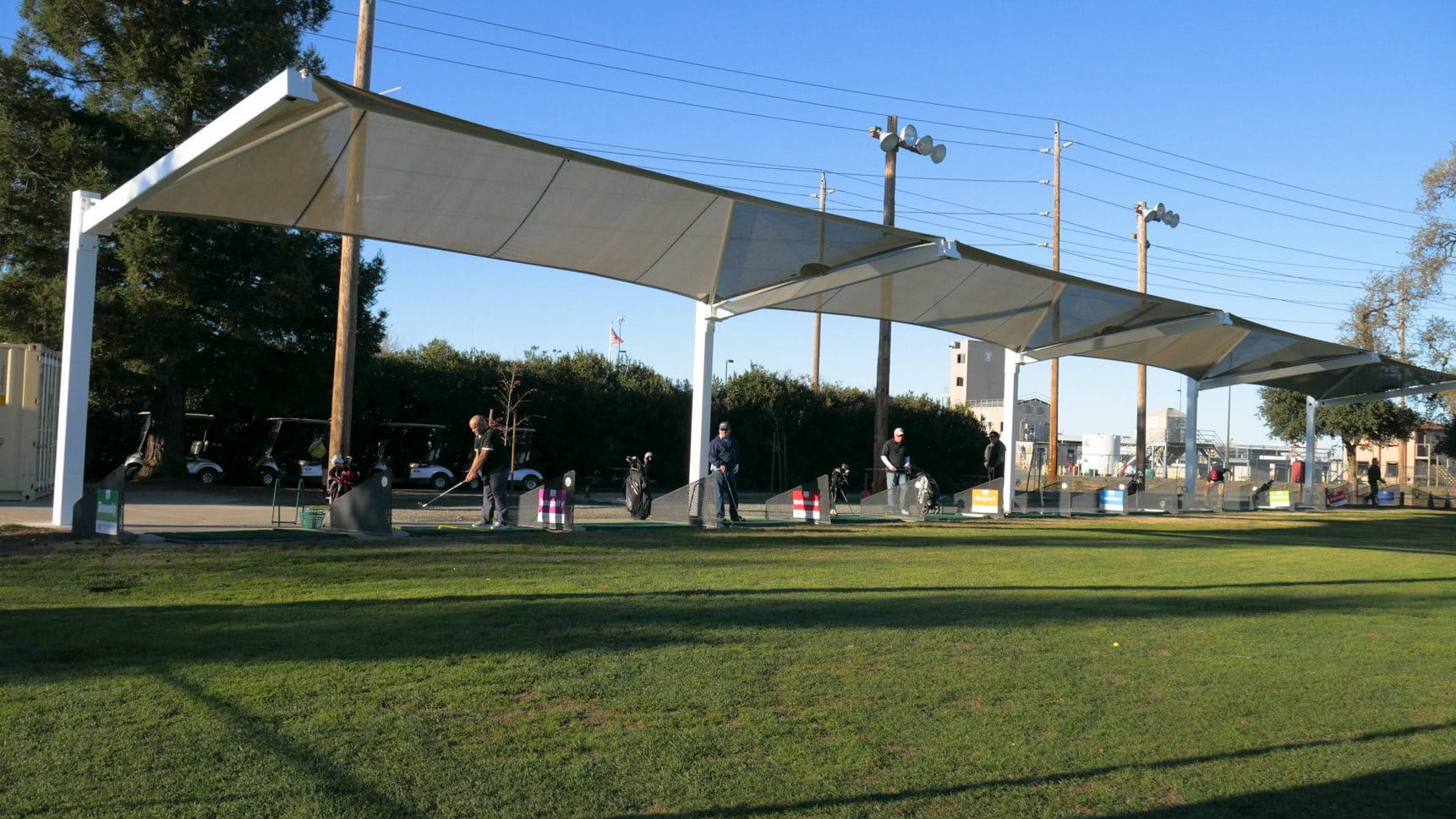

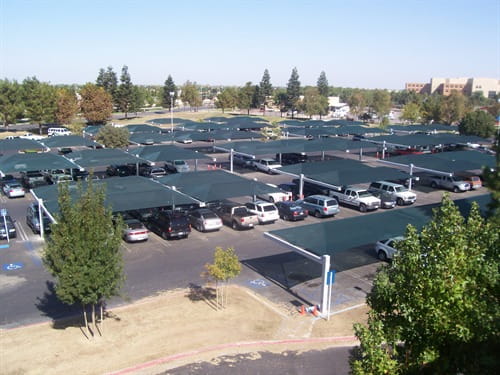

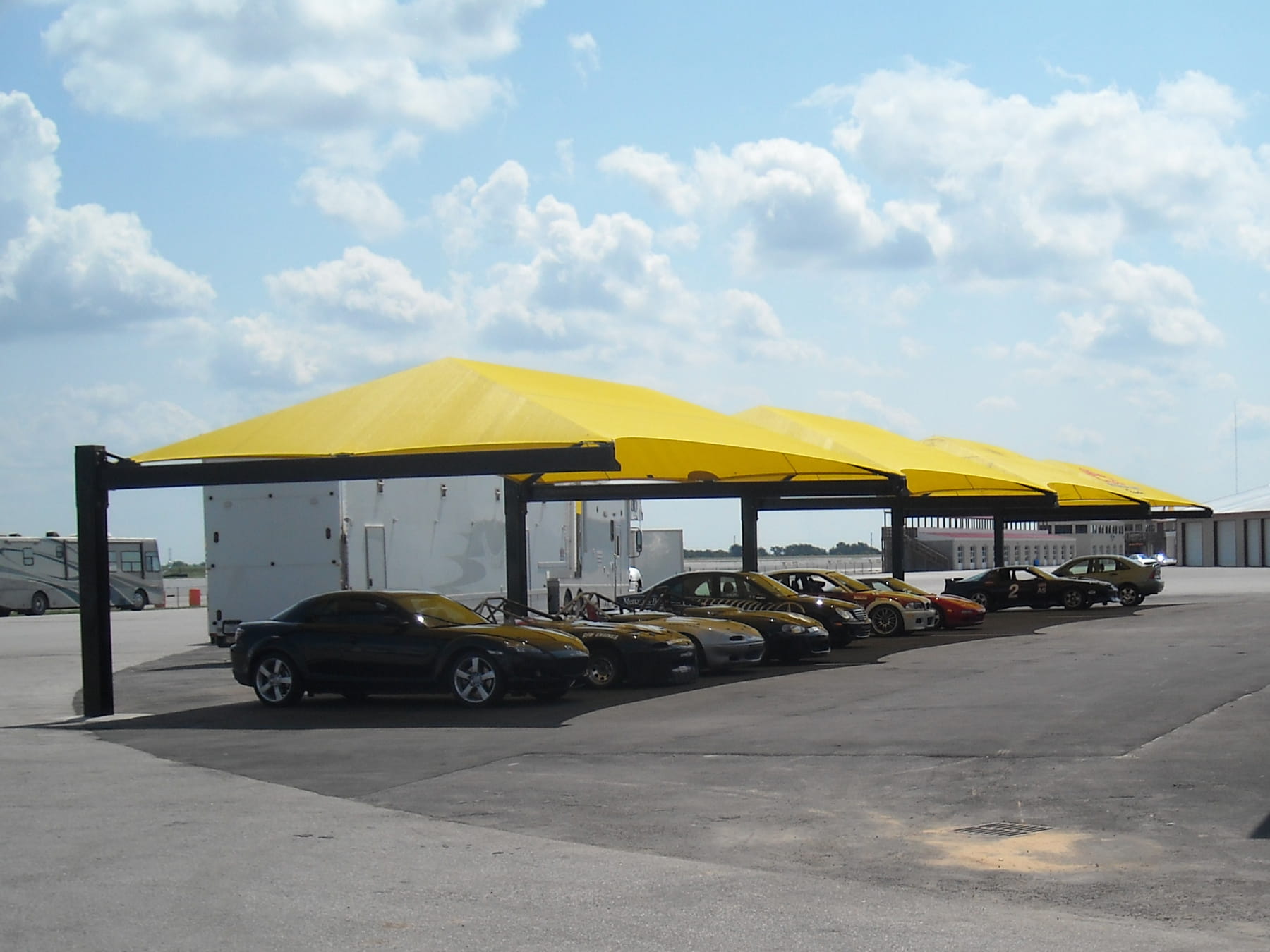

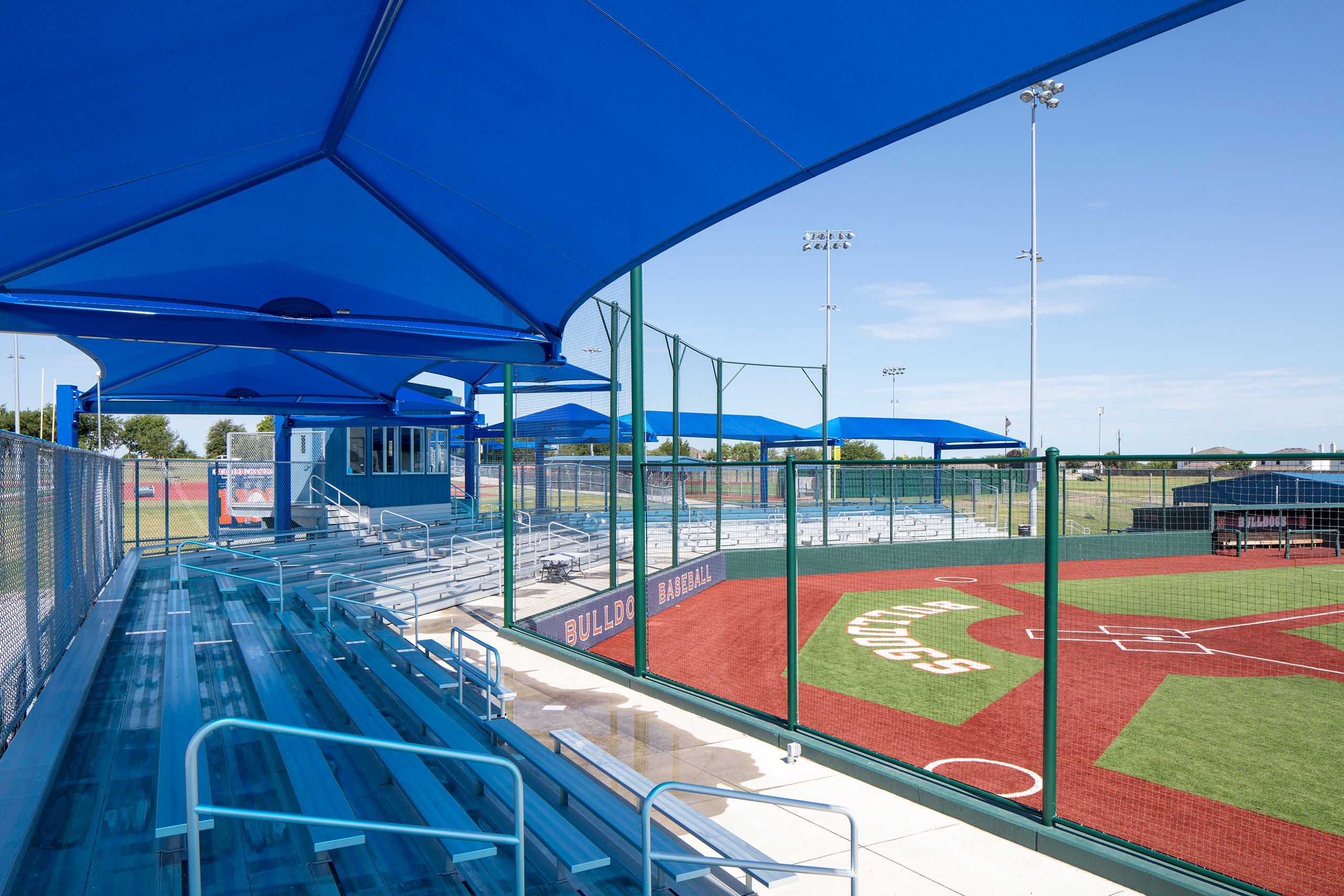

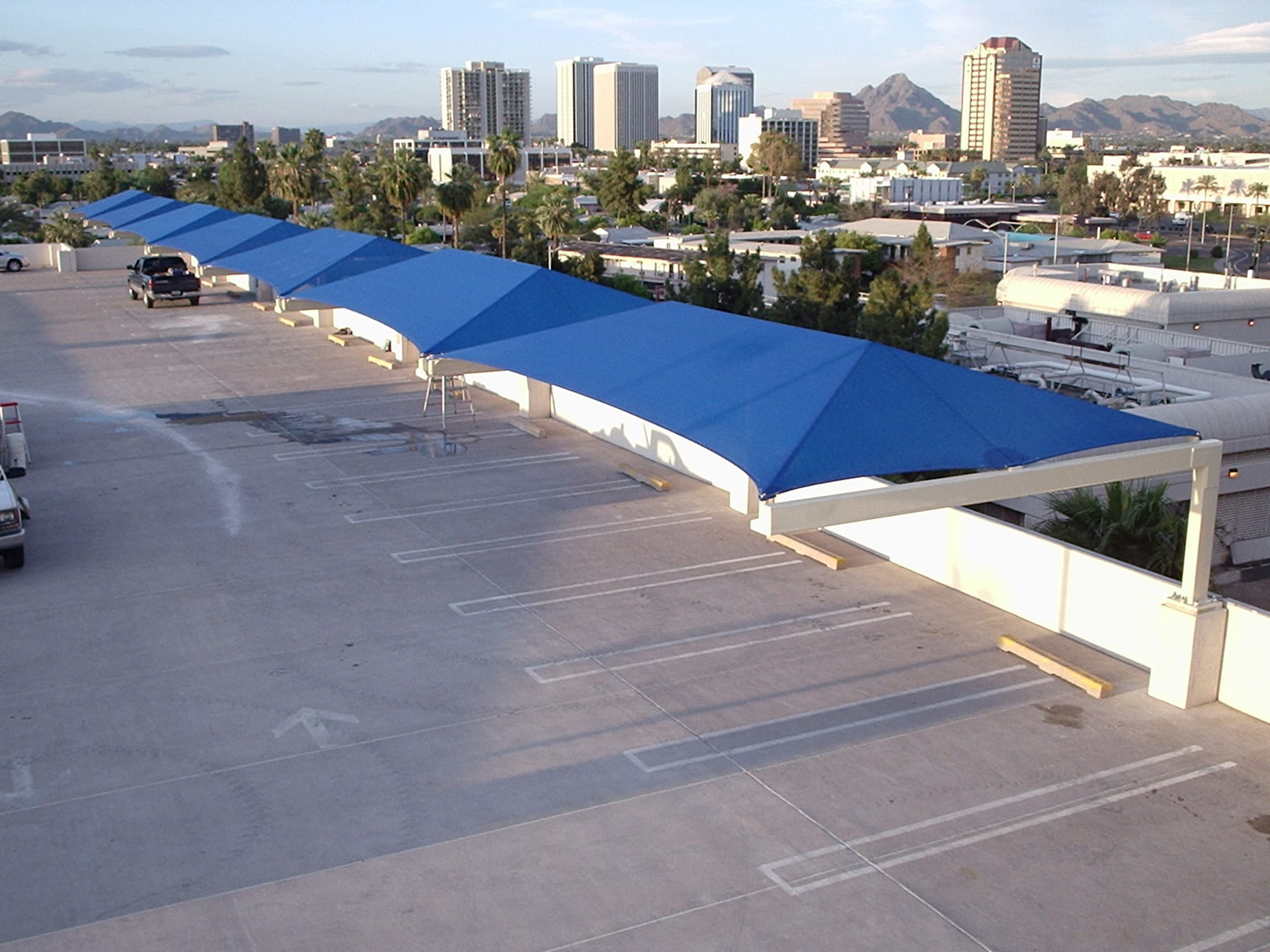

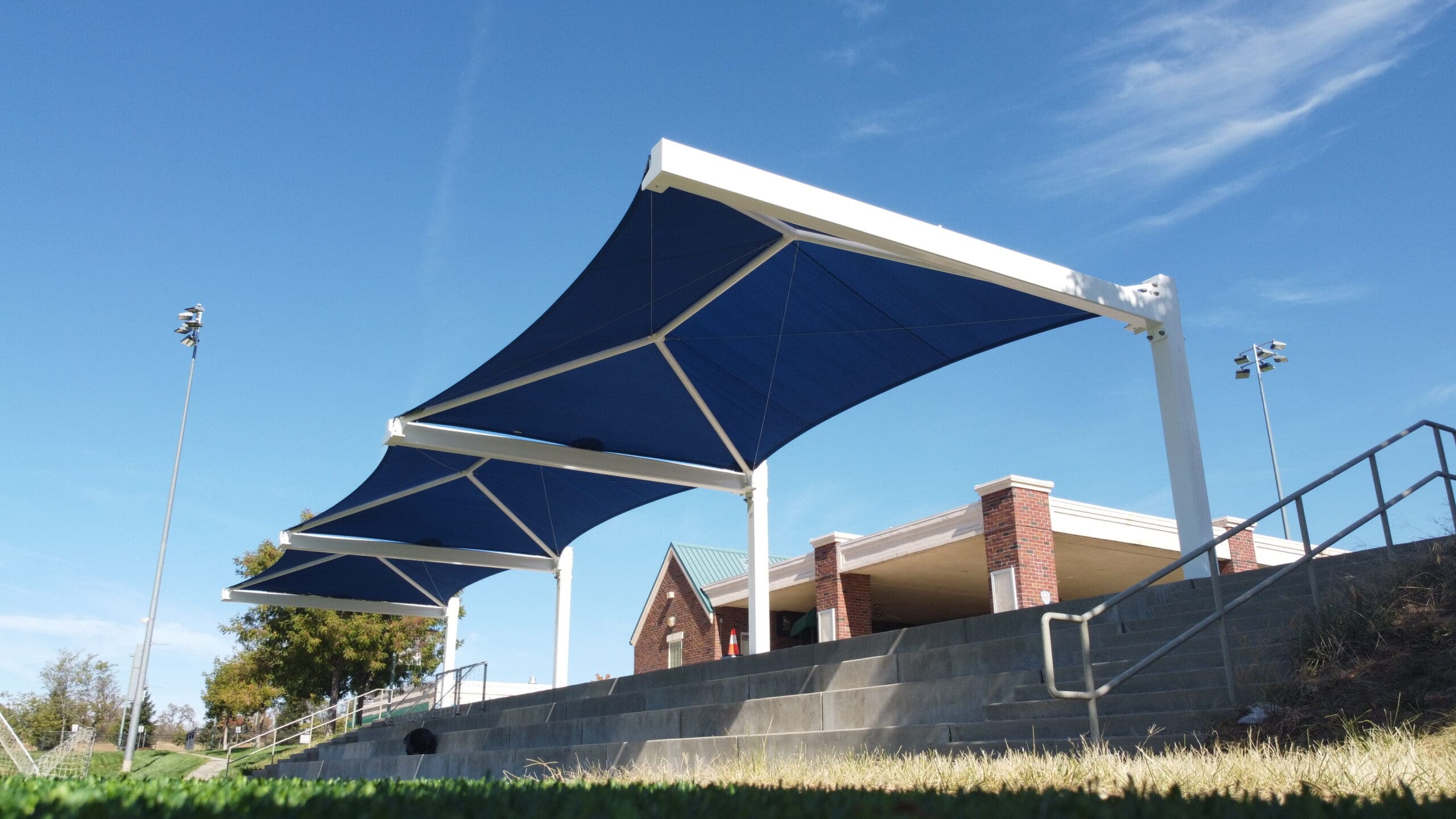

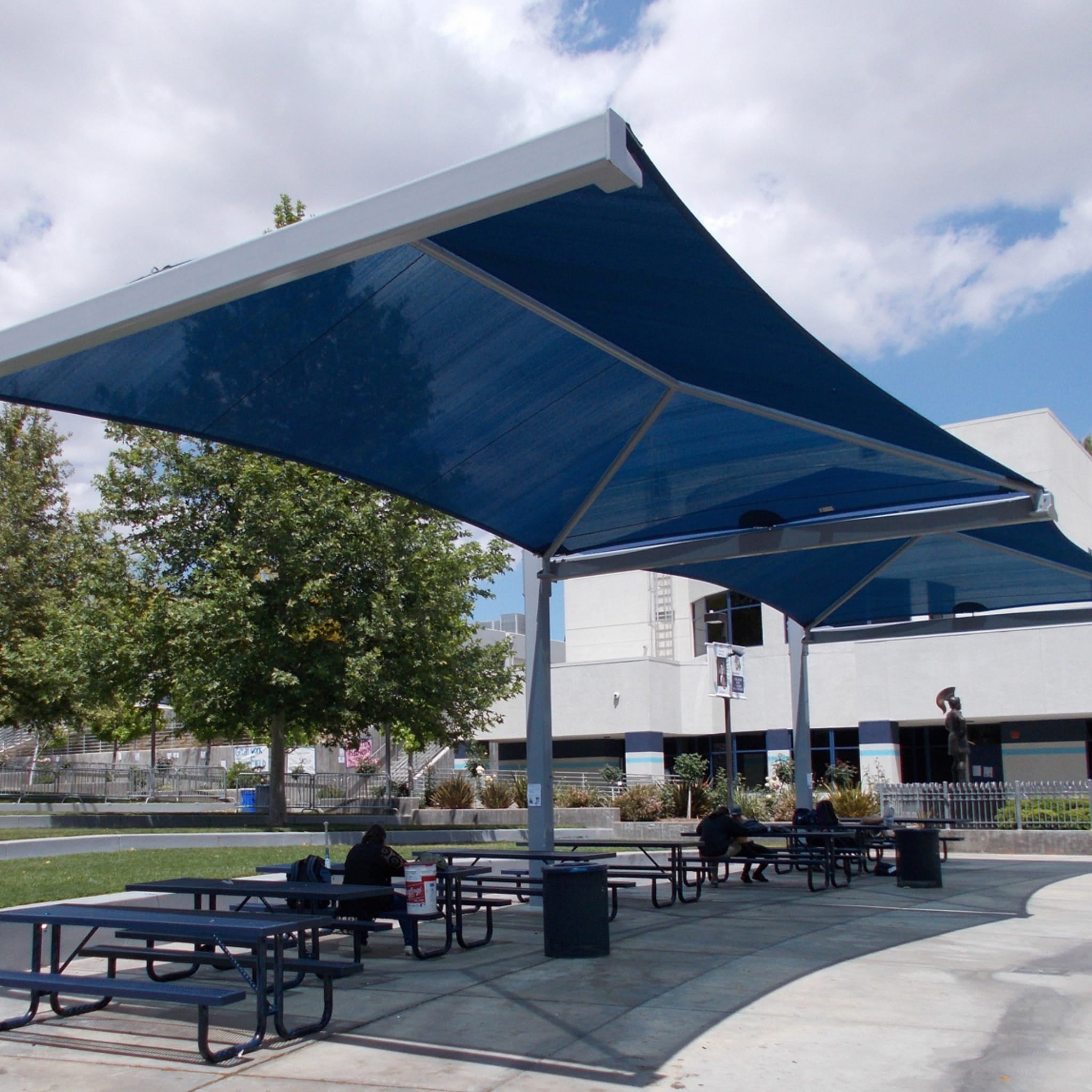

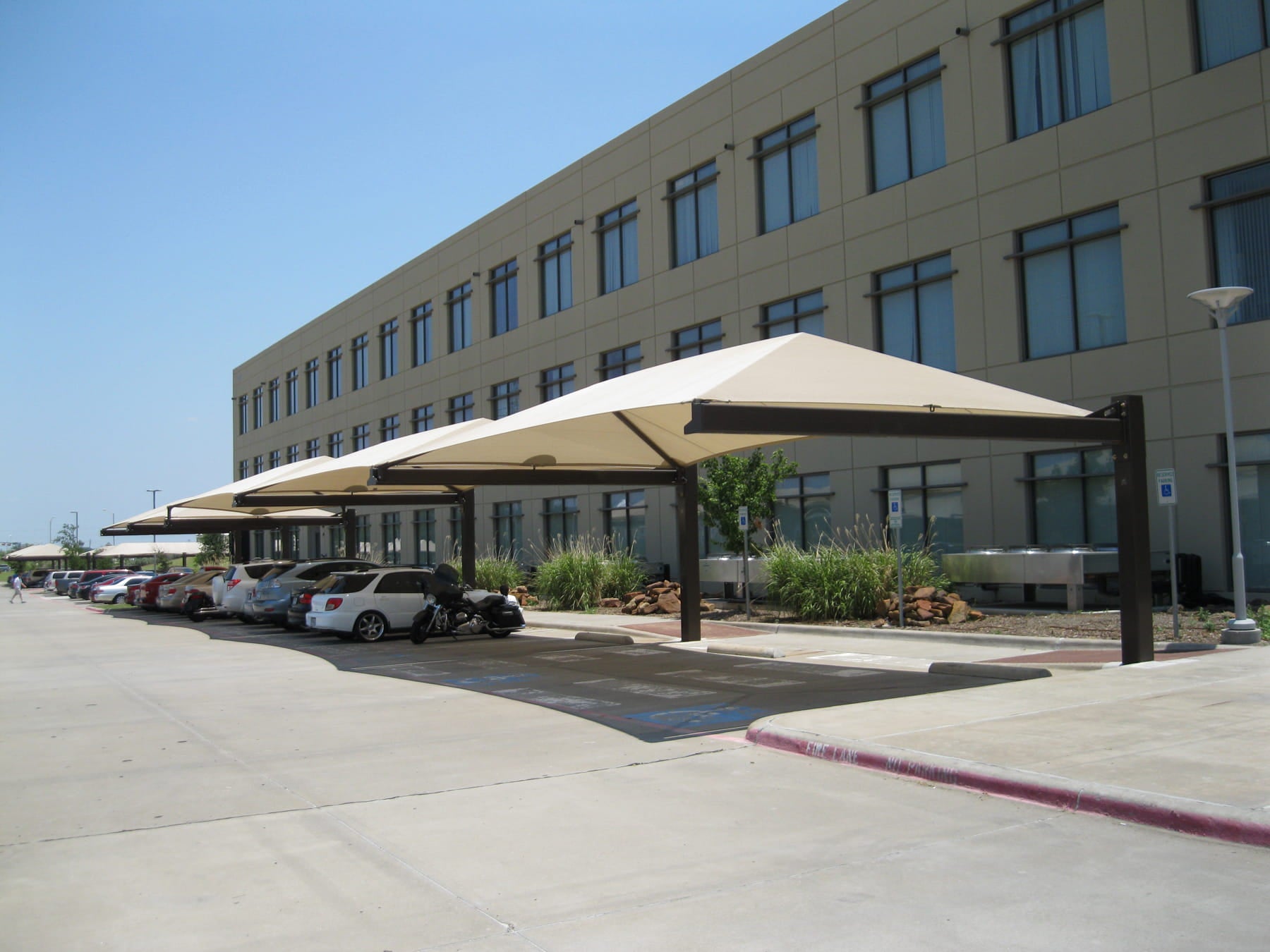

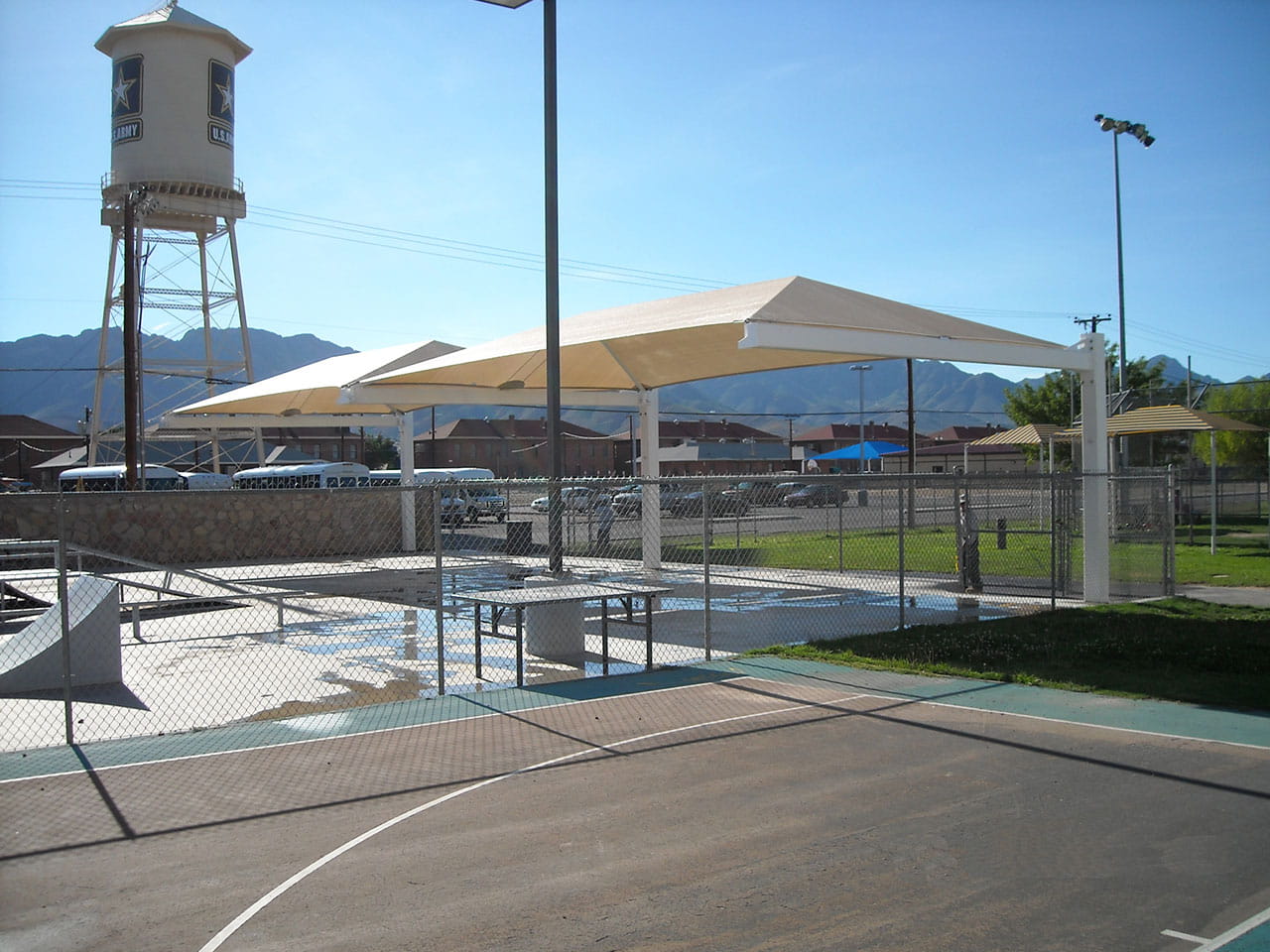

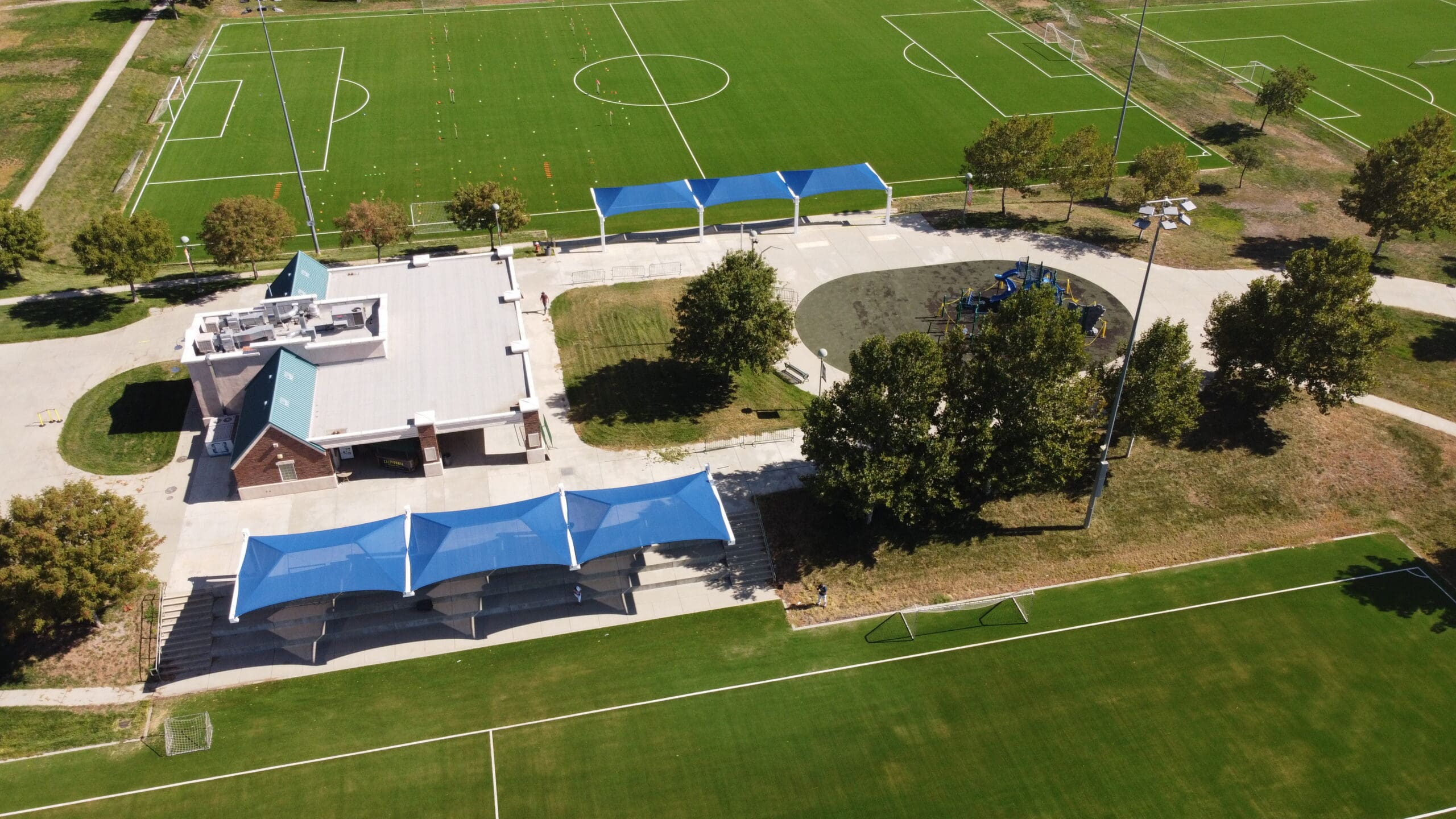

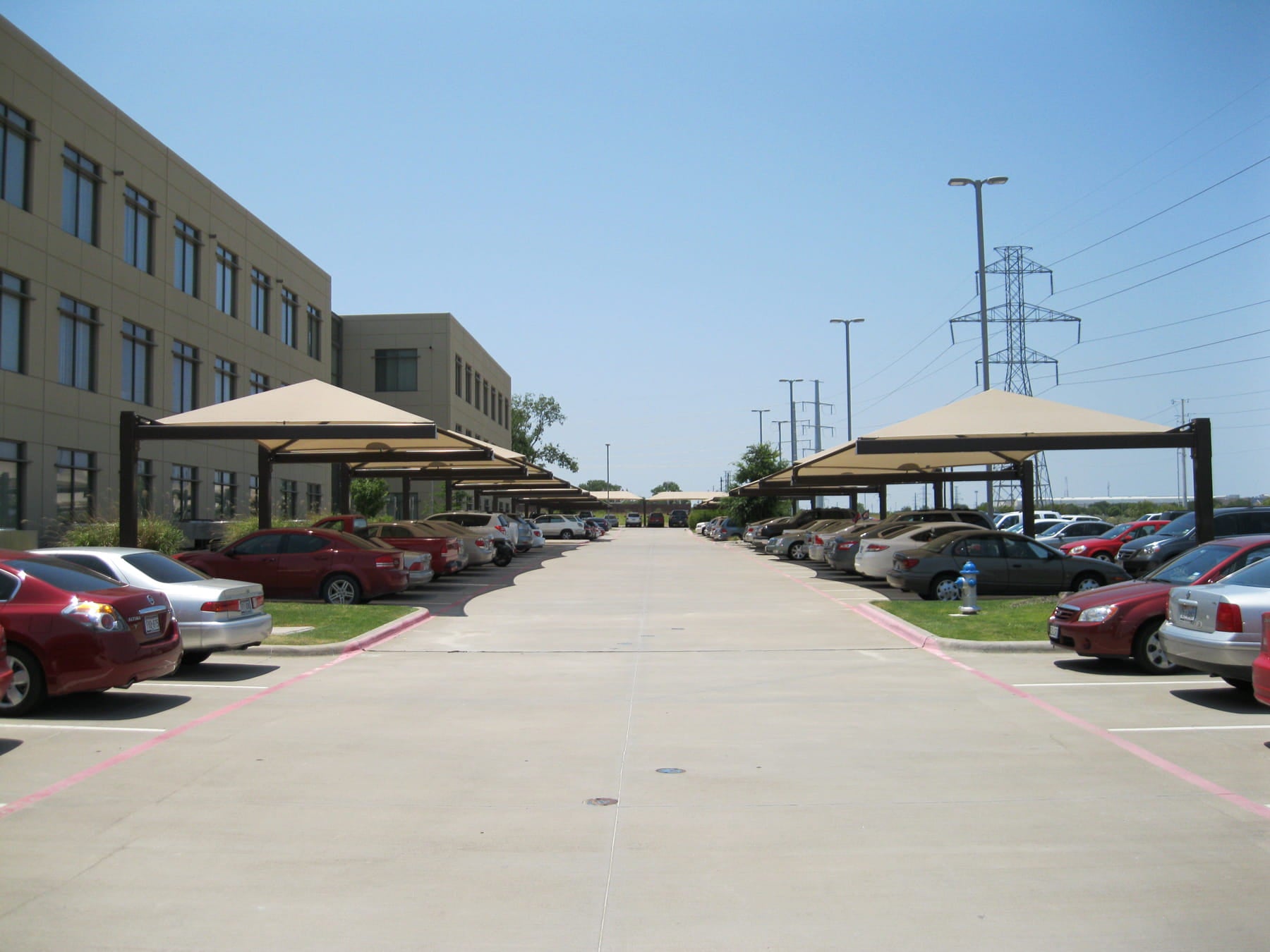

The Full Hip Cantilever was originally built around automotive use — covering vehicles without columns interrupting parking rows — but the column-free design translates to any setting where obstructions underneath the canopy cause problems. Golf facilities use it over cart staging areas and entrance zones. Skate parks and recreation facilities use it over spectator seating. Pool decks and outdoor dining areas benefit from the unobstructed sightlines.
The Quick Release (QRE) option allows the fabric to be removed quickly ahead of expected high winds or heavy snowfall, protecting the structure during severe weather. A coastal primer option is available for properties in salt spray or high-humidity coastal environments.
Carport Canopy Sizes, Configurations, and Quick Ship Options
Quick Ship sizes are made to your specifications in 4 weeks. Available configurations:
-
Length: 16 to 40 feet (incremental whole-foot sizing)
-
Width: 10, 15, 18, or 20 feet
-
Entry height: 8 to 12 feet

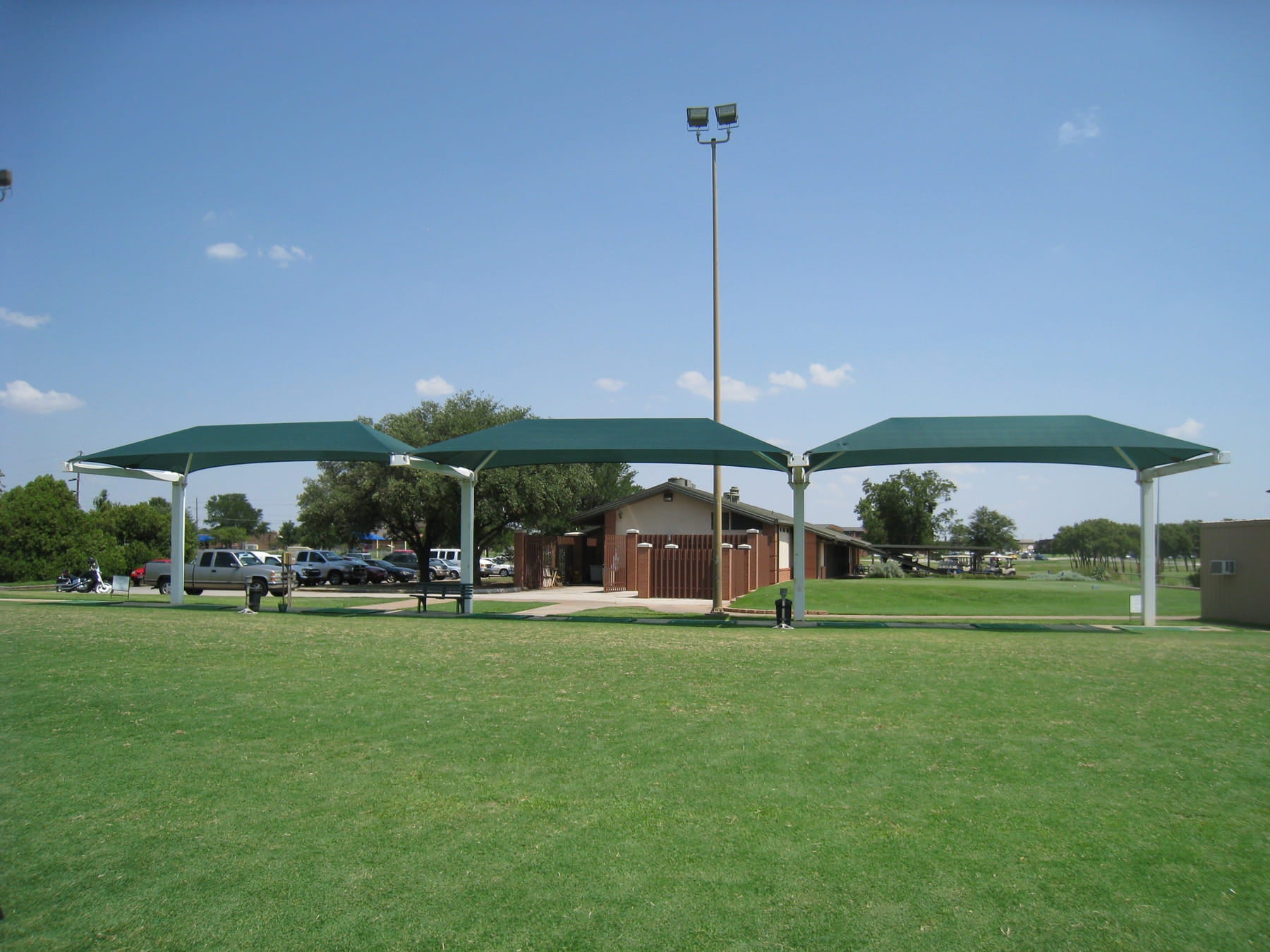

Joined and double-wide configurations are available for properties that need expanded coverage across longer spans or wider areas. These options allow multiple cantilever units to connect into a single coordinated system without additional posts breaking up the covered space. If your project calls for a different cantilever form, the Tri-Truss Cantilever [CROSS-LINK] and Hip T-Cantilever [CROSS-LINK] are worth comparing alongside this option.

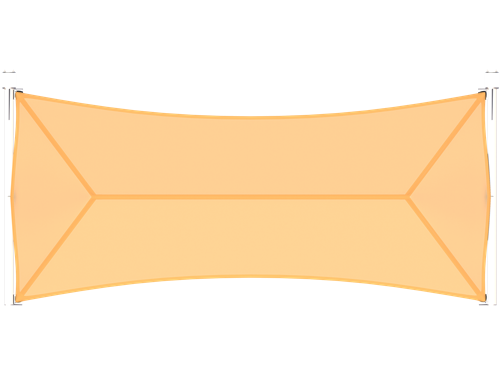

Cantilever Hip Roof Shade Structure Fabric and Finish Options
Shadesure™ is the standard fabric, available in 20 colors with shade factors and UV blocking figures listed on each color swatch. Colourshade® FR is a fire-rated fabric approved by California's Division of the State Architect (DSA), available in 7 colors for California school projects and other DSA-regulated installations.
Steel post colors are available in Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, and Tele-Gray. Steel finish options include super durable TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, and combinations of galvanizing with powder coat or wet paint.
Technical Specifications
-
Frame material: Heavy-duty steel; UV-resistant powder coat finish
-
Wind rating: Engineered for 90 mph three-second wind gusts
-
Snow load: 5 PSF
-
Fabric: Shadesure™ HDPE — approximately 80% shade, up to 90% UV protection (see color swatch for exact figures)
-
Quick Ship length: 16 to 40 feet (incremental whole-foot sizing)
-
Quick Ship width: 10, 15, 18, or 20 feet
-
Entry heights: 8 to 12 feet
-
Lead time: Made to spec in 4 weeks
-
Options: Quick Release (QRE) fabric removal system; joined and double-wide configurations available
-
Fabric options: Shadesure™ (20 colors) / Colourshade® FR — fire-rated, DSA approved (7 colors)
-
Steel finishes: TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, galvanizing with powder coat or wet paint
-
Post colors: Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, Tele-Gray
-
Warranty: 10-year structural on steel; 10-year limited on fabric. See full warranty page for details.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor serving parks departments, school districts, property managers, and facilities directors across the United States.
