Hip Roof Shade Structure Built for Maximum Coverage with Minimal Complexity

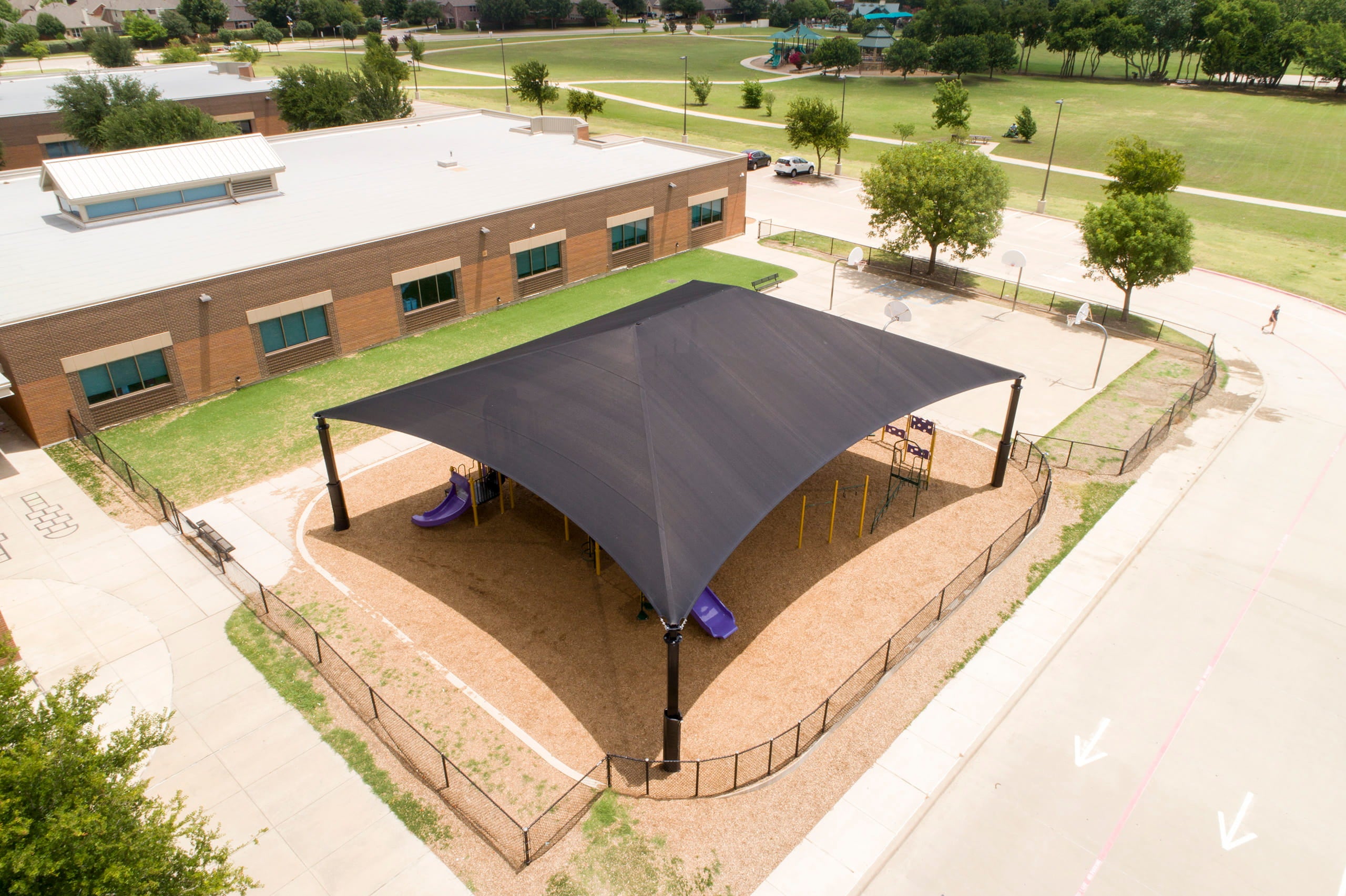

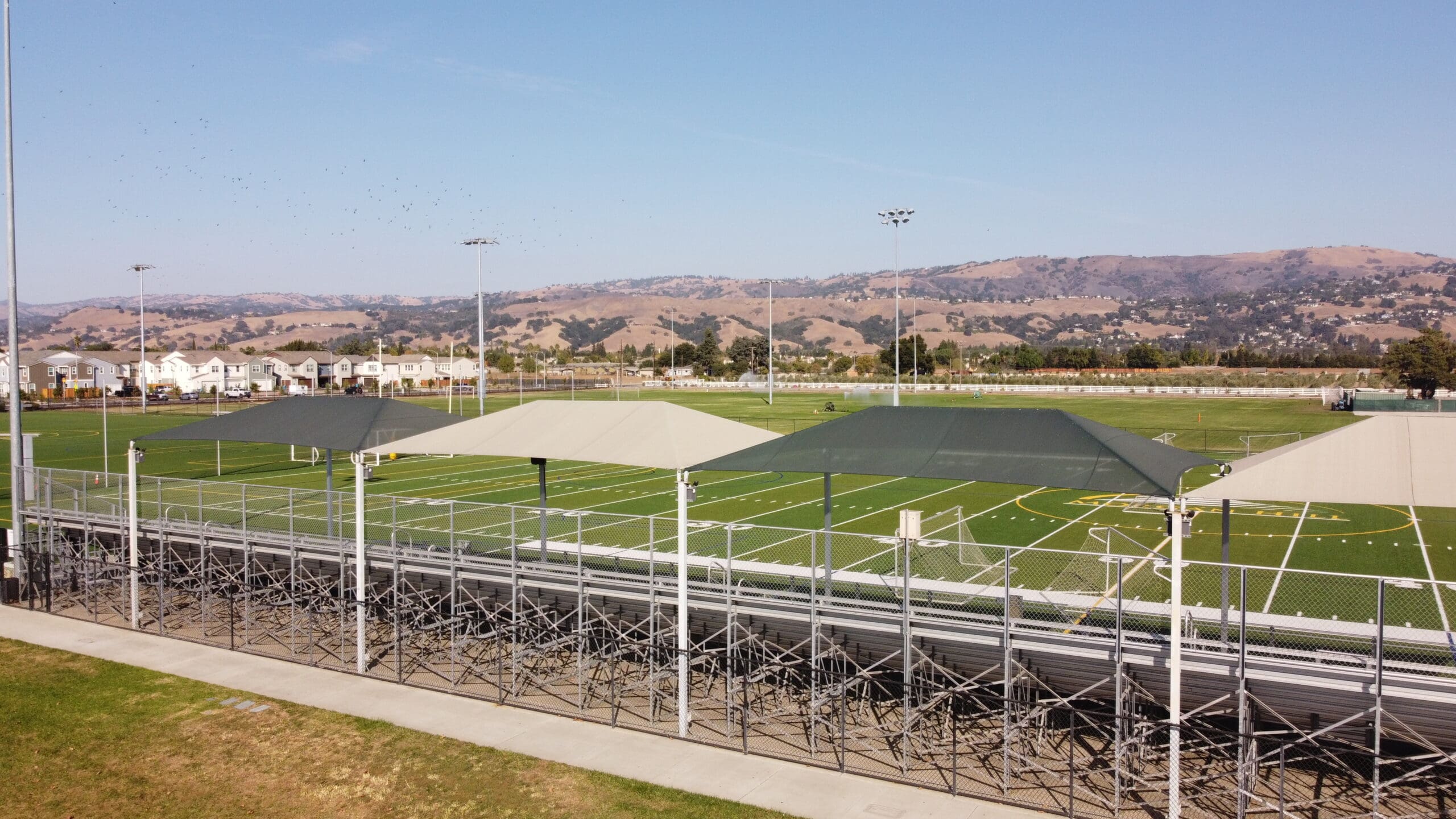

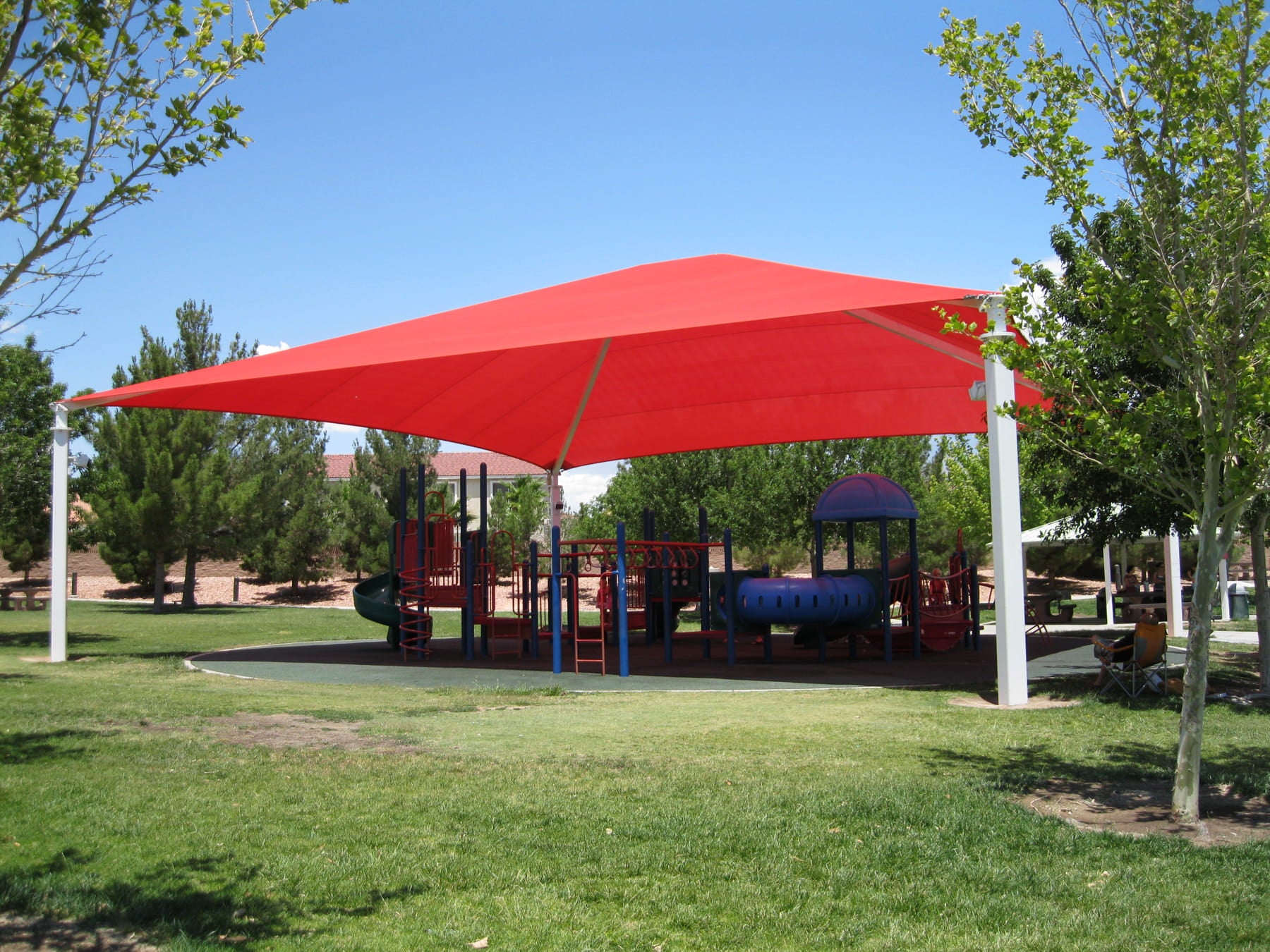

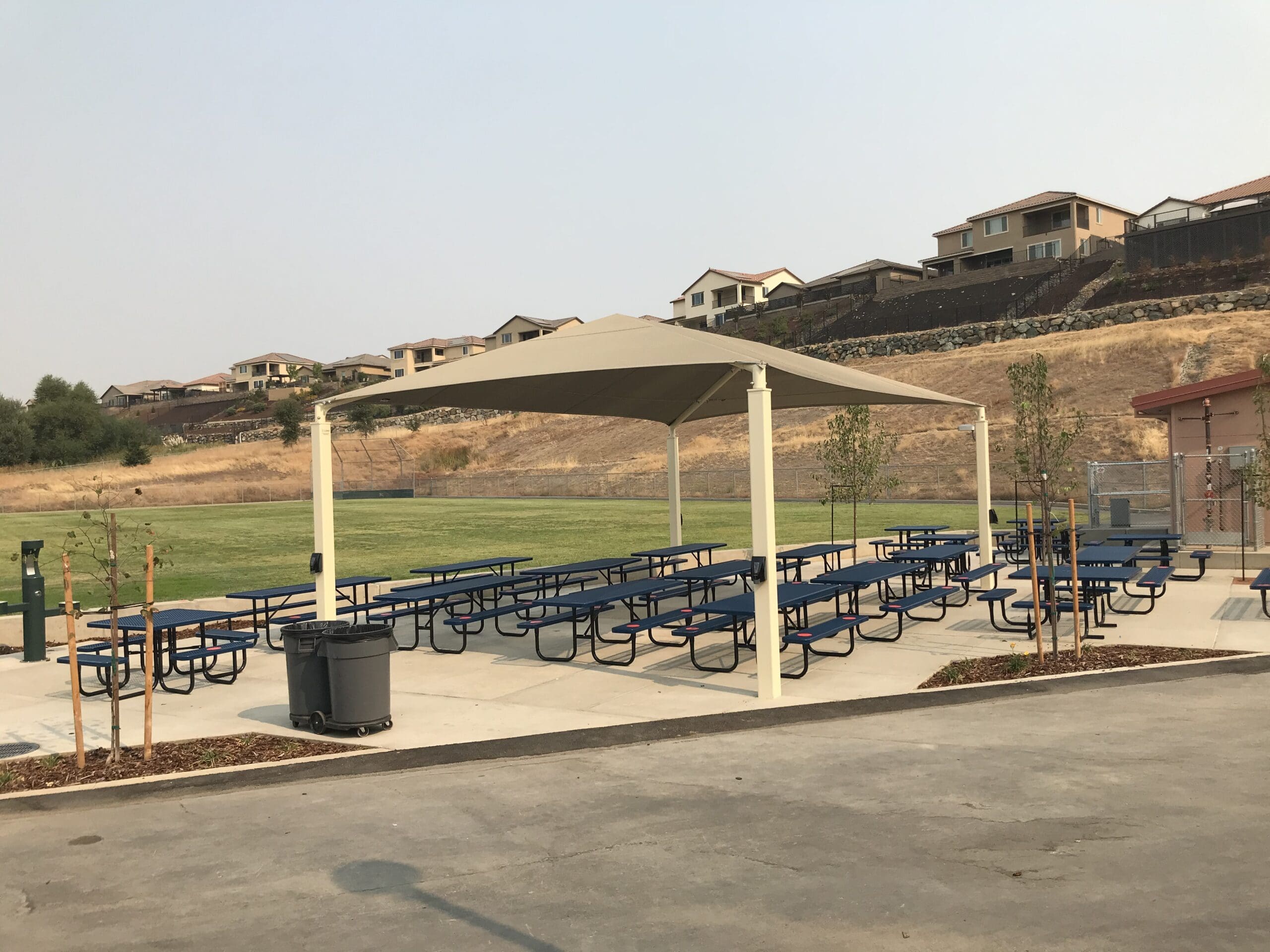

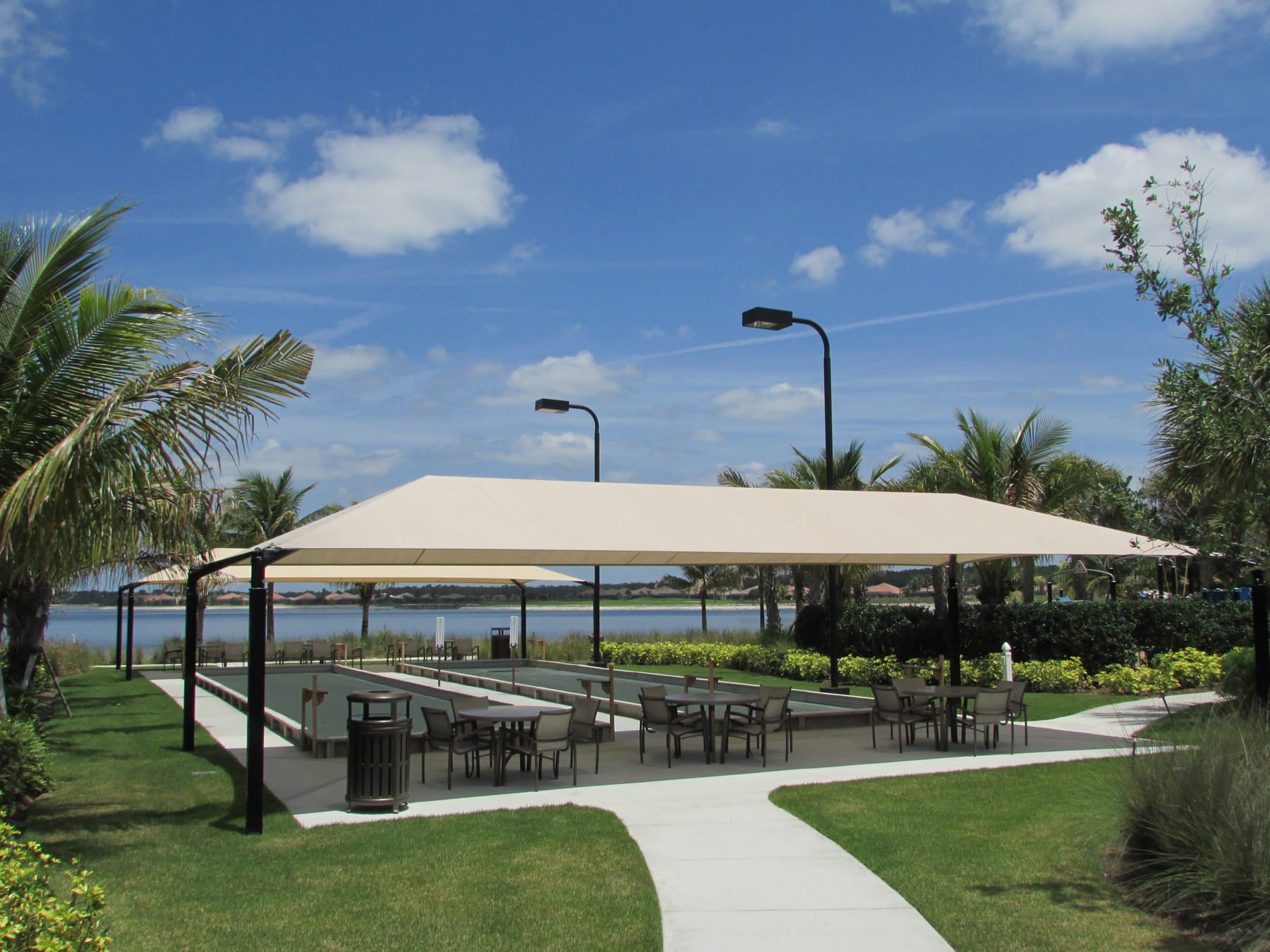

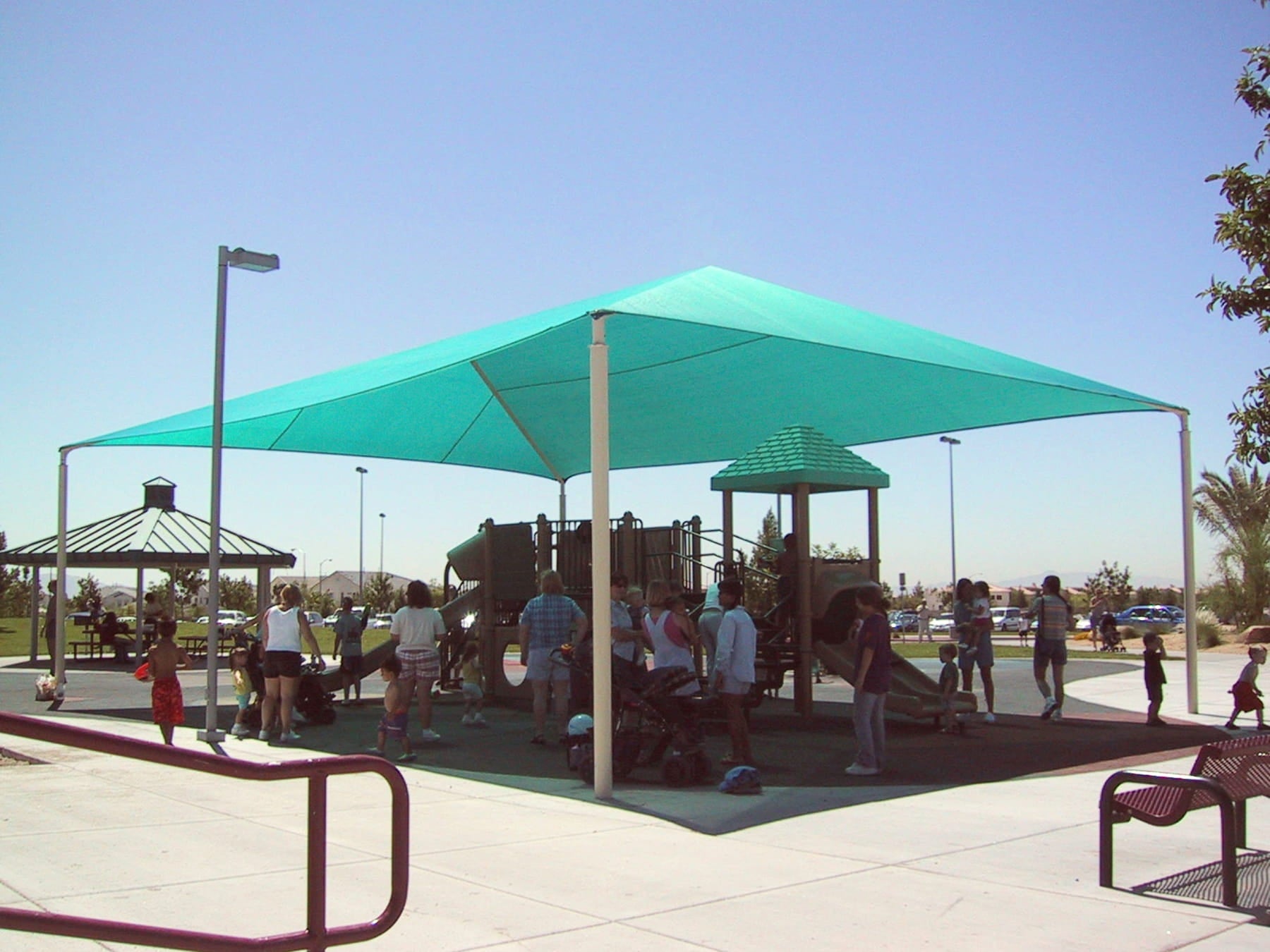

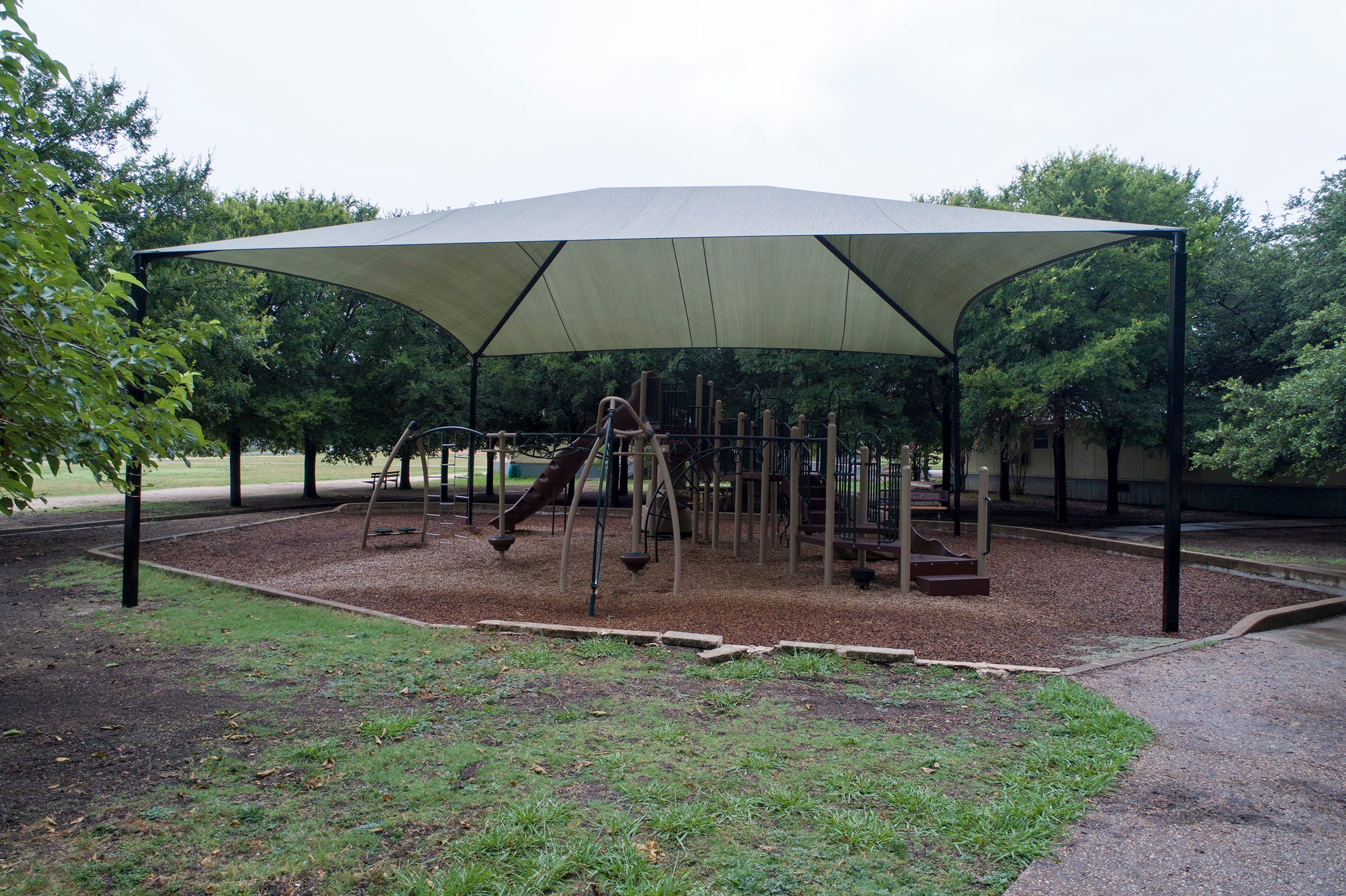

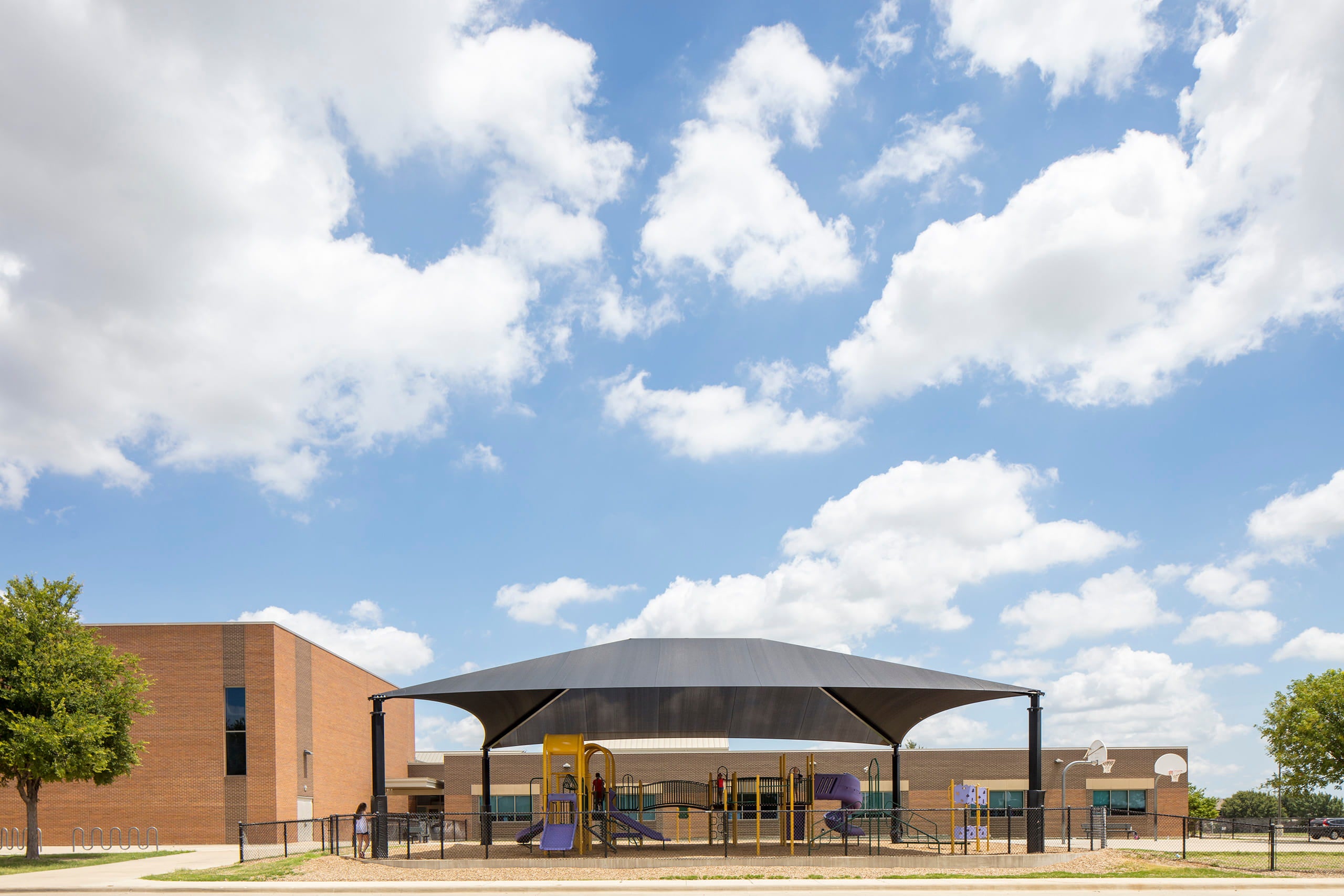

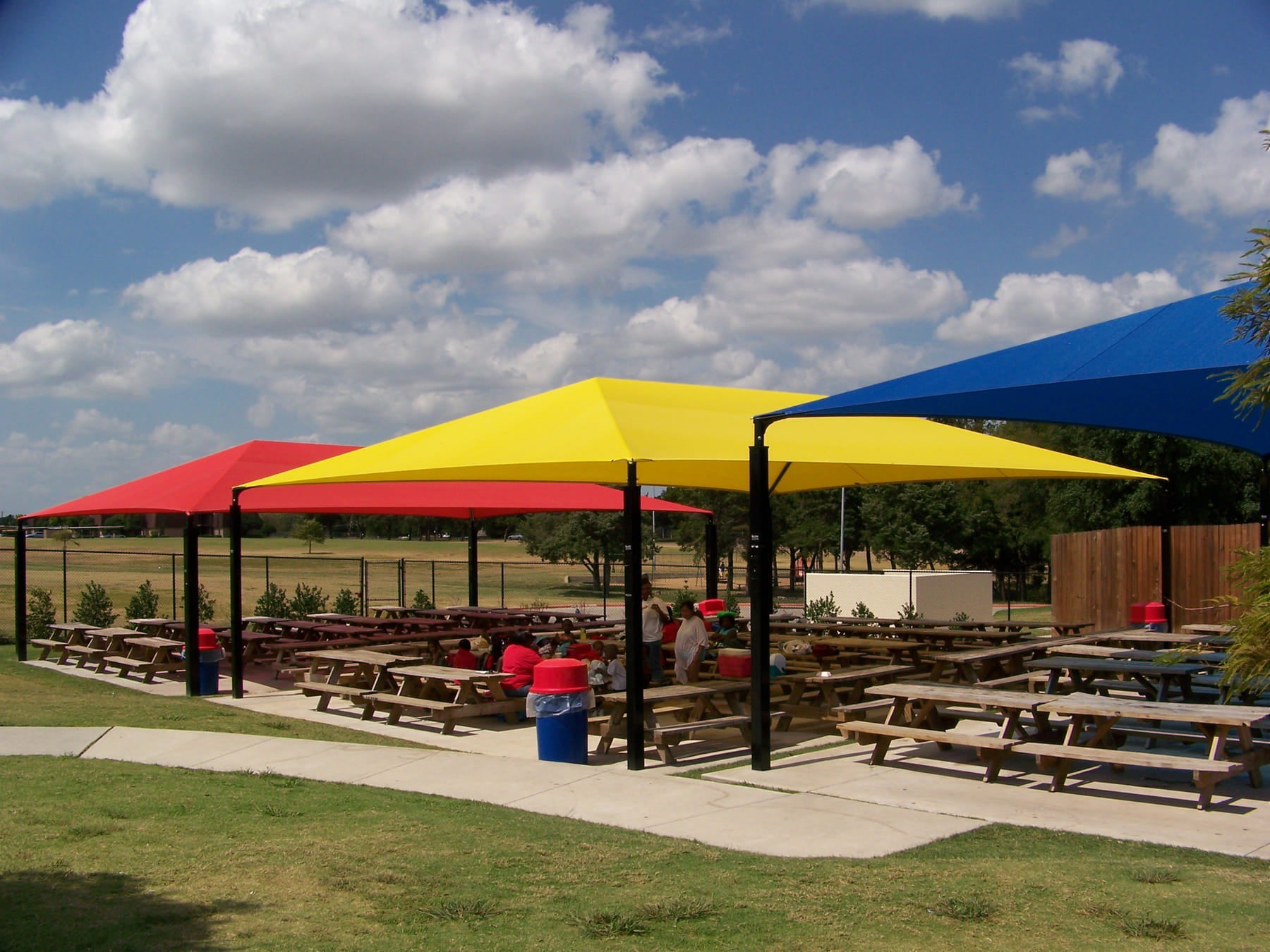

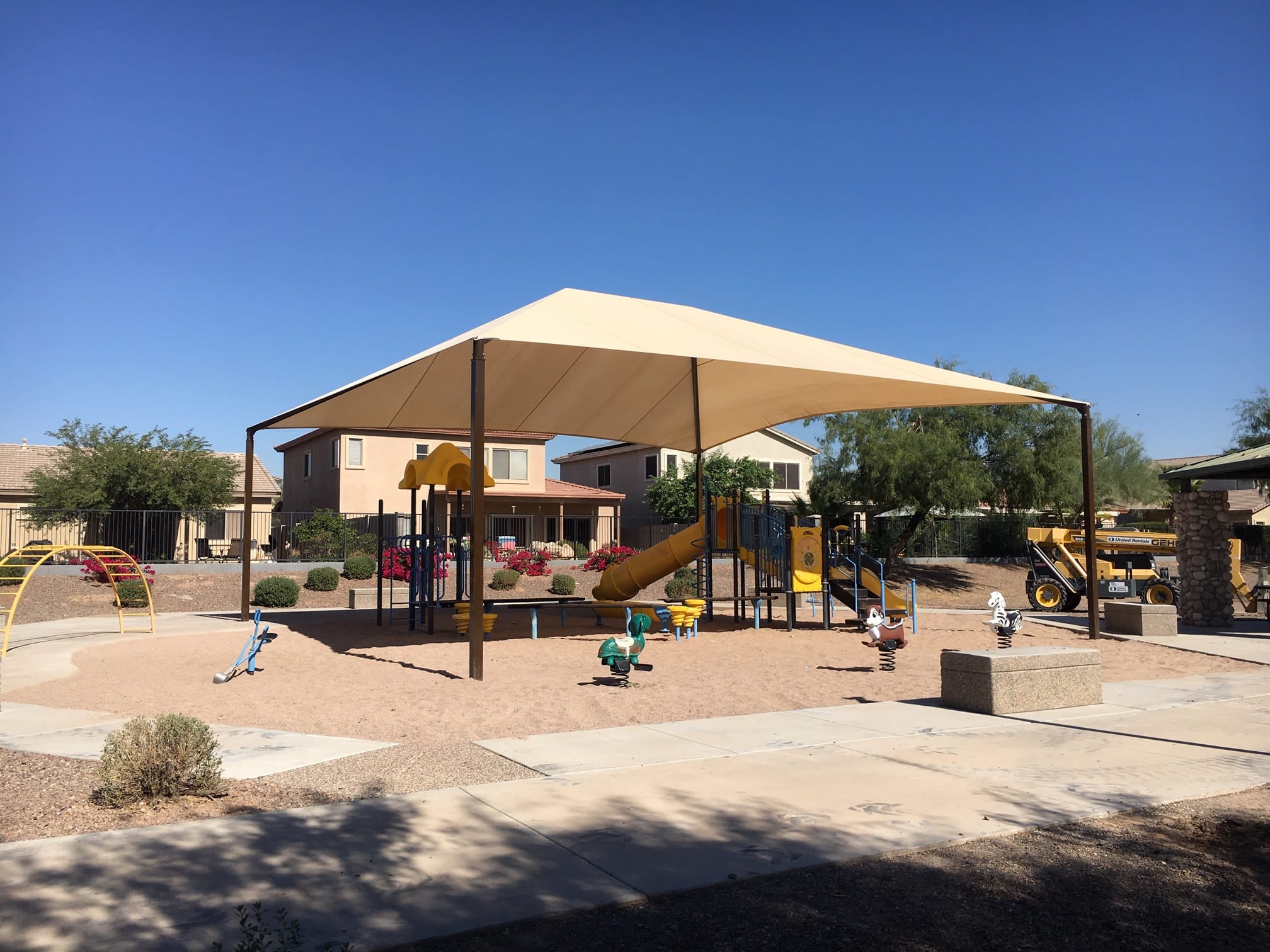

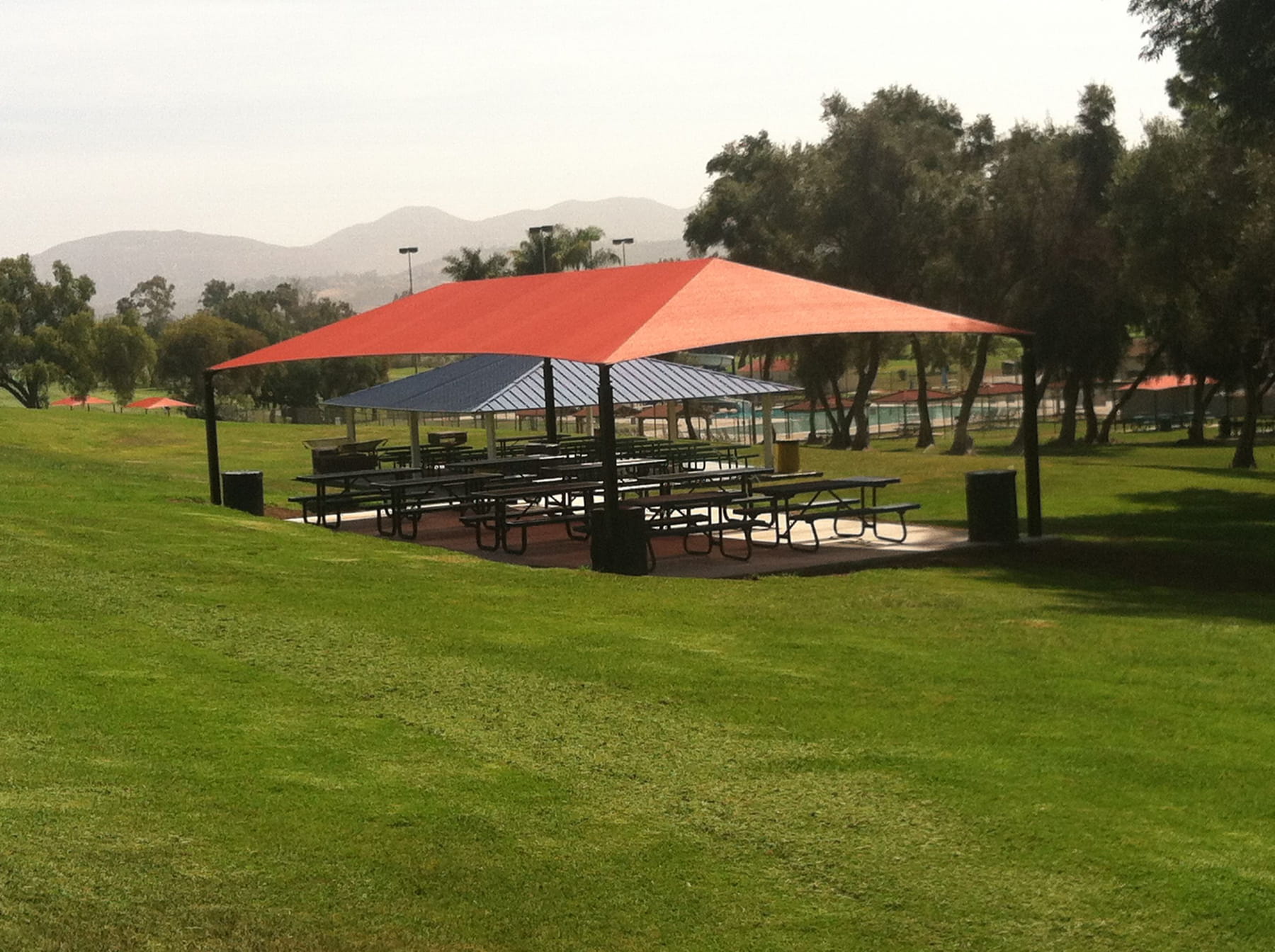

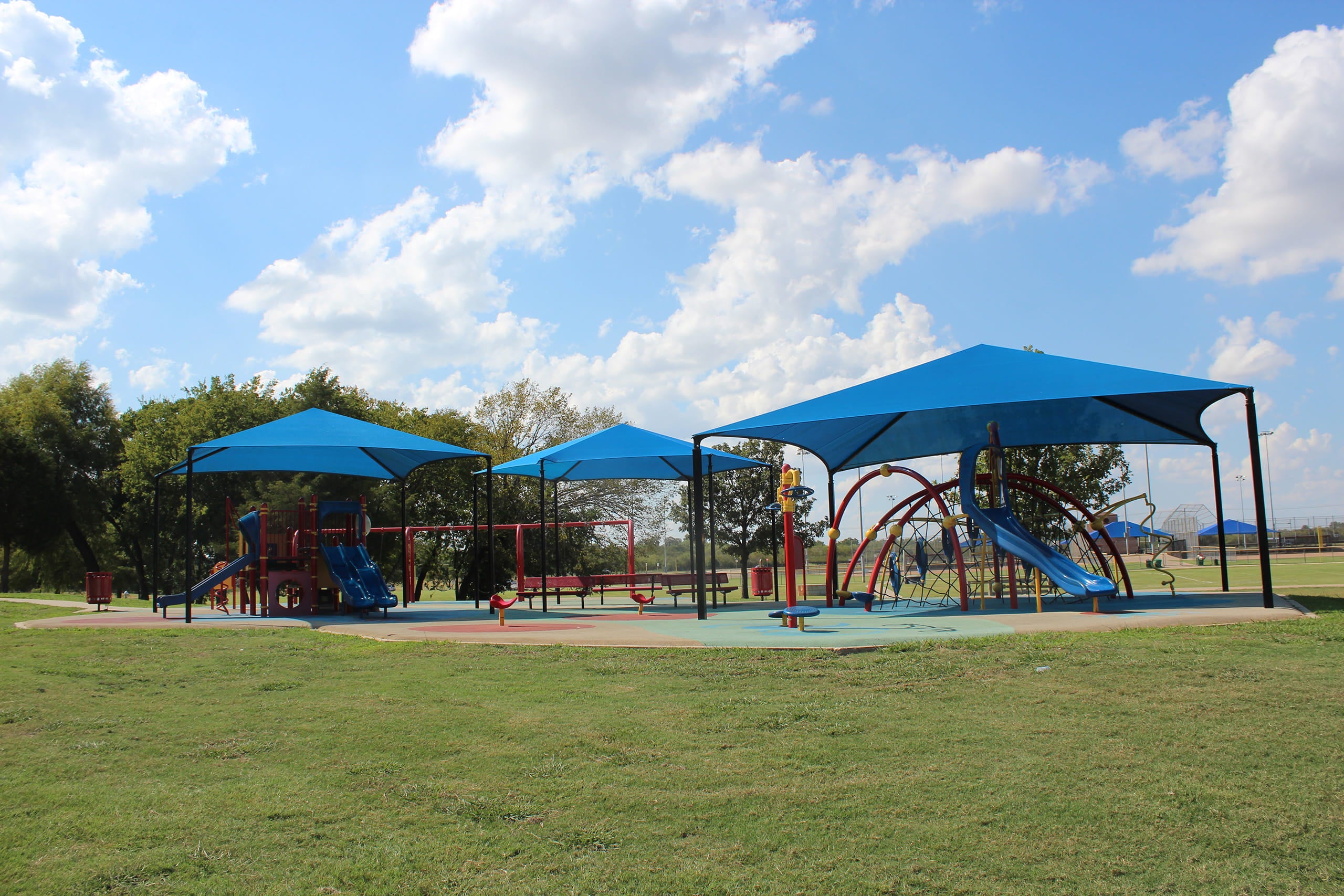

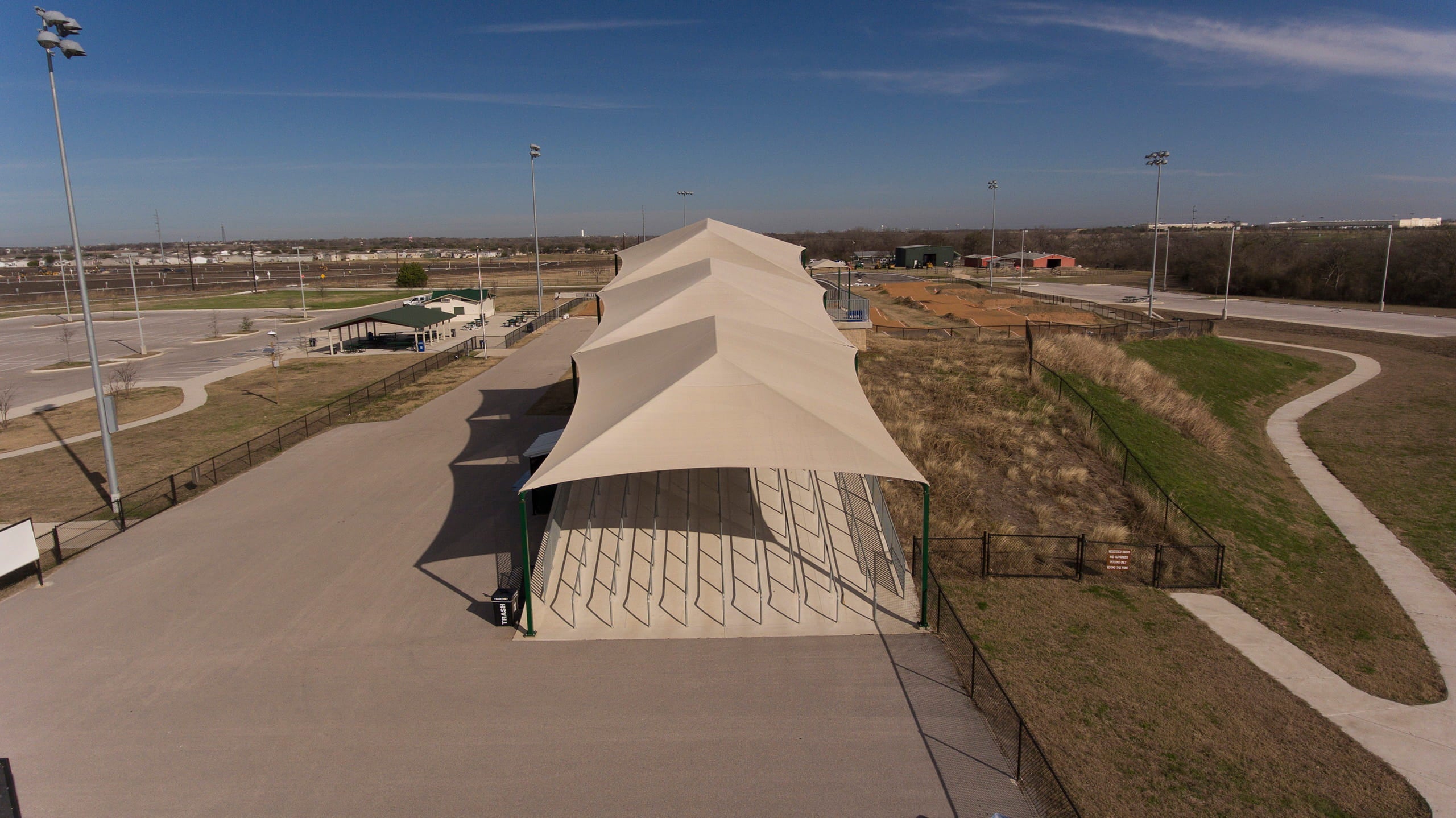

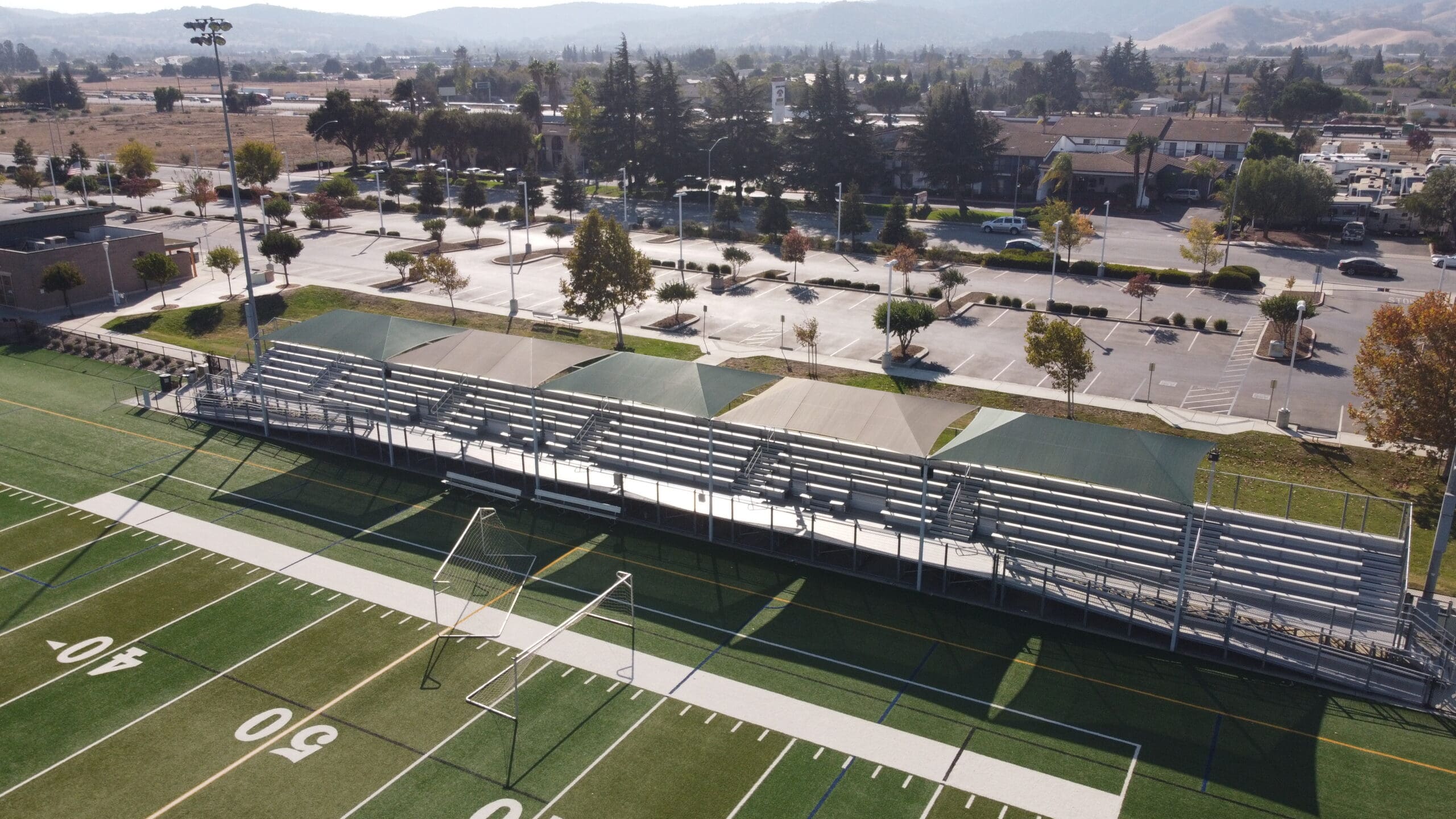

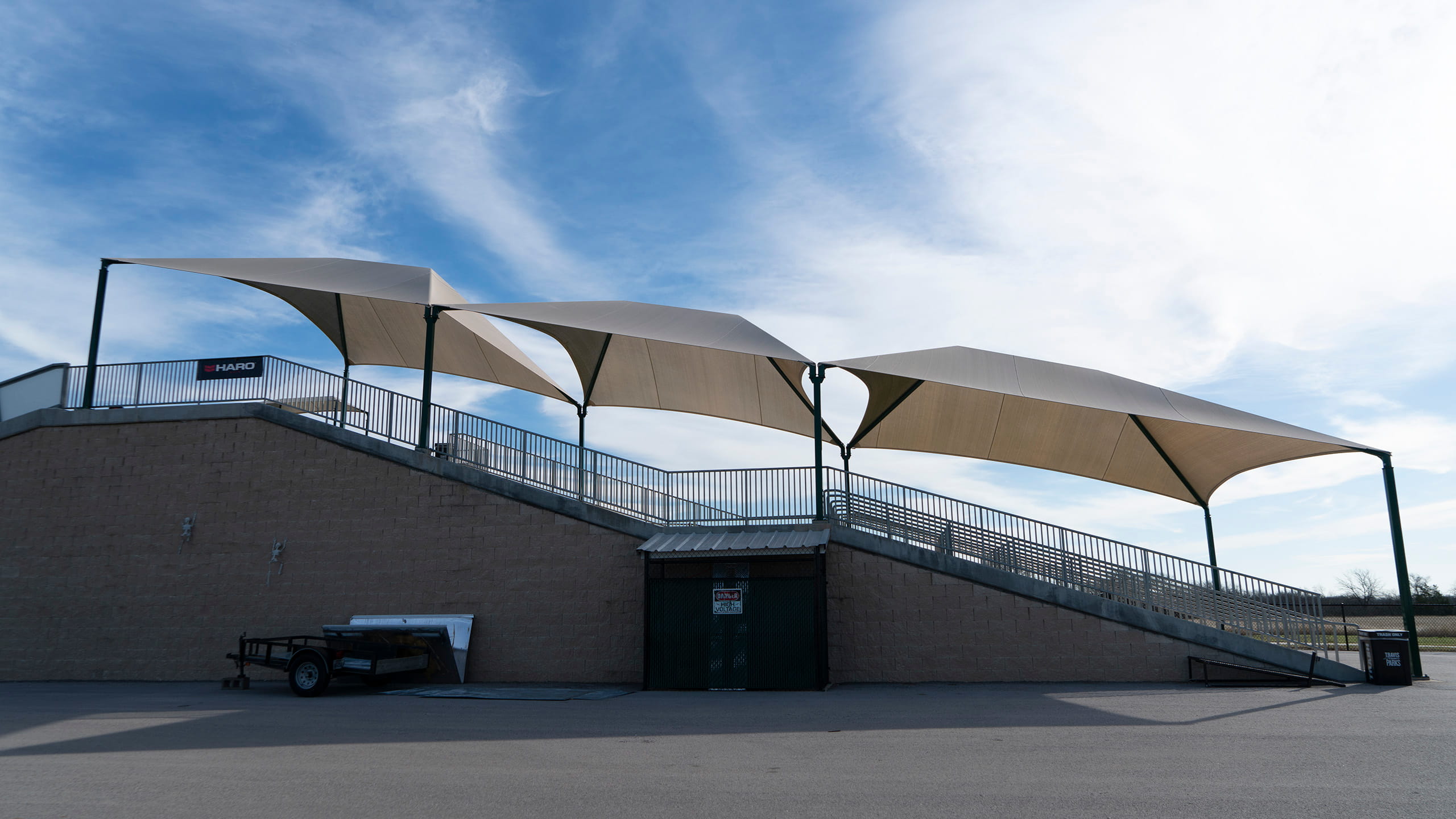

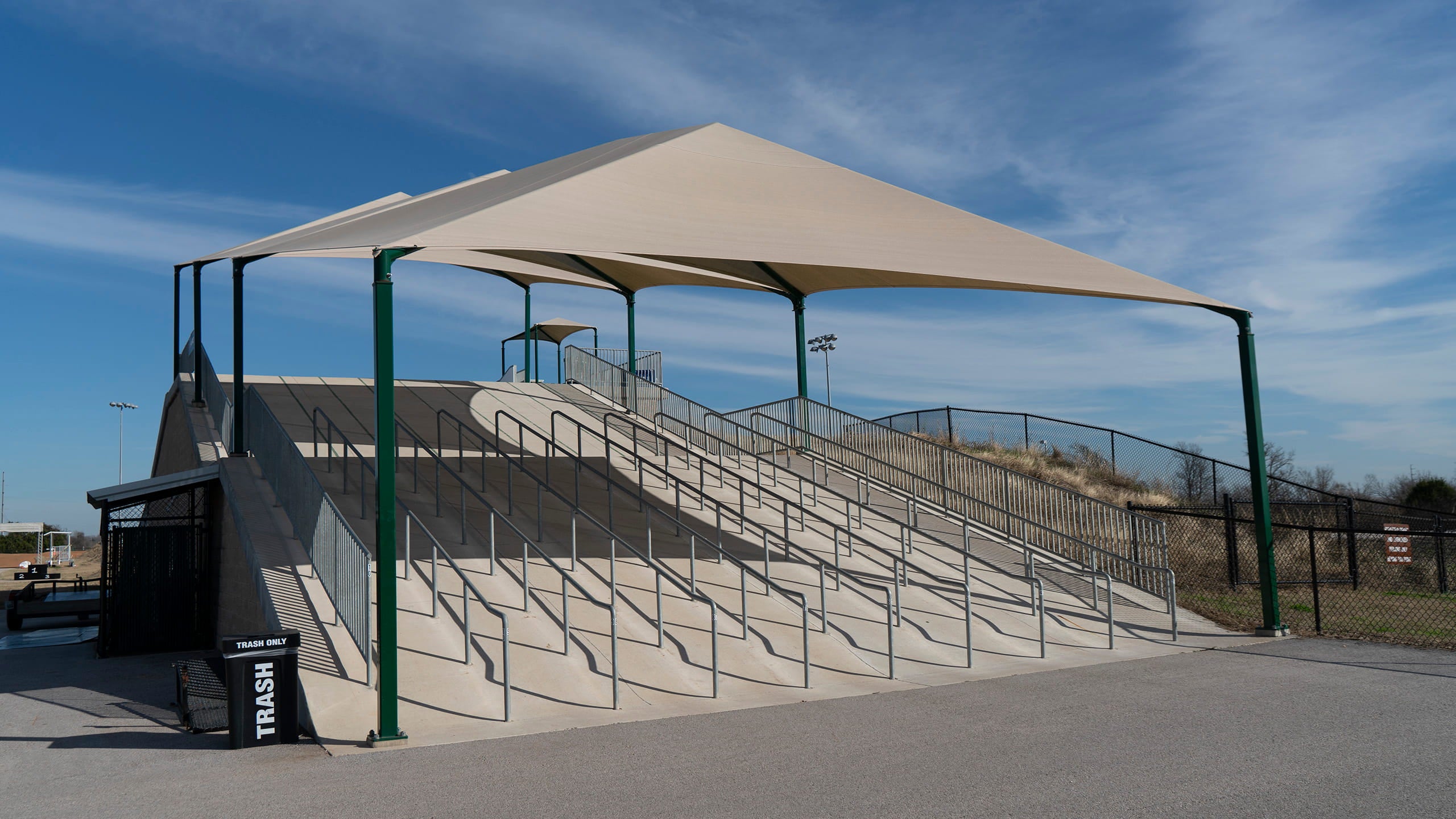

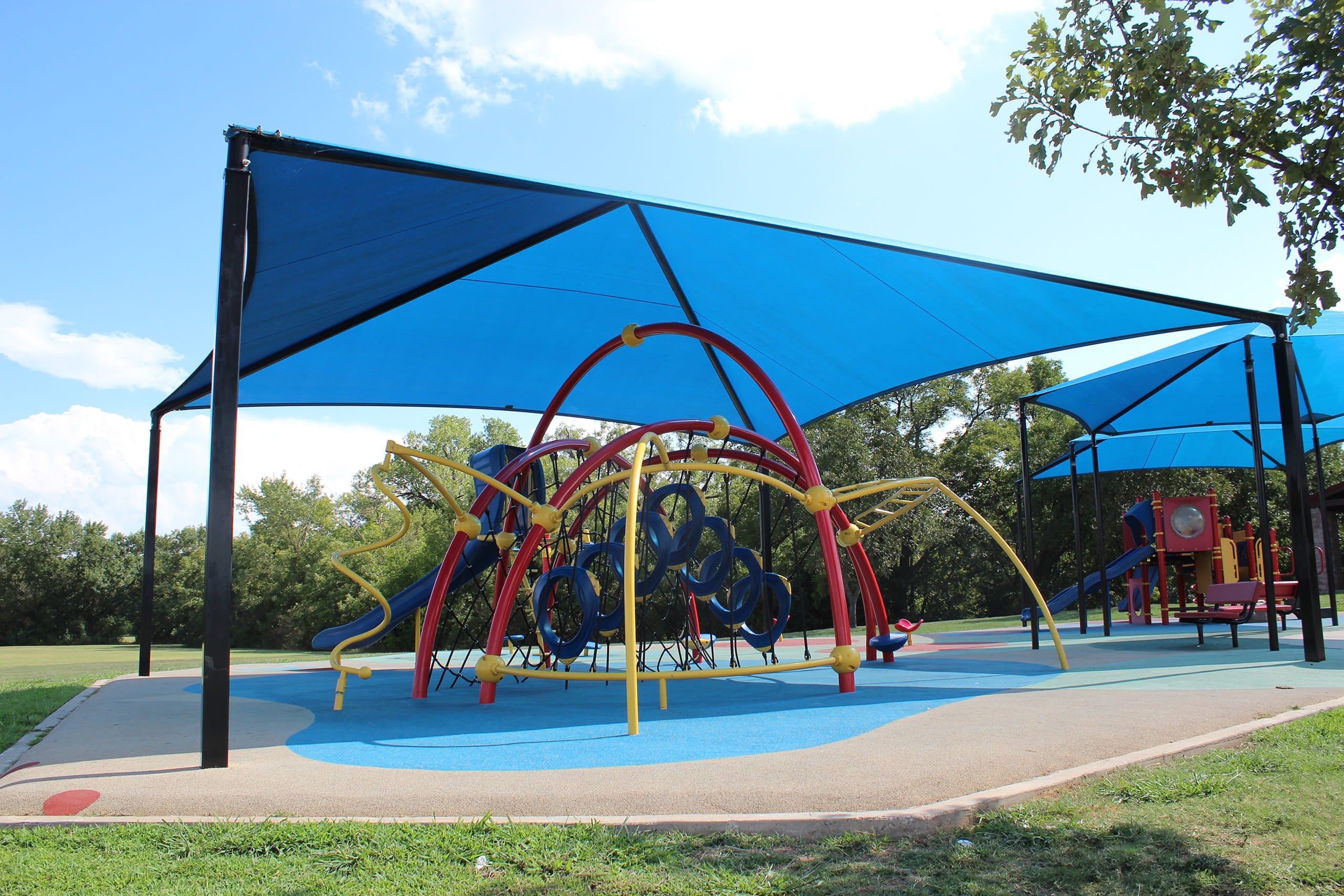

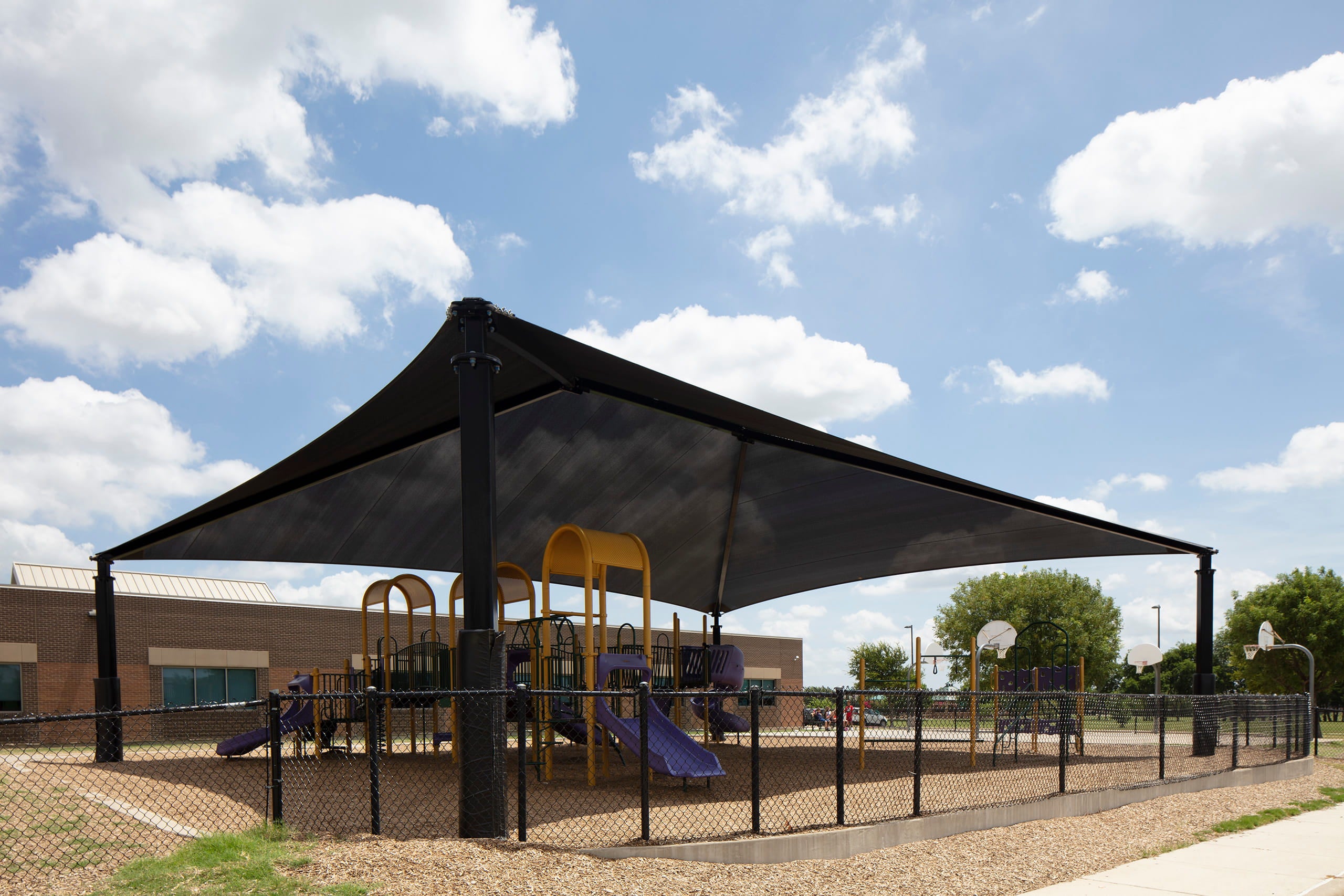

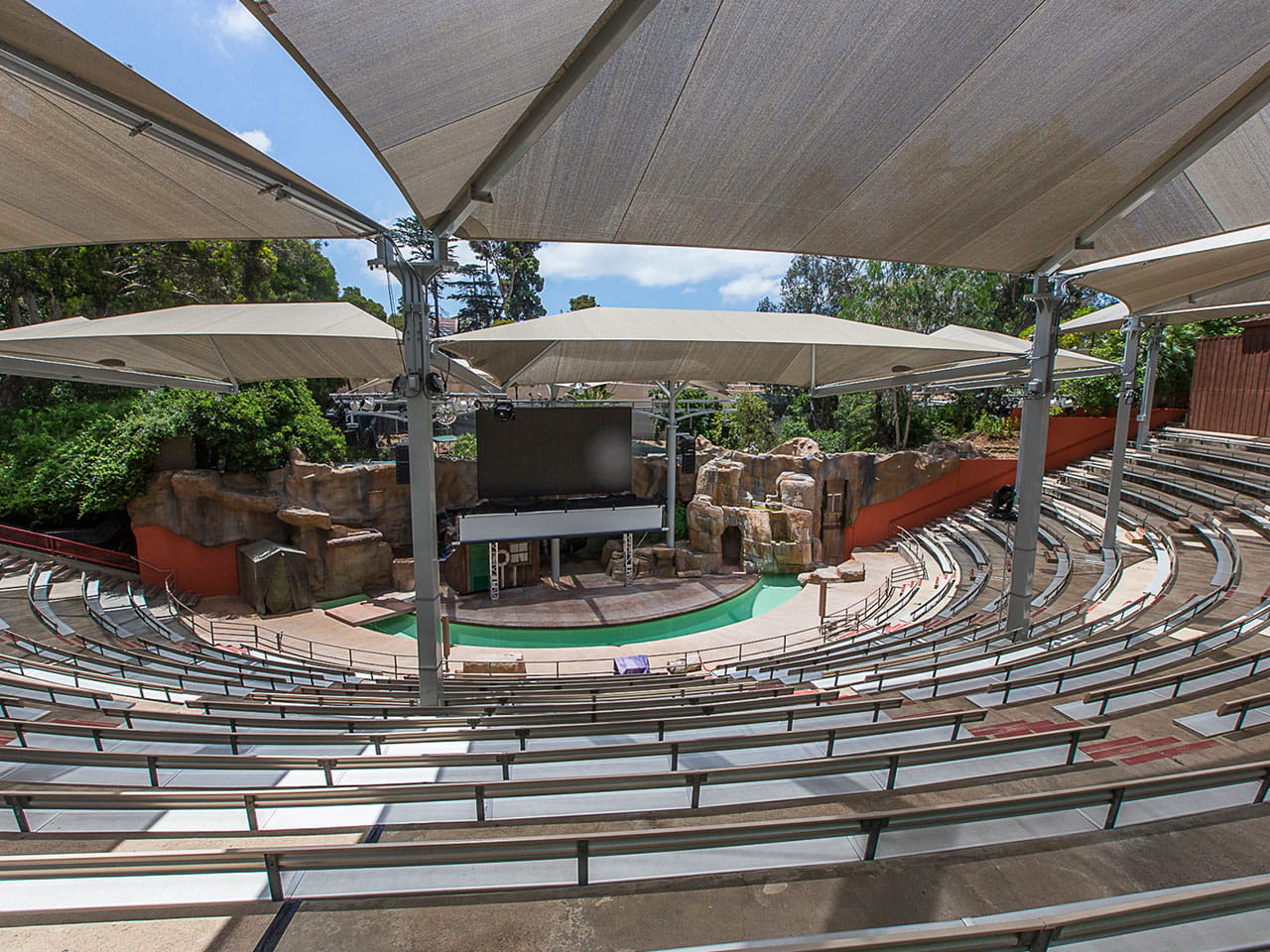

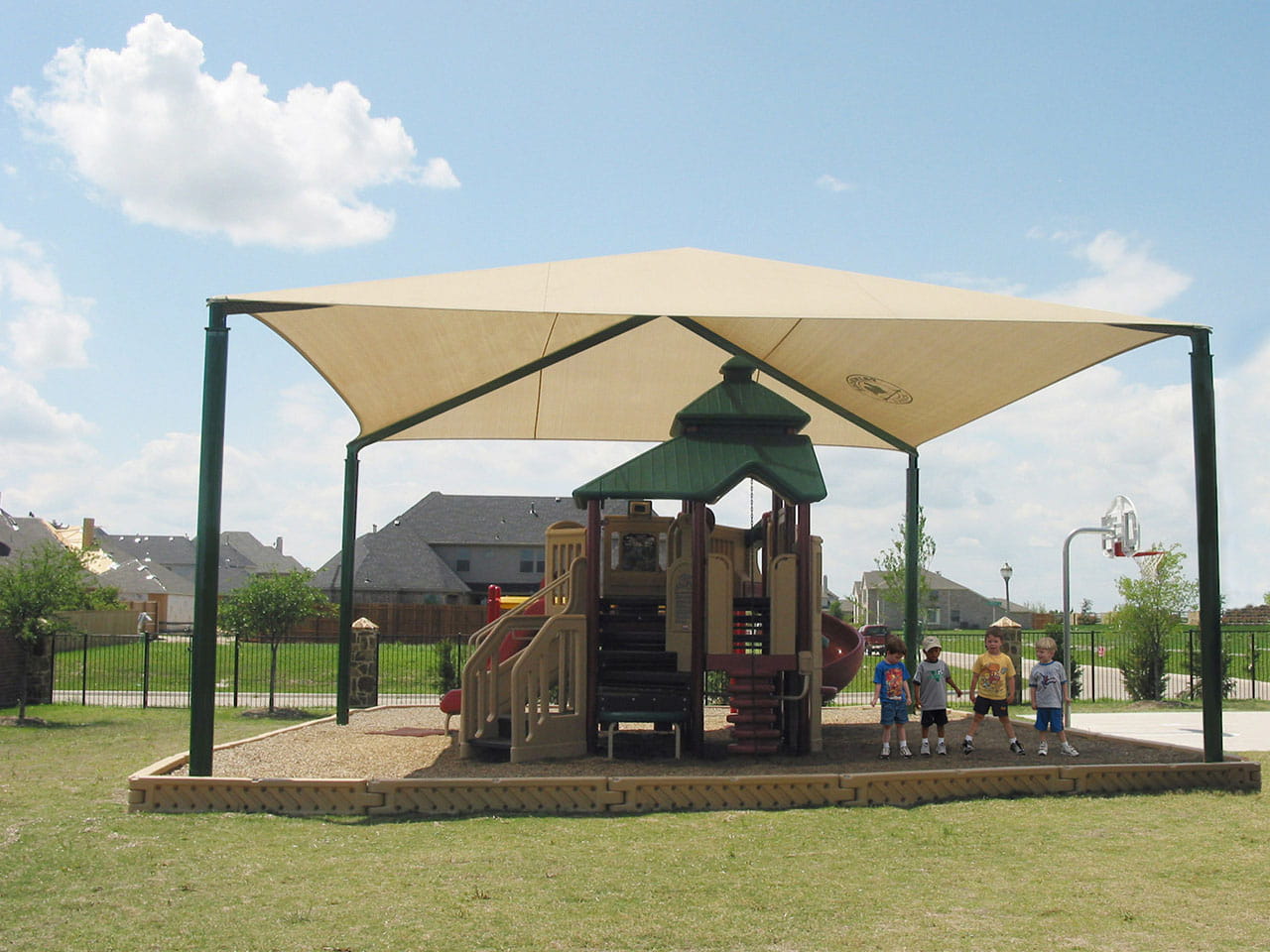

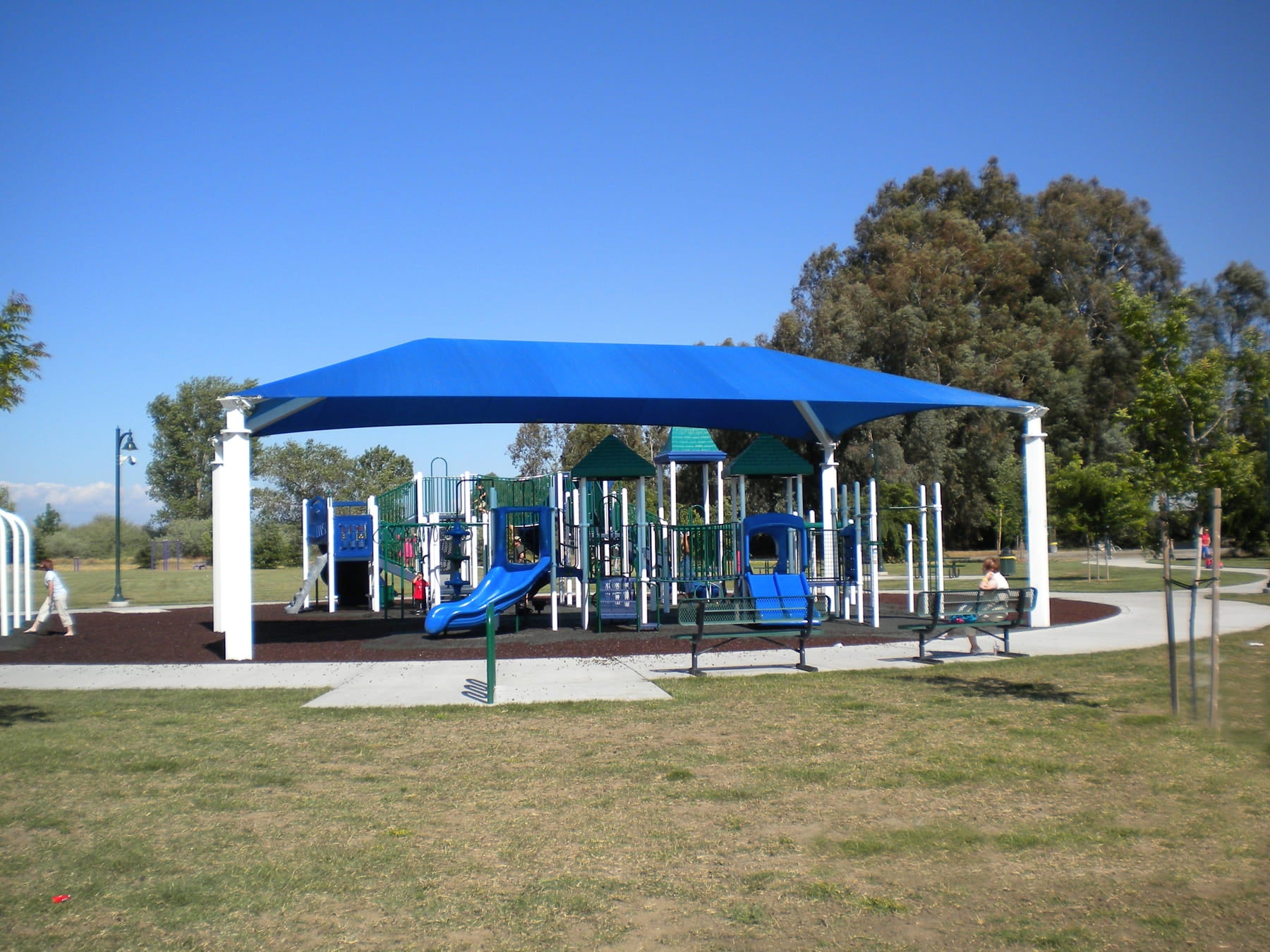

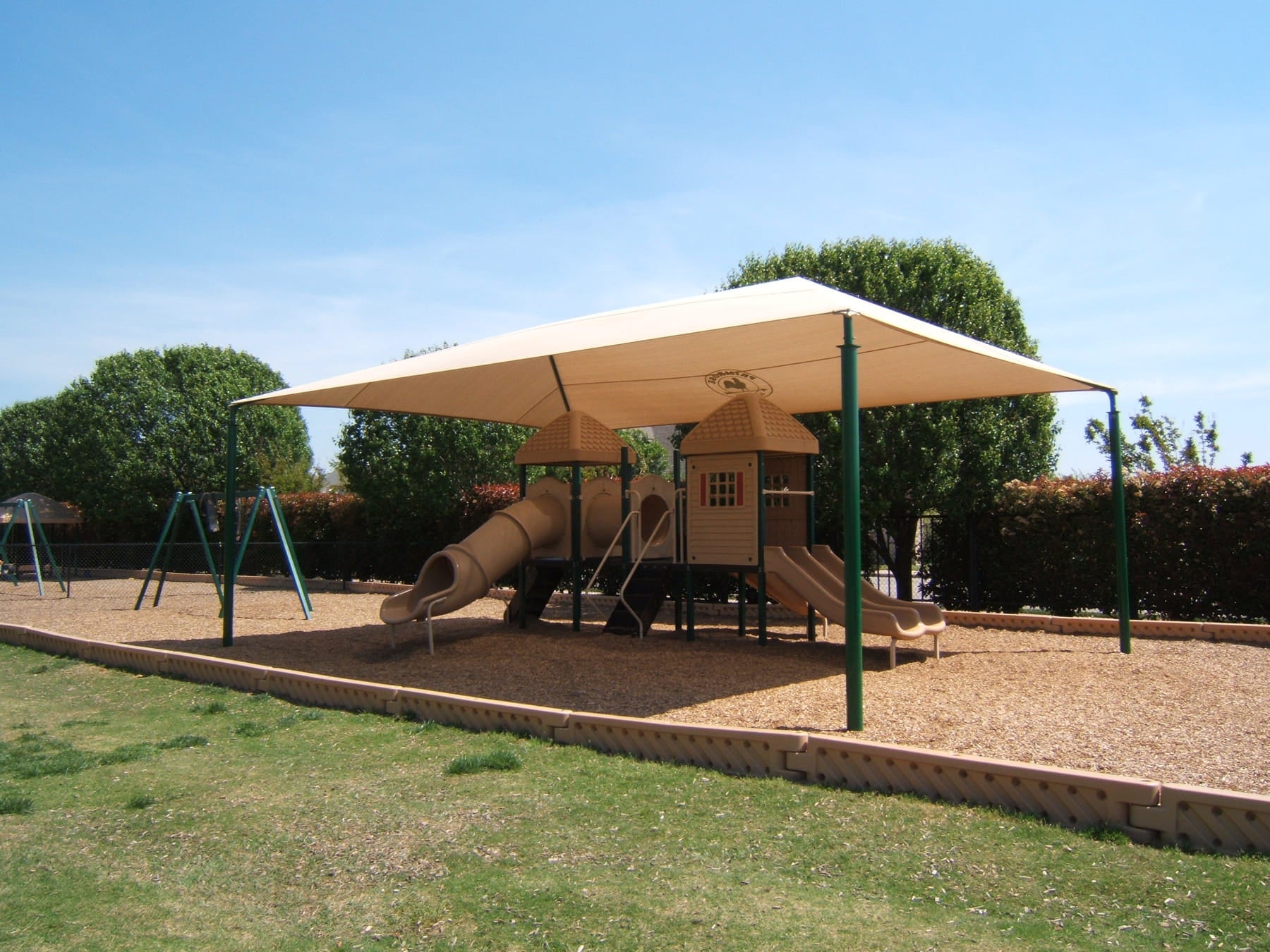

Your property gets straightforward, reliable shade coverage when it needs it most. The USA Shade Hip Roof Shade Structure is one of the most widely used commercial shade solutions available — a four-sided sloped canopy that sheds water in every direction, looks clean from all angles, and scales from a small 12x10 footprint all the way to 40x40 feet. Parks, playgrounds, sports facilities, BMX tracks, and commercial outdoor areas all use it where dependable coverage and simple installation matter.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor. All products are manufactured in the USA and backed by a 10-year structural warranty on steel and a 10-year limited fabric warranty. For larger span requirements, the Super Span Hip is worth reviewing. If your project needs a column-free footprint underneath, the Full Hip Cantilever is the alternative to compare.
4-Post Hip Shade Sizes, Entry Heights, and Quick Ship Options
Quick Ship sizes are made to your specifications in 4 weeks:
-
Size range: 12'x10' through 40'x40'
-
Entry heights: 8, 10, 12, and 14 feet

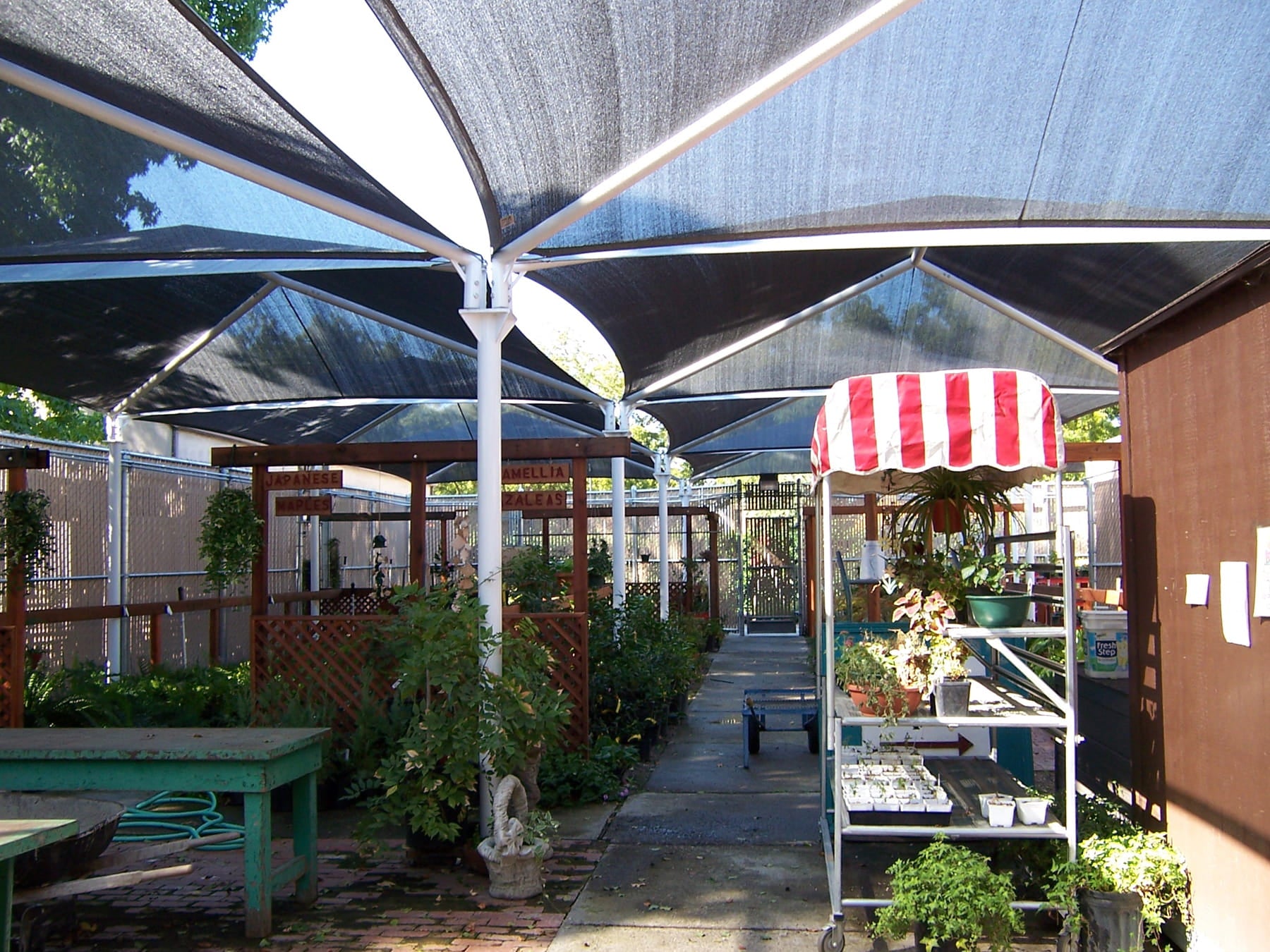

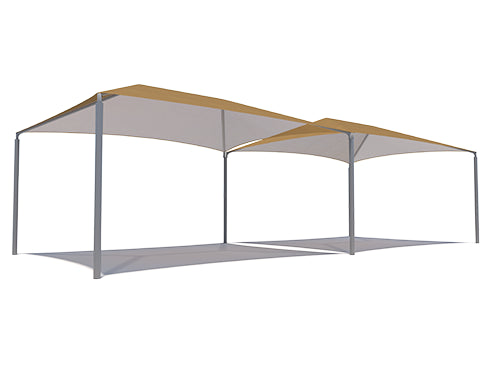

Double-wide and joined configurations are available for extended coverage across larger areas. The Quick Release (QRE) option allows the fabric to be removed quickly ahead of expected high winds or heavy snowfall.
Commercial Hip Shade Structure Built for Long-Term Outdoor Performance
The frame is engineered for 90 mph three-second wind gusts and a 5 PSF snow load — with the steel rated even higher when fabric is removed. Steel tubing is coated inside and out against rust, finished with a thick UV-resistant powder coat, and assembled with reinforced joints and sealed welds. All hardware is high-strength and rated for outdoor use. A coastal primer option is available for salt spray environments.
Shadesure™ is the standard fabric, available in 20 colors with approximately 80% shade and up to 90% UV protection (see color swatch for exact figures). Colourshade® FR is a fire-rated fabric approved by California's Division of the State Architect (DSA), available in 7 colors for California school projects and other DSA-regulated installations.
Steel post colors are available in Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, and Tele-Gray. Steel finish options include super durable TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, and combinations of galvanizing with powder coat or wet paint.
Technical Specifications
-
Frame material: Heavy-duty steel tubing, coated inside and out; UV-resistant powder coat finish
-
Wind rating: 90 mph three-second wind gusts (with fabric); steel frame rated higher with fabric removed
-
Snow load: 5 PSF
-
Fabric: Shadesure™ HDPE — approximately 80% shade, up to 90% UV protection (see color swatch for exact figures)
-
Quick Ship size range: 12'x10' through 40'x40' — made to spec in 4 weeks
-
Entry heights: 8, 10, 12, and 14 feet
-
Options: Quick Release (QRE), double-wide, and joined configurations
-
Fabric options: Shadesure™ (20 colors) / Colourshade® FR — fire-rated, DSA approved (7 colors)
-
Steel finishes: TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, galvanizing with powder coat or wet paint
-
Post colors: Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, Tele-Gray
-
Warranty: 10-year structural on steel; 10-year limited on fabric. See full warranty page for details.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor serving parks departments, school districts, property managers, and facilities directors across the United States.
