Multi Panel Pyramid Shade That Parks Departments and School Districts Trust

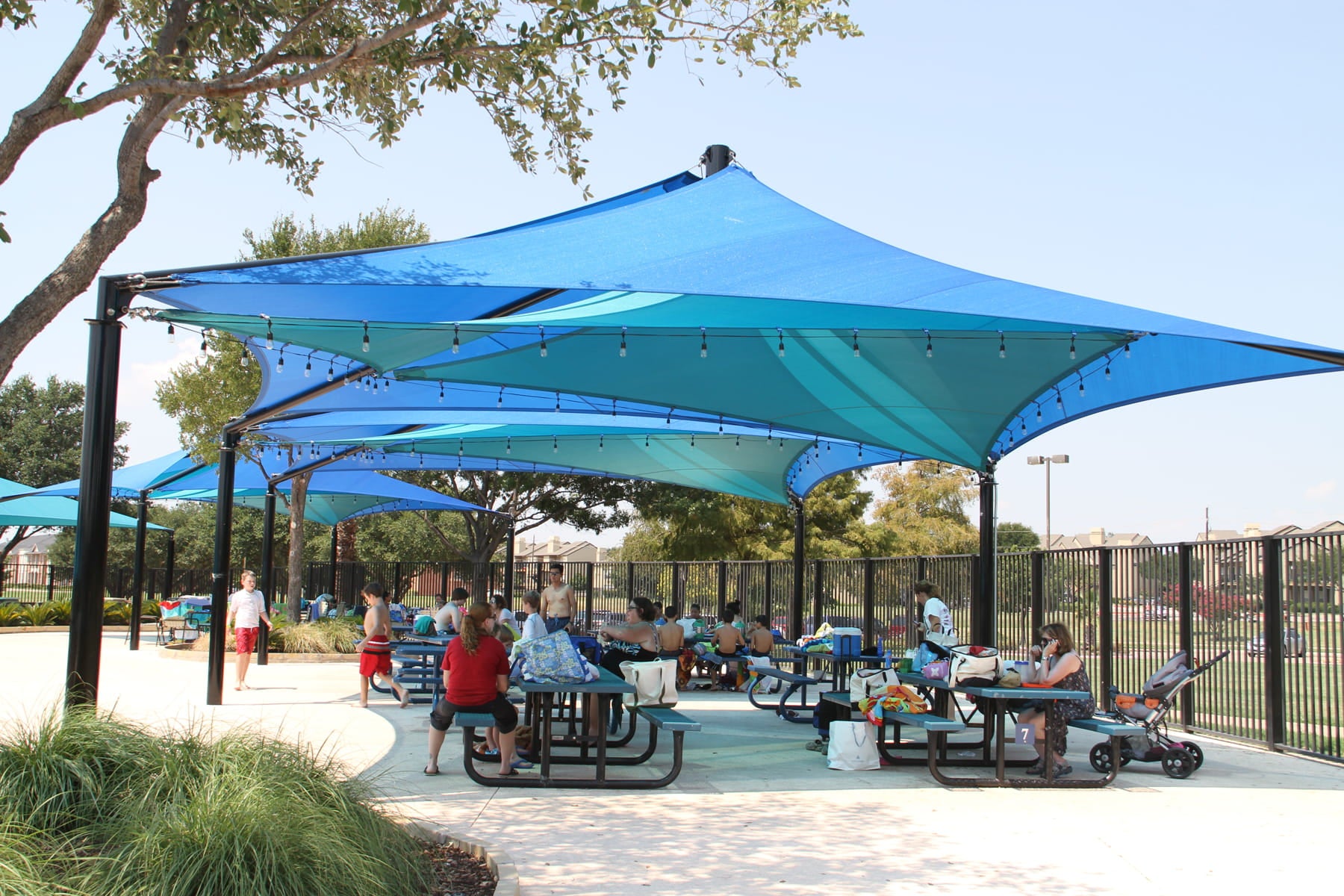

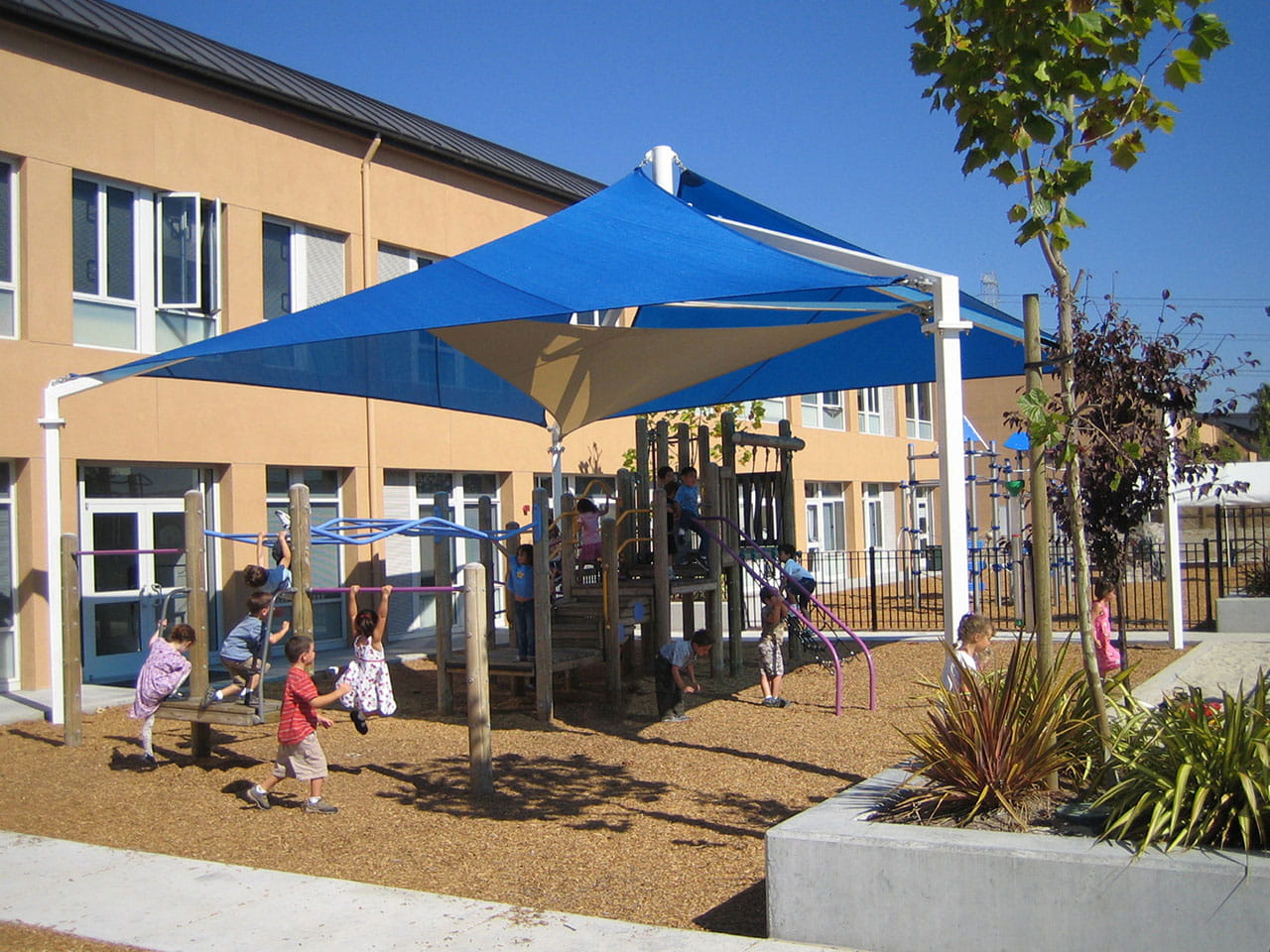

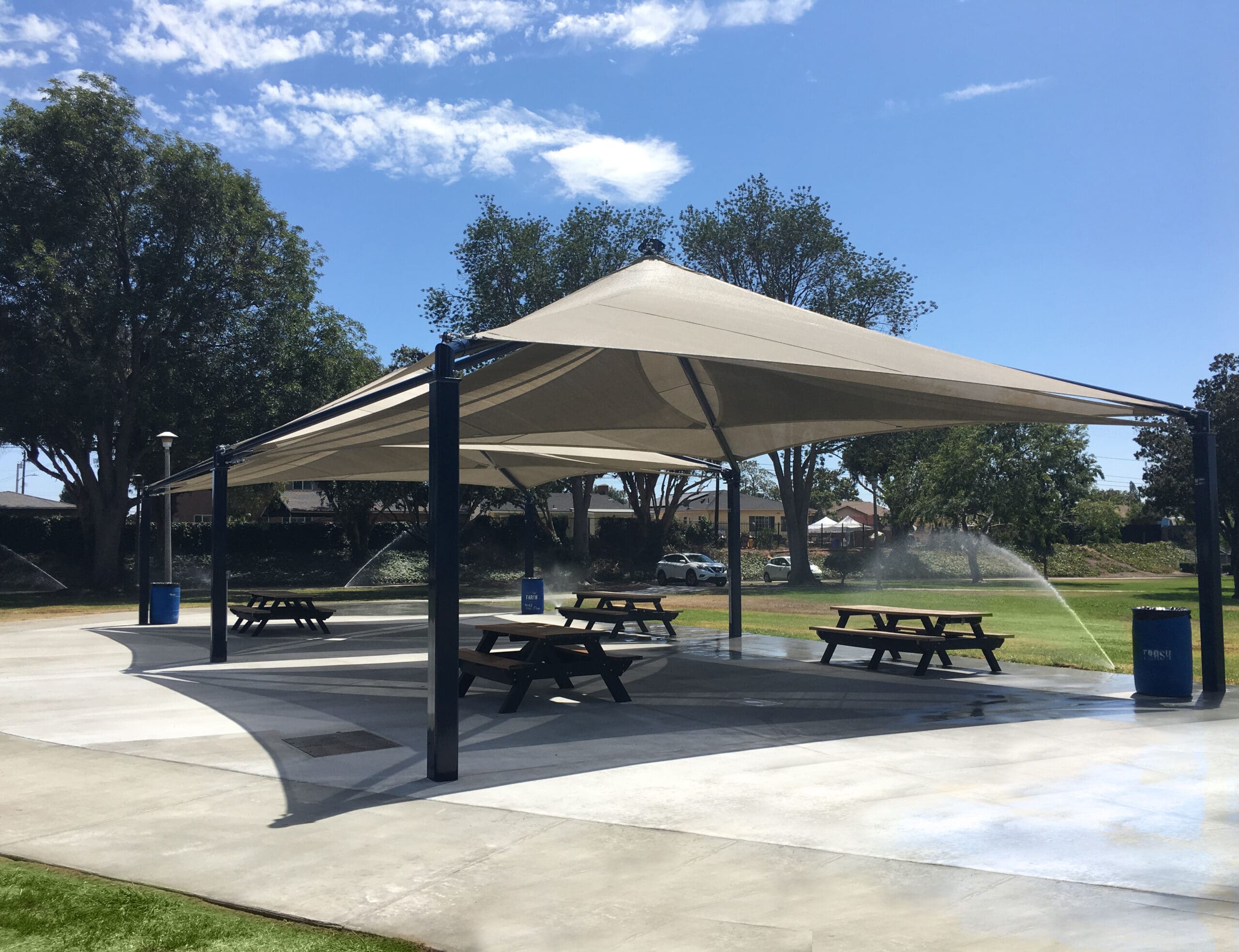

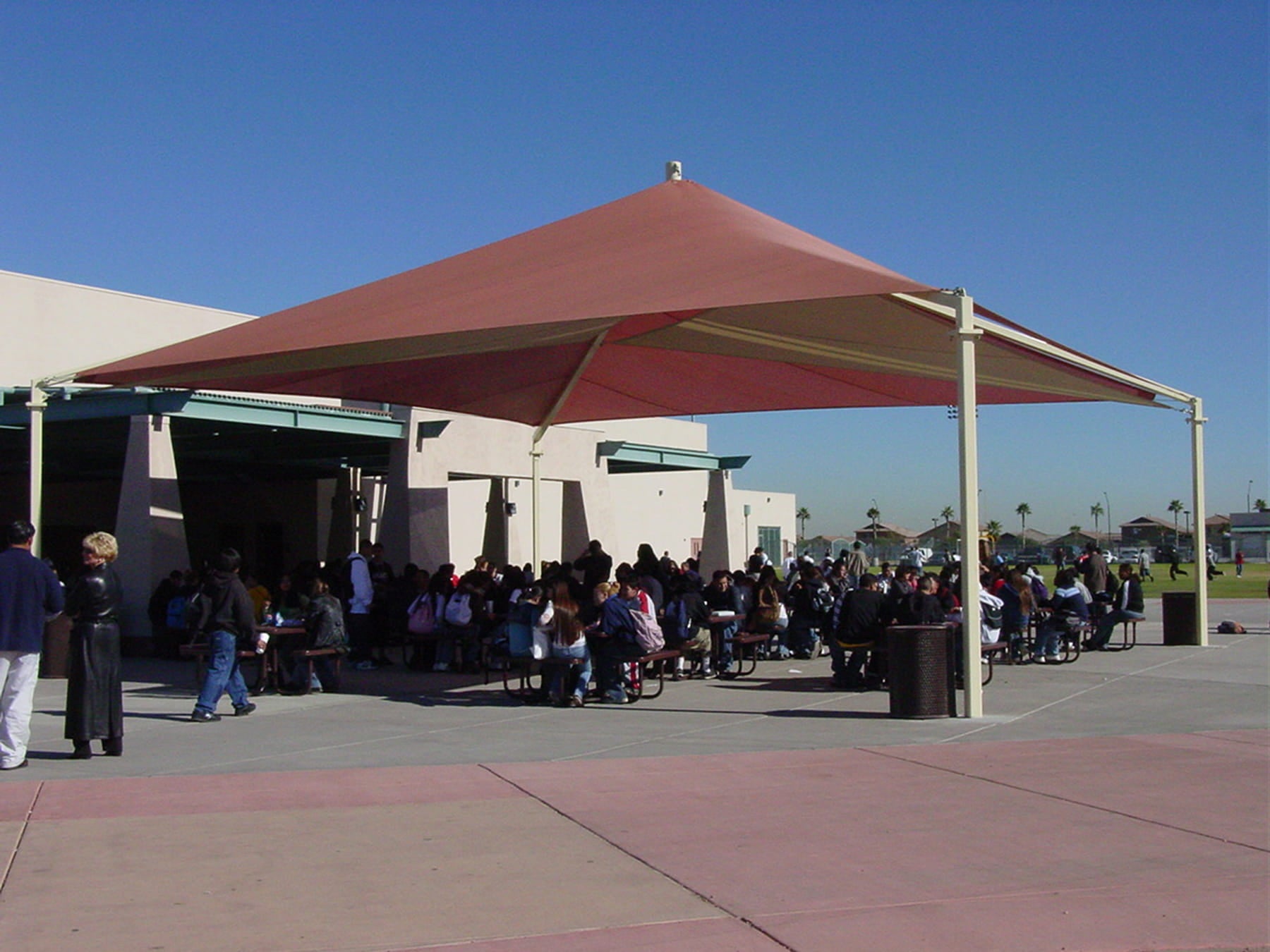

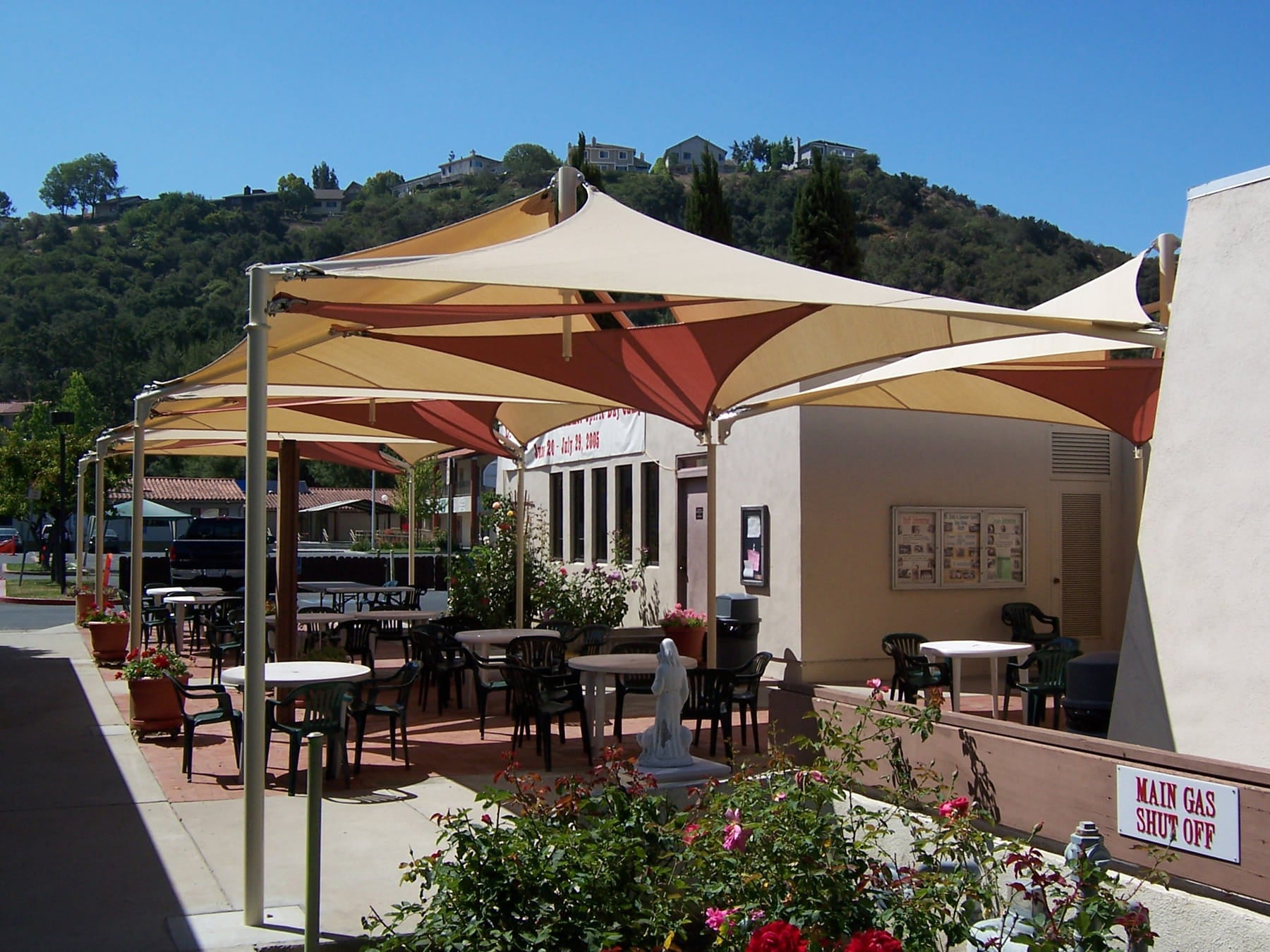

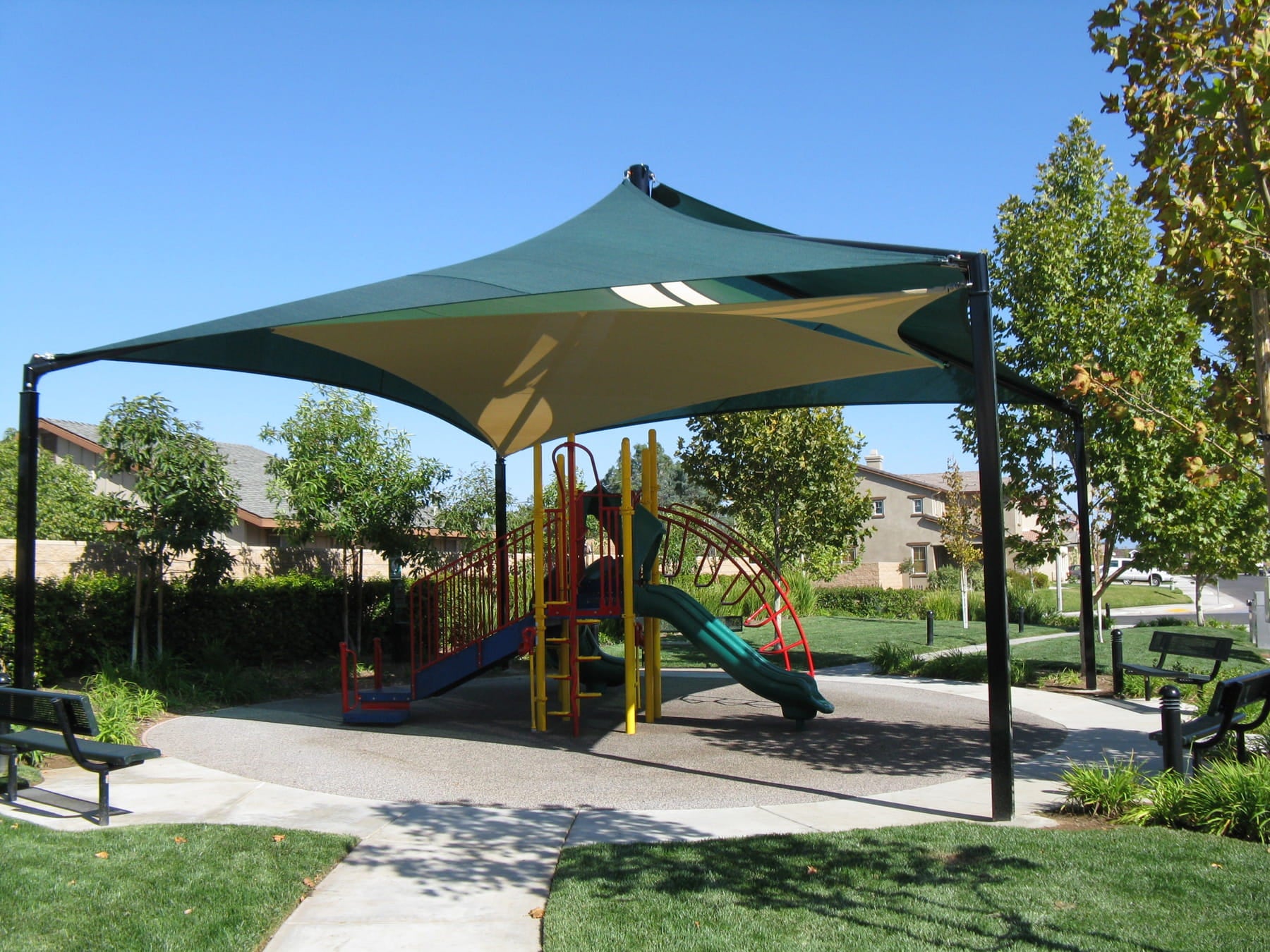

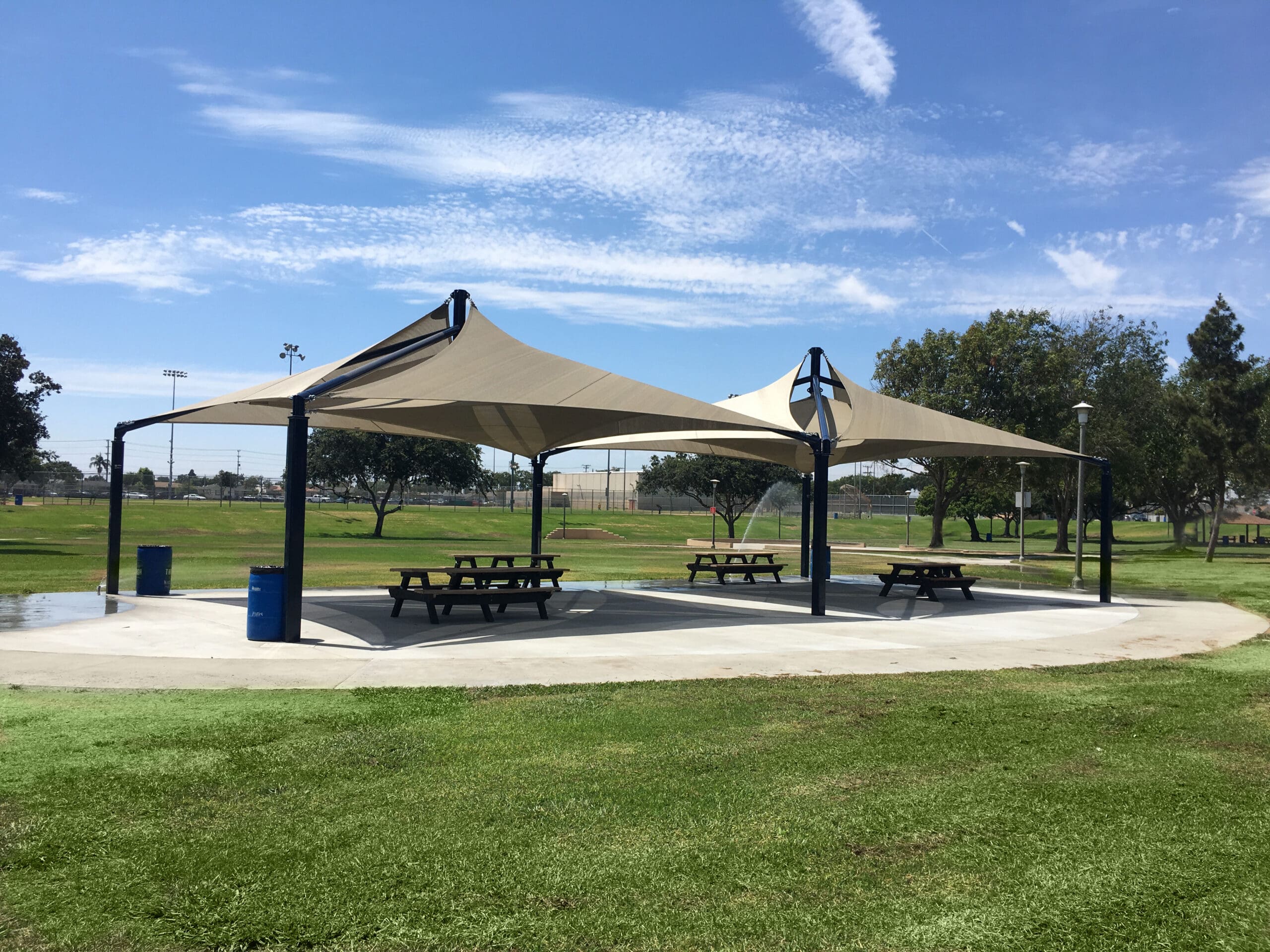

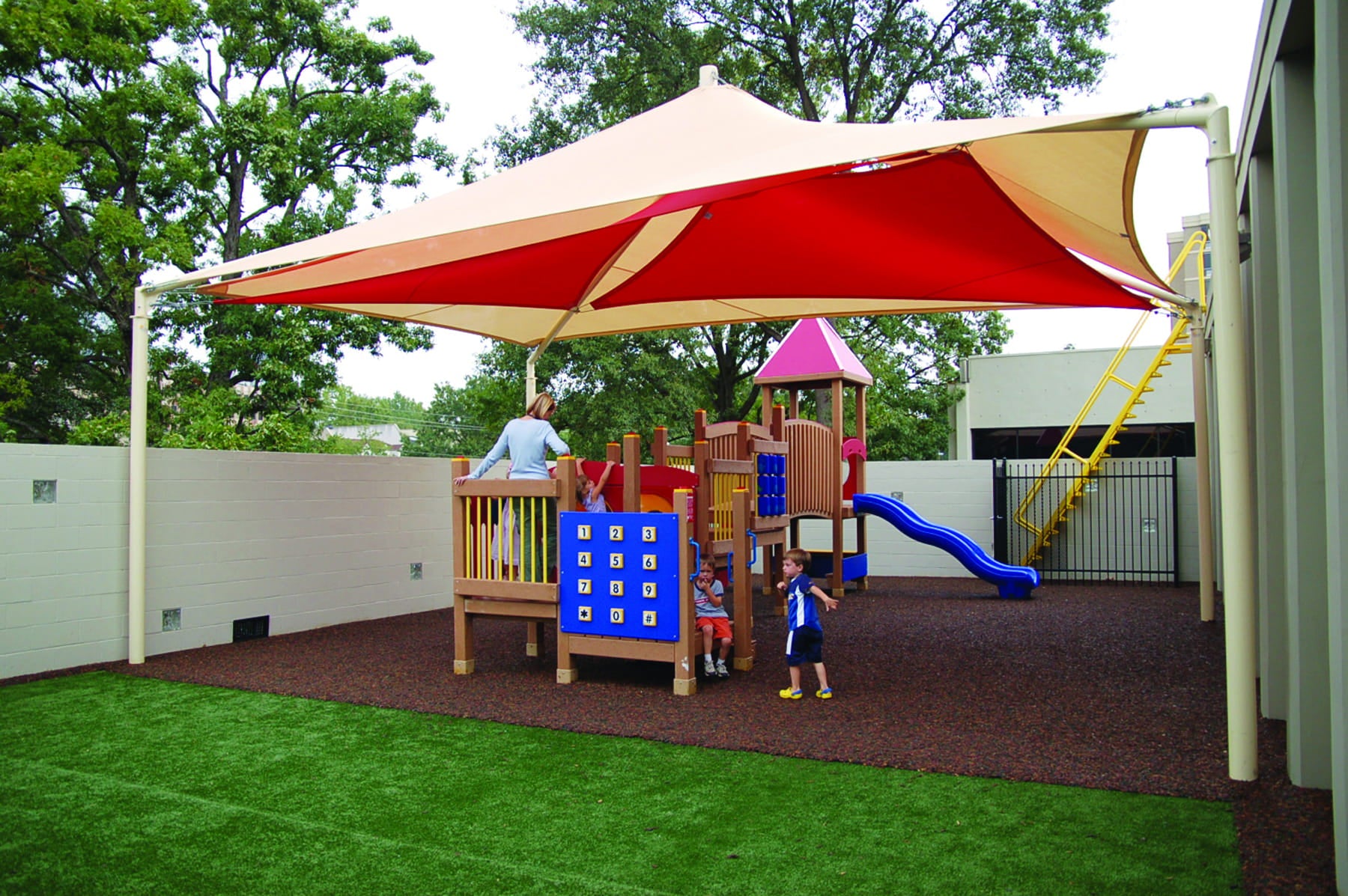

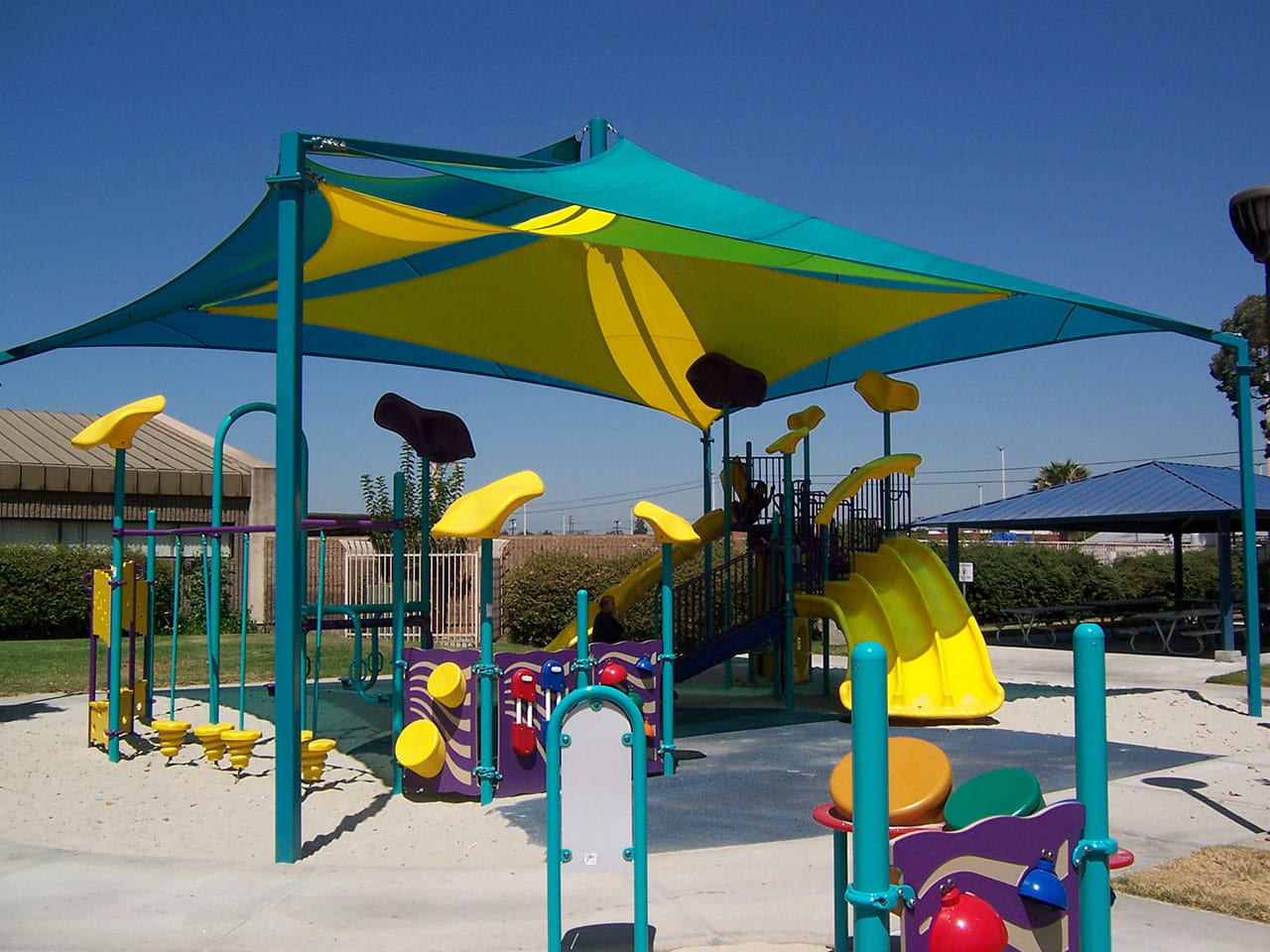

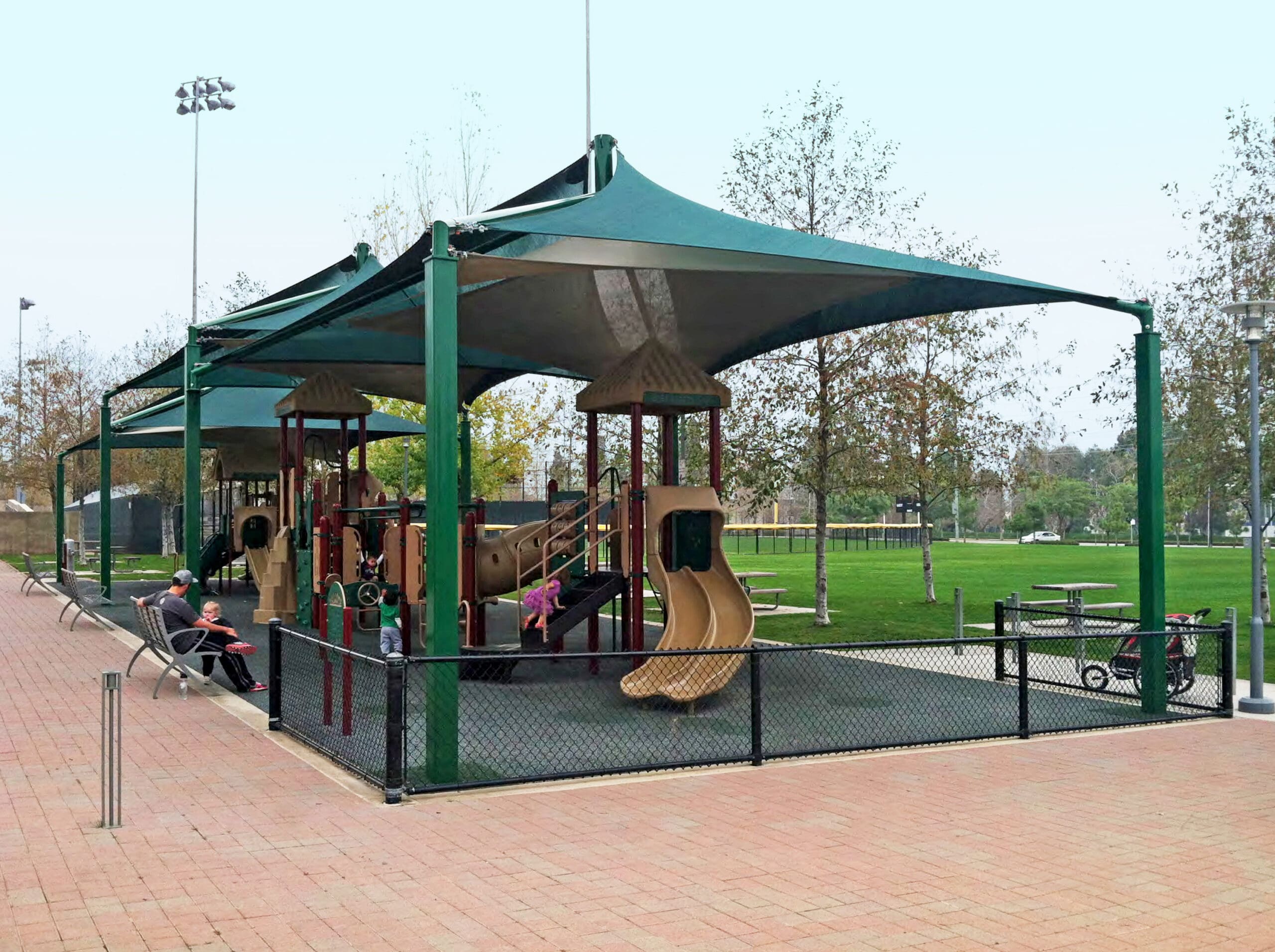

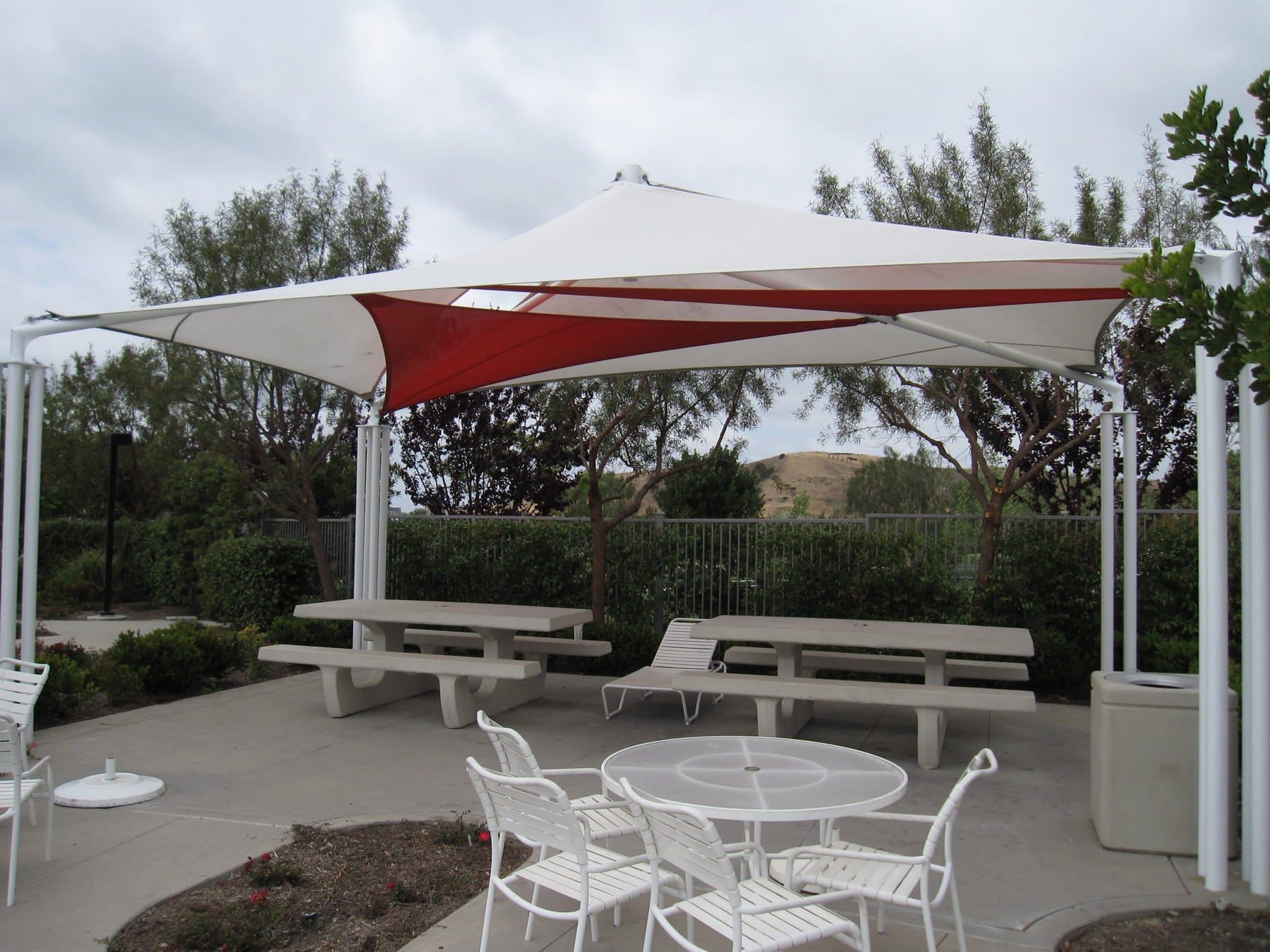

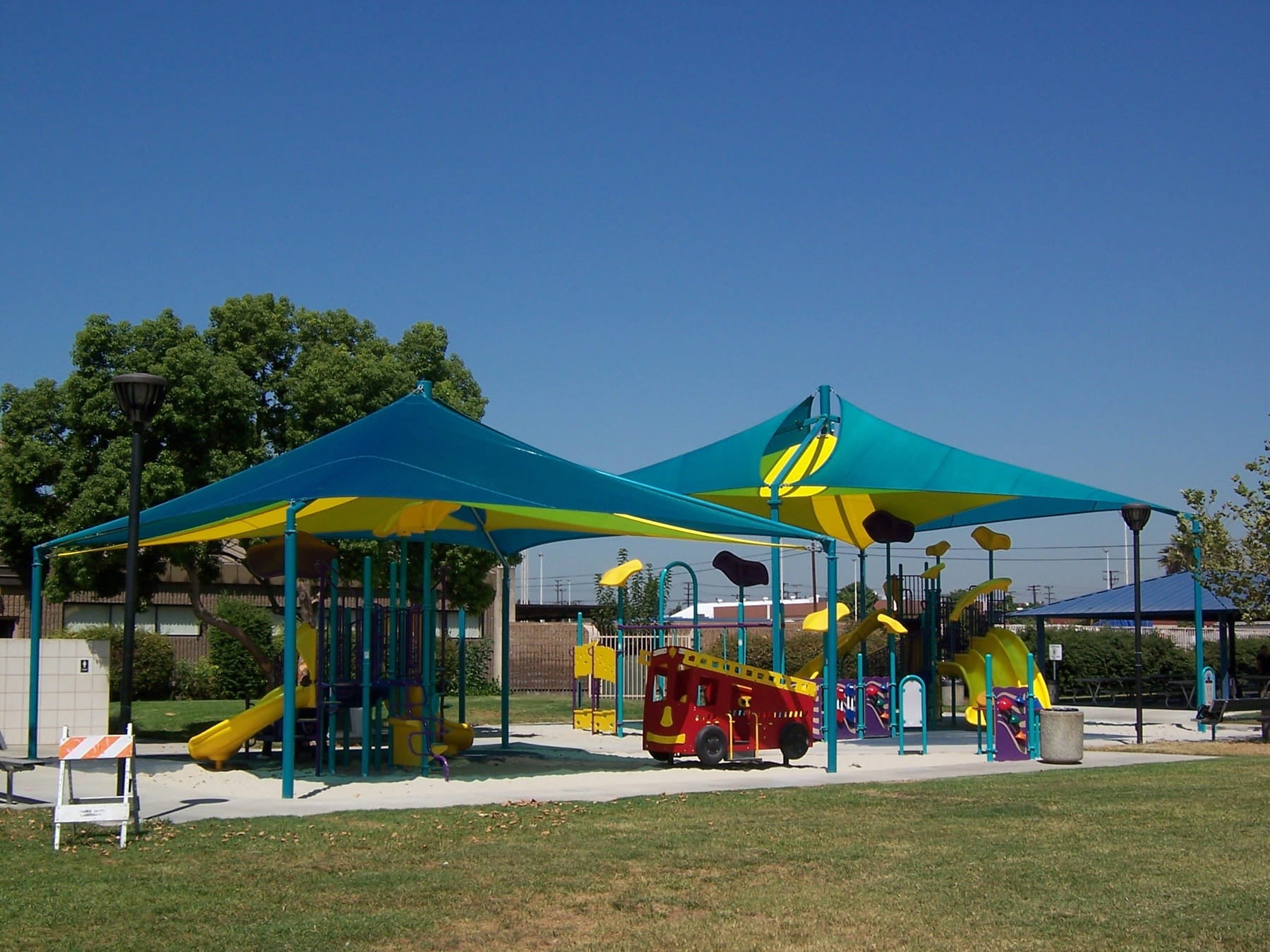

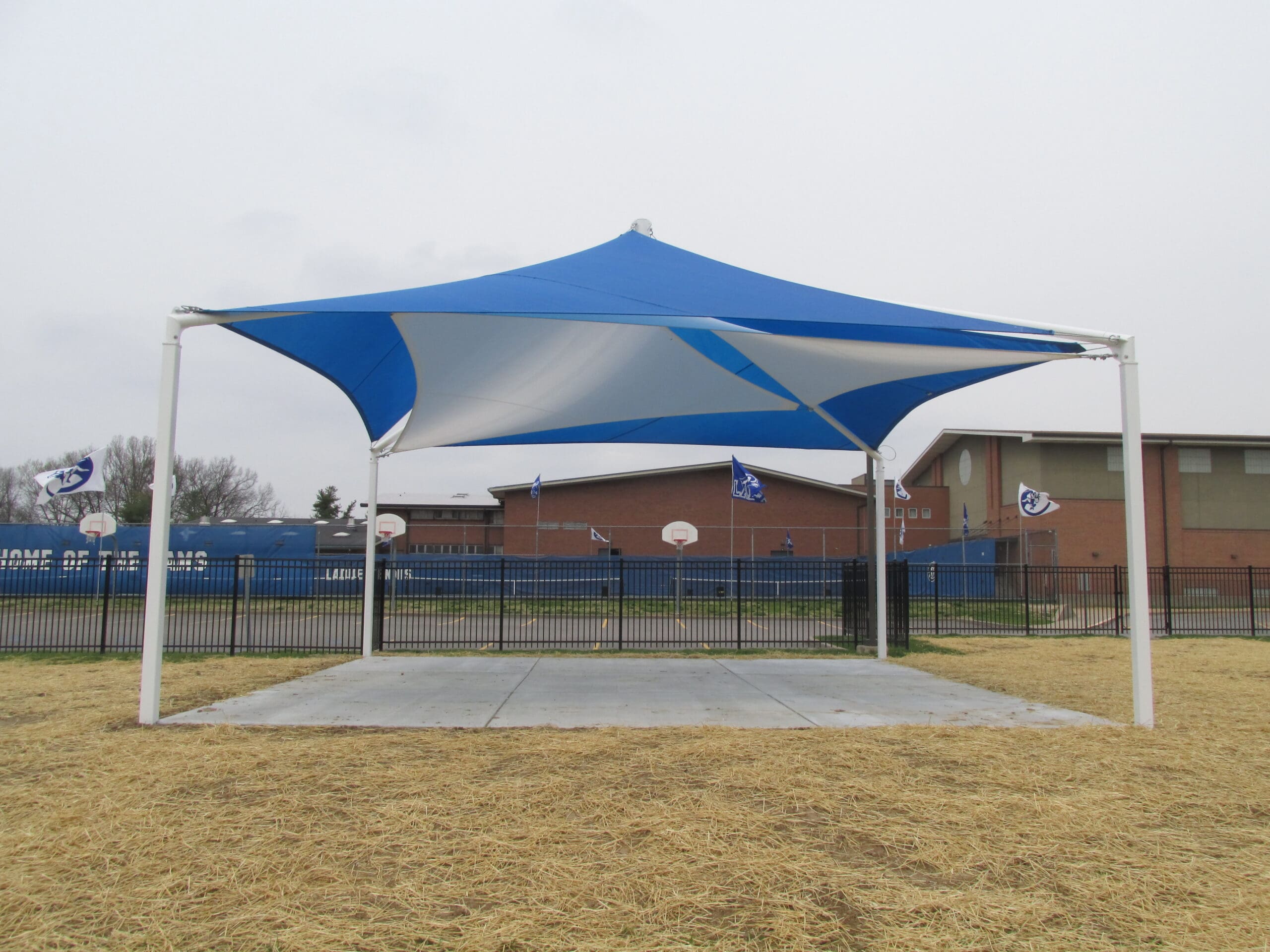

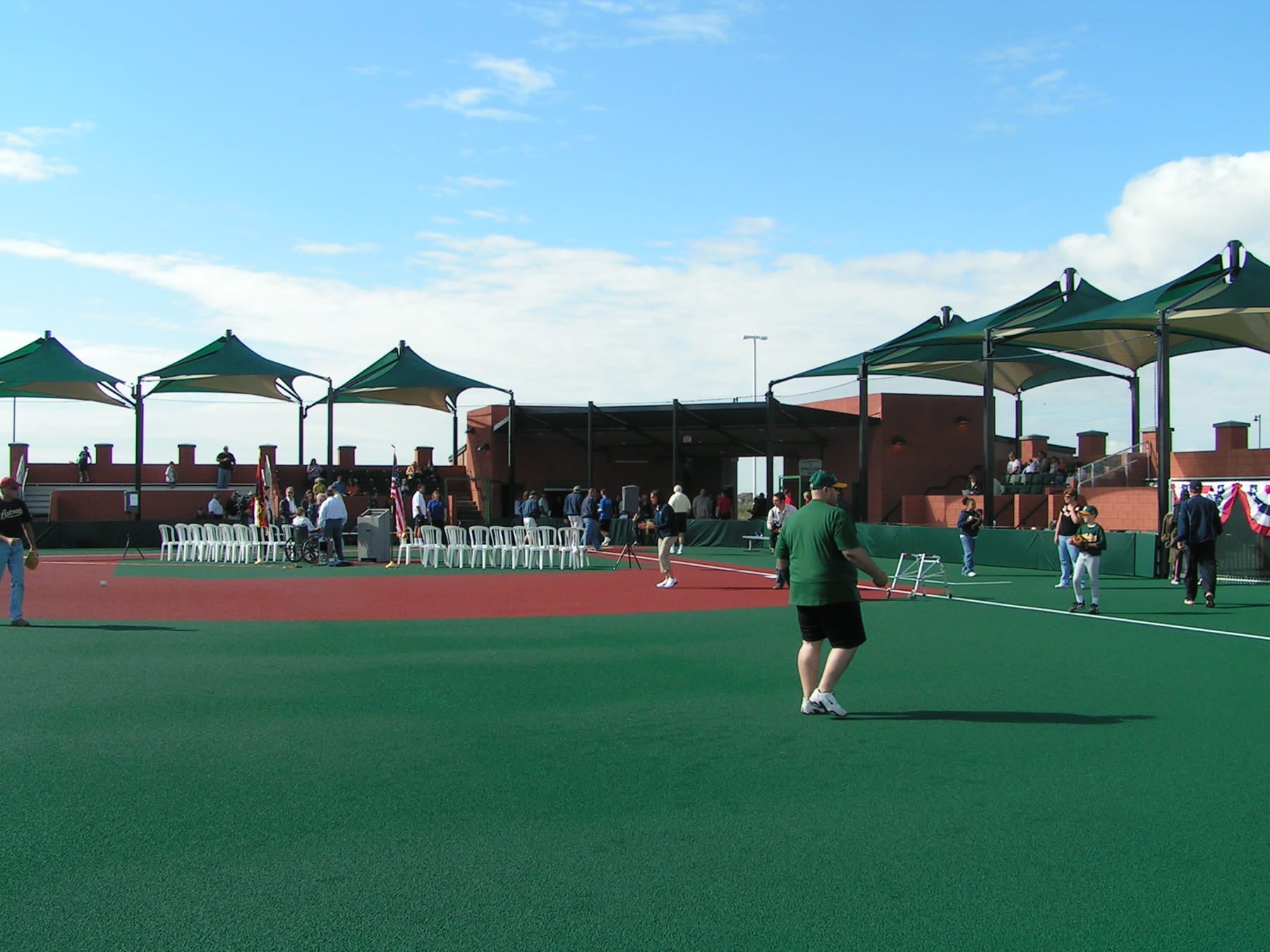

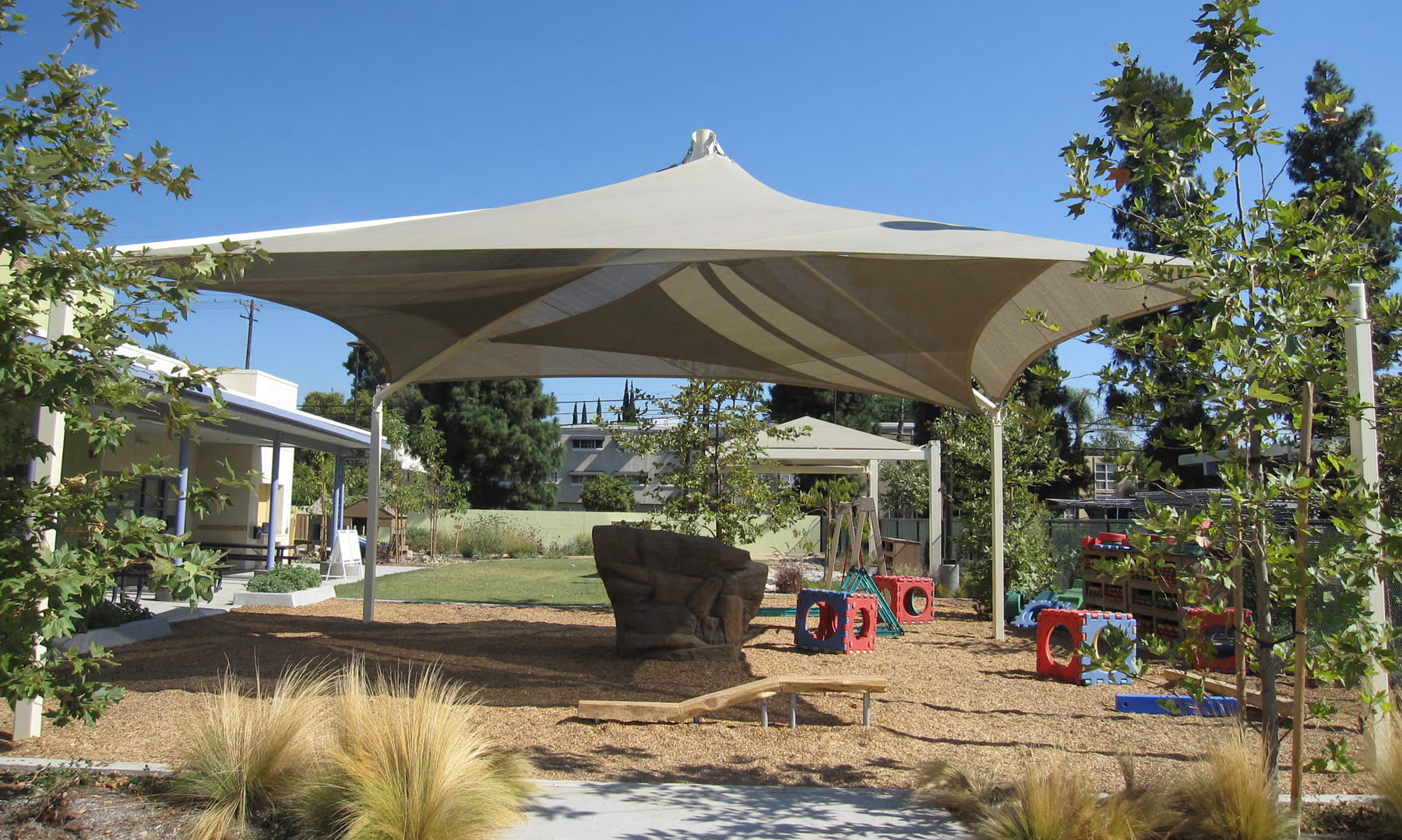

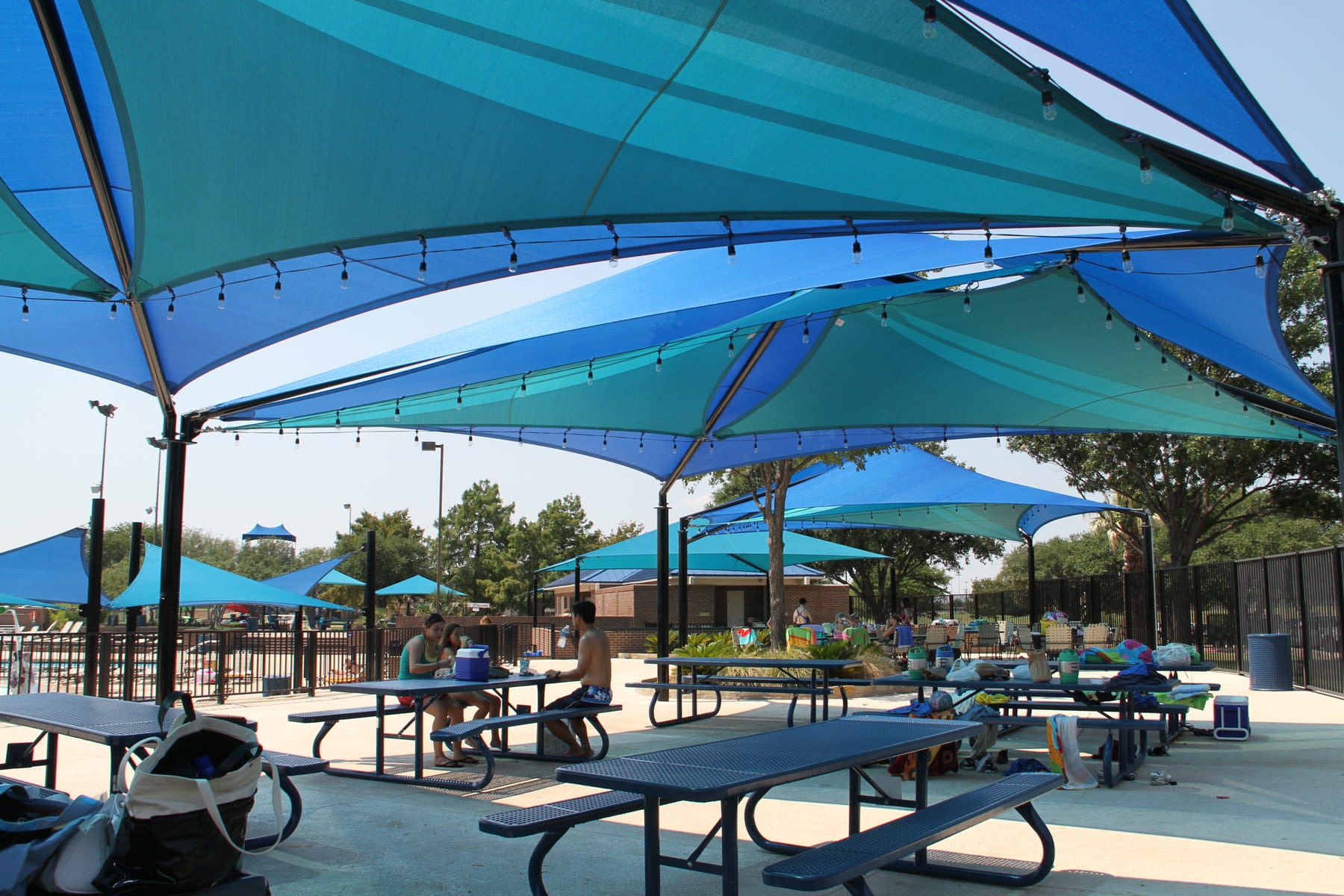

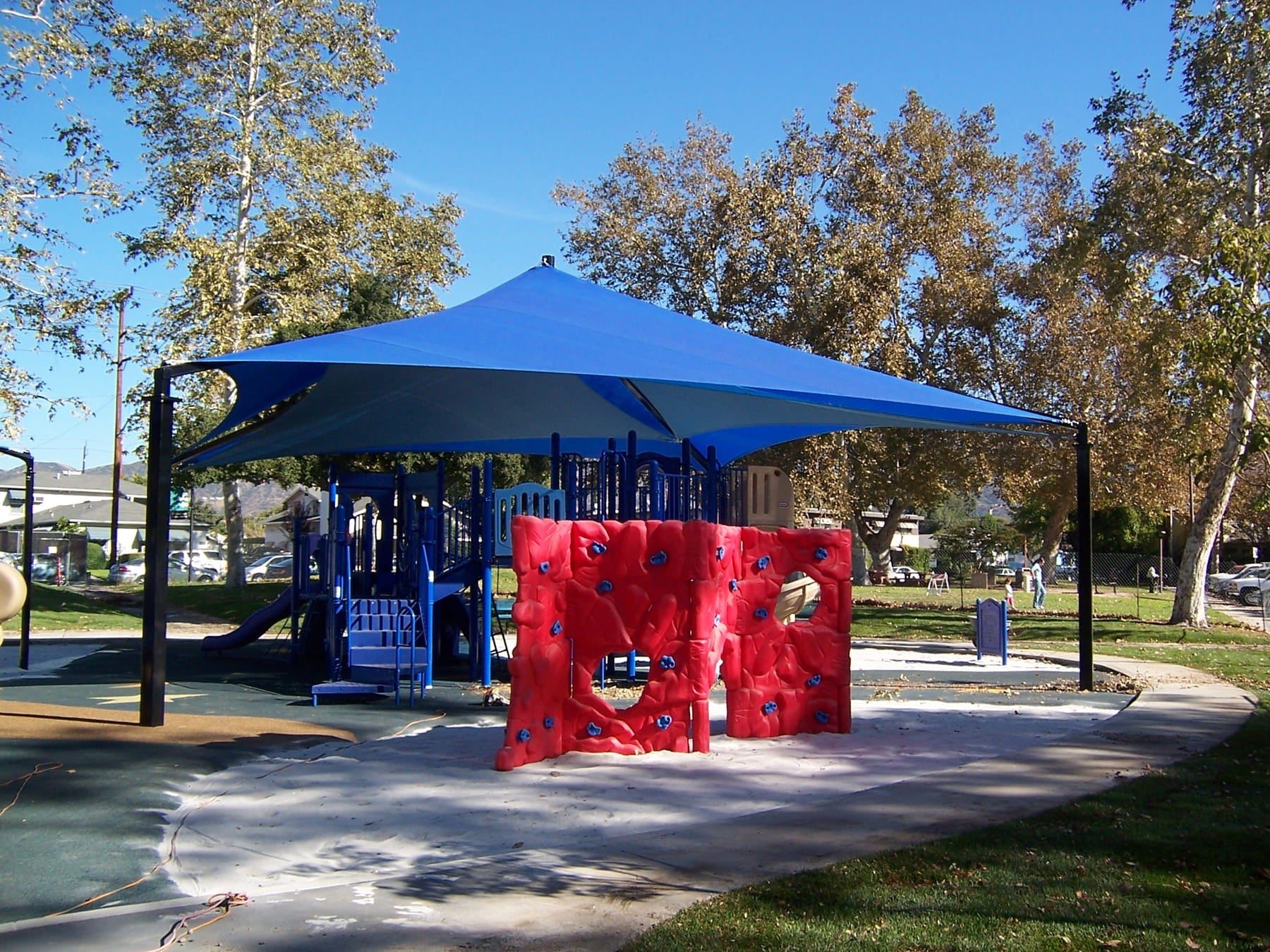

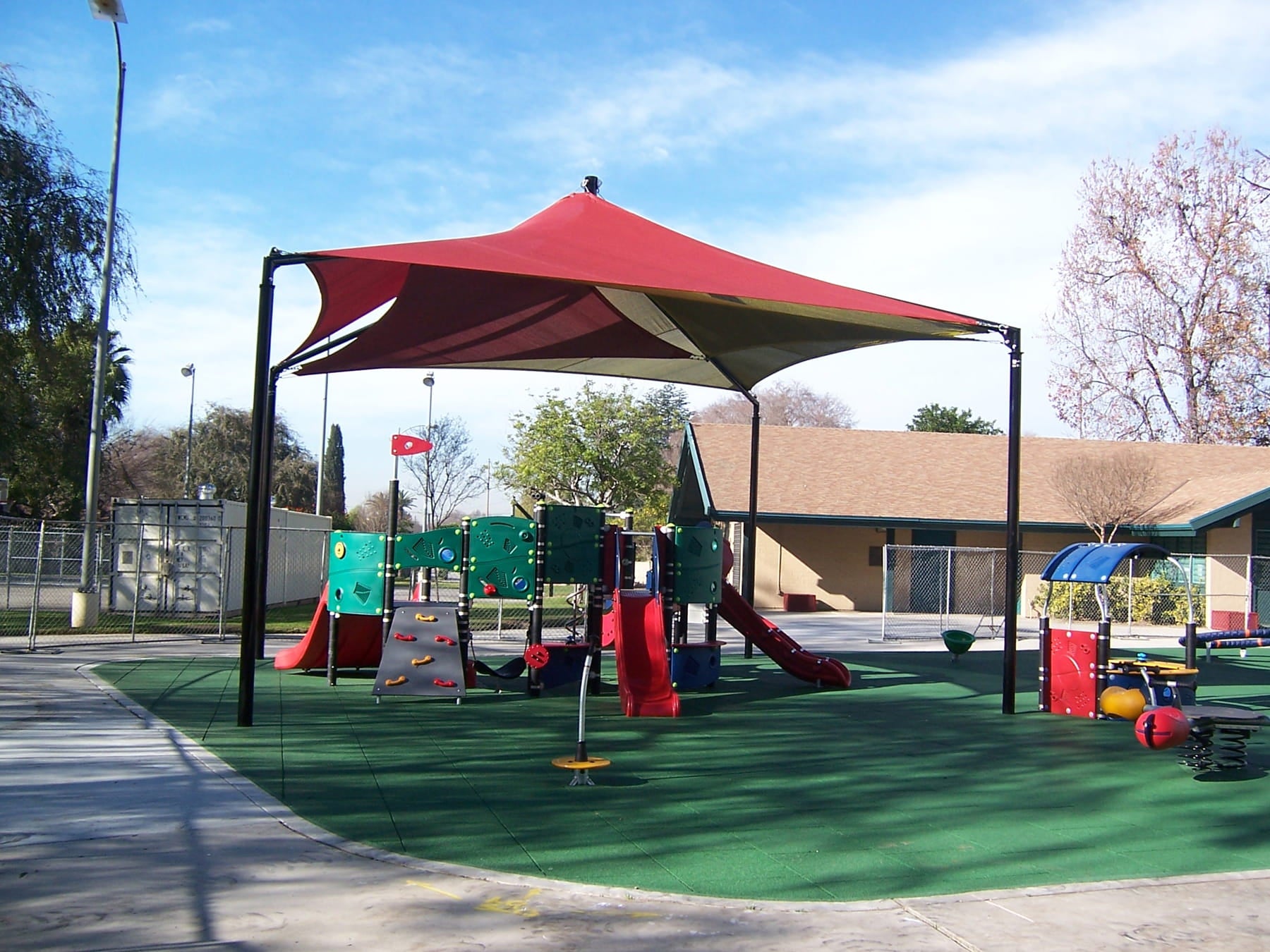

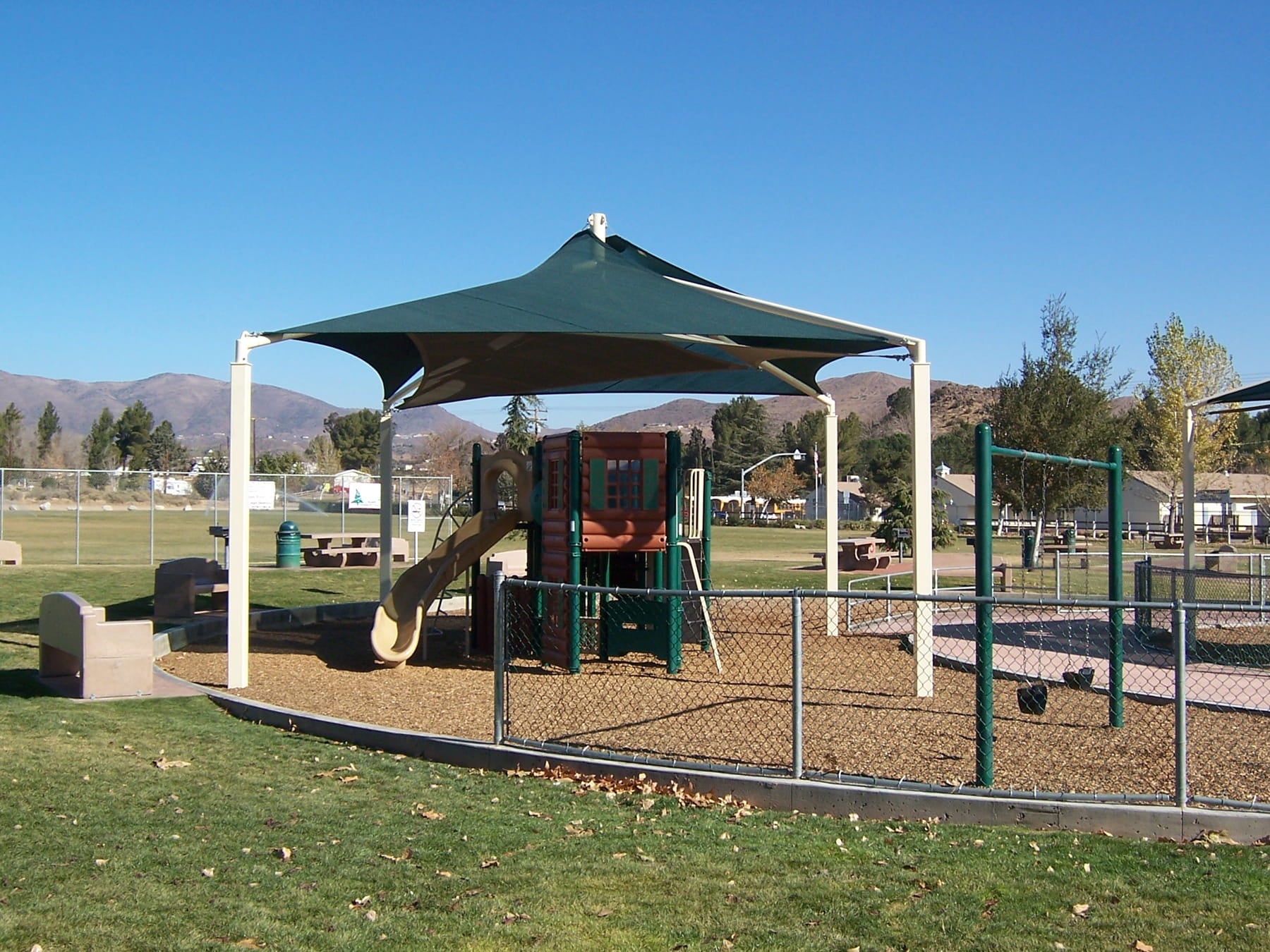

Your visitors notice when shade is done right. The Mariner Pyramid's overlapping upper and lower fabric panels create a layered, peaked-roofline profile that delivers consistent coverage across playgrounds, park shelters, and school courtyards — not just at the center, but across the full footprint.
Instead of a flat single-panel canopy that channels runoff toward the edges or leaves the perimeter underprotected, your property gets a structure that sheds water naturally from the peaked center and reduces heat buildup underneath. The dual-panel construction extends the effective coverage area and keeps the shaded zone noticeably more comfortable on hot days.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor. All products are manufactured in the USA and backed by a 10-year structural warranty on steel and a 10-year limited fabric warranty.
What Sets a Multi-Layer Pyramid Shade Canopy Apart

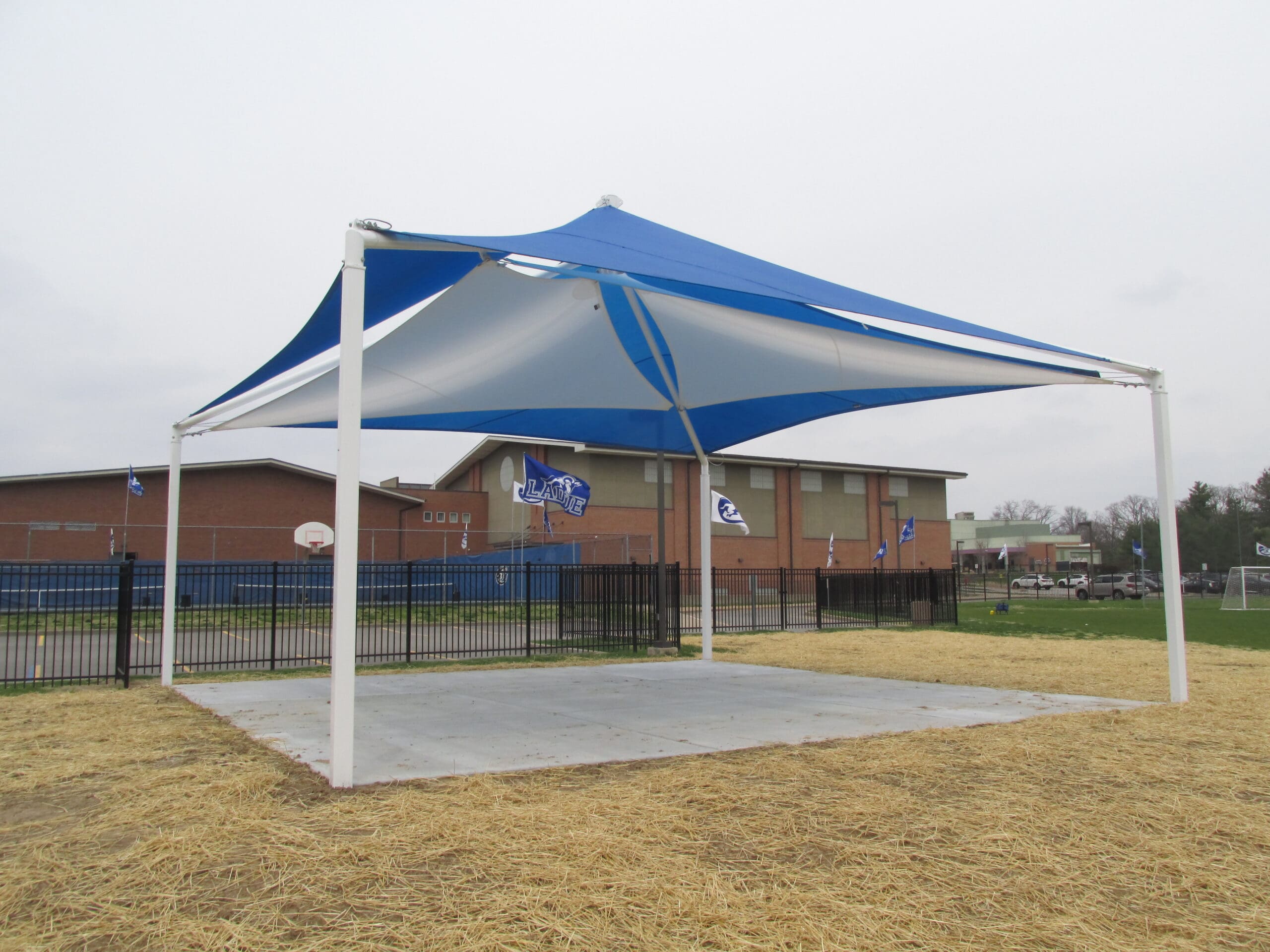

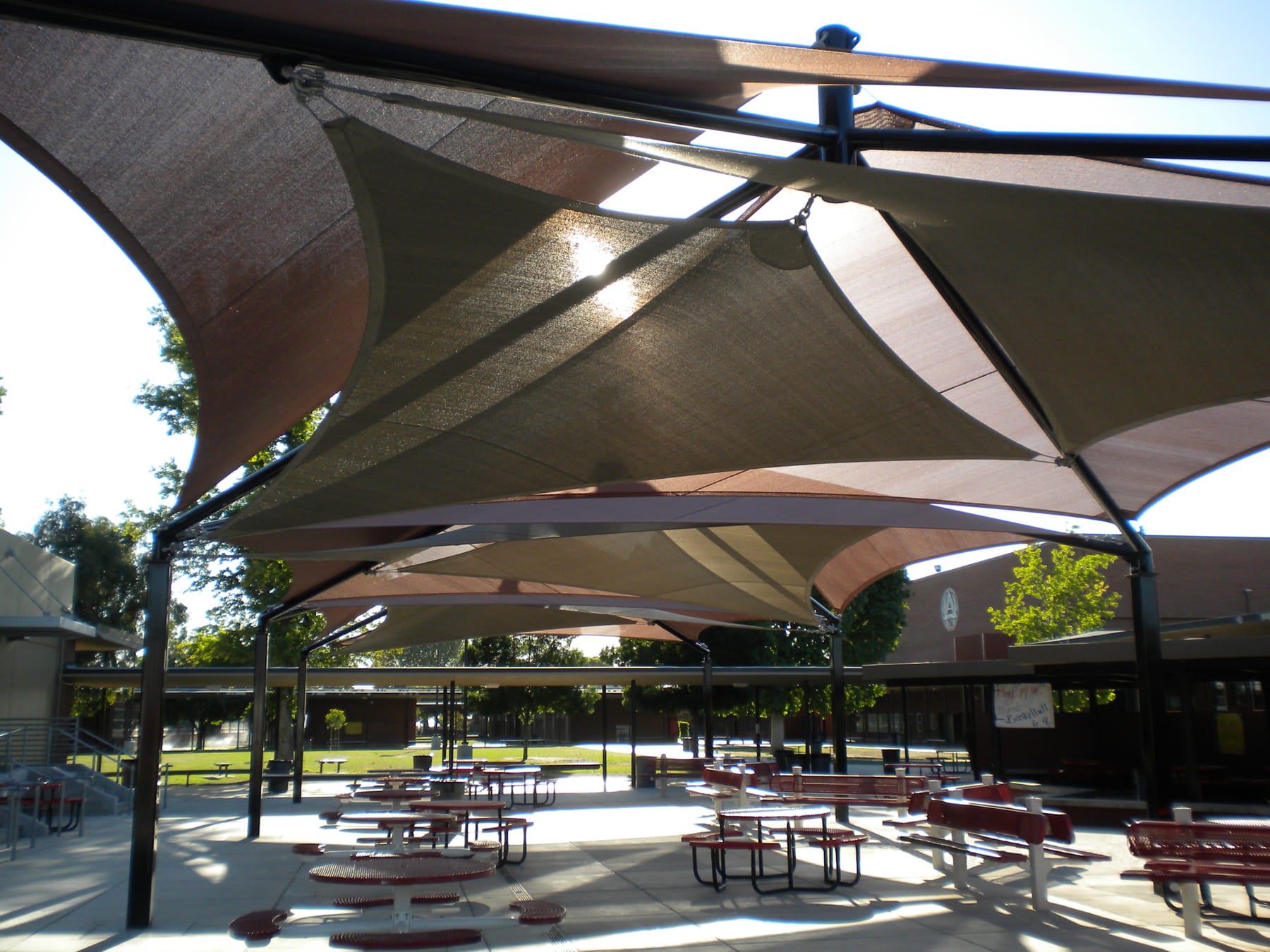

The Mariner Pyramid uses two overlapping fabric panels built around a peaked roofline frame rather than a single flat span. The upper panel sits above and slightly wider than the lower, creating the characteristic layered silhouette. This design sheds rain more effectively than a conventional single-fabric canopy, encourages airflow upward, and gives the installation a finished, architectural profile that works well in parks, schools, and high-visibility recreation facilities.

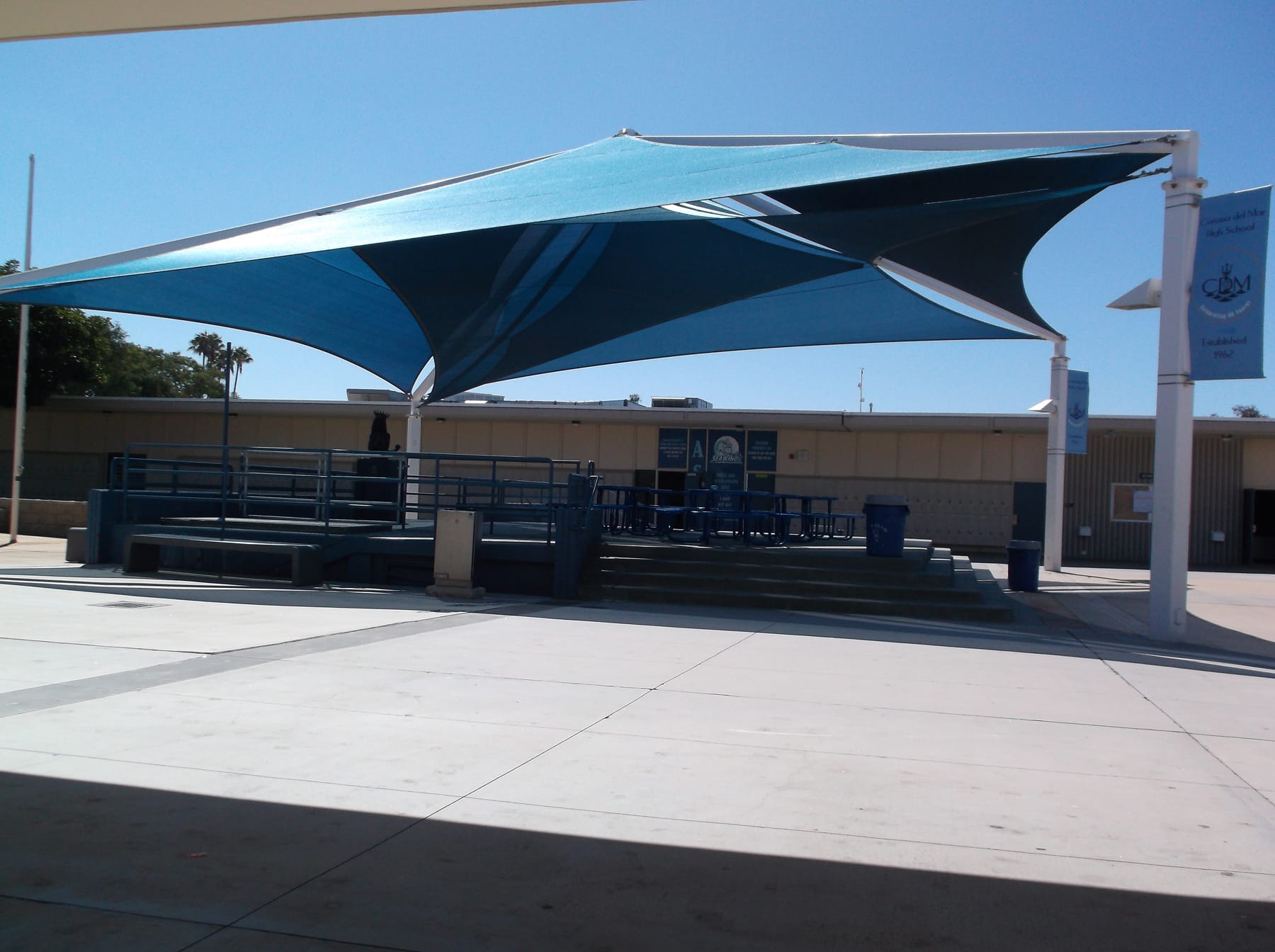

If your project calls for a single-panel peaked structure, the 4-Post Pyramid Shade covers a wide range of standard footprints. For larger coverage areas or a bolder roofline profile, the Superspan Multi Panel Pyramid is worth comparing.
Built for Commercial Wind and Snow Loads
The Mariner Pyramid is engineered for commercial-grade conditions. The structure is rated for 90 mph three-second wind gusts and 5 PSF snow loads, with the steel frame rated even higher when fabric panels are removed. For properties in high-wind or heavy-snow regions, the optional Quick Release system allows fabric removal without tools when severe weather is anticipated.

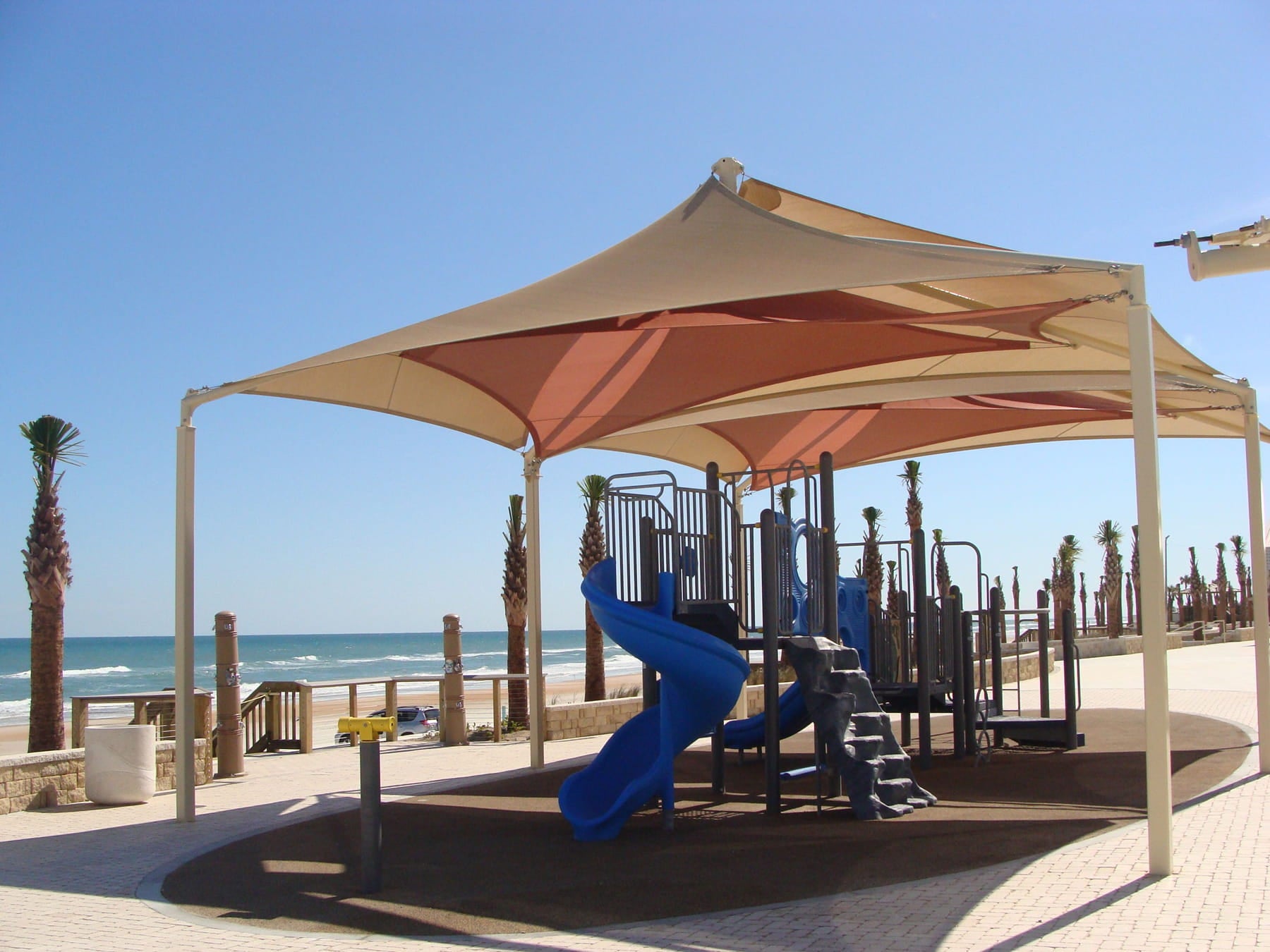

All steel tubing is coated inside and out to prevent rust and corrosion. Joints are reinforced with sleeves that lock tightly, welds are professionally finished and sealed, and all hardware is rated for long-term outdoor performance. The standard finish is a UV-resistant TGIC powder coat. For properties near the ocean, a Zinc Rich coastal primer upgrade is available for added protection against saltwater exposure.
-
Wind load: 90 mph three-second wind gusts
-
Snow load: 5 PSF (steel frame rated higher with fabric removed)
-
Quick Release: Optional fast-removal system for severe weather preparation
-
Coastal primer: Zinc Rich primer upgrade for saltwater environments
-
Warranty: 10-year structural on steel; 10-year limited on fabric. See full warranty page for details.
Shadesure Fabric and Color Options for Any Property
Fabric panels are constructed from Shadesure™ high-density polyethylene shade cloth, which provides approximately 80% shade and up to 90% UV protection depending on color. The fabric also offers a measure of hail protection. Shadesure is available in 20 colors — see the color swatch for exact shade factor numbers by color selection.
For California school projects, Colourshade® FR fabric meets Division of the State Architect (DSA) approval requirements and is available in 7 colors.
Post and frame powder-coat colors include Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, and Tele-Gray. Steel finish options are TGIC powder coat, Zinc Rich Coastal primer with powder coat, hot dip galvanizing, and galvanizing with powder coat or wet paint. These options allow the structure to coordinate with existing site branding, facility color standards, or architectural specifications.
Quick Ship Sizes and Entry Heights
The Mariner Pyramid is available in sizes from 20'L x 20'W through 32'L x 32'W, with entry heights at 8, 10, and 12 feet. Quick Ship units are built to your specifications and typically ready in approximately 4 weeks.
-
Size range: 20'L x 20'W through 32'L x 32'W
-
Entry heights: 8, 10, and 12 feet
-
Lead time: Approximately 4 weeks (Quick Ship)
Have questions about sizing, fabric selection, or which configuration fits your site? Our team can help you work through the details.
Supply-A-City is an authorized USA Shade and Fabric Structures distributor serving parks departments, school districts, property managers, and facilities directors across the United States.
