USA Shade Single Post Cantilever Shade Structure

Name: USA Shade Single Post Cantilever Shade Structure
Brand: USA Shade
Availability: InStock

by USA Shade

$0.00 + FREE SHIPPING

Entry Height

Fabric size

Mount

Quantity

Safe Arrival Promise We assume all delivery risk

Free Ground Shipping Standard delivery is $0.00

30-Day Easy Returns Shop risk-free with simple returns

Expert Project Support
(833) 746-7688 Specialists ready to help
(833) 746-7688

Description
Warranty
Why Buy From Us?

Description

Commercial Shade Cantilever Umbrella Structures That Keep the Space Below Clear

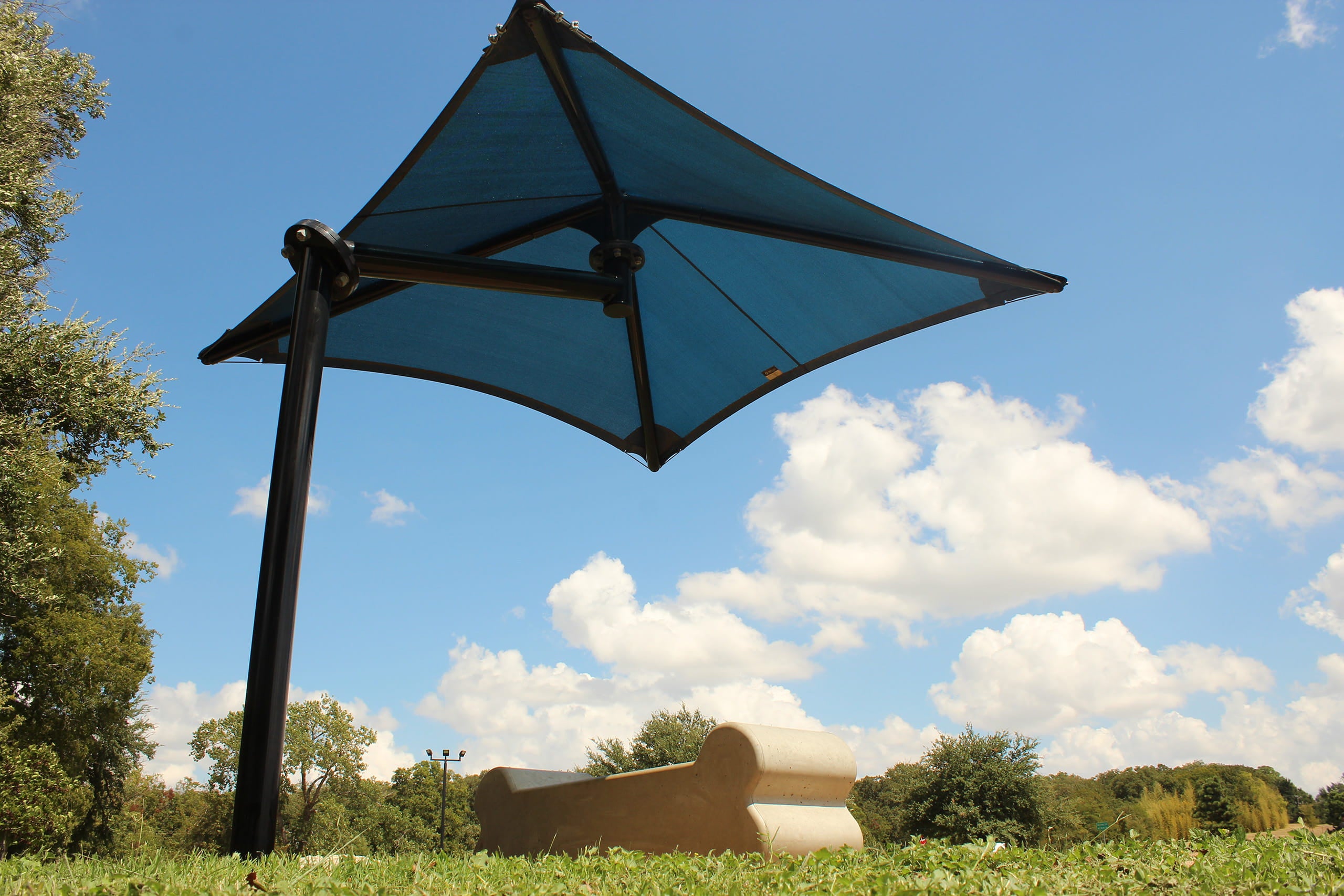

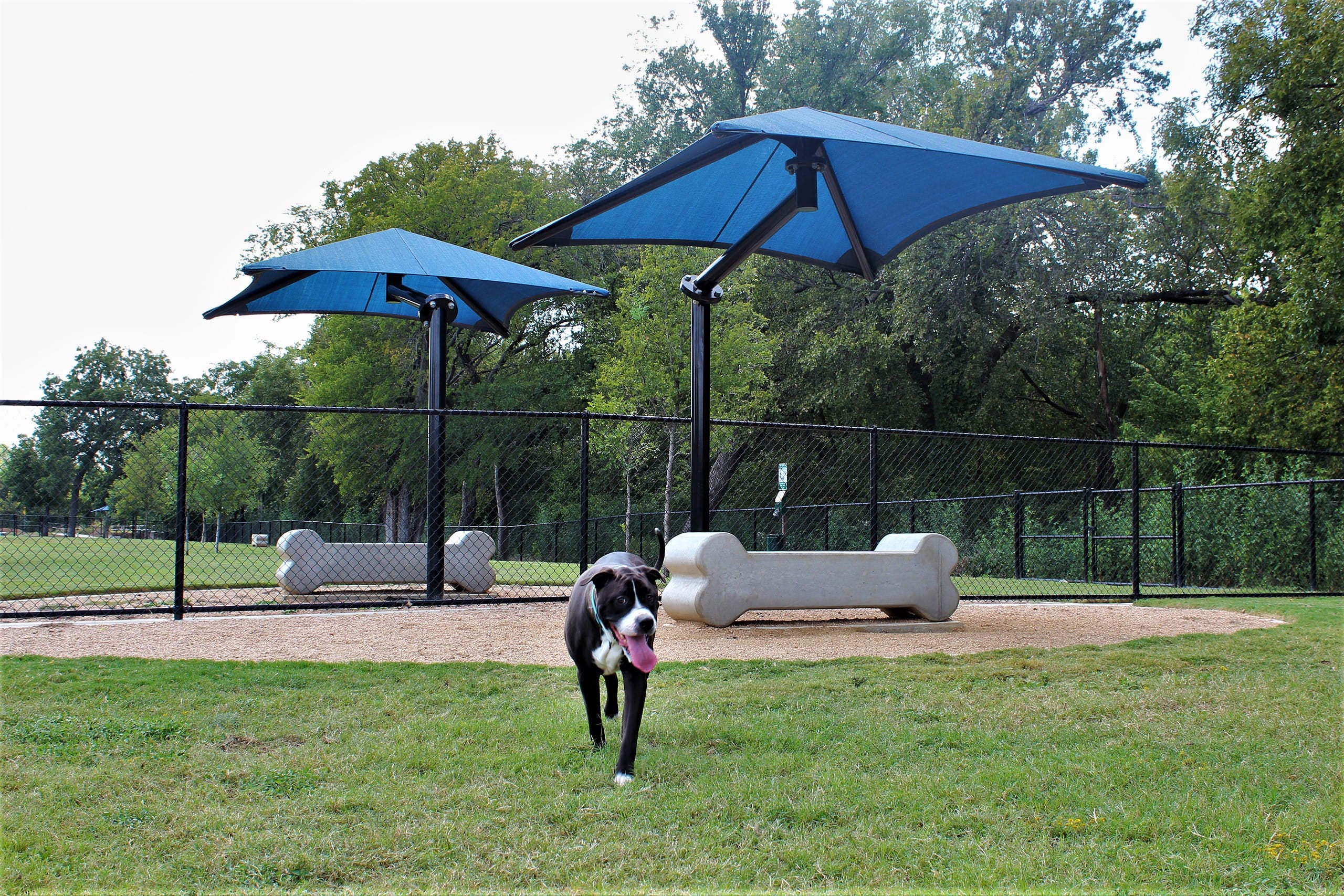

USA Shade Single Post Pyramid Cantilever Shade Structure at Rush Creek Dog Park in Arlington, TX

Your visitors notice when shade is designed around how they actually use the space. The USA Shade Commercial Shade Cantilever Umbrella delivers the same pyramid canopy form as a standard single post structure, but with the column offset to one side — leaving the entire area underneath completely clear of obstructions. Parks, dog parks, pool decks, and commercial outdoor areas use it where visibility and usable floor space matter as much as coverage.

Instead of a column sitting in the middle of the shaded area, your property gets a cantilever design that keeps people, seating, and activity unobstructed beneath the canopy. The peaked roofline sheds water efficiently and the Shadesure™ HDPE fabric delivers approximately 80% shade and up to 90% UV protection, backed by a steel frame engineered for 90 mph three-second wind gusts and a 5 PSF snow load.

Supply-A-City is an authorized USA Shade and Fabric Structures distributor. All products are manufactured in the USA and backed by a 10-year structural warranty on steel and a 10-year limited fabric warranty. If you need coverage over larger areas without the cantilever offset, the Single Post Pyramid Shade Structure is available in sizes up to 20x20.

Single Post Pyramid Cantilever Umbrella Built for Open Outdoor Spaces

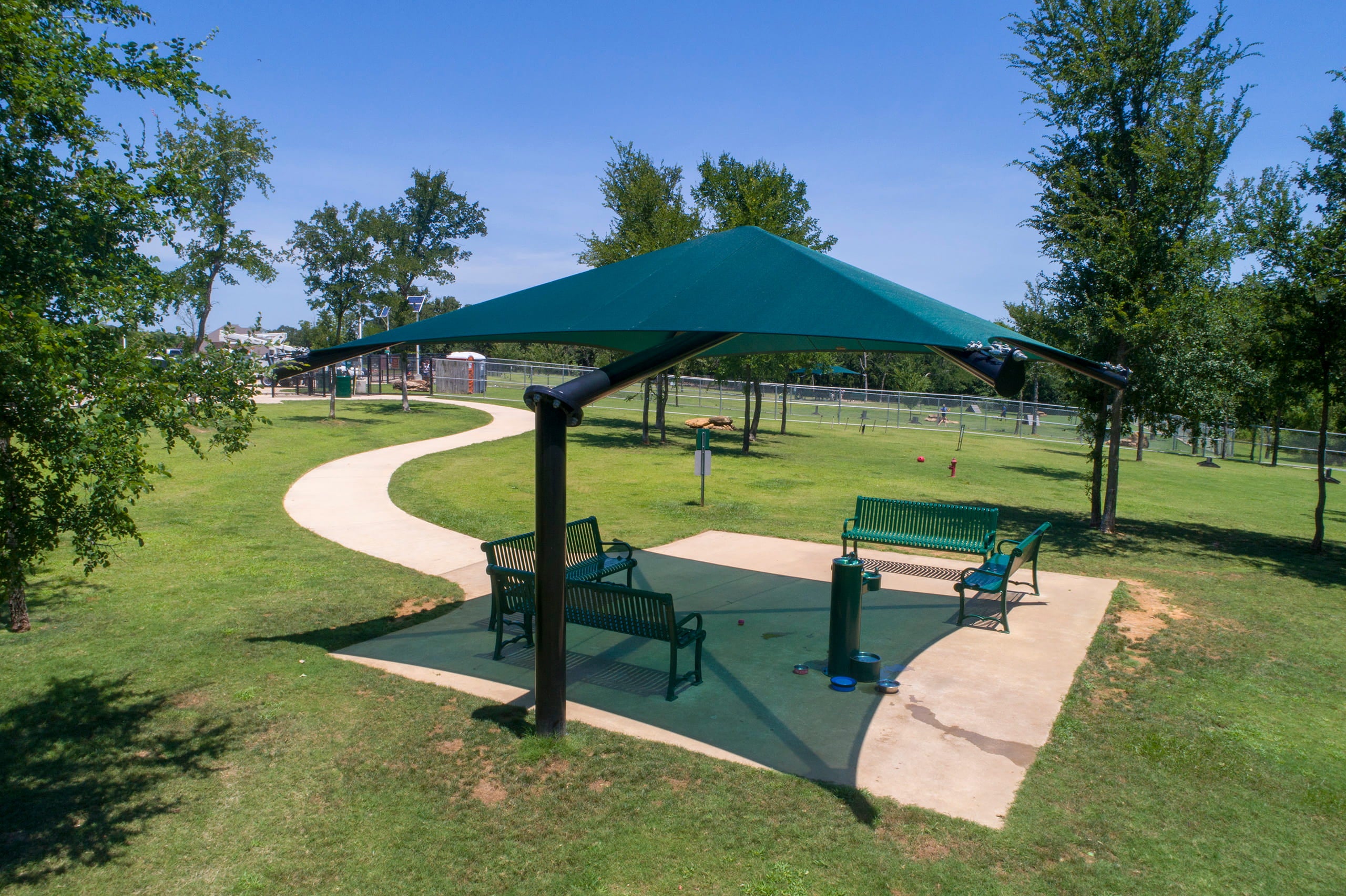

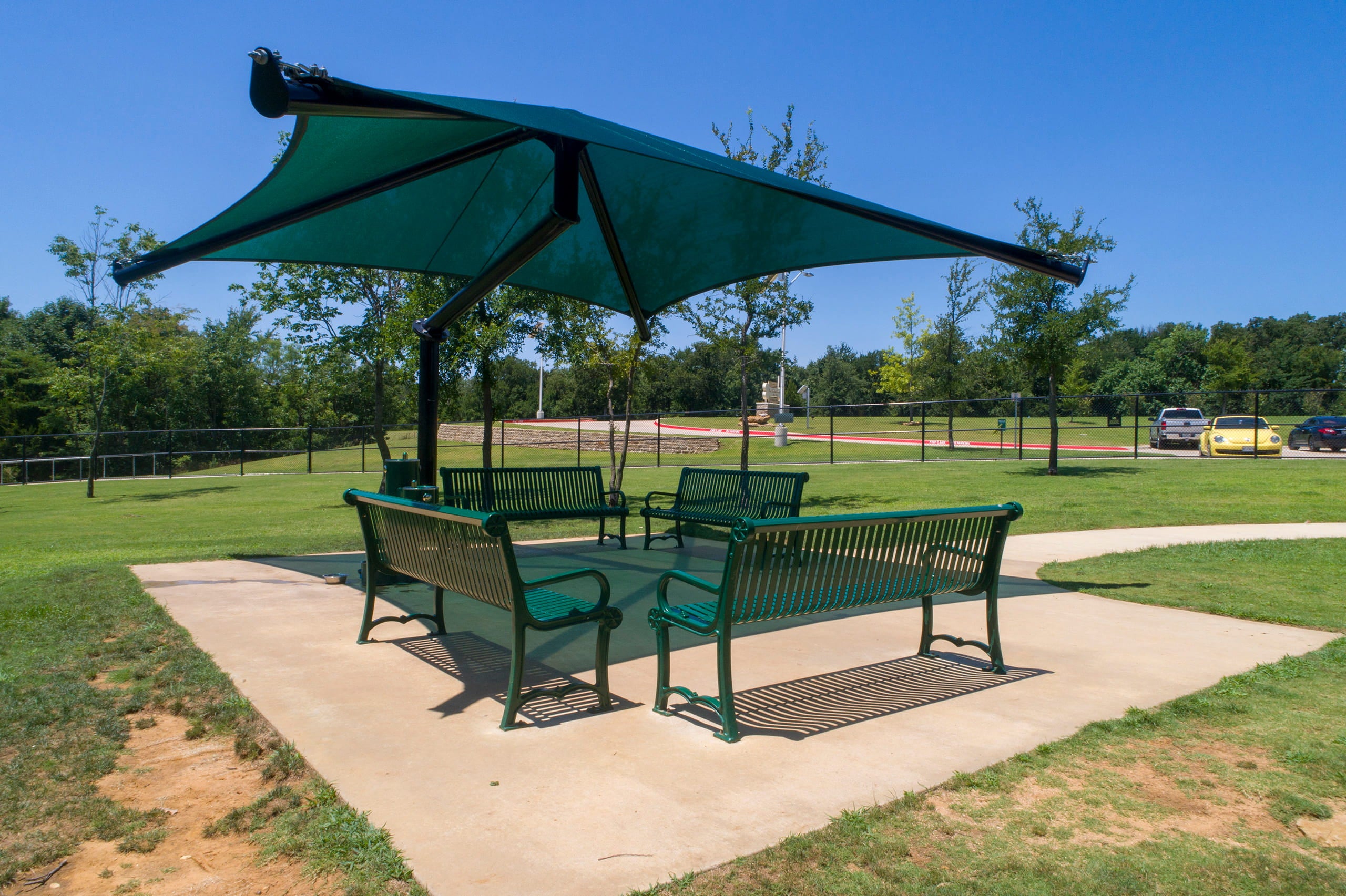

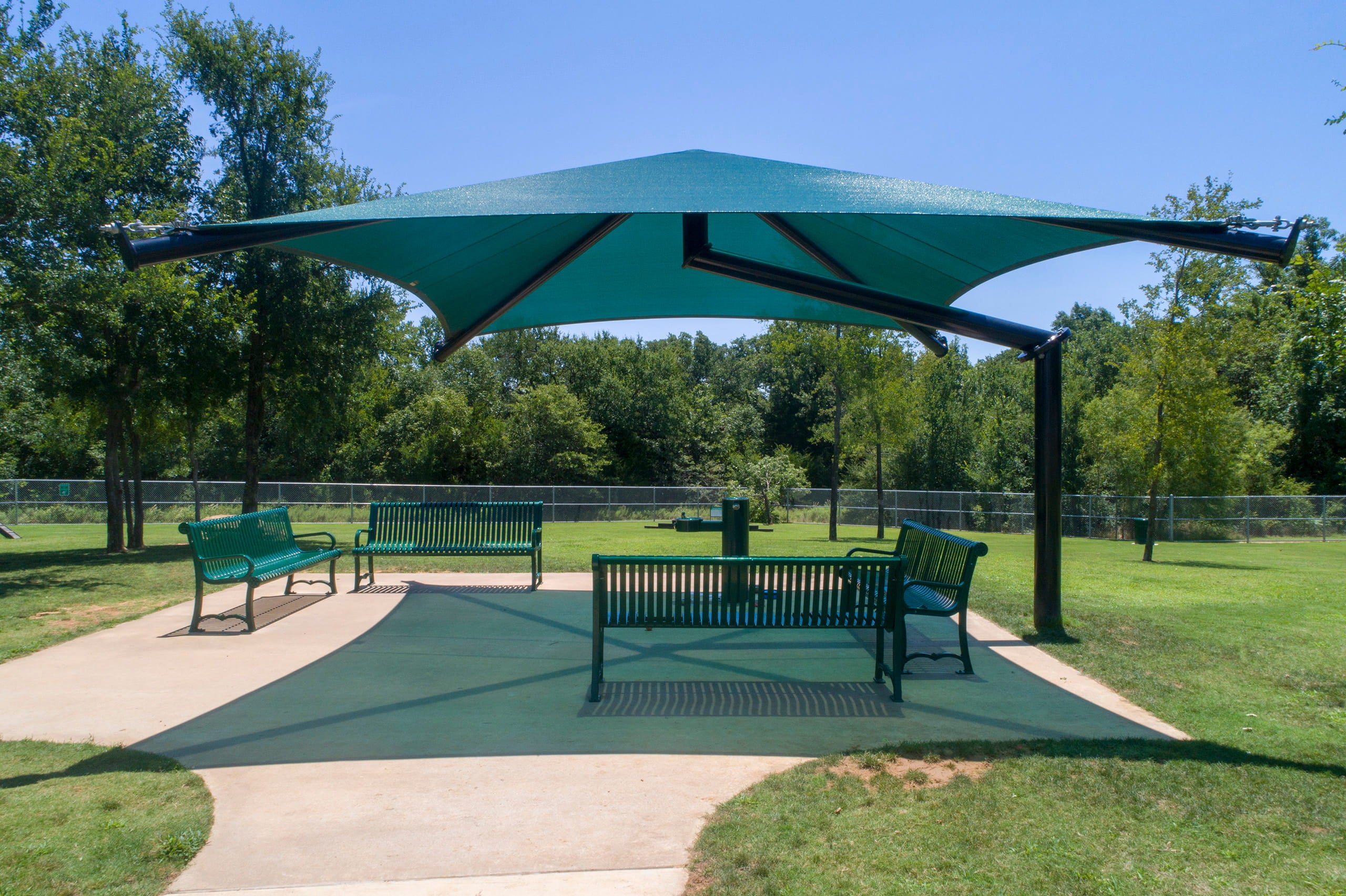

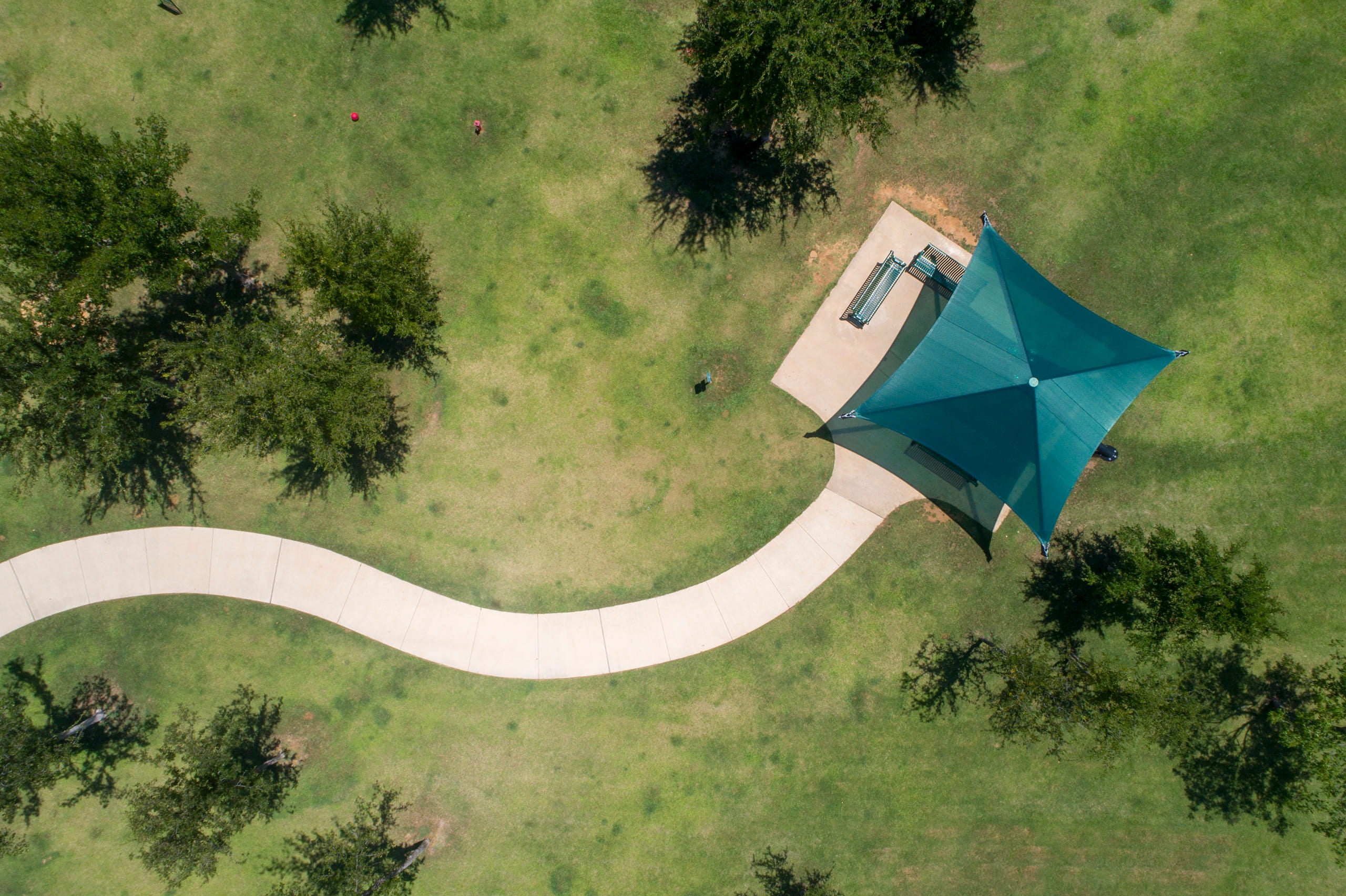

USA Shade Single Post Pyramid Cantilever Shade at The Hound Mound dog park in Flower Mound, TX

The cantilever pyramid is the right choice when a center column would interfere with how the space beneath it gets used. Dog parks, bleacher areas, playground adjacencies, pool decks, and gathering areas at commercial venues all benefit from the column-free footprint. The Quick Release (QRE) option allows the fabric to be removed quickly ahead of expected high winds or heavy snowfall. A joined option is also available for expanded coverage across larger areas.

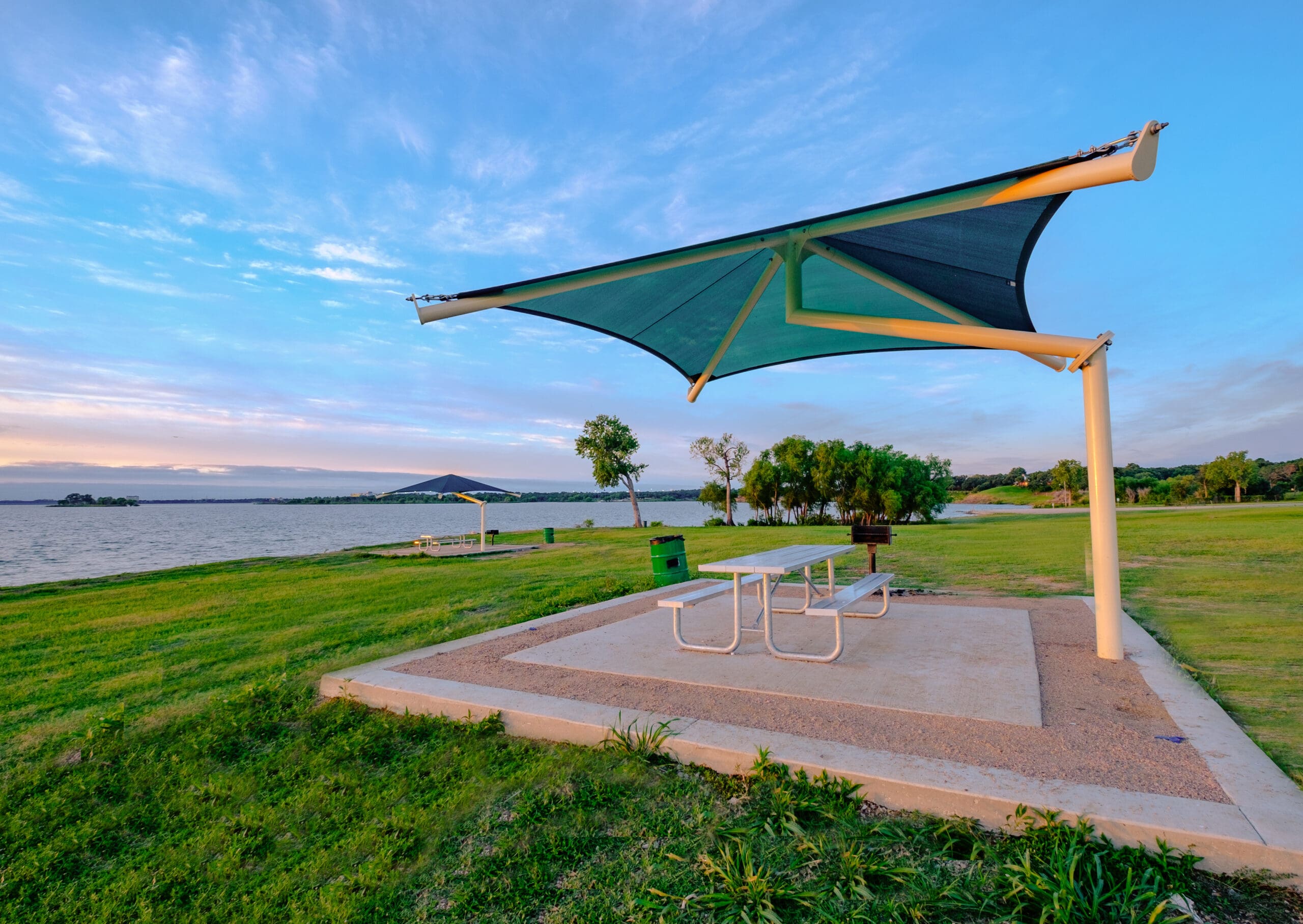

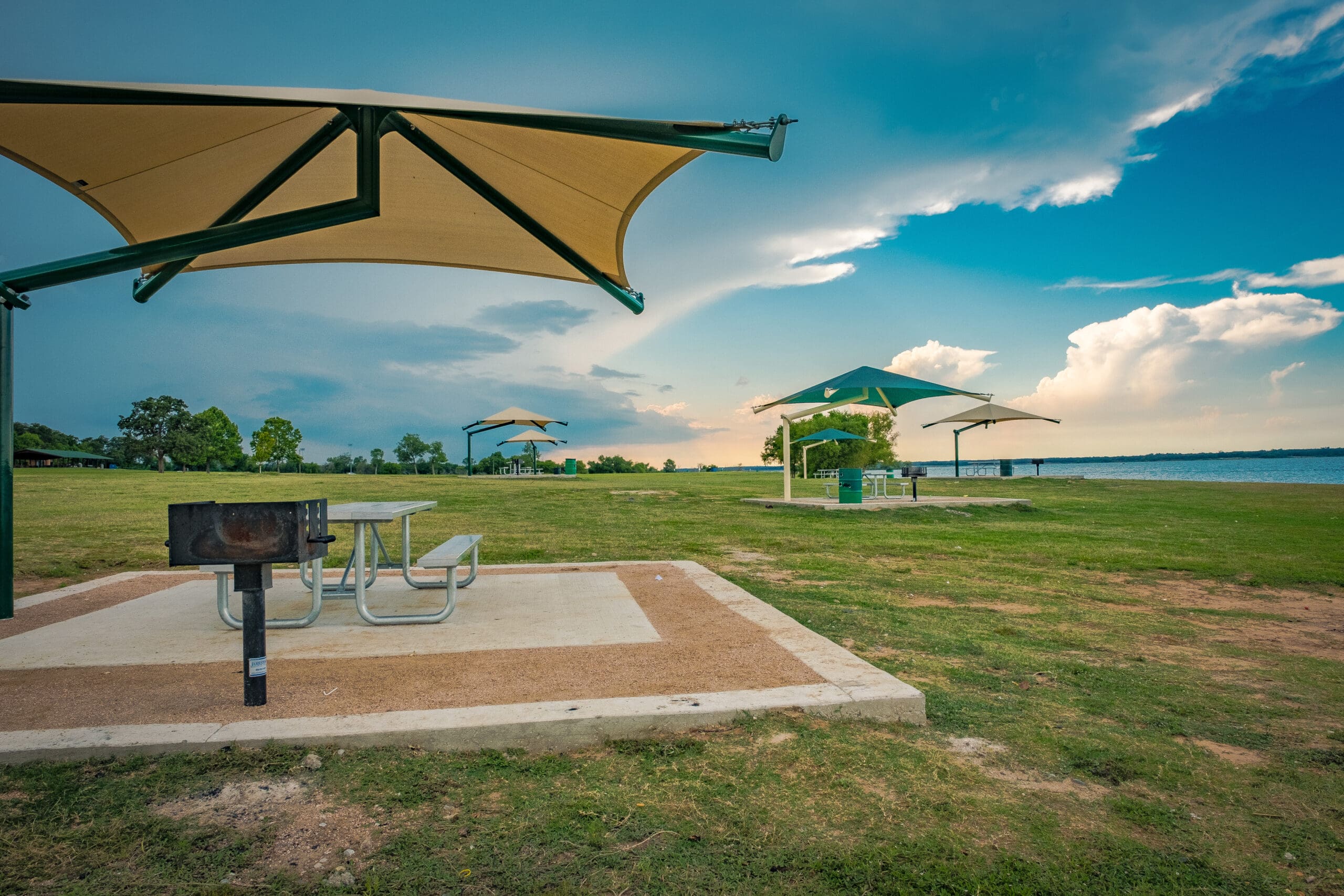

USA Shade Single Post Pyramid Cantilever Shade Structures at Grapevine Lake, TX

A coastal primer option is available for properties in salt spray or high-humidity environments. Steel tubing is coated inside and out to prevent rust, finished with a thick UV-resistant powder coat, and assembled with reinforced joints sealed against moisture.

Commercial Cantilever Umbrella Pyramid Sizes, Quick Ship, and Custom Options

The following sizes qualify for the Quick Ship program and are made to your specifications in 4 weeks:

10'L x 10'W
12'L x 12'W
14'L x 14'W

All Quick Ship sizes are available at entry heights of 8, 10, and 12 feet.

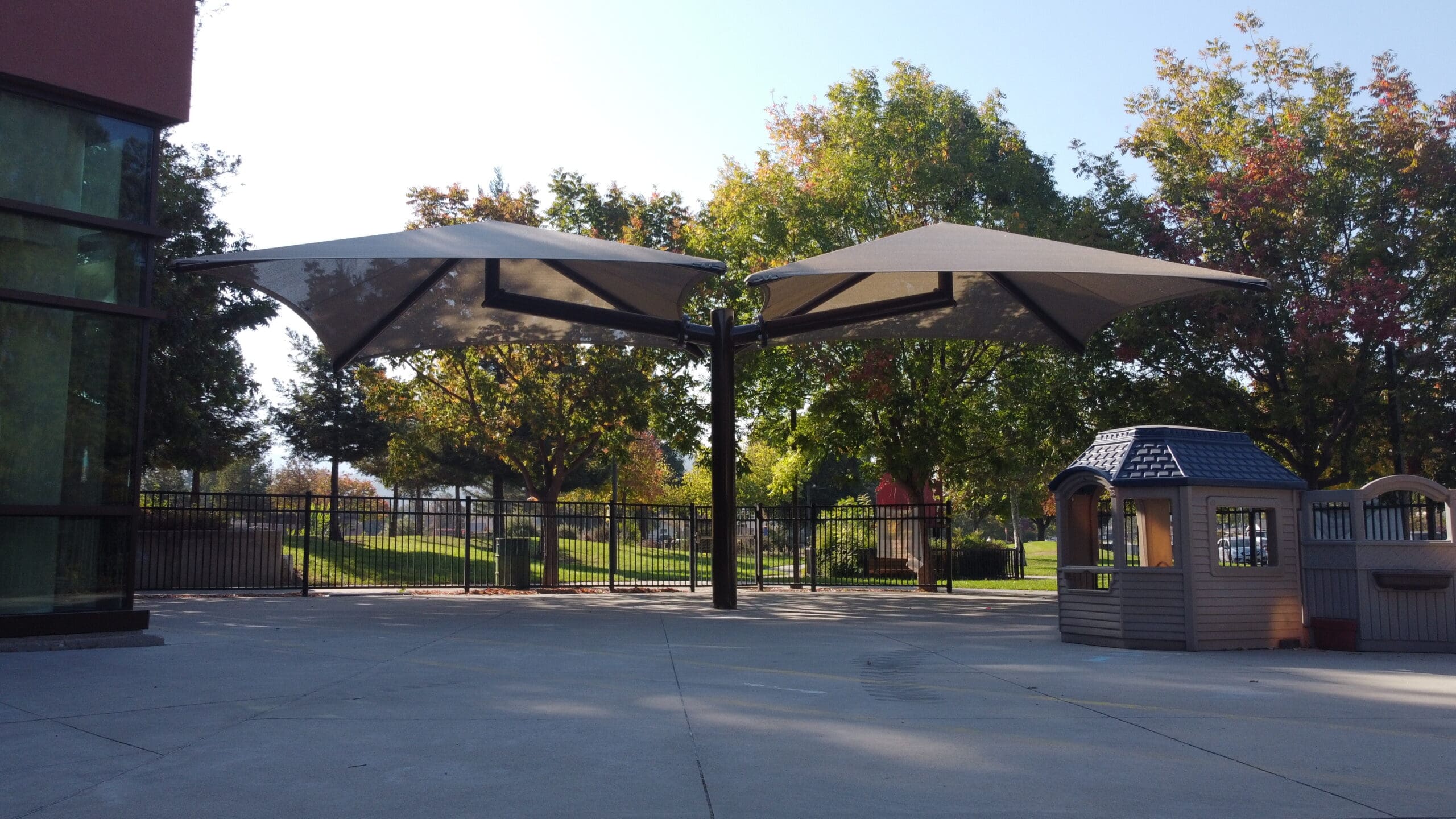

Custom double cantilever configuration — two pyramid shade umbrellas mounted on a single post at Almaden Community Center in San Jose, CA

Custom Double Cantilever Option: As shown in the photo, a custom configuration is available with two pyramid canopies mounted on a single post extending in opposite directions. This doubles coverage from a single anchor point and is worth discussing if your project calls for shading a larger area without adding additional post foundations.

Shadesure™ is the standard fabric, available in 20 colors with shade factors and UV blocking figures listed on each color swatch. Colourshade® FR is a fire-rated fabric approved by California's Division of the State Architect (DSA), available in 7 colors for California school projects and other DSA-regulated installations.

Steel post colors are available in Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, and Tele-Gray. Steel finish options include super durable TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, and combinations of galvanizing with powder coat or wet paint.

Technical Specifications

Frame material: Heavy-duty steel tubing, coated inside and out; UV-resistant powder coat finish
Wind rating: Engineered for 90 mph three-second wind gusts (with fabric); steel frame rated higher with fabric removed
Snow load: 5 PSF
Fabric: Shadesure™ HDPE — approximately 80% shade, up to 90% UV protection (see color swatch for exact figures)
Quick Ship sizes: 10x10, 12x12, 14x14 — made to spec in 4 weeks
Entry heights: 8, 10, and 12 feet
Options: Quick Release (QRE) fabric removal system; joined configurations available; custom double-cantilever configuration available
Fabric options: Shadesure™ (20 colors) / Colourshade® FR — fire-rated, DSA approved (7 colors)
Steel finishes: TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, galvanizing with powder coat or wet paint
Post colors: Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, Tele-Gray
Warranty: 10-year structural on steel; 10-year limited on fabric. See full warranty page for details.

Supply-A-City is an authorized USA Shade and Fabric Structures distributor serving parks departments, school districts, property managers, and facilities directors across the United States.

Have questions? Contact us:
Phone: (833) 746-7688
Email: info@supplyacity.com

Call Us: (833) 746-7688 Email Us: Info@Supplyacity.com Join Our Email List

Warranty

USA Shade Warranty Coverage

USA Shade stands behind the quality of their structures with some of the strongest warranty coverage in the industry. Below is a plain-English breakdown of what is covered, for how long, and how to use it if you ever need to.

What Is Covered and for How Long

Steel structure — 10 years. The structural integrity of all supplied steel is fully warranted for ten years from the date of sale.
Fabric (Shadesure™, Colourshade® FR, Extreme 32™, Commercial 95™) — 10 years. Fabric is warranted against significant fading, deterioration, breakdown, and weather damage including outdoor heat, cold, and discoloration. If a warranty claim is approved, USA Shade will repair or ship a replacement fabric at no charge for the first six years. From year seven onward, coverage is pro-rated at 20% per year for the remaining four years.
Sewing thread — 10 years.
Steel surface finishes — 1 year.
Assembly labor — 1 year, if assembly was performed by USA Shade.

Fabric Warranty Exceptions

Certain fabric types and colors carry different warranty terms:

Shadesure™ in Red, Yellow, Atomic Orange, Electric Purple, Zesty Lime, Cinnamon, Olive, and Mulberry — 5-year pro-rated warranty.
Individual fabric tops over 40 feet in length — 5-year non-prorated warranty.
Precontraint 502™ waterproof material — 8-year pro-rated warranty.
Fabrics on Coolbrella structures — 3-year warranty.

How to File a Warranty Claim

If you believe you have a warranty issue, here is what to do:

Submit your claim in writing within 30 days of discovering the problem.
Include a detailed description of the issue along with photos.
Send everything to warranty@usa-shade.com.

USA Shade will repair or replace defective products, or refund the portion of the purchase price related to the defect, at their discretion.

What Is Not Covered

The warranty does not cover:

Normal wear and tear
Misuse, vandalism, or contact with chemicals
Damage from events outside normal weather conditions, including tornadoes, hurricanes, earthquakes, and wildfires
Ice, snow, or wind loads that exceed the engineered design parameters of your specific structure
Damage resulting from maintenance or repairs not consistent with USA Shade's care instructions
Unauthorized modifications — no signs, lights, fans, or objects may be hung from the structure without prior written approval from USA Shade
Assembly not performed by USA Shade or their authorized agents
Fabric curtains, valances, and flat vertical panels
Fabric installed on structures not originally engineered and supplied by USA Shade

The warranty is also void if the structure is not paid for in full or is not assembled in strict compliance with USA Shade specifications.

Warranty Transfers

If you sell your property, the warranty does not automatically transfer to the new owner. A transfer requires a complete on-site inspection by a USA Shade representative. Contact warranty@usa-shade.com to arrange this.

Liability Limit

USA Shade's liability under this warranty is limited to the original purchase price of the product. They are not responsible for lost revenue, lost profits, or any indirect or consequential damages related to a warranty claim.
