Outdoor USA Shade Wave Shade with beige top and gray base on a white background

USA Shade Wave Canopy Shade

Name: USA Shade Wave Canopy Shade
Brand: USA Shade
Availability: InStock

by USA Shade

$0.00 + FREE SHIPPING

Size

Entry Height

Quantity

Safe Arrival Promise We assume all delivery risk

Free Ground Shipping Standard delivery is $0.00

30-Day Easy Returns Shop risk-free with simple returns

Expert Project Support
(833) 746-7688 Specialists ready to help
(833) 746-7688

Description
Warranty
Why Buy From Us?

Description

Wave Shade Structure Built for Aquatic Centers, Parks, and Commercial Outdoor Spaces

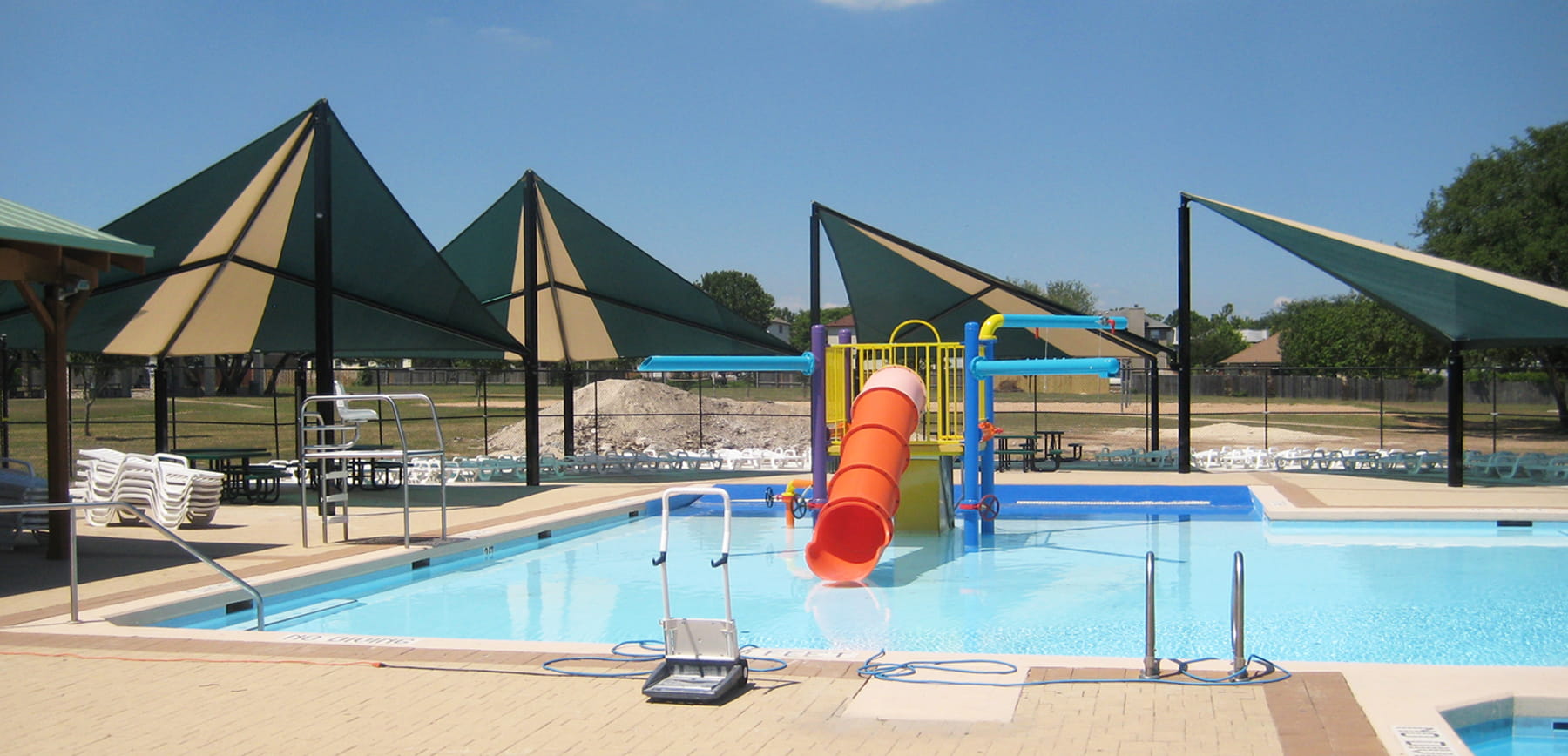

Joined USA Shade Wave Shade Structures at Elizabeth Milburn Pool

Your outdoor space makes a stronger impression when the shade structure is part of the design rather than an afterthought. The USA Shade Wave Shade Structure delivers a peak-and-valley roof form that provides effective sun coverage while adding a visual character that flat canopies and standard hip structures can't match. Aquatic centers, parks, clubhouses, and commercial outdoor areas use it where the look of the shade structure matters as much as the coverage it provides.

Instead of a standard peaked or flat canopy, your property gets a multi-peak wave form engineered for 90 mph three-second wind gusts and a 5 PSF snow load. The alternating peaks and valleys naturally channel water off the structure and create a dynamic roofline that works particularly well in settings where the shade structure is visible from multiple angles.

Supply-A-City is an authorized USA Shade and Fabric Structures distributor. All products are manufactured in the USA and backed by a 10-year structural warranty on steel and a 10-year limited fabric warranty.

Pool Wave Canopy Shade Configurations Including Joined and Cantilever Options

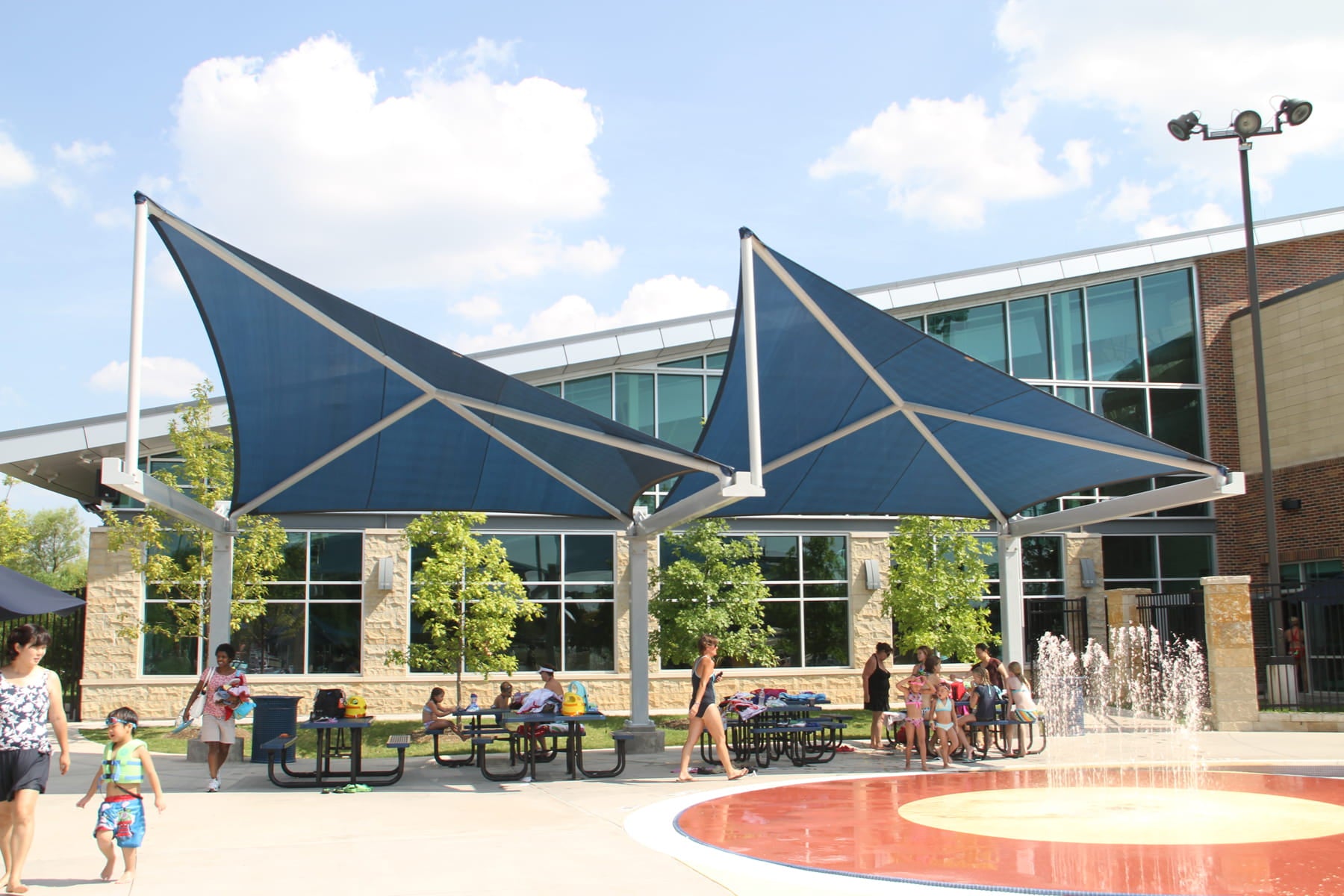

Custom cantilever wave shade structure at Tom Muehlenbeck Center

Custom Cantilever Wave Configuration: As shown above, the Wave is also available in a cantilever form — keeping the support columns to one side and leaving the area underneath completely unobstructed. This is a strong option for pool decks, seating areas, and walkways where open space beneath the shade is a priority.

Joined configurations allow multiple wave units to connect for extended coverage across larger areas. A coastal primer option is available for salt spray environments. Steel tubing is coated inside and out, finished with a UV-resistant powder coat, and assembled with reinforced joints and sealed welds throughout.

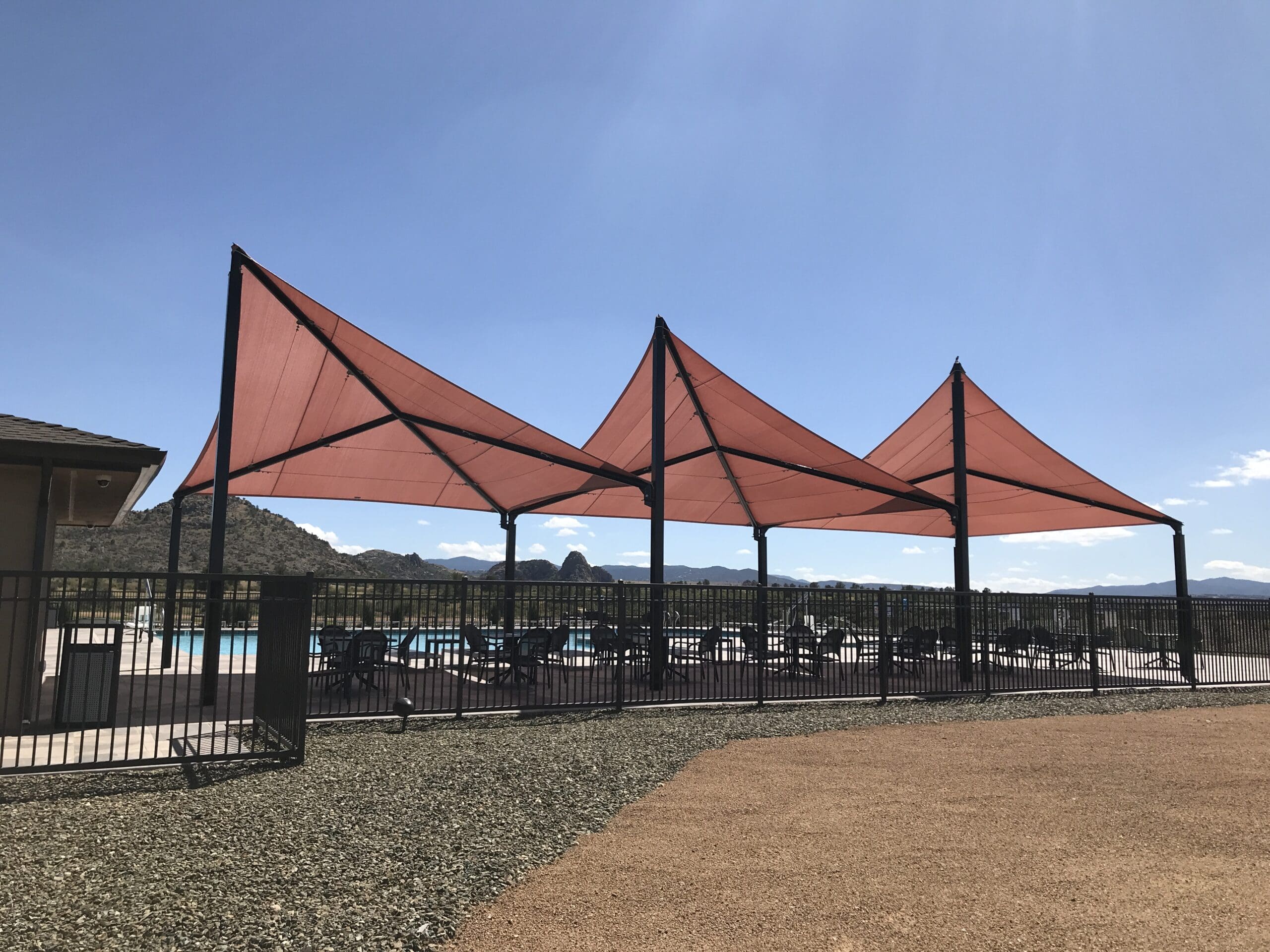

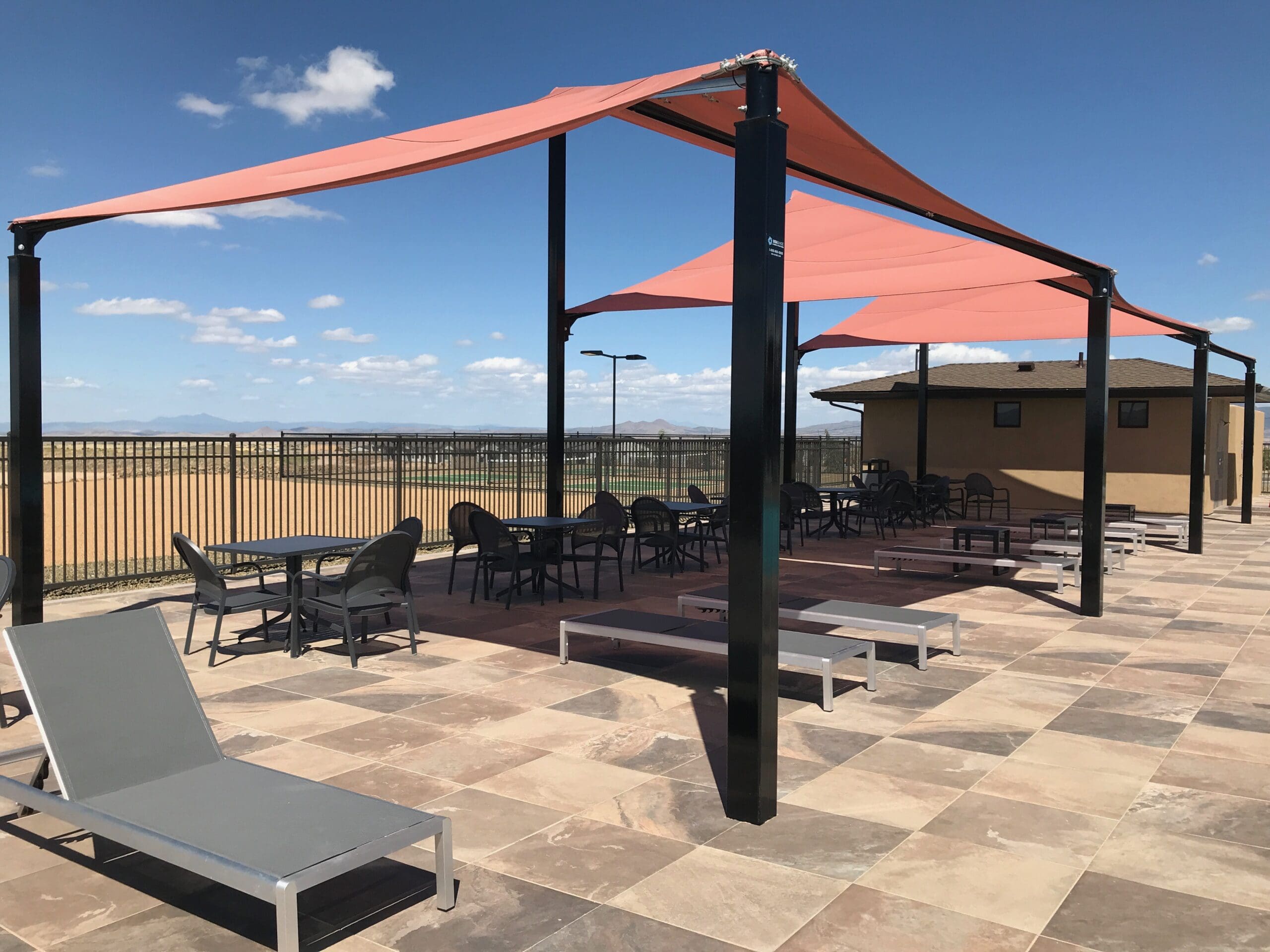

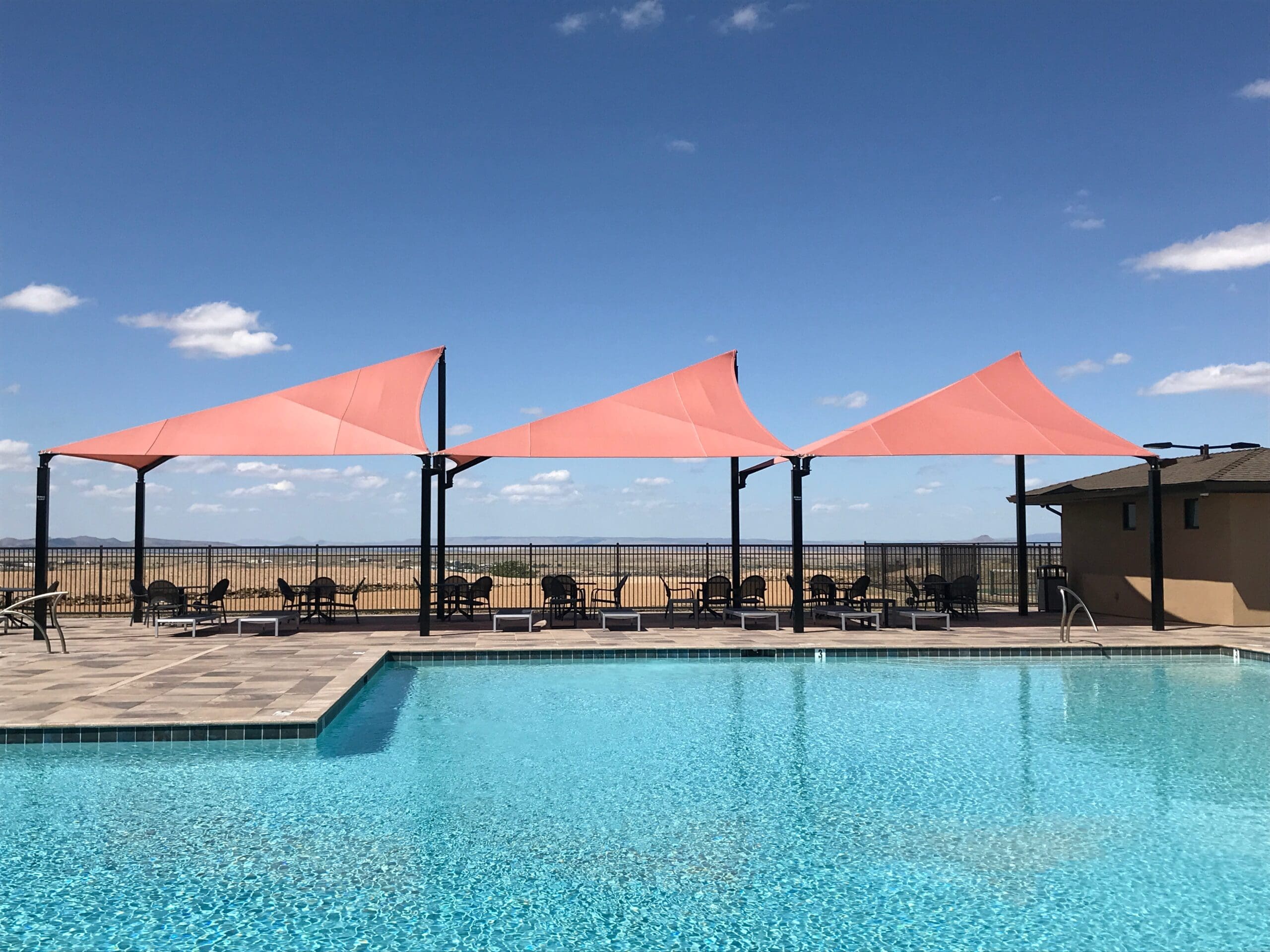

USA Shade Wave Shade Structure at Granite Dells Estates Clubhouse in Prescott, AZ

The Wave works well for properties where a standard pyramid or hip shade would feel visually flat. Aquatic centers, community clubhouses, recreation centers, and park facilities with high visibility from surrounding areas all benefit from the more distinctive roofline. If a simpler peaked form fits your project better, the 4-Post Pyramid Shade [CROSS-LINK] and Hip Roof Shade Structure [CROSS-LINK] are the natural comparisons.

Fabric and Finish Options for Any Climate or Code Requirement

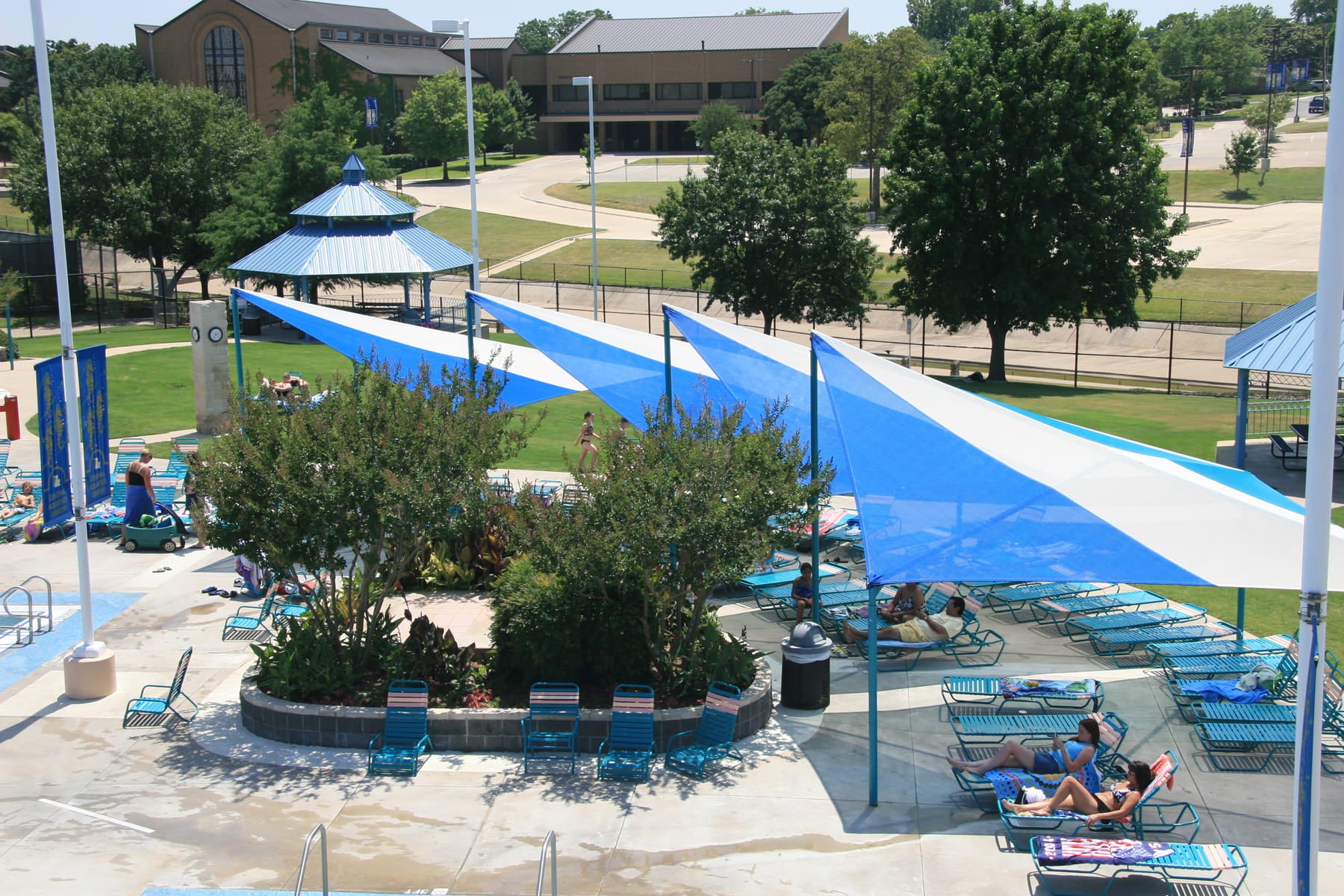

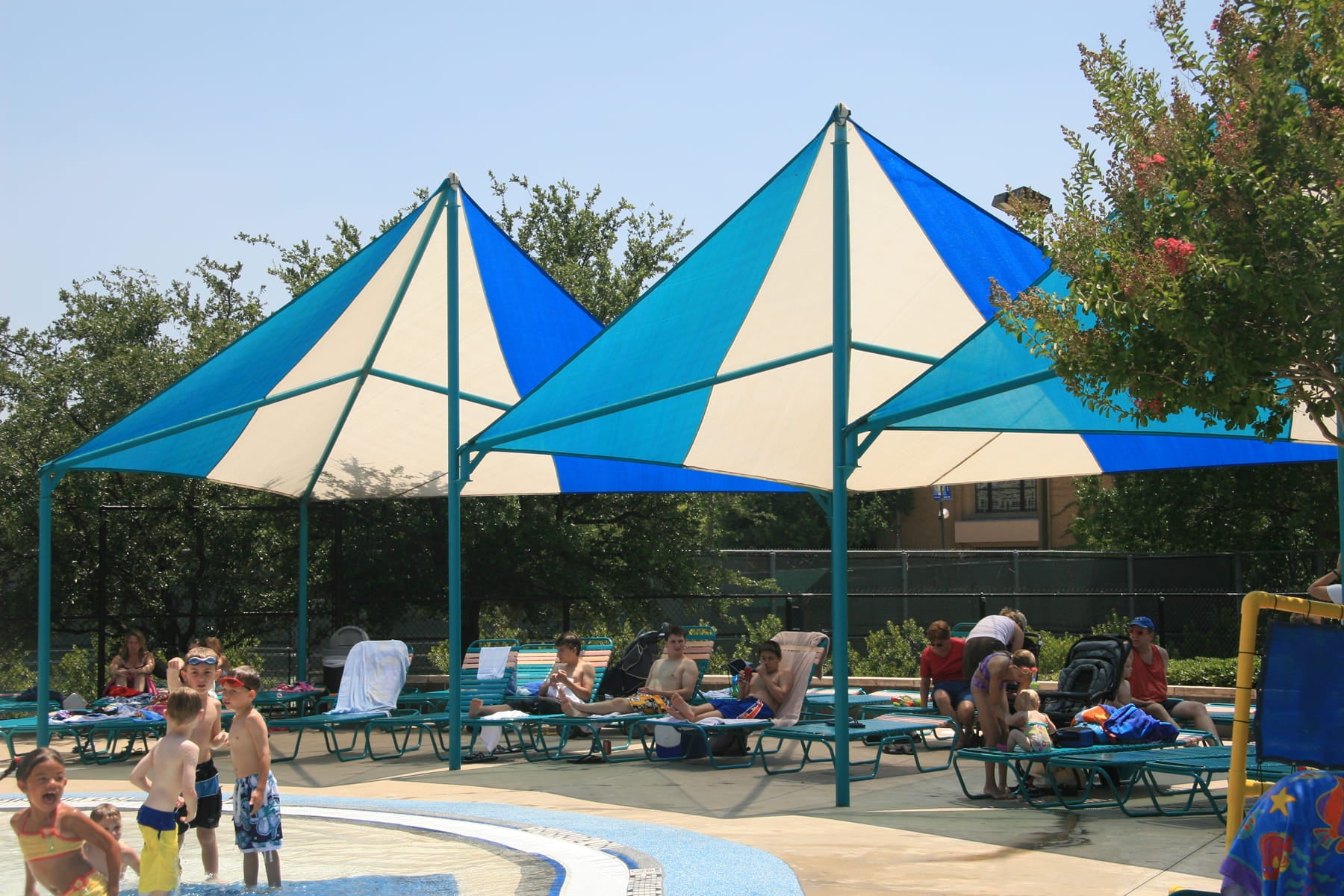

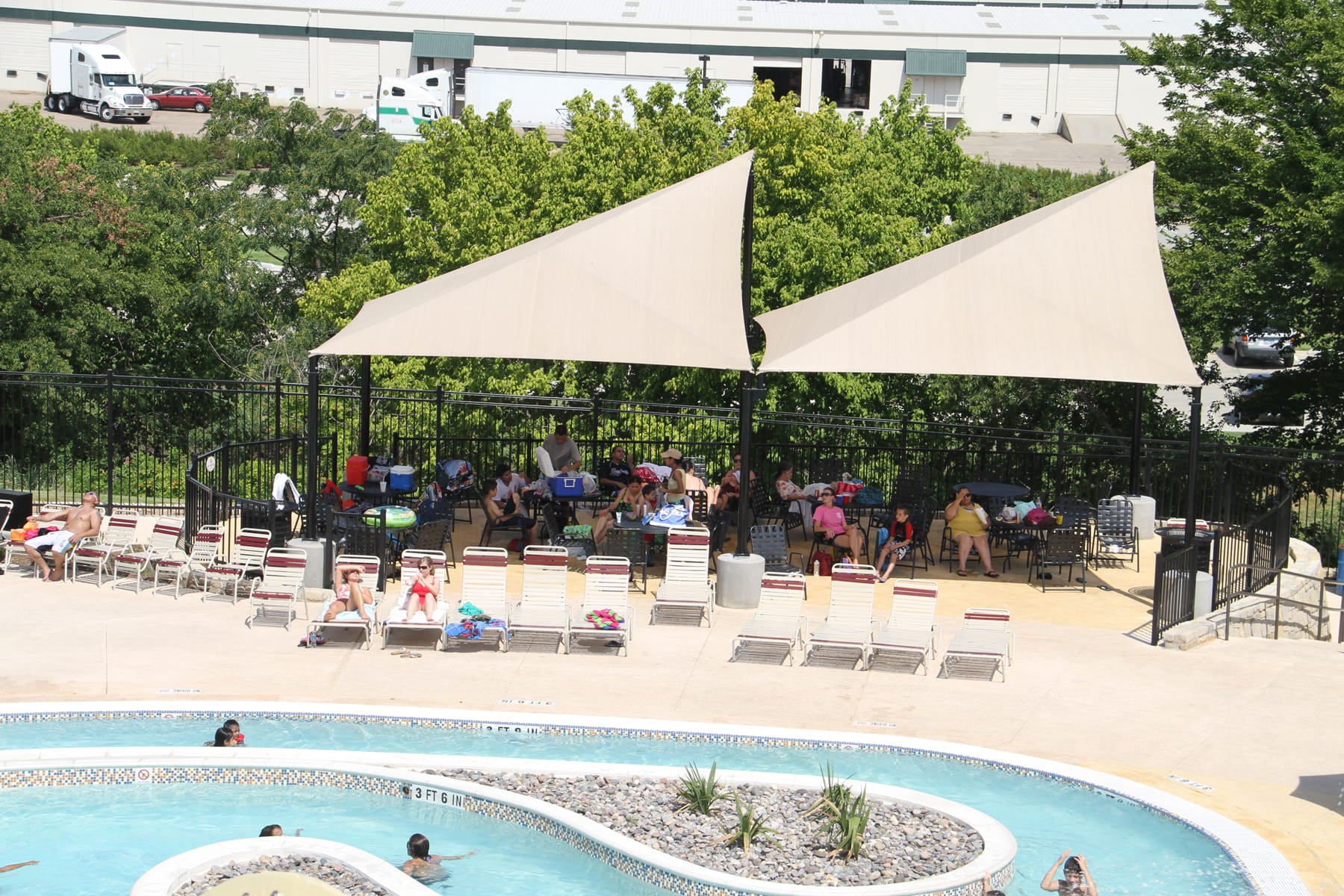

Joined USA Shade Wave Shade Structures at Central Aquatics Center

Shadesure™ is the standard fabric, available in 20 colors with approximately 80% shade and up to 90% UV protection (see color swatch for exact figures). Colourshade® FR is a fire-rated fabric approved by California's Division of the State Architect (DSA), available in 7 colors for California school projects and other DSA-regulated installations.

Steel post colors are available in Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, and Tele-Gray. Steel finish options include super durable TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, and combinations of galvanizing with powder coat or wet paint.

Technical Specifications

Frame material: Heavy-duty steel tubing, coated inside and out; UV-resistant powder coat finish
Roof form: Peak-and-valley wave profile
Wind rating: 90 mph three-second wind gusts (with fabric); steel frame rated higher with fabric removed
Snow load: 5 PSF
Fabric: Shadesure™ HDPE — approximately 80% shade, up to 90% UV protection (see color swatch for exact figures)
Options: Joined configurations; cantilever configuration available; coastal primer; Quick Release (QRE)
Fabric options: Shadesure™ (20 colors) / Colourshade® FR — fire-rated, DSA approved (7 colors)
Steel finishes: TGIC powder coat, Zinc Rich Coastal primer and powder coat, hot dip galvanizing, galvanizing with powder coat or wet paint
Post colors: Black, Cobalt, Blue, Forest Green, Red, Yellow, Dark Brown, Light Ivory, White, Tele-Gray
Sizing: Custom to your project. Contact us for dimensions and lead time.
Warranty: 10-year structural on steel; 10-year limited on fabric. See full warranty page for details.

Supply-A-City is an authorized USA Shade and Fabric Structures distributor serving parks departments, school districts, property managers, and facilities directors across the United States.

Have questions? Contact us:
Phone: (833) 746-7688
Email: info@supplyacity.com

Call Us: (833) 746-7688 Email Us: Info@Supplyacity.com Join Our Email List

Warranty

USA Shade Warranty Coverage

USA Shade stands behind the quality of their structures with some of the strongest warranty coverage in the industry. Below is a plain-English breakdown of what is covered, for how long, and how to use it if you ever need to.

What Is Covered and for How Long

Steel structure — 10 years. The structural integrity of all supplied steel is fully warranted for ten years from the date of sale.
Fabric (Shadesure™, Colourshade® FR, Extreme 32™, Commercial 95™) — 10 years. Fabric is warranted against significant fading, deterioration, breakdown, and weather damage including outdoor heat, cold, and discoloration. If a warranty claim is approved, USA Shade will repair or ship a replacement fabric at no charge for the first six years. From year seven onward, coverage is pro-rated at 20% per year for the remaining four years.
Sewing thread — 10 years.
Steel surface finishes — 1 year.
Assembly labor — 1 year, if assembly was performed by USA Shade.

Fabric Warranty Exceptions

Certain fabric types and colors carry different warranty terms:

Shadesure™ in Red, Yellow, Atomic Orange, Electric Purple, Zesty Lime, Cinnamon, Olive, and Mulberry — 5-year pro-rated warranty.
Individual fabric tops over 40 feet in length — 5-year non-prorated warranty.
Precontraint 502™ waterproof material — 8-year pro-rated warranty.
Fabrics on Coolbrella structures — 3-year warranty.

How to File a Warranty Claim

If you believe you have a warranty issue, here is what to do:

Submit your claim in writing within 30 days of discovering the problem.
Include a detailed description of the issue along with photos.
Send everything to warranty@usa-shade.com.

USA Shade will repair or replace defective products, or refund the portion of the purchase price related to the defect, at their discretion.

What Is Not Covered

The warranty does not cover:

Normal wear and tear
Misuse, vandalism, or contact with chemicals
Damage from events outside normal weather conditions, including tornadoes, hurricanes, earthquakes, and wildfires
Ice, snow, or wind loads that exceed the engineered design parameters of your specific structure
Damage resulting from maintenance or repairs not consistent with USA Shade's care instructions
Unauthorized modifications — no signs, lights, fans, or objects may be hung from the structure without prior written approval from USA Shade
Assembly not performed by USA Shade or their authorized agents
Fabric curtains, valances, and flat vertical panels
Fabric installed on structures not originally engineered and supplied by USA Shade

The warranty is also void if the structure is not paid for in full or is not assembled in strict compliance with USA Shade specifications.

Warranty Transfers

If you sell your property, the warranty does not automatically transfer to the new owner. A transfer requires a complete on-site inspection by a USA Shade representative. Contact warranty@usa-shade.com to arrange this.

Liability Limit

USA Shade's liability under this warranty is limited to the original purchase price of the product. They are not responsible for lost revenue, lost profits, or any indirect or consequential damages related to a warranty claim.
