Four 36 inch seats sit apart around a 46 inch square top, so your group steps in at the corners instead of climbing over a bench.
This square metal picnic table coats its steel top and seats in plastisol, a thick vinyl finish that keeps rain off the metal and wipes clean fast.
You choose a Standard, Umbrella Hole or Chessboard top in Diamond or Perforated steel, with 4 seats or an ADA Accessible layout.
Supply-A-City is your authorized Wabash Valley distributor, delivering this USA-manufactured table with free shipping.
46" Square Top | 4 Seats or ADA Accessible | Standard, Umbrella Hole or Chessboard | Diamond or Perforated | Plastisol-Coated Steel | Portable | 5-Year Coating Warranty

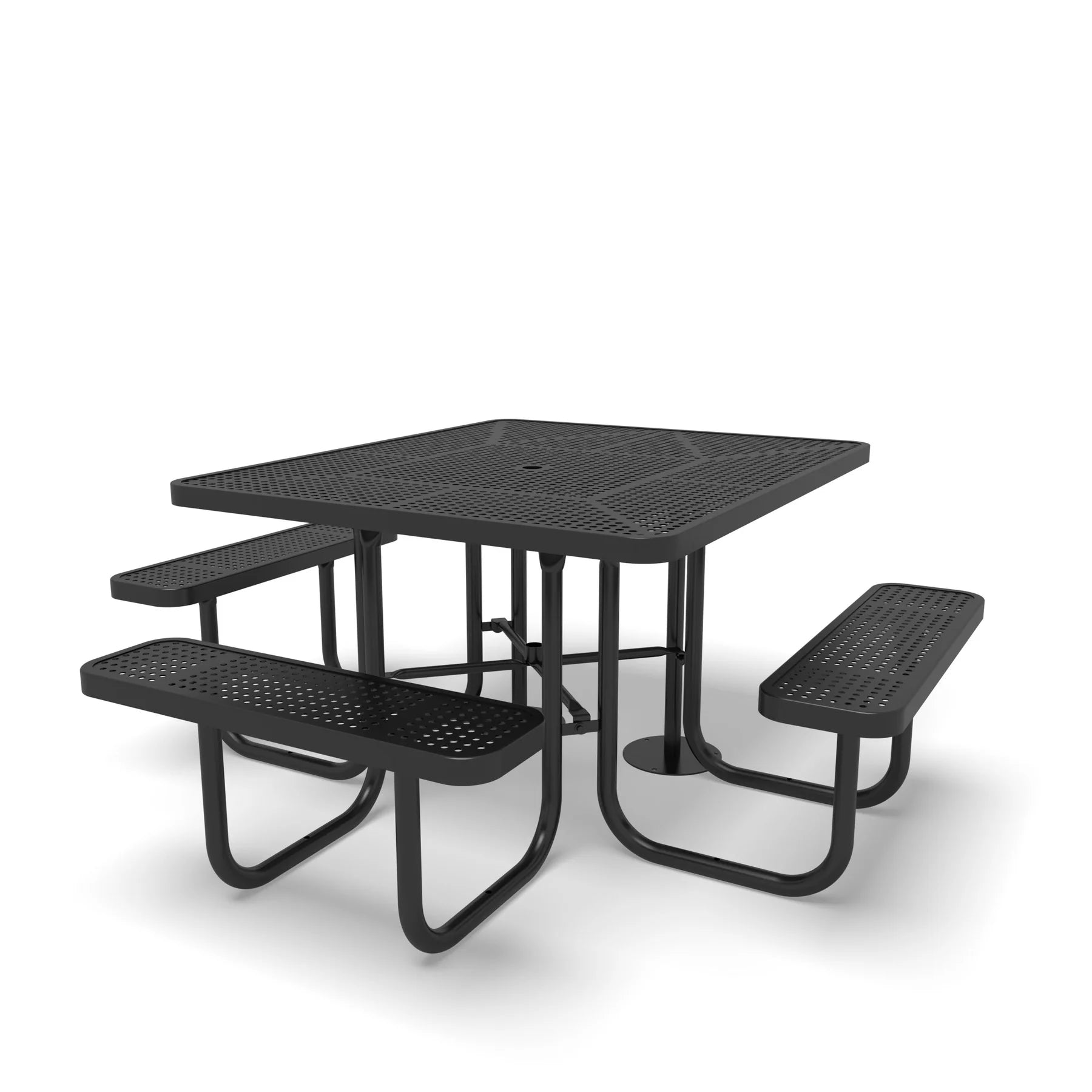

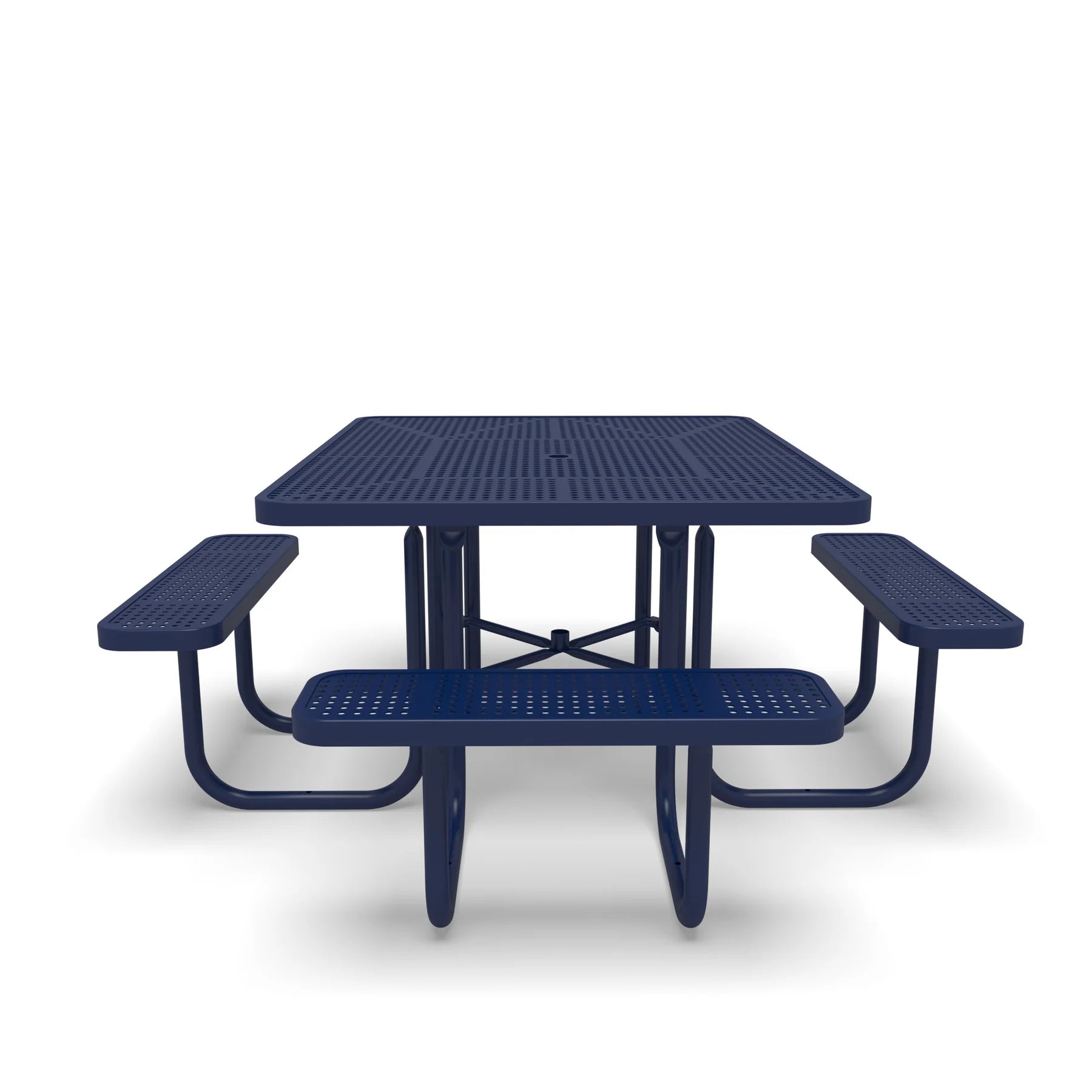

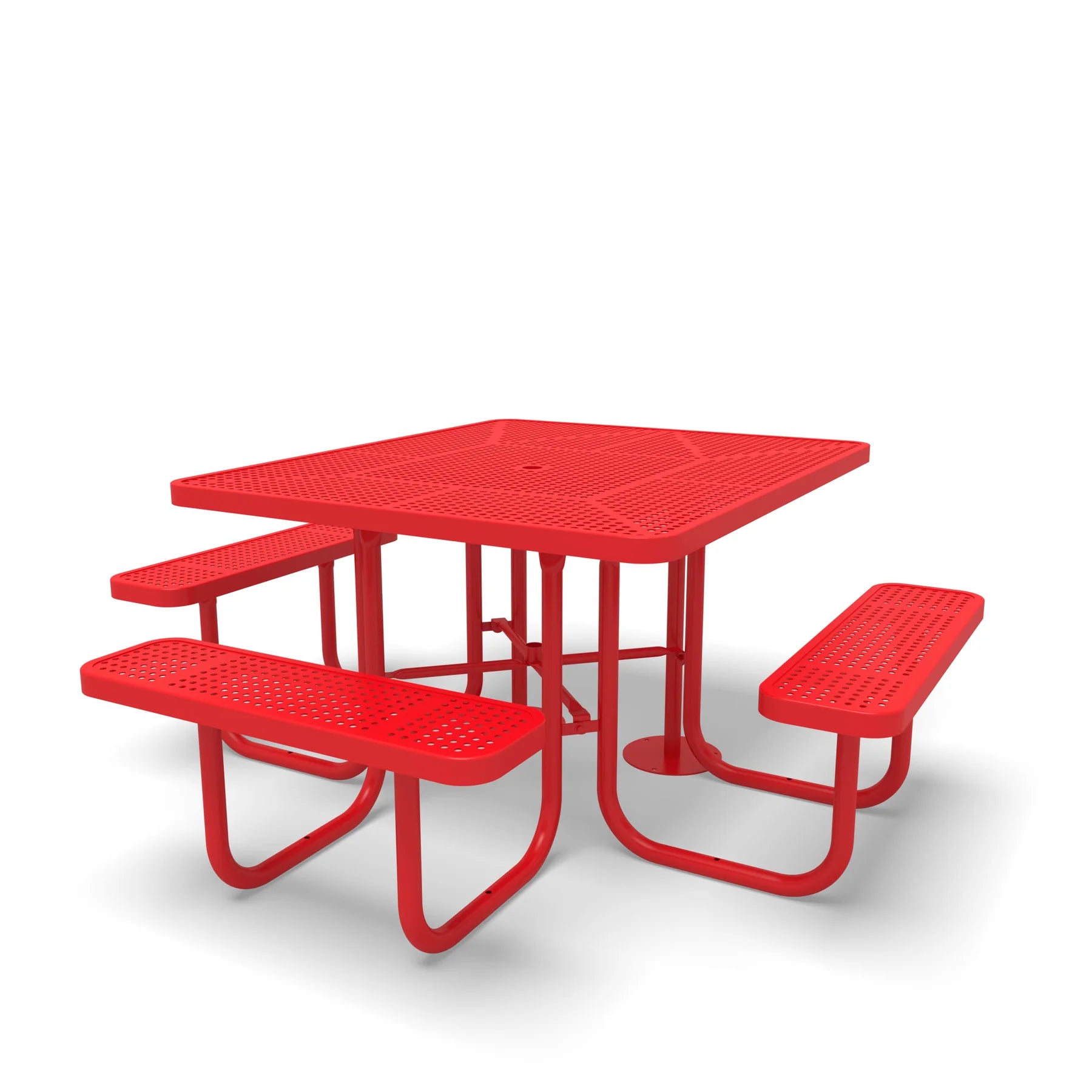

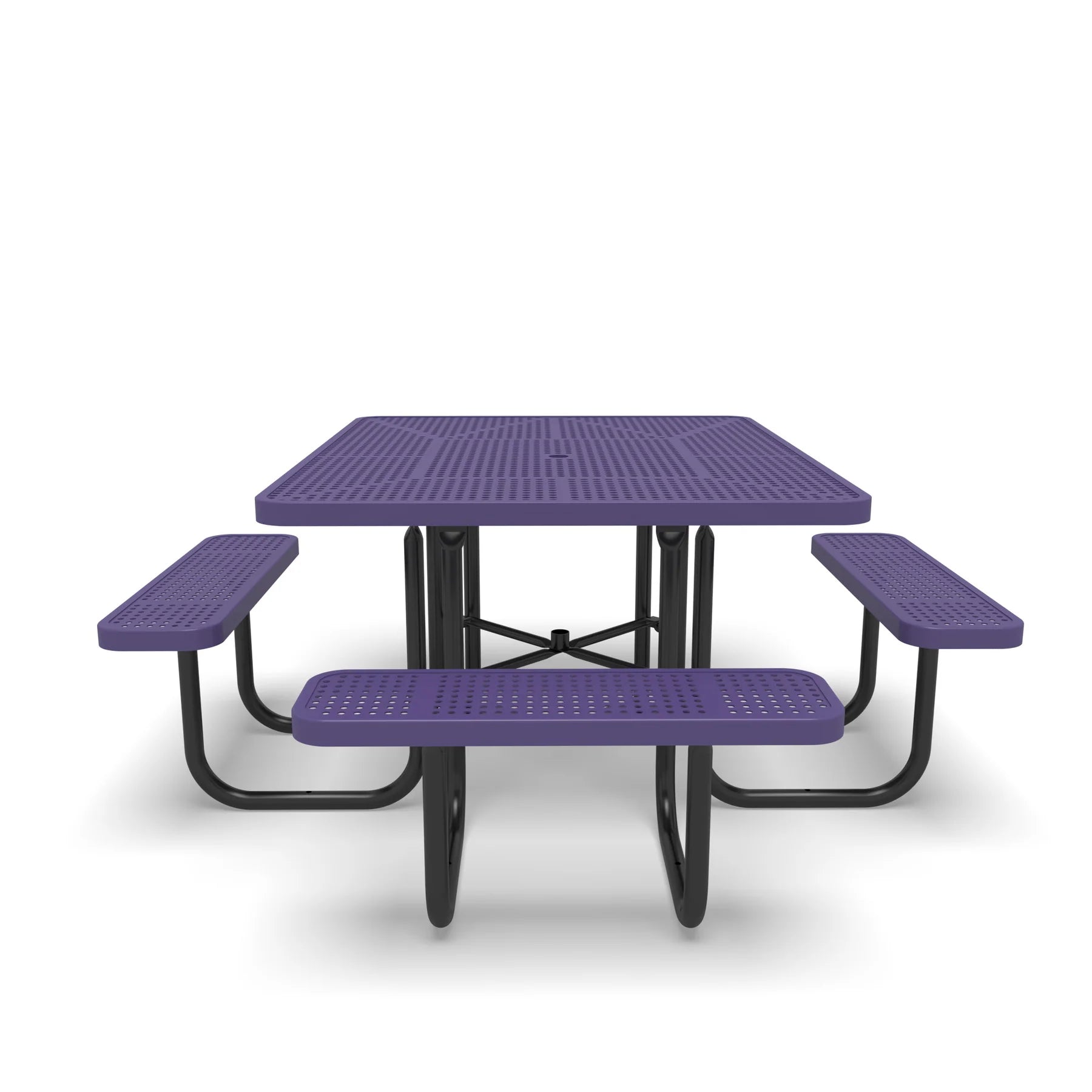

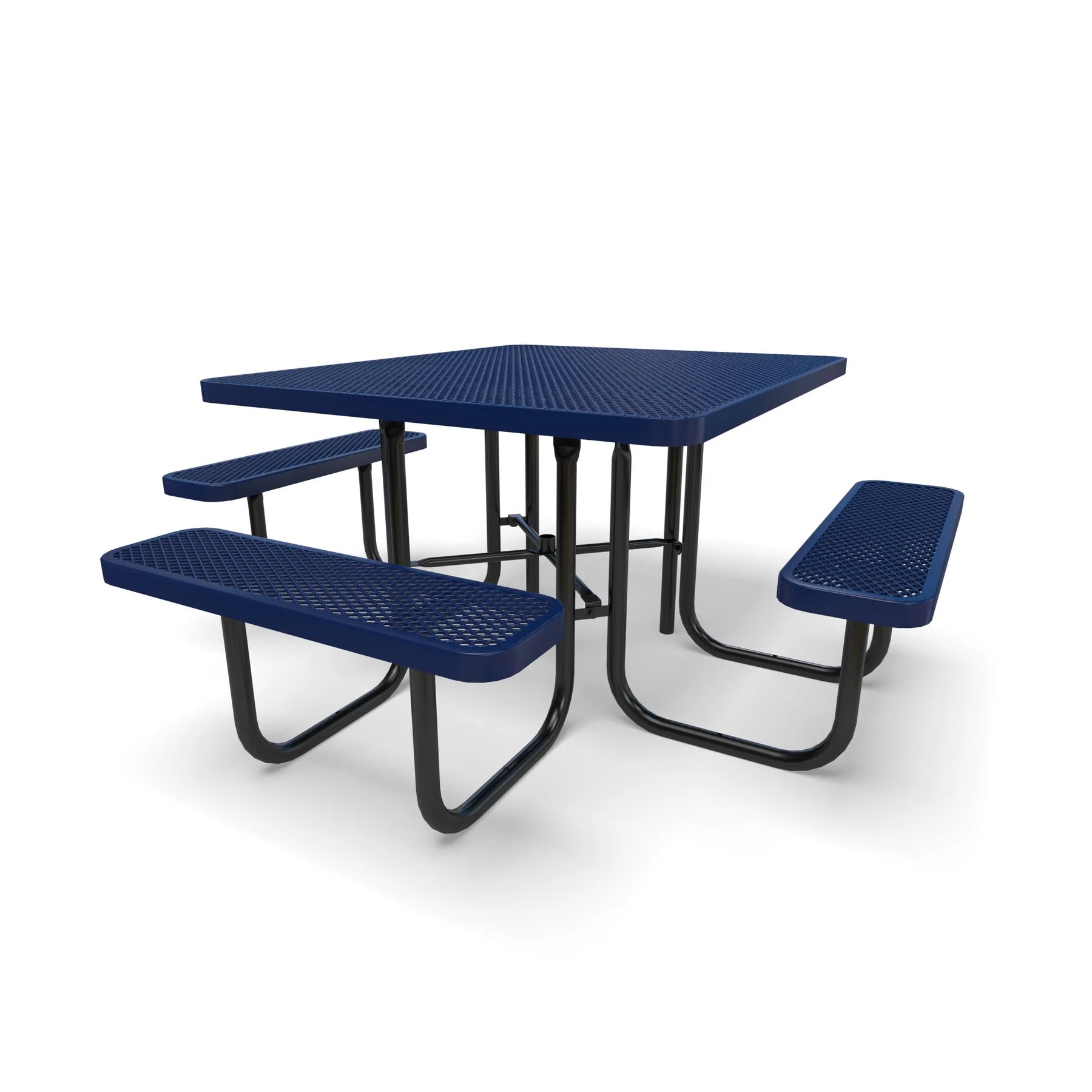

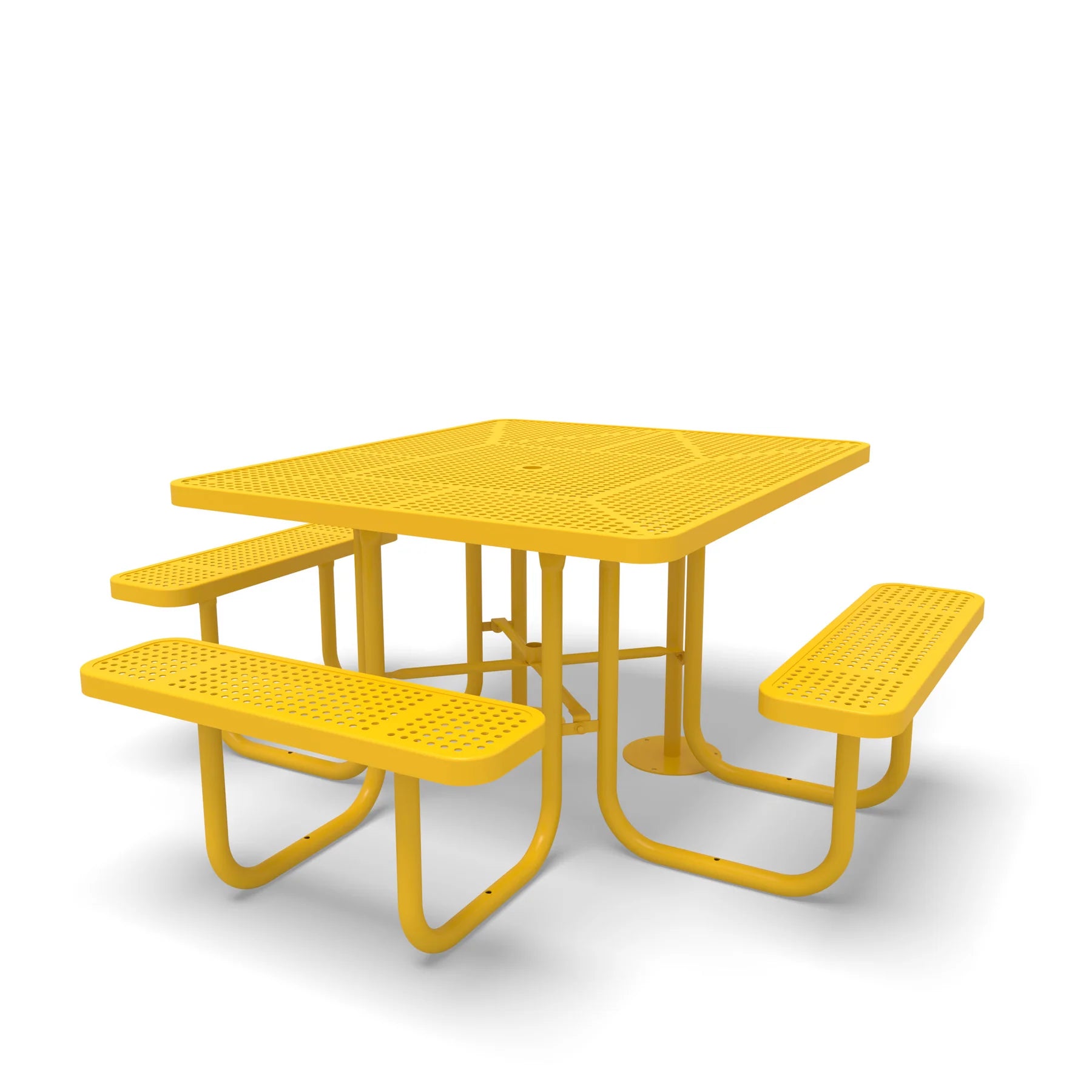

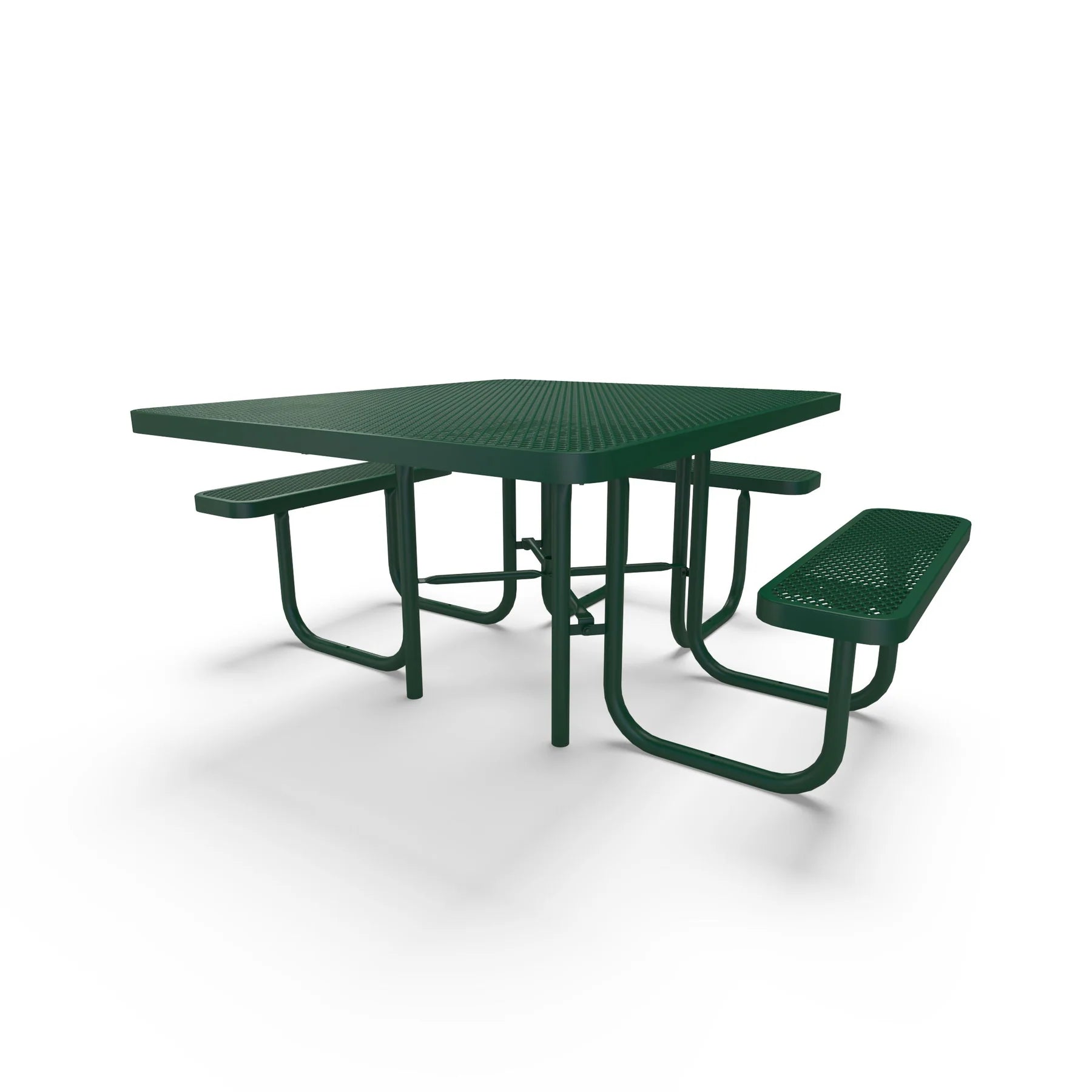

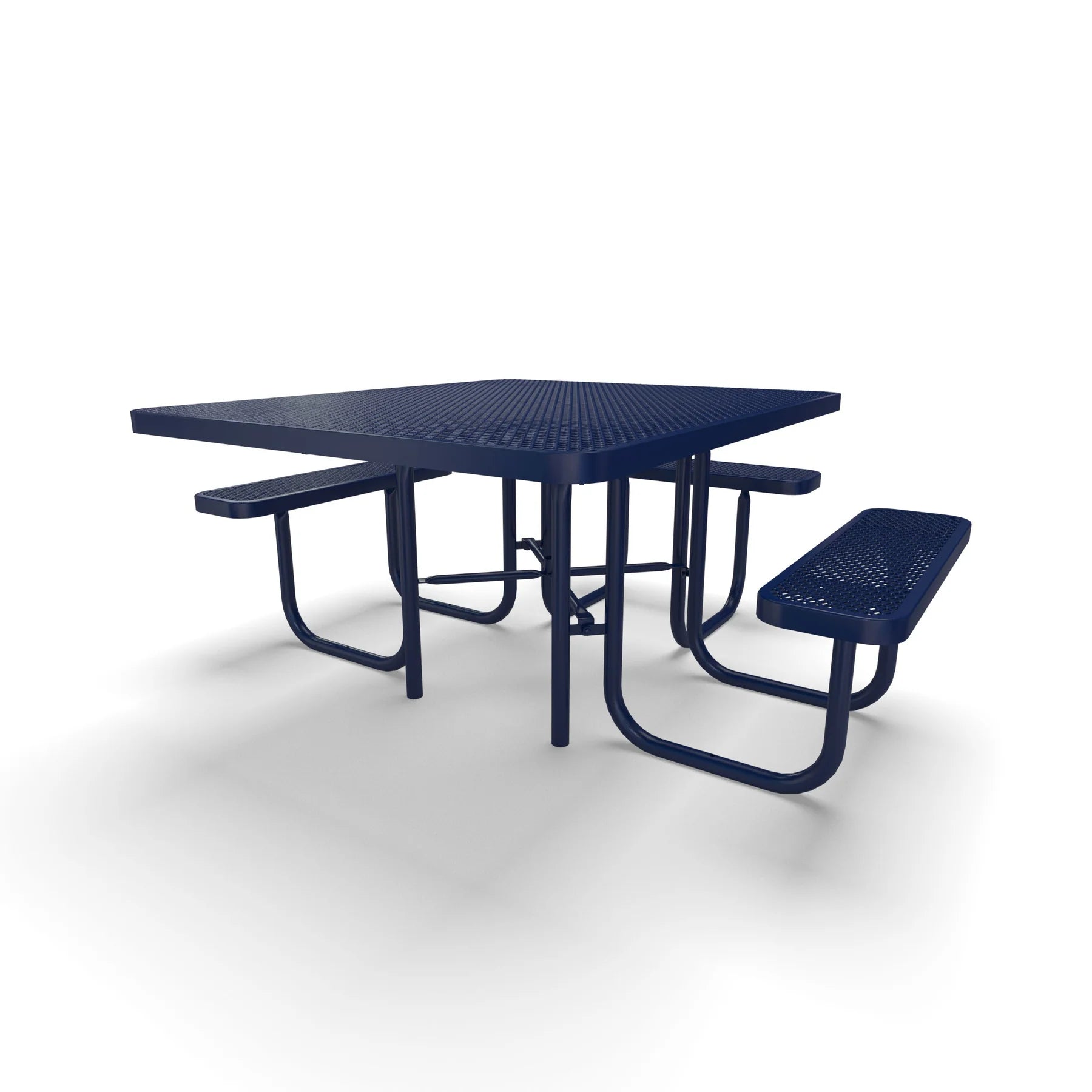

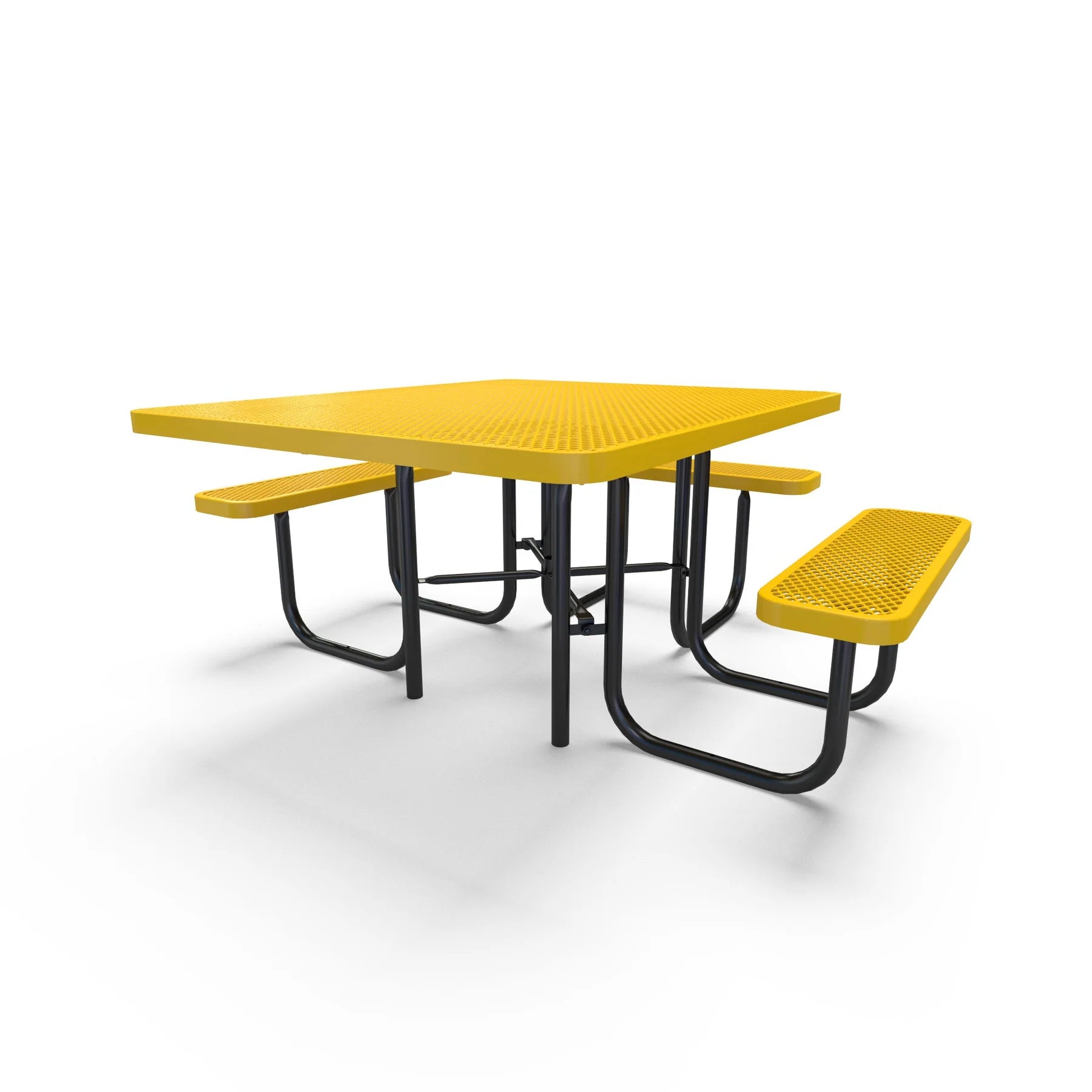

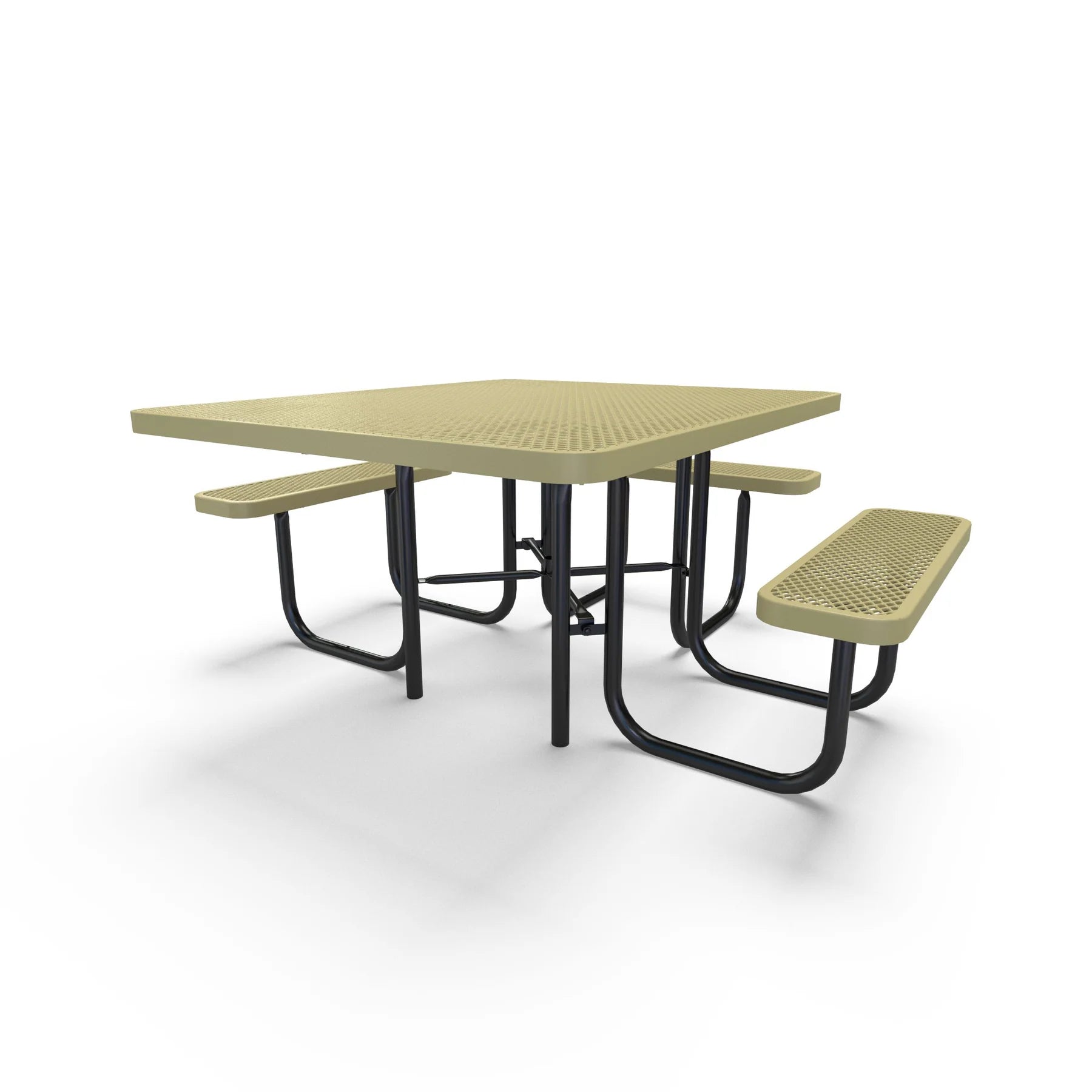

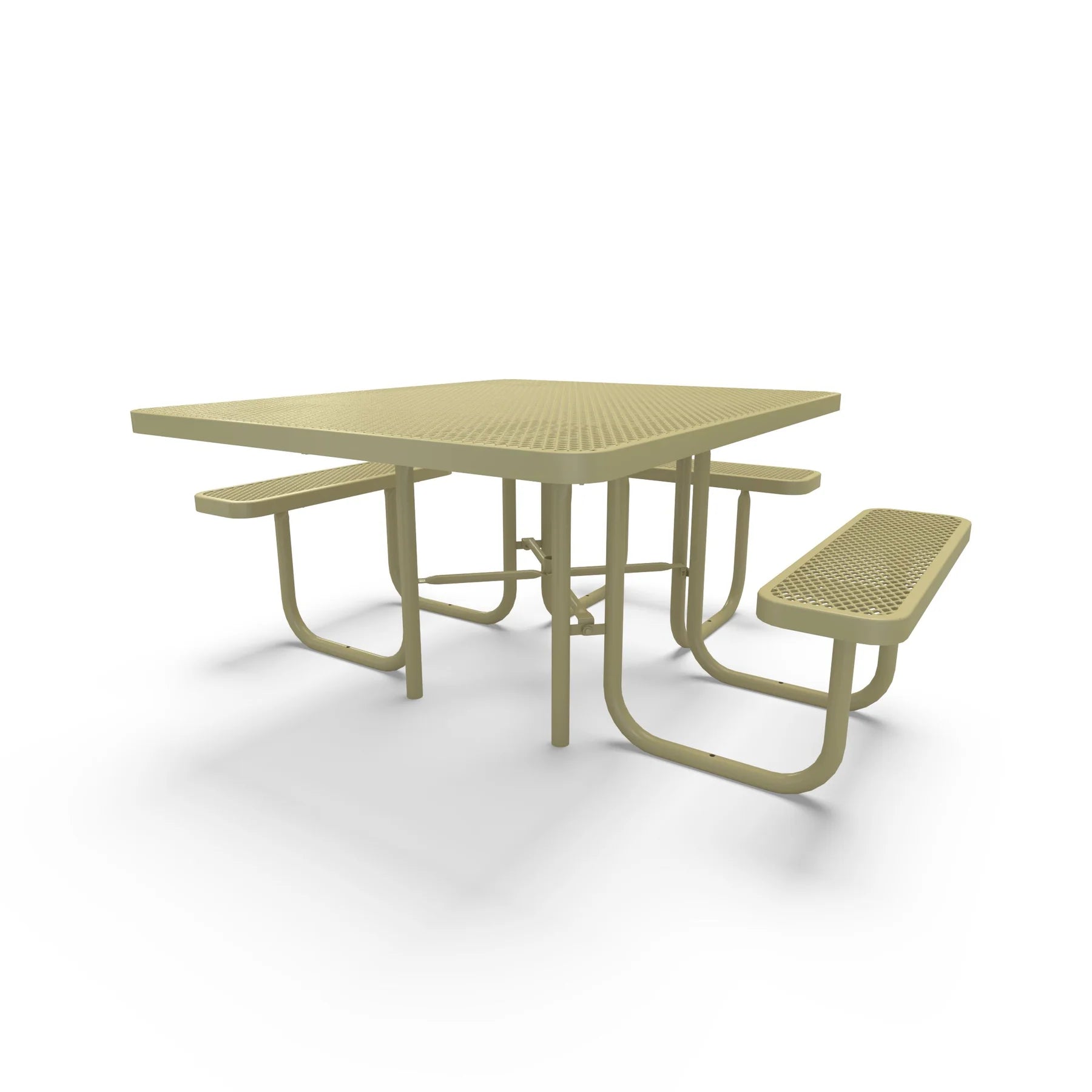

Wabash designs the ADA Accessible version to the 2010 ADA Standards for a wheelchair seat. Here is how it measures against them.
It drops one seat and leaves that side open. Its top runs 46 by 55 1/2 inches, so it reaches out over the open side.
That gives a wheelchair 19 1/4 inches of top past the frame, beyond the 17 inches of under-table depth the ADA sets for a wheelchair space.
The top sits 30 13/16 inches high, inside the ADA's 28 to 34 inch range. At least 5 percent of your dining seats must be accessible, so mix a few in.

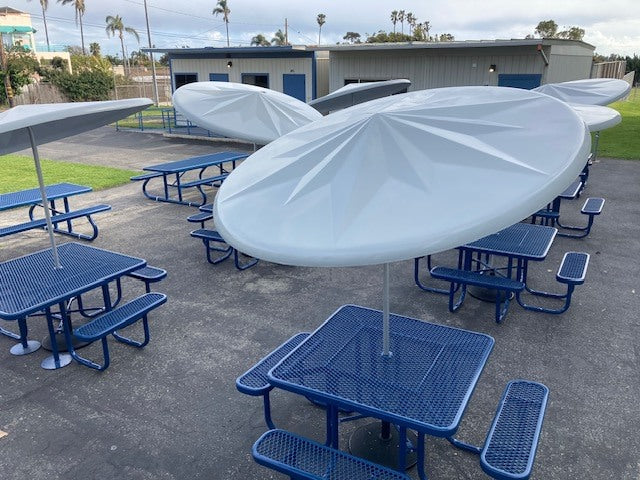

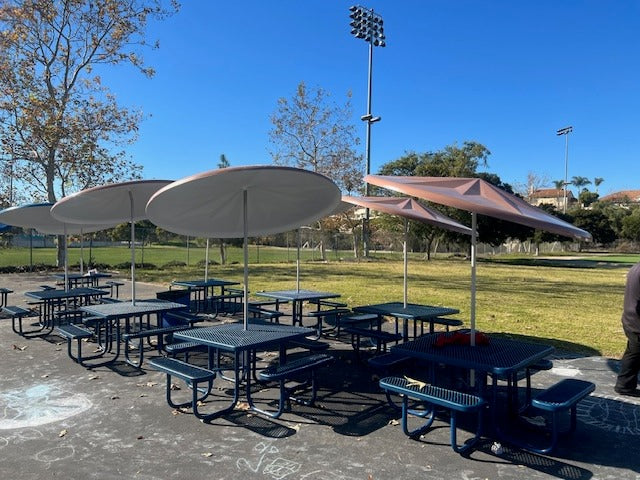

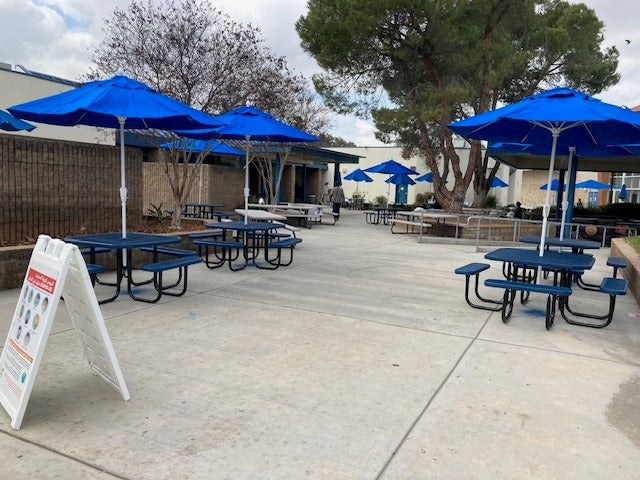

Pick Umbrella Hole and you get Wabash's pass-through umbrella brace model. Your pole drops through the center of the top and the brace holds it upright.
It comes on both the 4 seat and ADA Accessible tables, in the same colors as the Standard top. The umbrella itself is not part of the table.

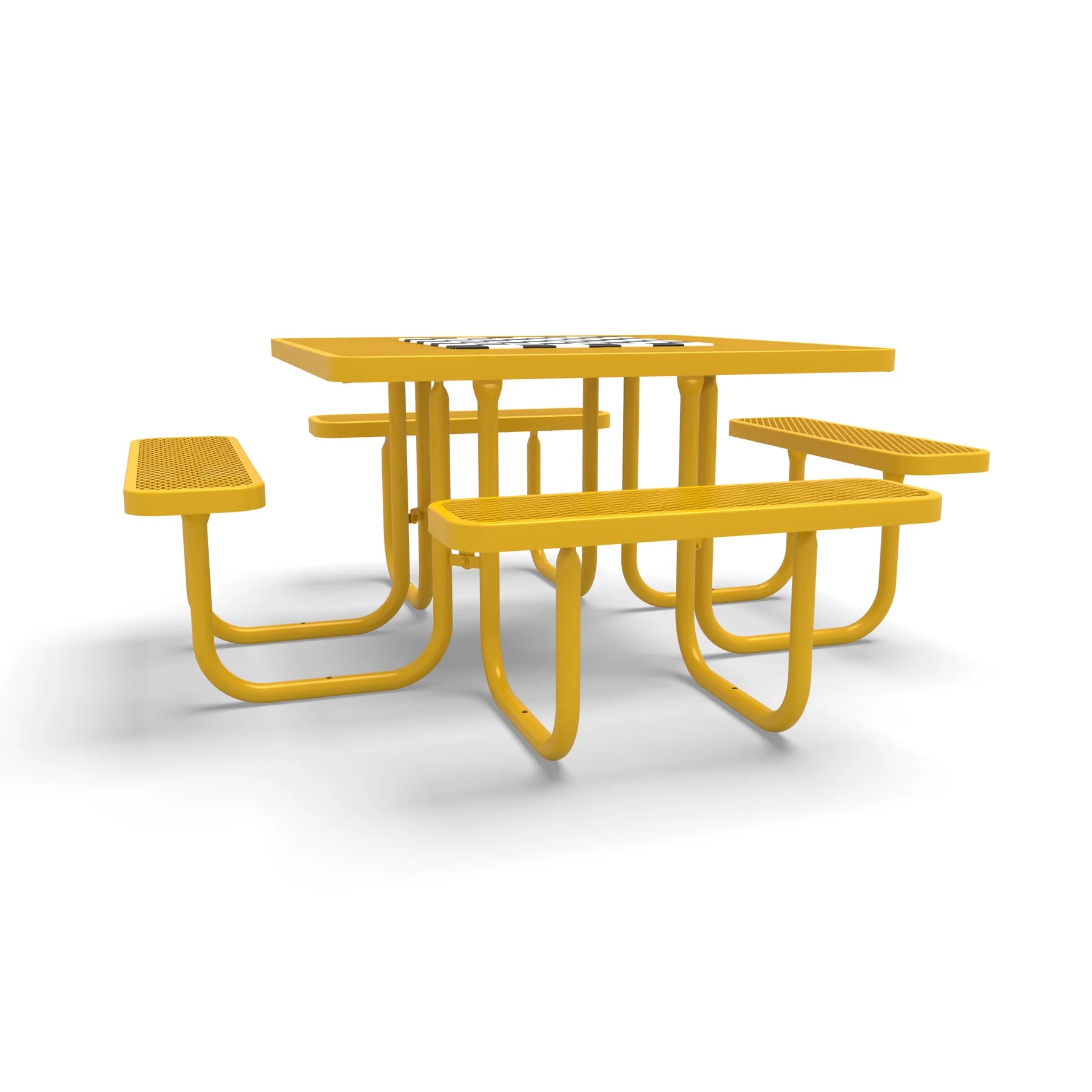

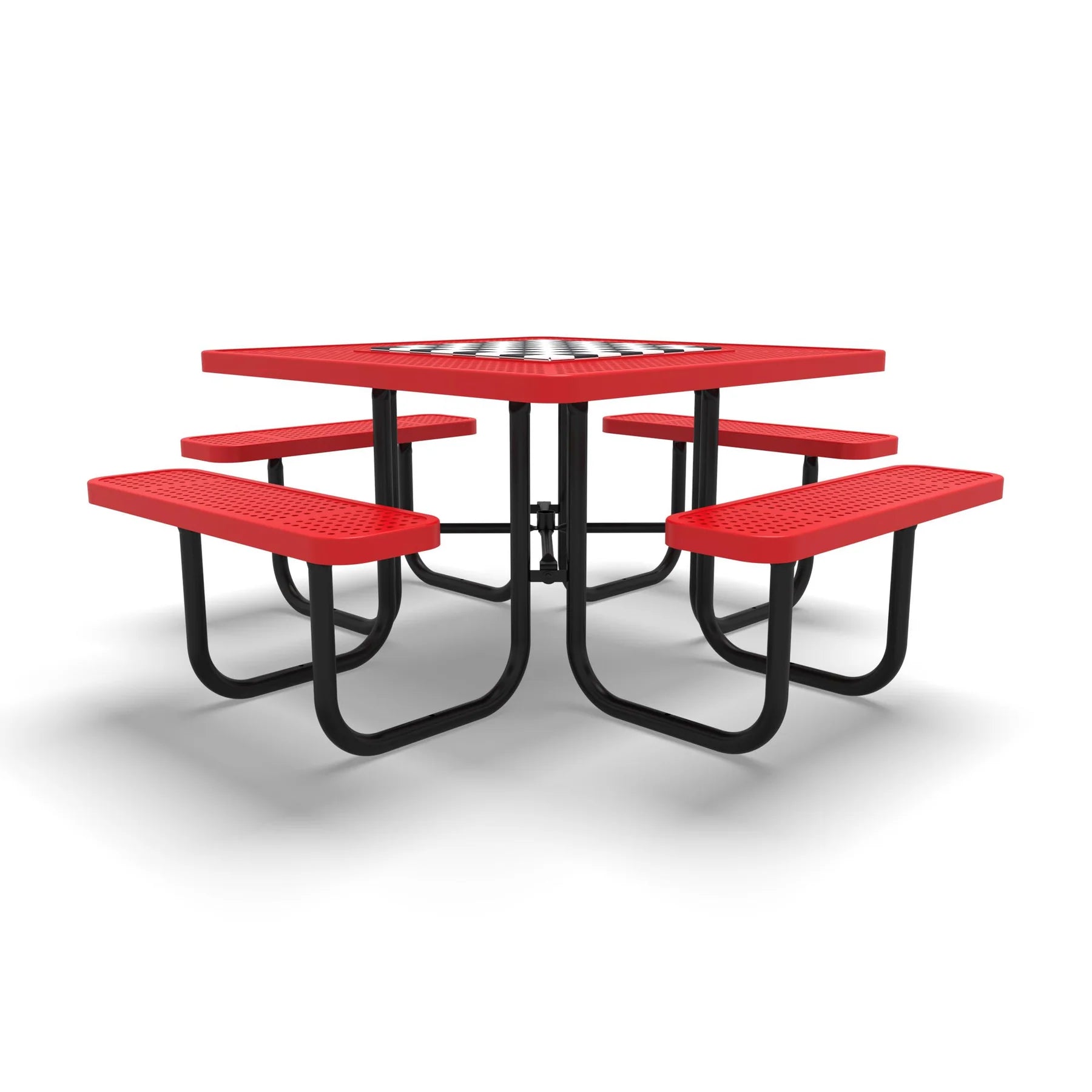

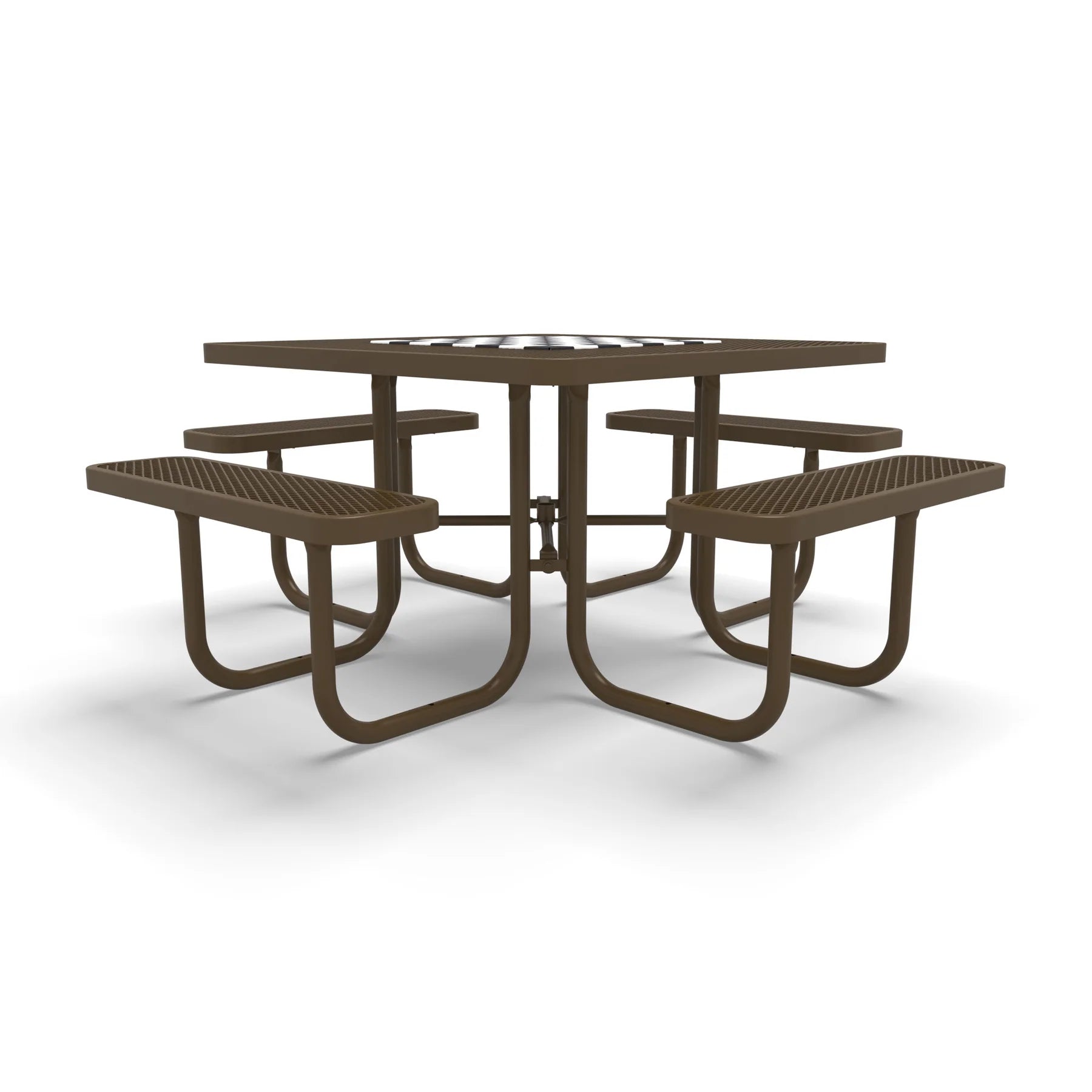

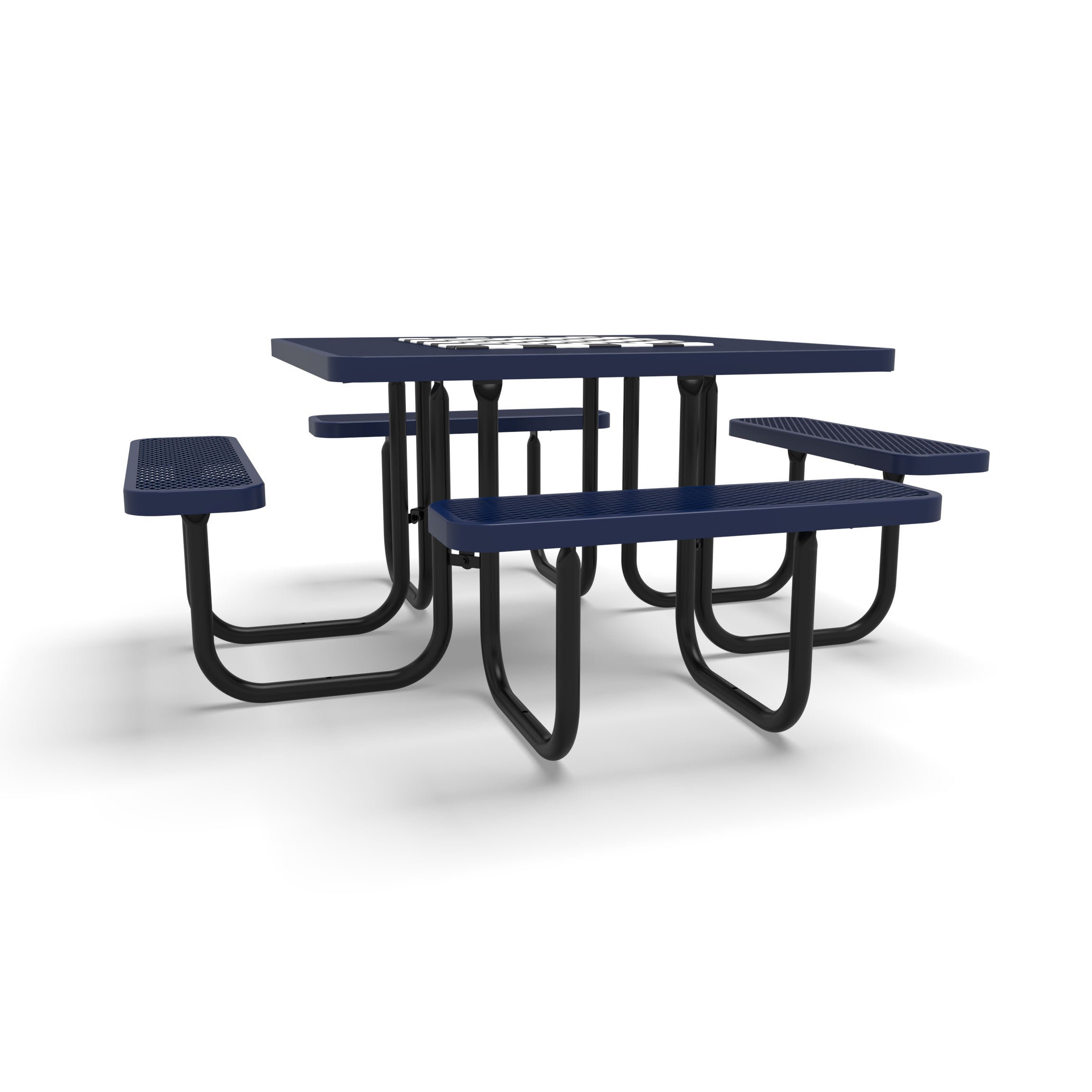

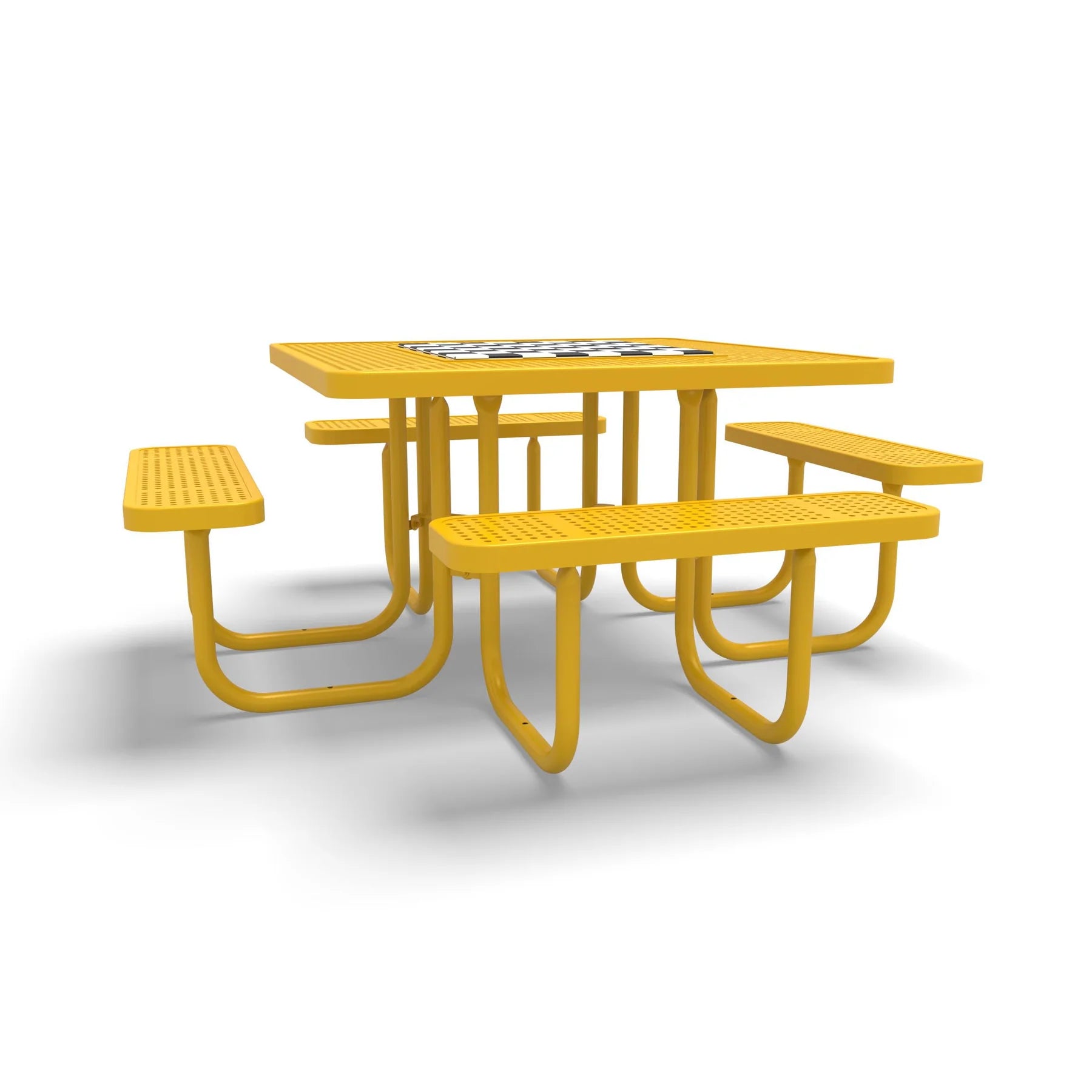

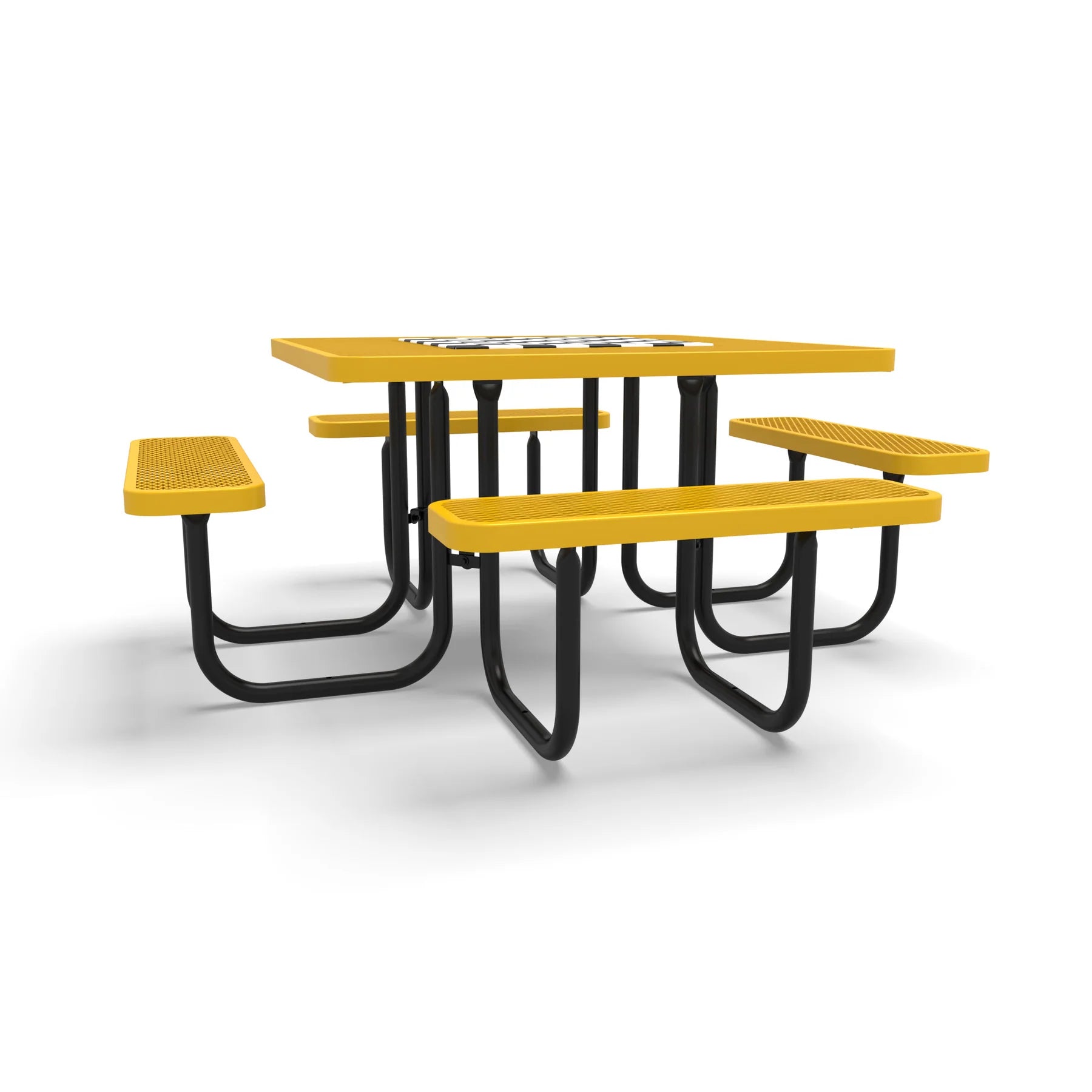

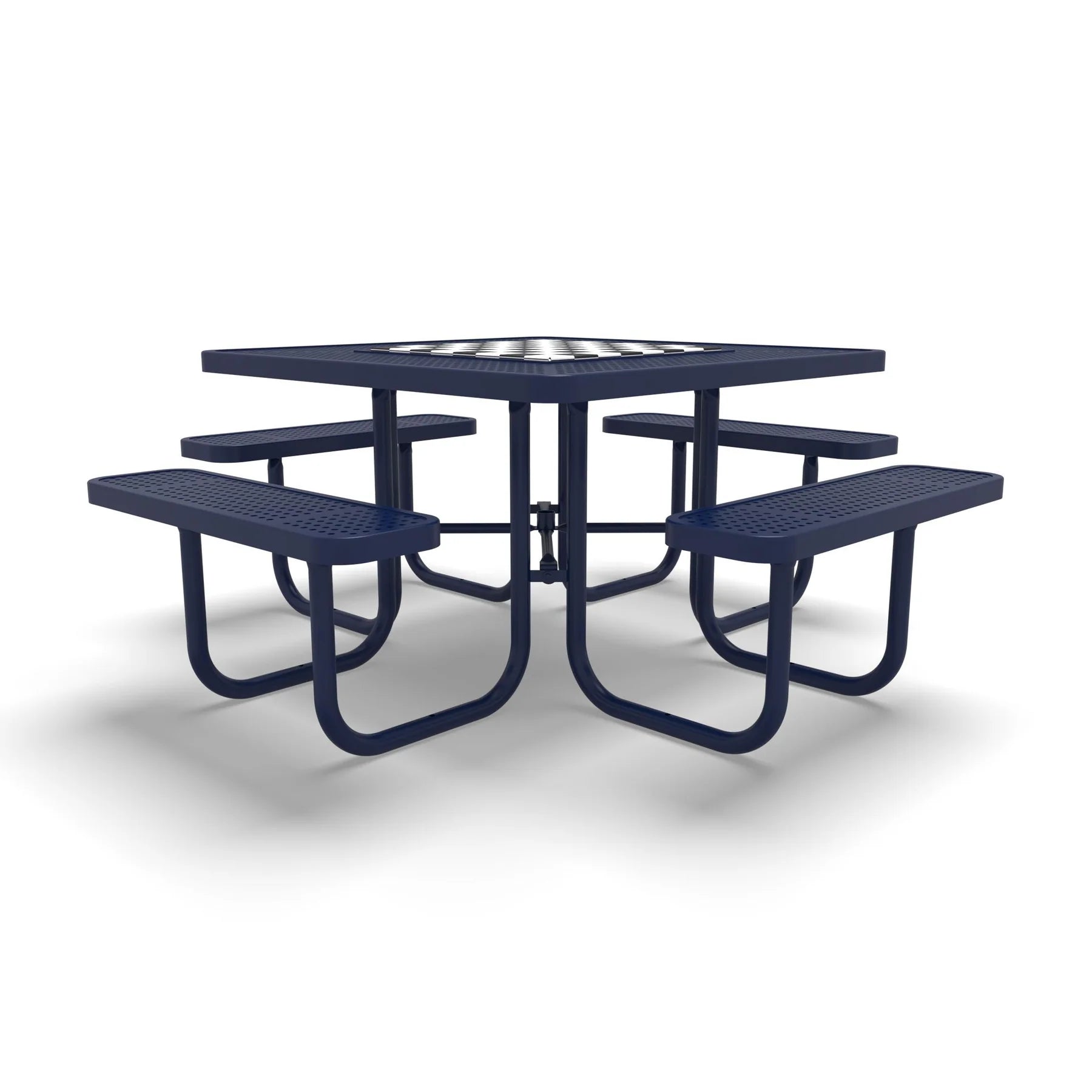

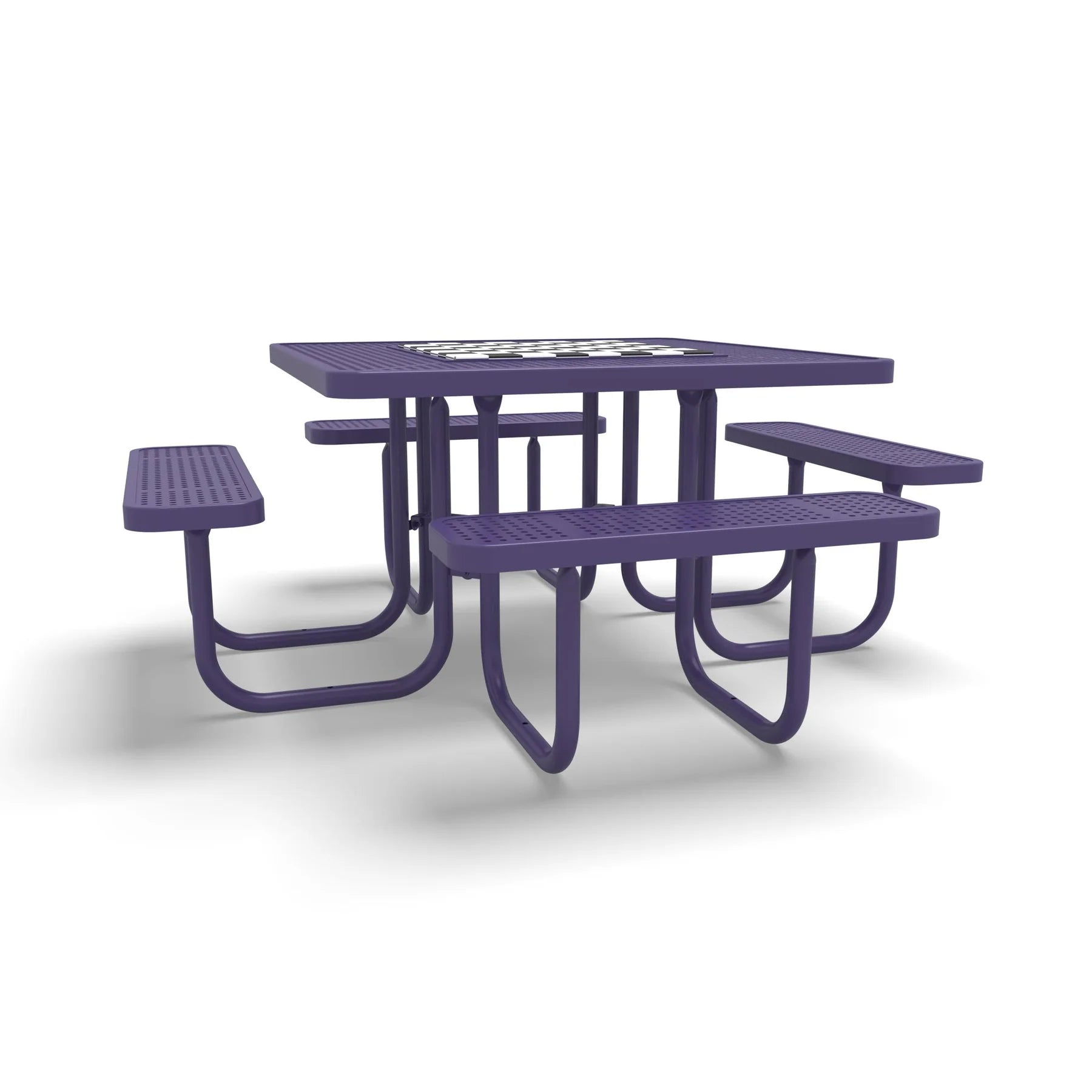

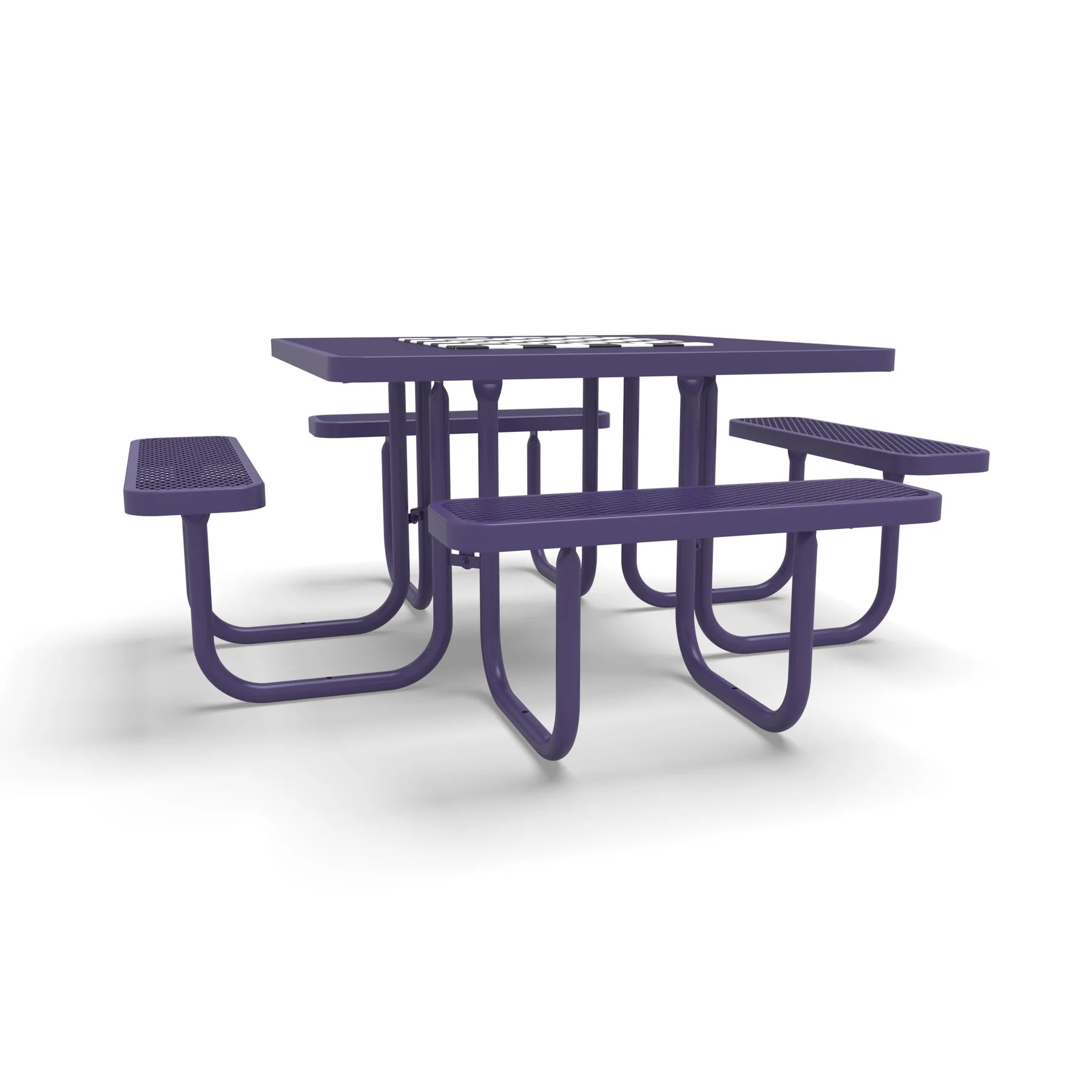

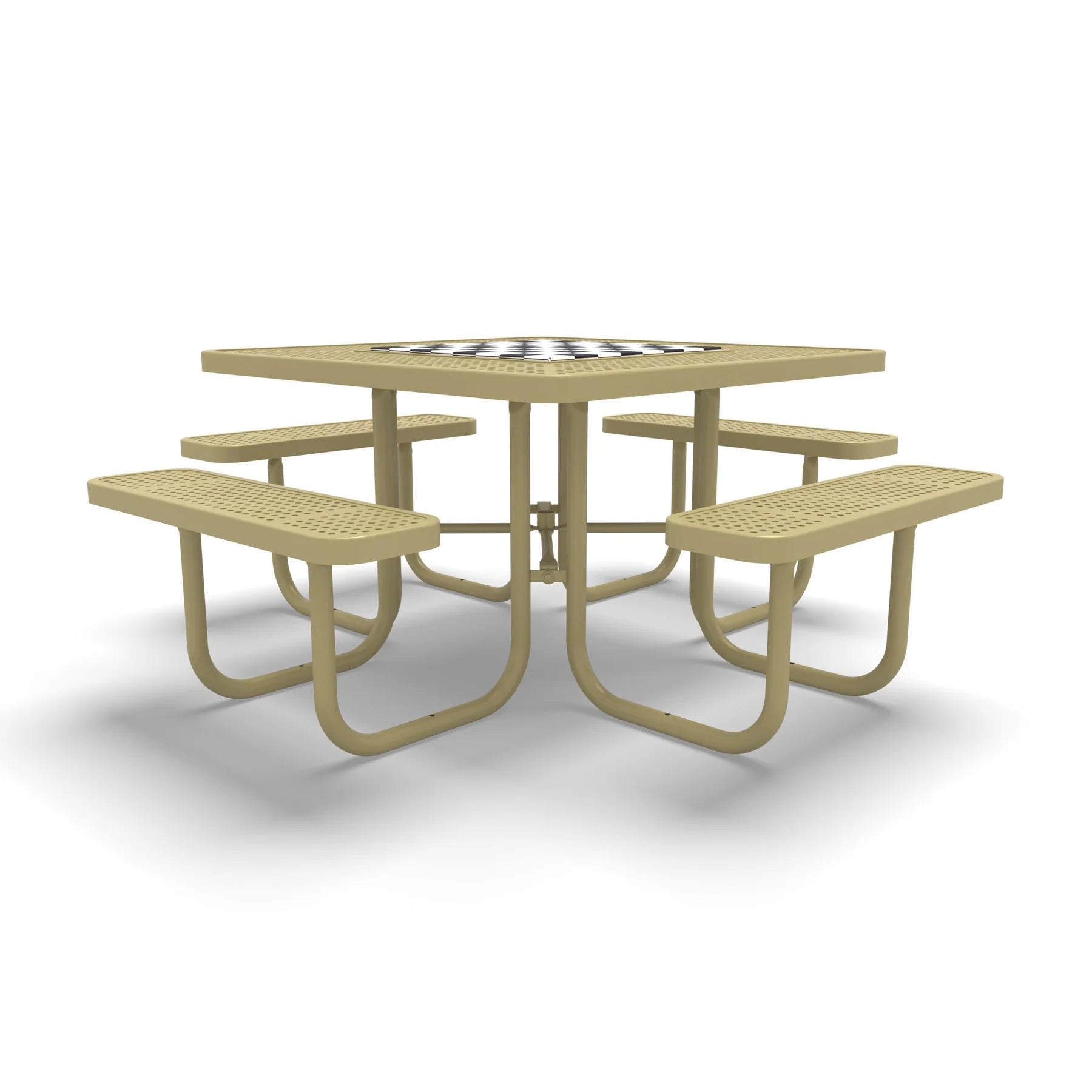

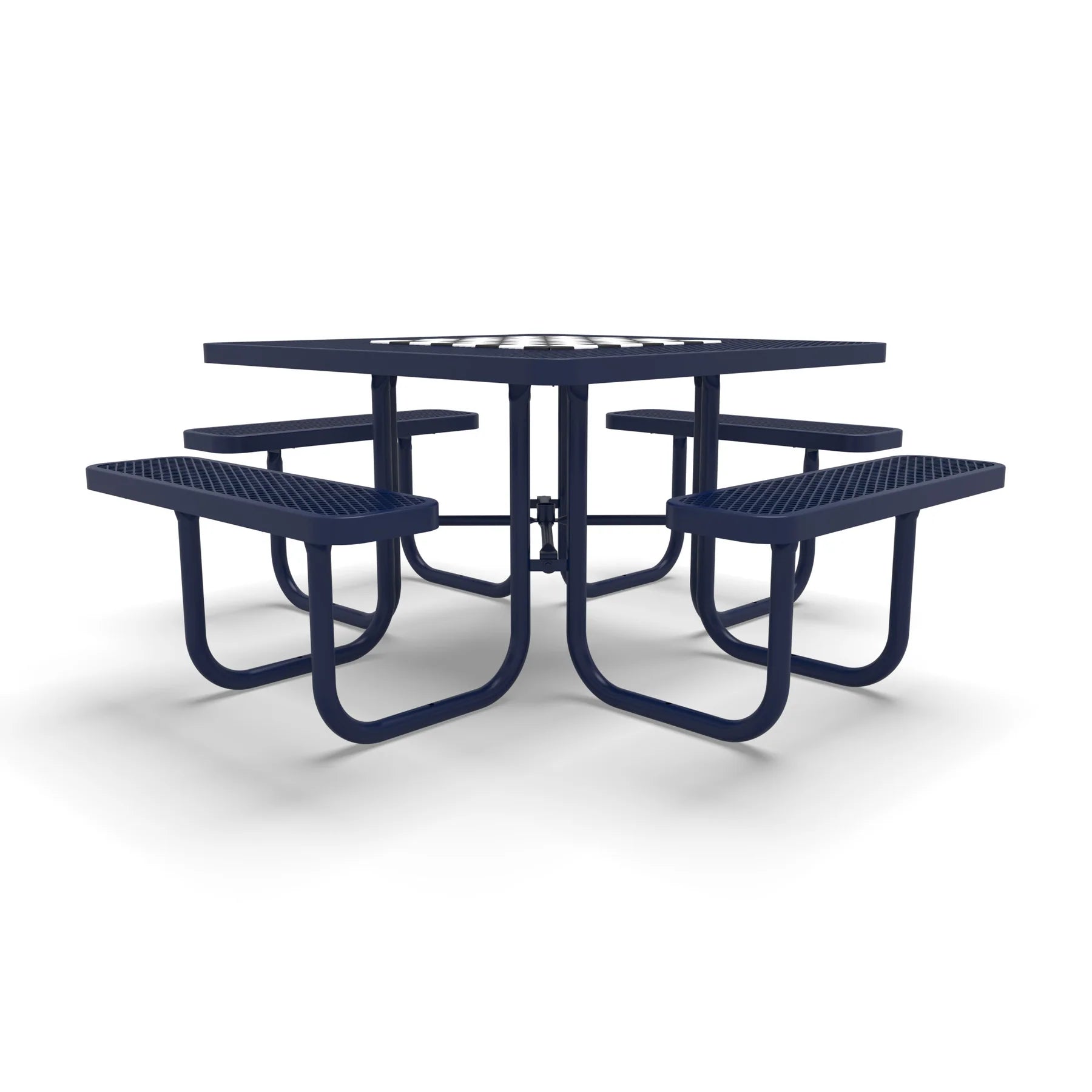

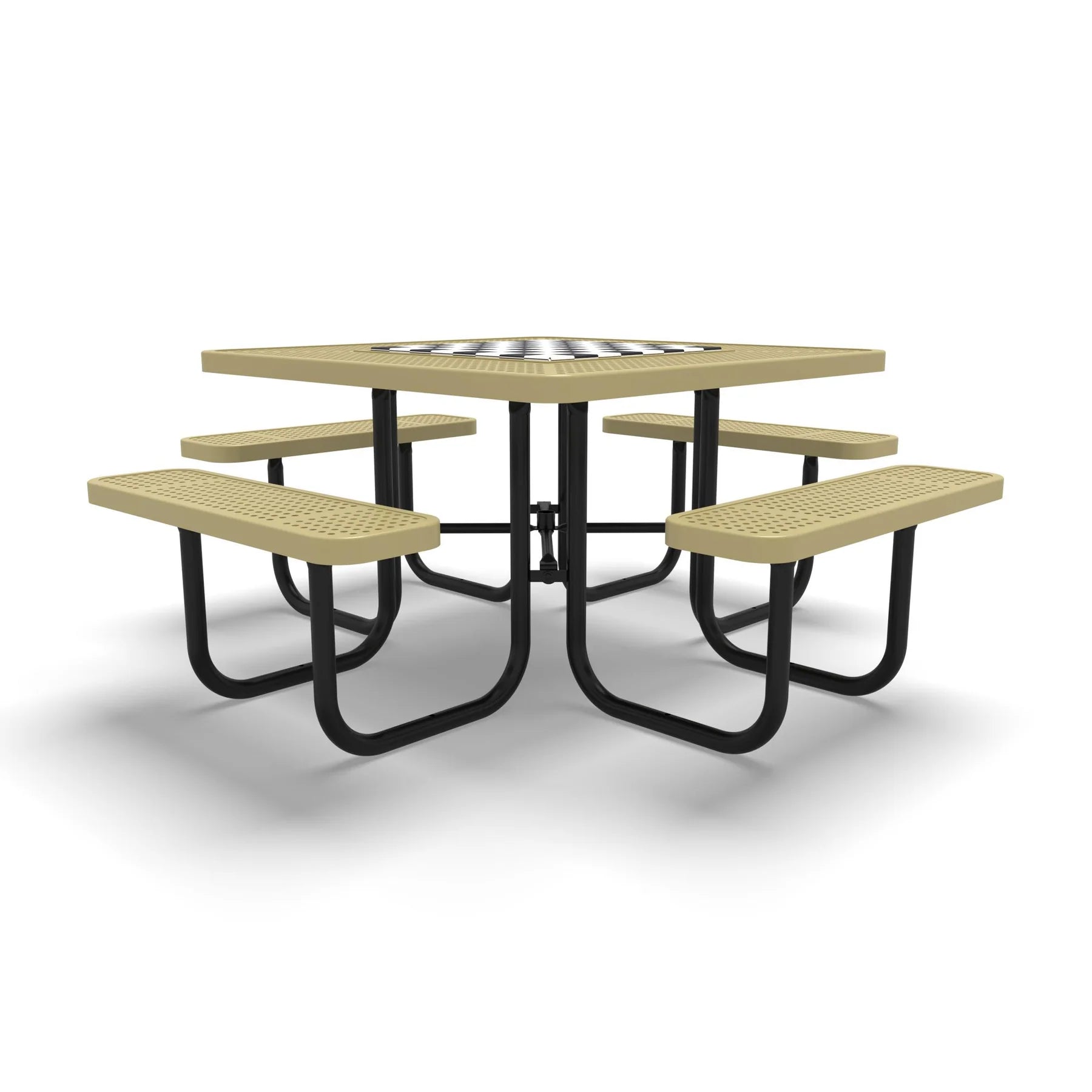

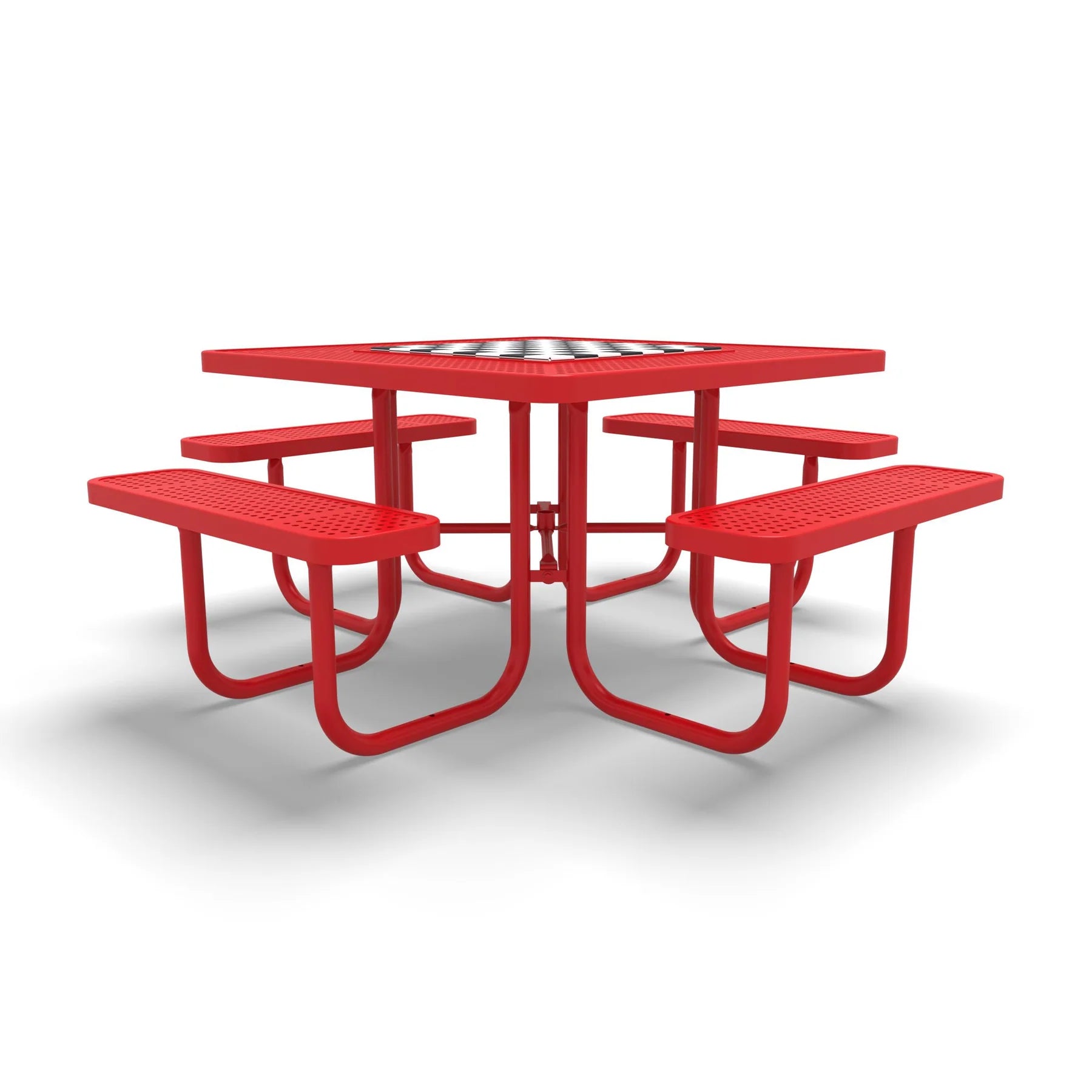

The Chessboard version sets an 8 by 8 chess and checkers board into the center of the top, so your table doubles as a game table between meals.
It keeps the 46 inch top, four seats and frame of the Standard table and comes in all 15 color options. There is no ADA Chessboard model.
| Wabash Valley Signature Square Portable Picnic Table Specifications | |
| Standard (SG140D / SG140P) | 4 seats, 196 / 248 lbs |
| ADA Accessible (SG155D / SG155P) | 3 seats, one side open, 213 / 245 lbs |
| Umbrella Hole (SG140DS / SG140PSF, ADA SG155DS / SG155PSF) | Same tables with a pass-through umbrella brace |
| Chessboard (SP120D / SP120P) | 8 x 8 board in the top, 212 / 240 lbs |
| Weights | Listed Diamond / Perforated |
| Tabletop | 46" square (ADA 46" x 55 1/2") |
| Overall | 74 3/8" square (ADA 69 1/2") |
| Seats | 36" long, 10" deep (Perforated 10 3/8") |
| Top / seat height | 29 1/16" / 19 1/2" (Standard Perforated 29 1/4" / 19 5/8", ADA 30 13/16") |
| Leg footprint | 66 1/16" (ADA 50 3/8") |
| Finish | Plastisol-coated steel |
| Mount | Portable |

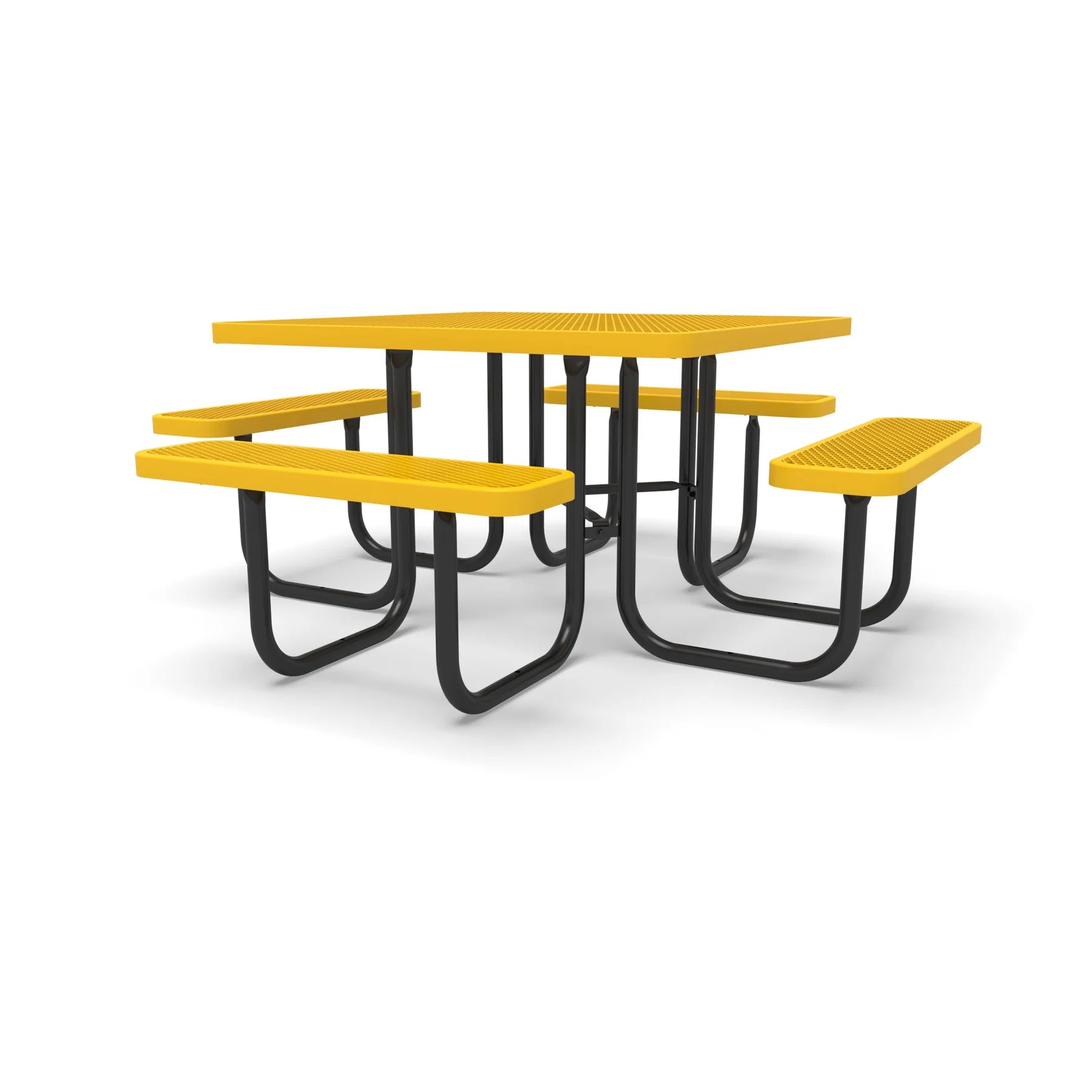

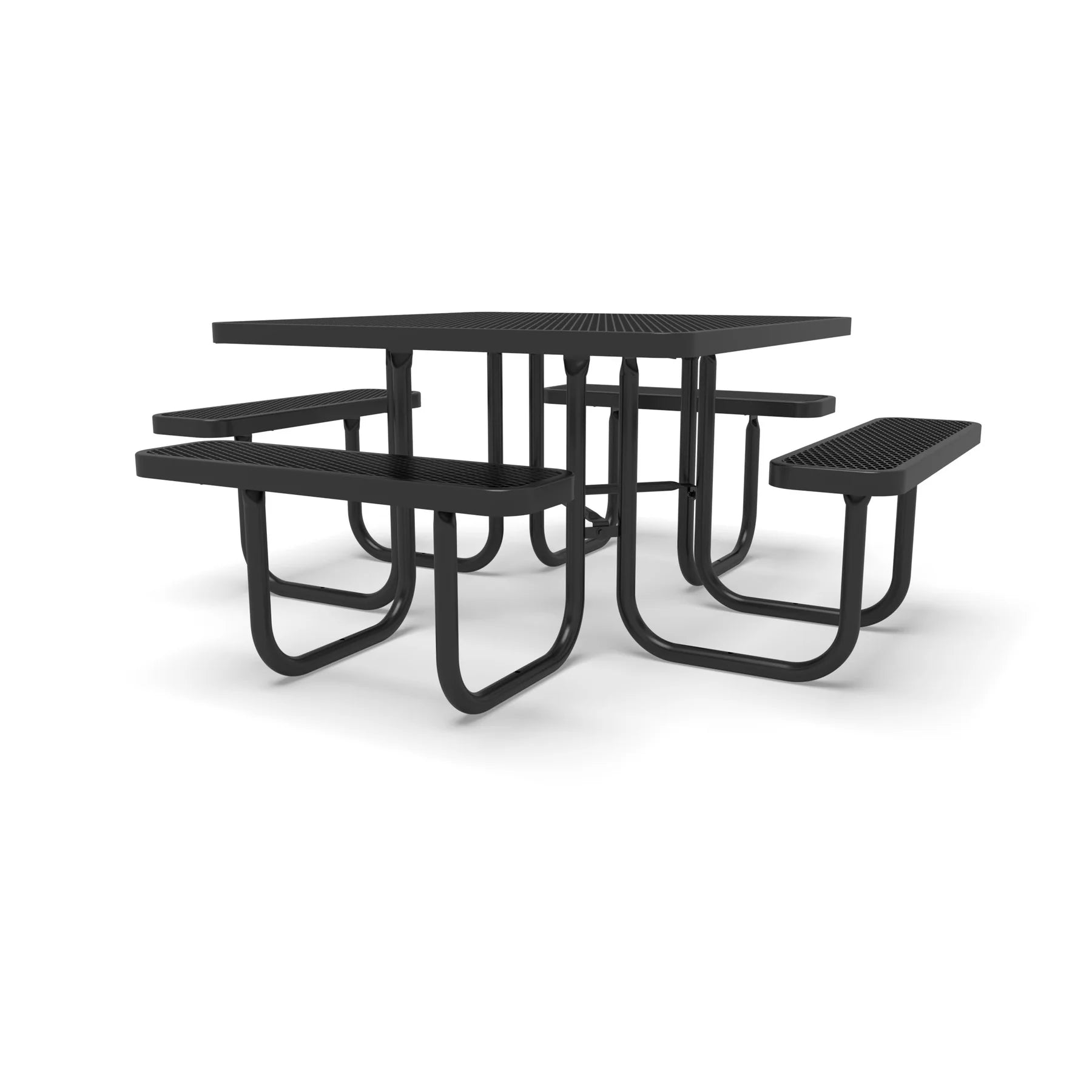

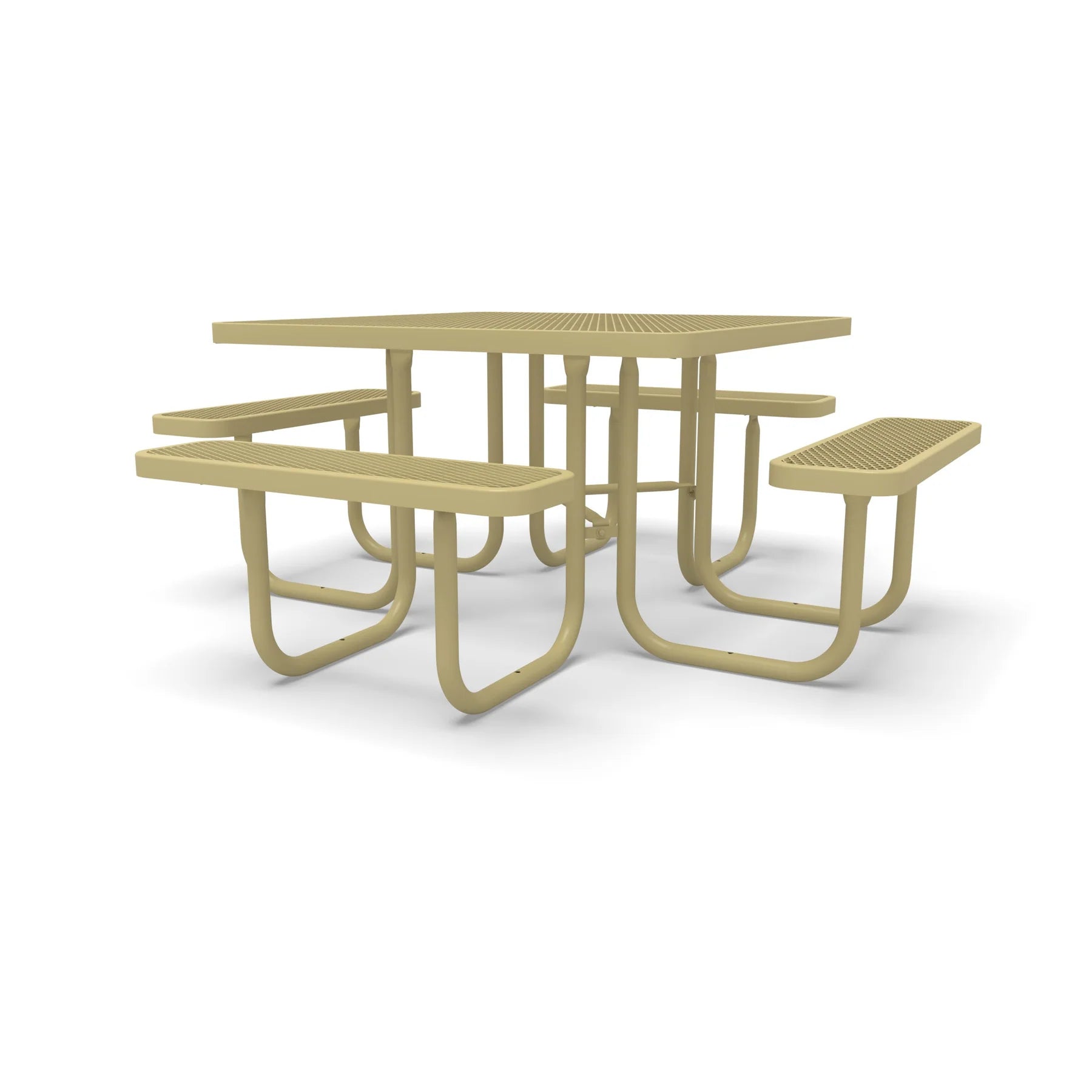

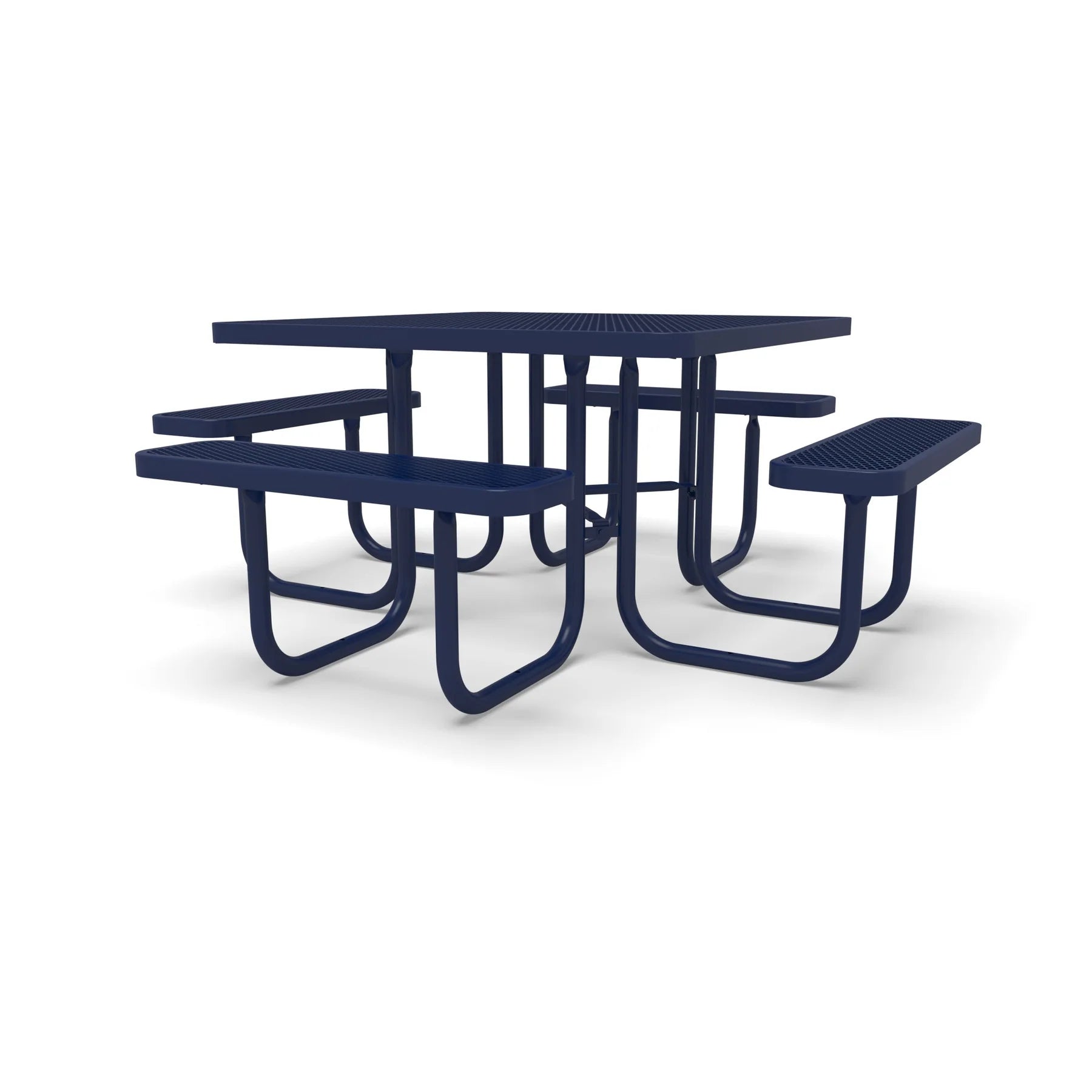

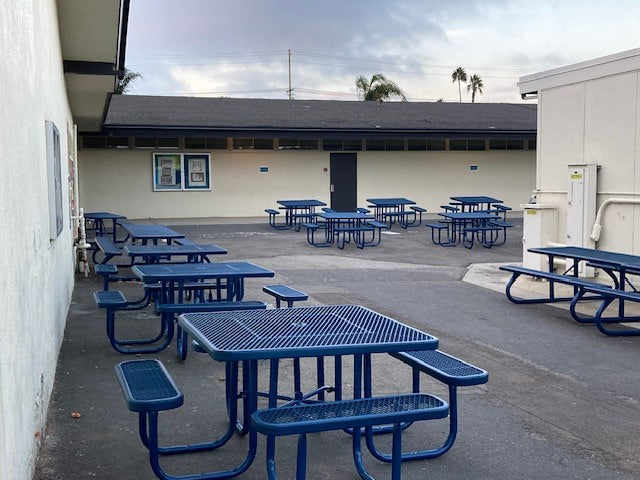

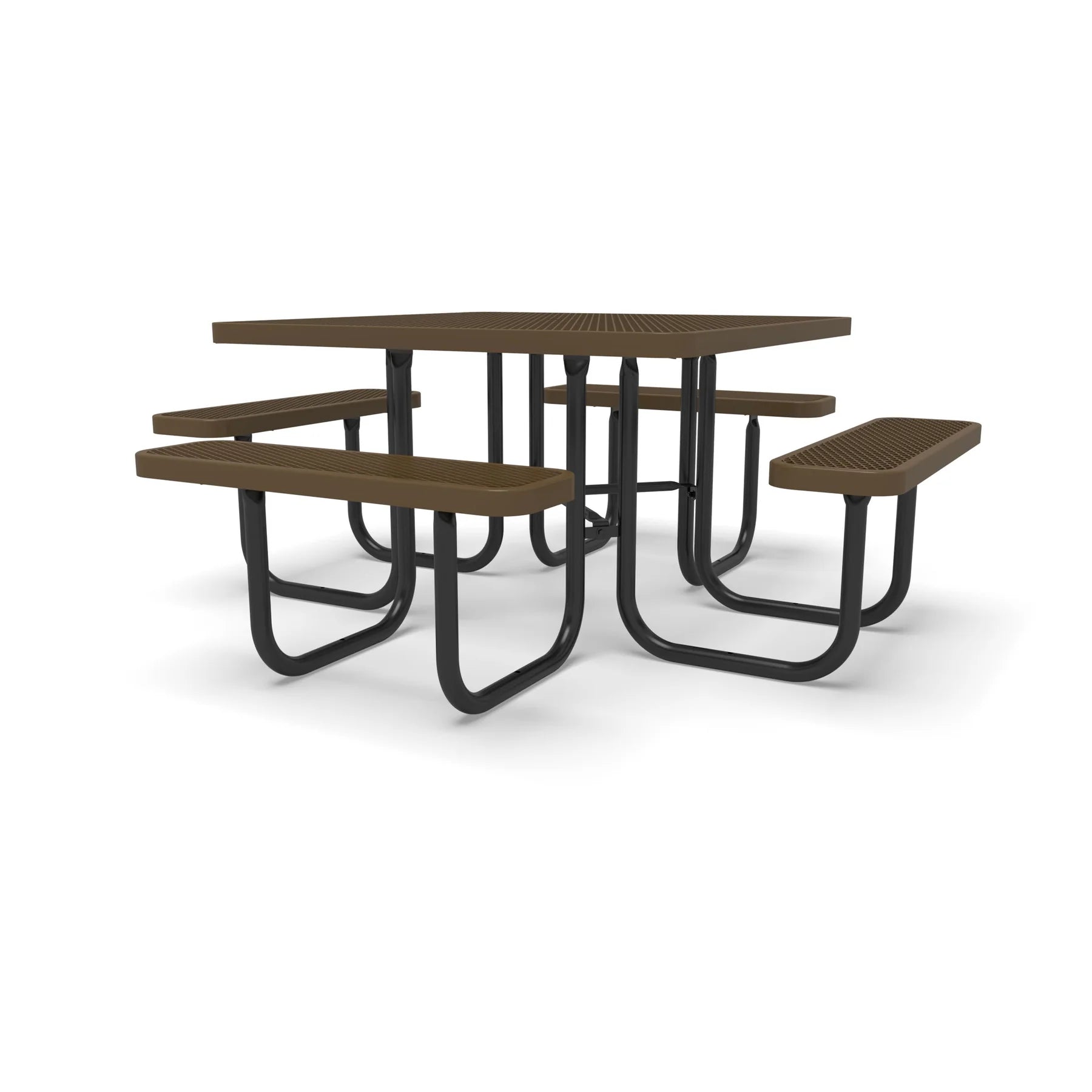

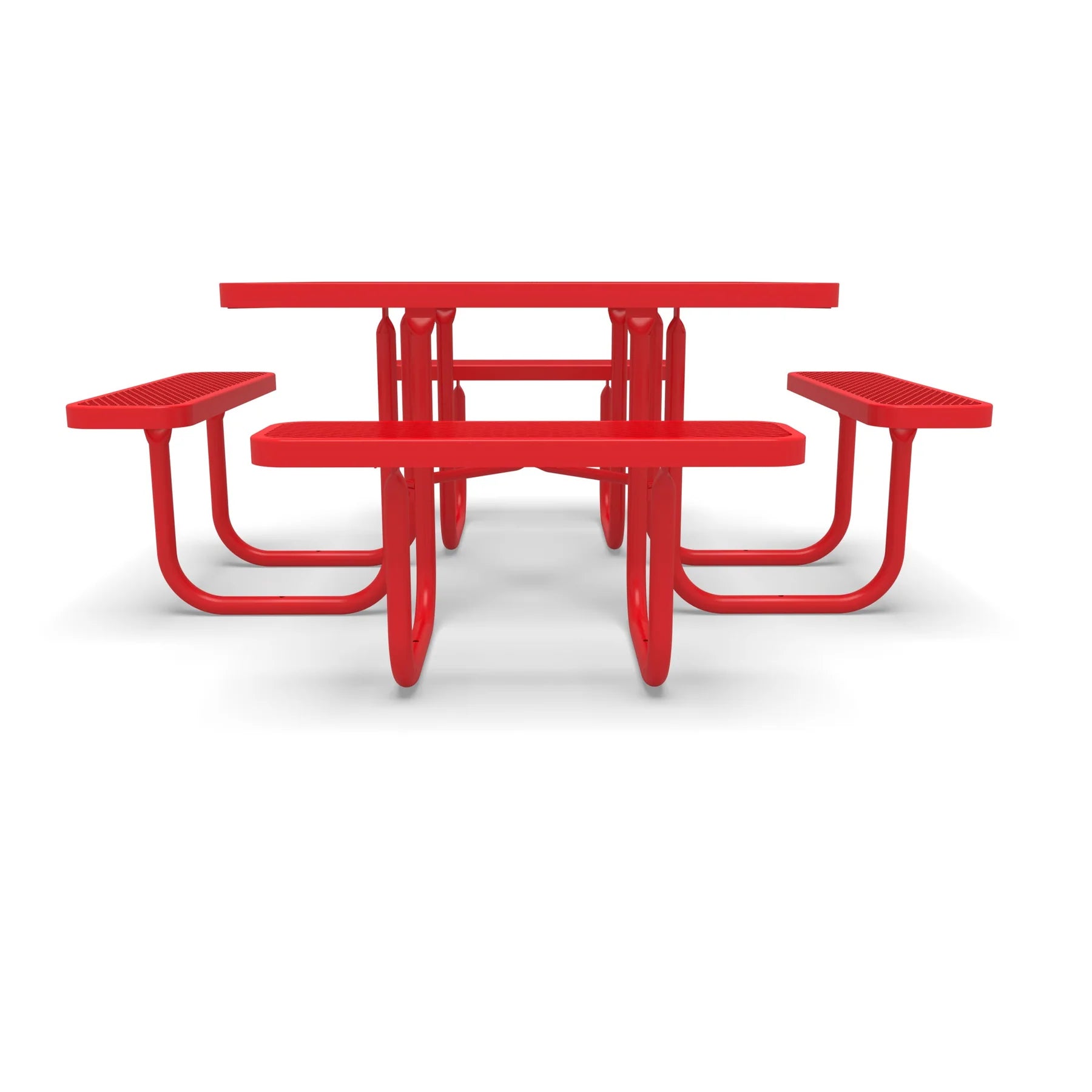

Diamond is expanded steel, a stretched mesh with diamond-shaped openings that let rain and crumbs fall straight through.

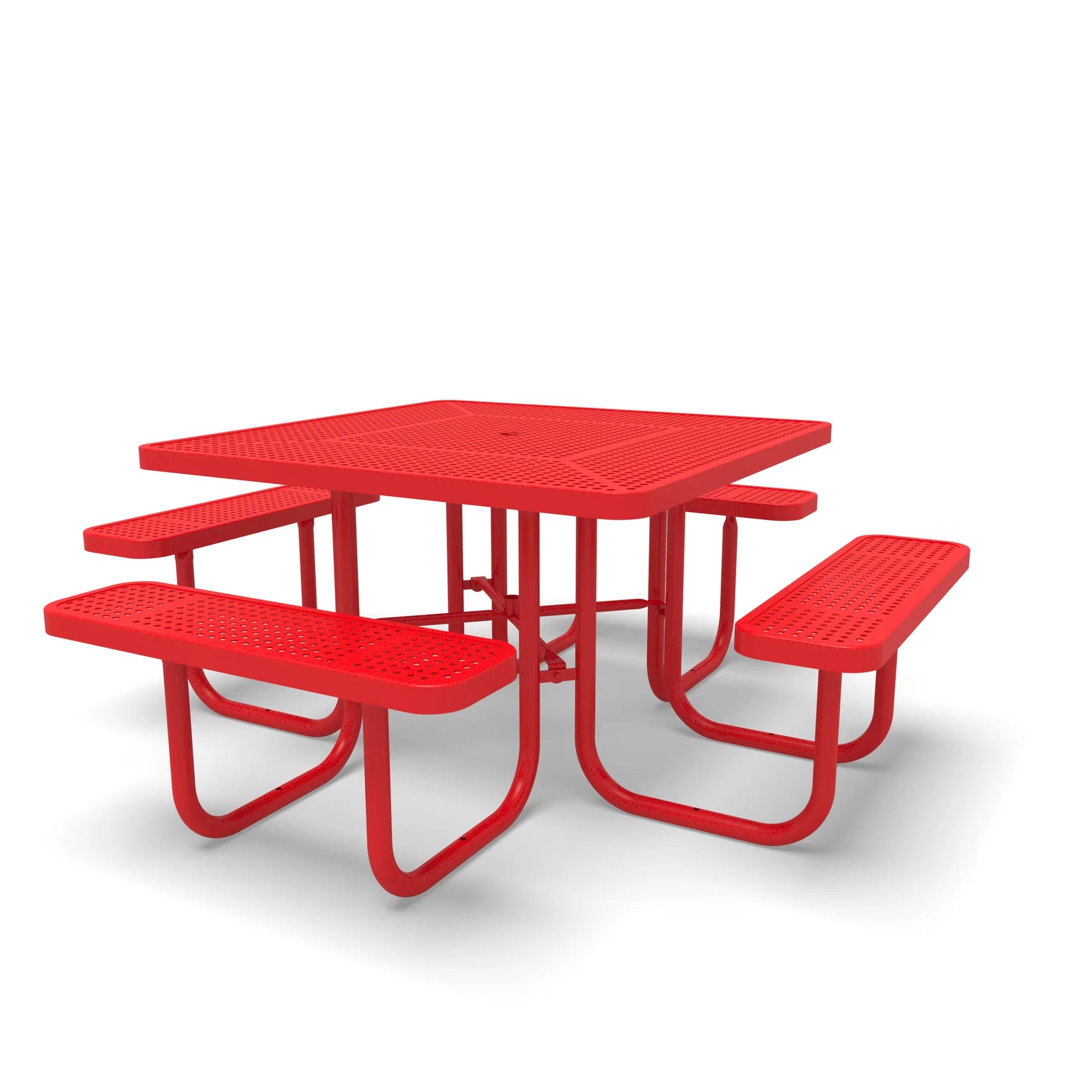

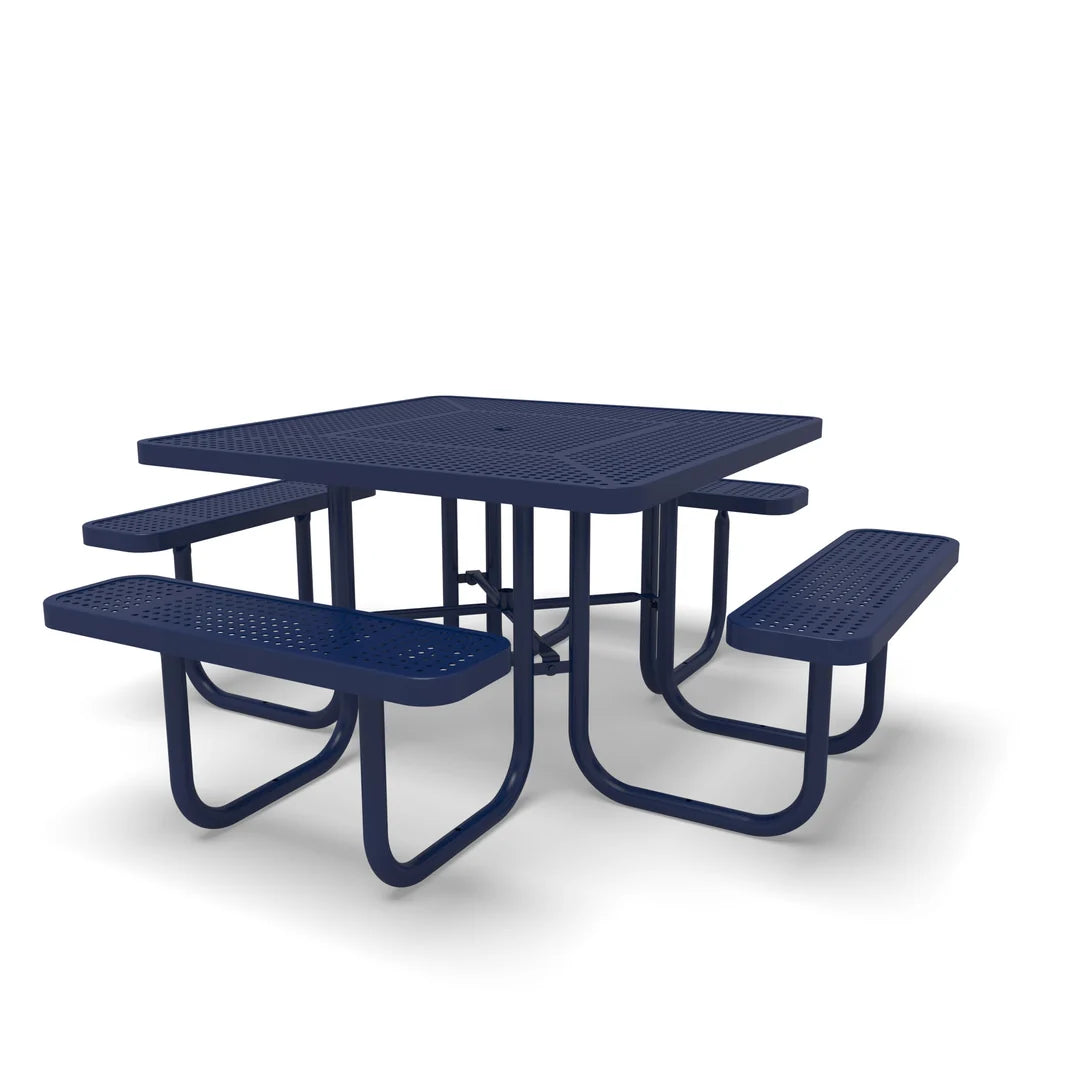

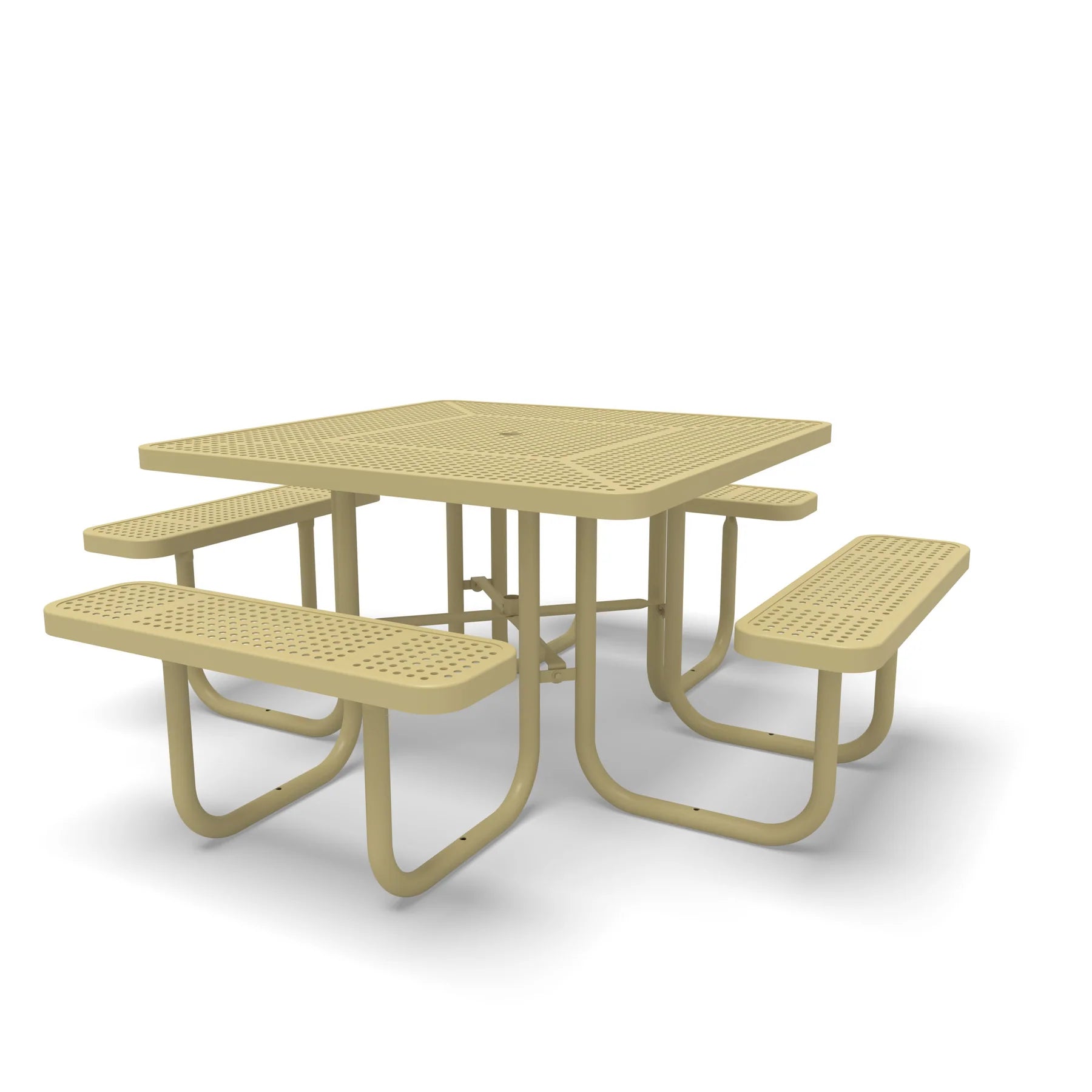

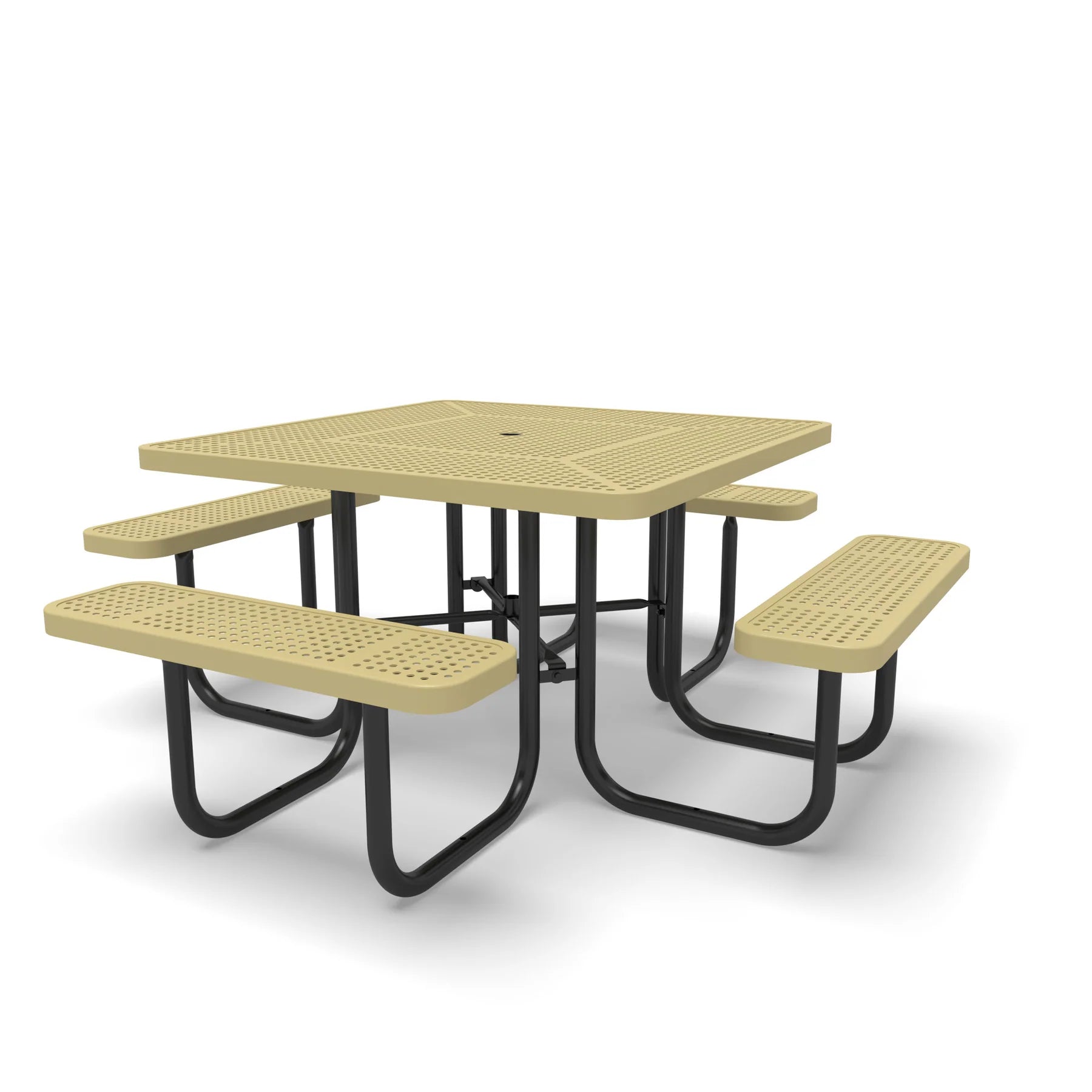

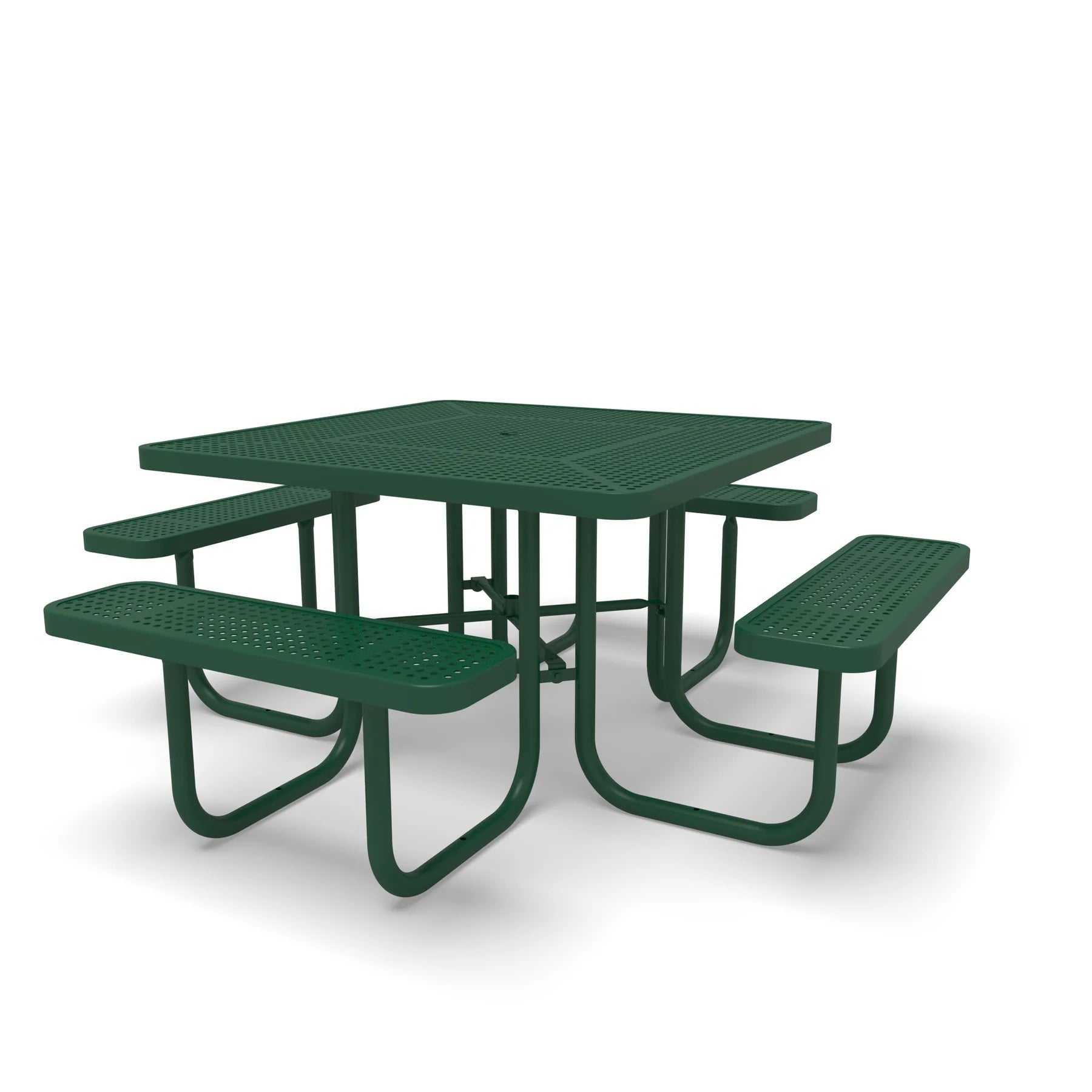

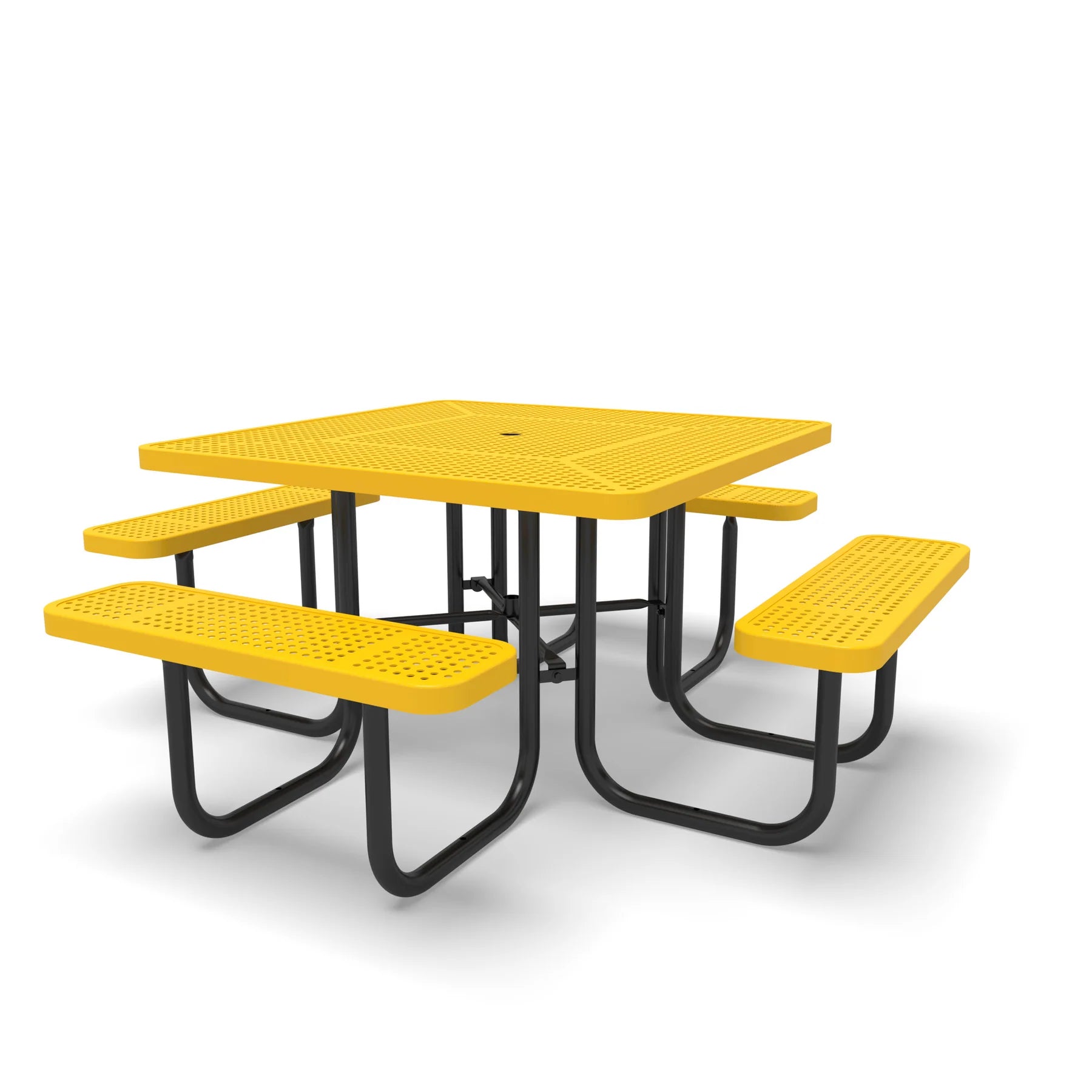

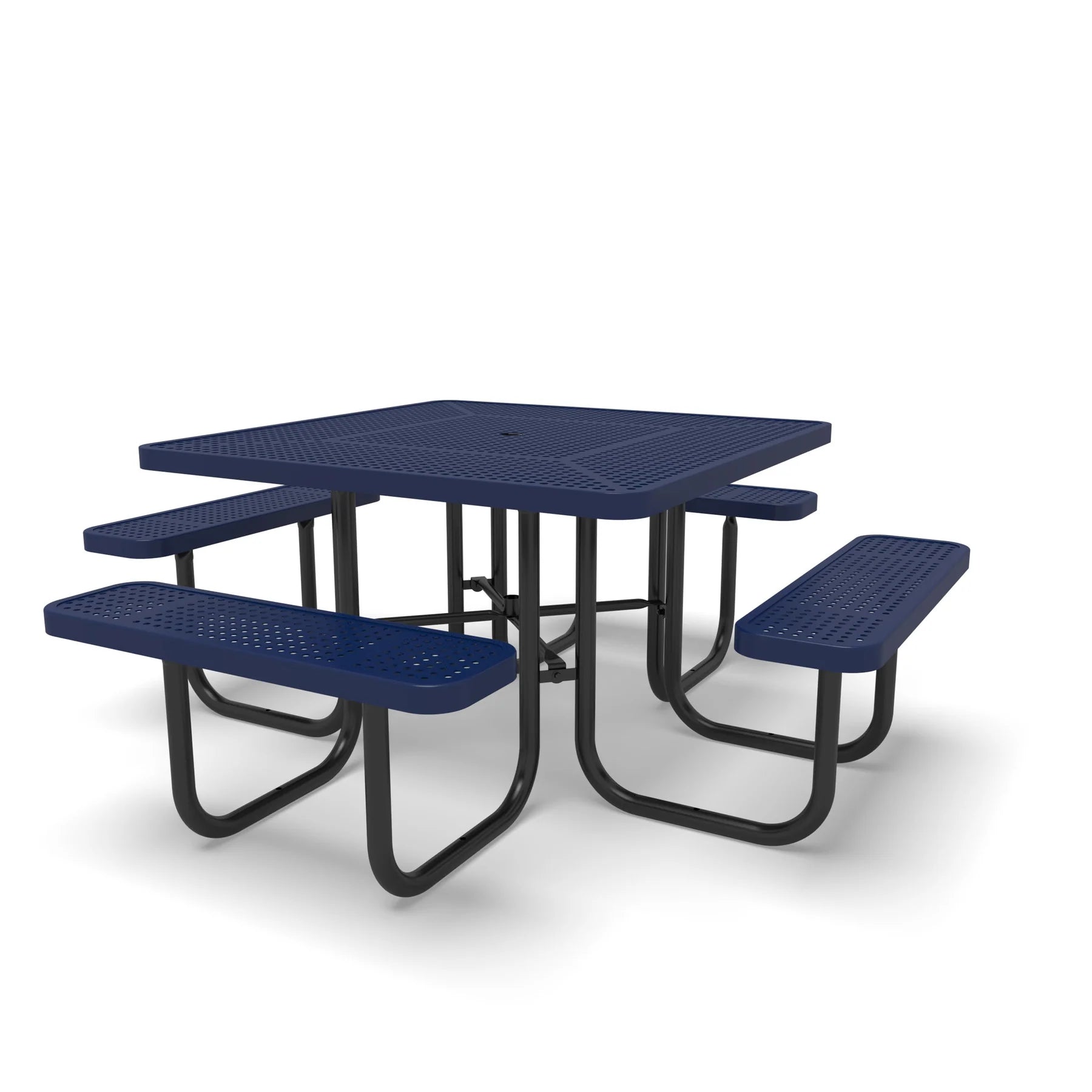

Perforated is flat sheet steel punched with round holes, for a flatter surface under your trays and game pieces. It adds 28 to 52 lbs per table.
Every version is portable. It sits free on a pad, a lawn or a covered lunch area, so your crew can regroup tables for events.
Each table ships to you unassembled on a skid. All six drawings are under the Resources tab.
Standard, ADA and Umbrella Hole tops come in Blue, Green, Red, Sand, Brown or Black on a matching frame, or those colors plus Purple and Yellow on a black frame.
The ADA Perforated table also comes in solid Purple and solid Yellow, and the Chessboard table comes in all 15.
Every table you order comes from an authorized Wabash Valley distributor with free shipping to the lower 48 and the full 5-year coating warranty intact.

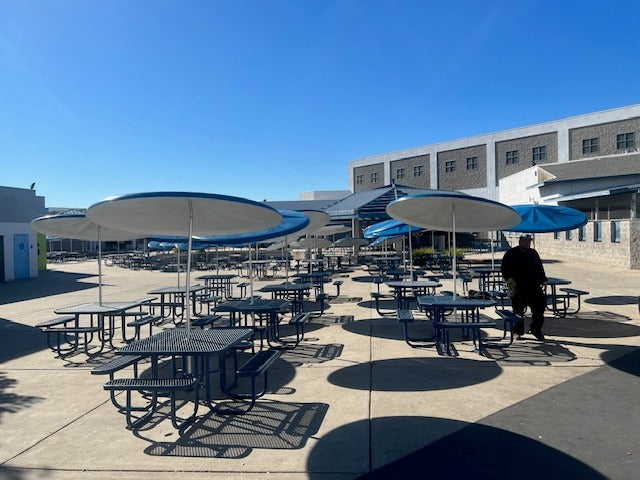

Furnishing a whole courtyard? Call (833) 746-7688 or email info@supplyacity.com for project quantities.
How many tables does your courtyard need, and how many of them should be the ADA version?
Plastisol Coating - 5 Year
Powder Coating - 5 Year
Recycled Plastic (Green Valley) - 50 Year
Applicable warranty depends on product finish — see full details below.
