Water Fountain Bottle Filler That Commercial Properties Trust
Your visitors notice comprehensive hydration access that accommodates users of all heights and abilities without the space requirements and infrastructure costs of installing multiple separate units. Instead of managing several individual fountains with different maintenance schedules and varying performance standards, your outdoor spaces will provide integrated multi-level water access through single installations that handle diverse user needs while maintaining consistent operation and professional appearance.
Property managers trust these water fountain bottle fillers because they combine ADA-compliant accessibility with standing adult height access and optional pet stations in vandal-resistant designs that maximize utility per square foot of installation space. As an authorized distributor of USA-manufactured Willoughby fixtures, Supply-A-City offers three proven tri-level configurations that deliver comprehensive hydration solutions for parks, educational campuses, recreational facilities, and commercial properties requiring inclusive water access.
Each Willoughby tri-level water fountain bottle filler features all-welded Type 304 stainless steel construction, dual drinking fountain heights, integrated charcoal filtration, and factory powder coating in your choice of 16 colors. The vandal-resistant design consolidates all plumbing within the tamper-proof column while providing multiple user access points and optional infrared sensor activation for enhanced hygiene.
Why Properties Choose Outdoor Bottle Filler With Two Drinking Fountains
Traditional single-height fountains limit accessibility and often require multiple installations to serve diverse user populations, creating redundant infrastructure costs and maintenance complexity. These tri-level systems eliminate those inefficiencies by providing ADA-compliant and standing adult access in single installations that share foundations, plumbing connections, and service requirements while maximizing user accommodation.
The commercial-grade construction handles heavy use from multiple user types simultaneously while the dual-height design ensures comfortable access for wheelchair users, children, and standing adults. Replaceable inline charcoal filtration maintains water quality across all access points, while column-mounted service panels enable comprehensive maintenance through single access points.
Key benefits for commercial properties:
- Space-efficient design: Multiple access heights in single installation footprint
- Comprehensive accessibility: ADA-compliant and standing adult heights serve all user types
- Reduced infrastructure costs: Single foundation and utility connections serve multiple functions
- Simplified maintenance: All service points accessible through unified column system
- Enhanced capacity: Multiple simultaneous users without congestion or waiting
Three Configurations for Maximum Versatility
Supply-A-City offers three Willoughby tri-level configurations combining approach methods and capacity options to match your specific site requirements and user demographics. Each model provides bottle filling capability with dual drinking fountain access while offering different installation patterns and expanded functionality.

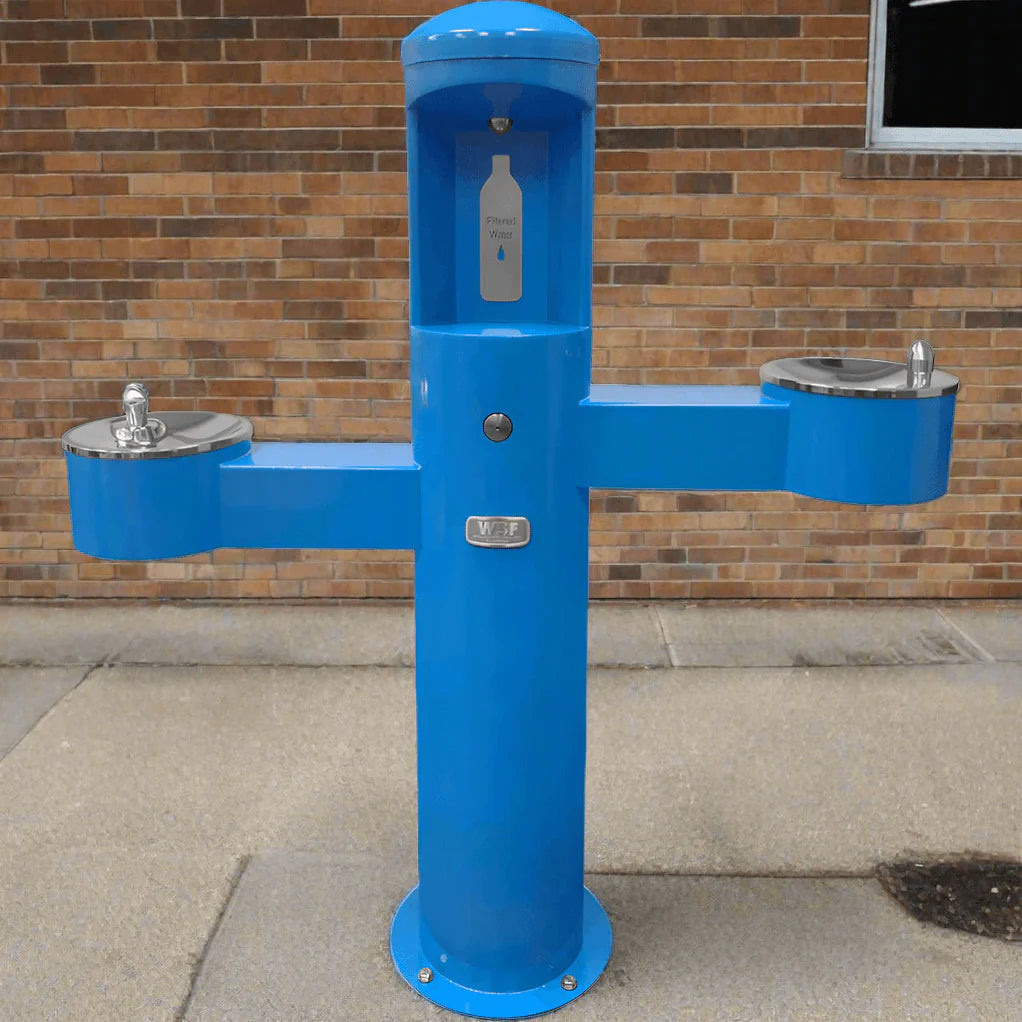

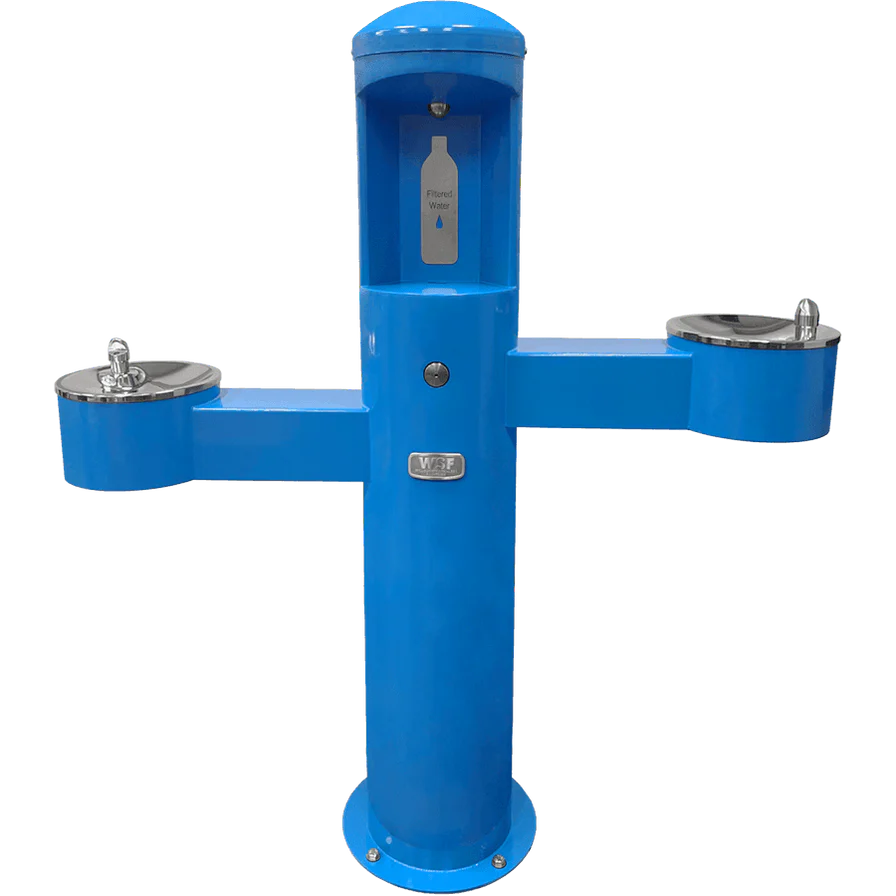

Side Approach Model (CWBF-3-HC-SAH): Tri-level station with bottle filler, Adult ADA-height fountain (HC), and Standing Adult height fountain (SAH). Ideal for installations where side access optimizes traffic flow and space utilization in parks and recreational areas.

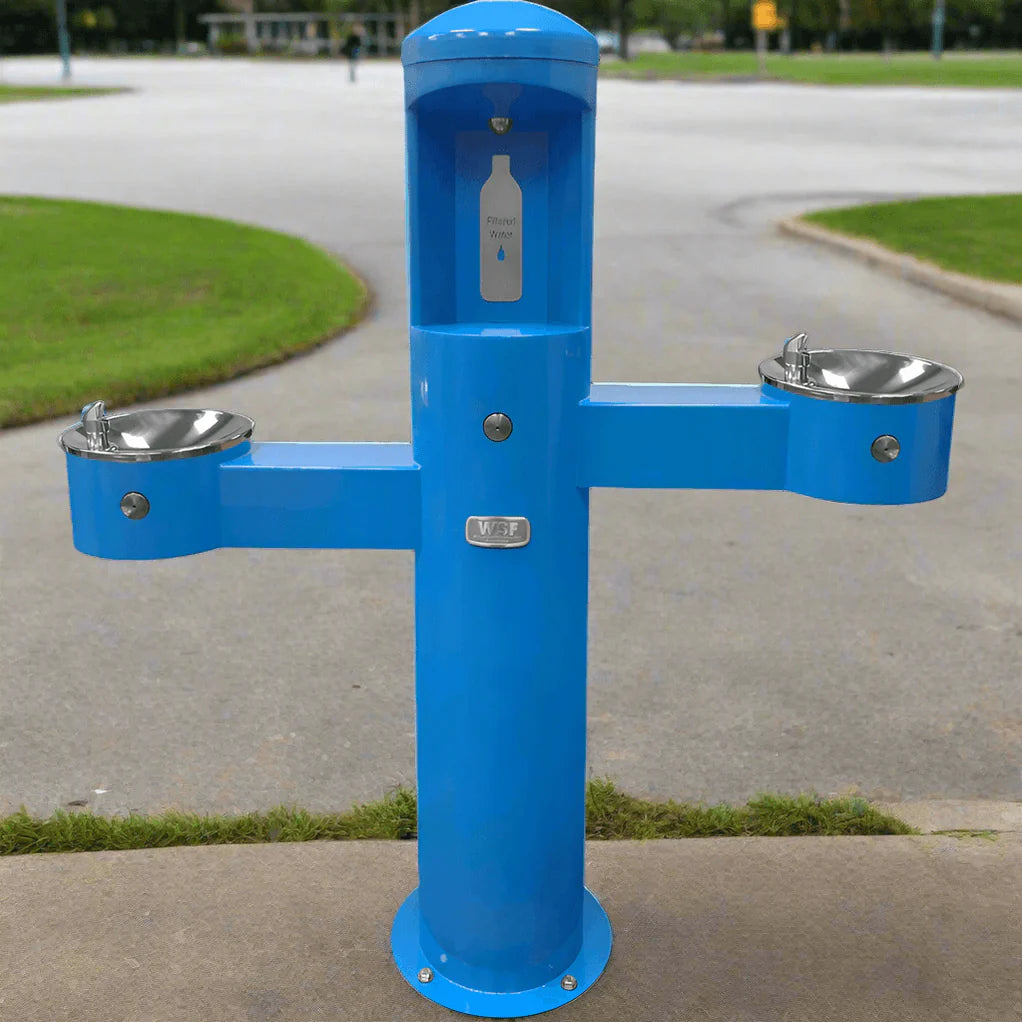

Front Approach Model (CWBF-3FA-HC-SAH): Front-approach tri-level design with identical height configurations, perfect for installations requiring specific directional access patterns or where architectural constraints favor front-facing user interaction.

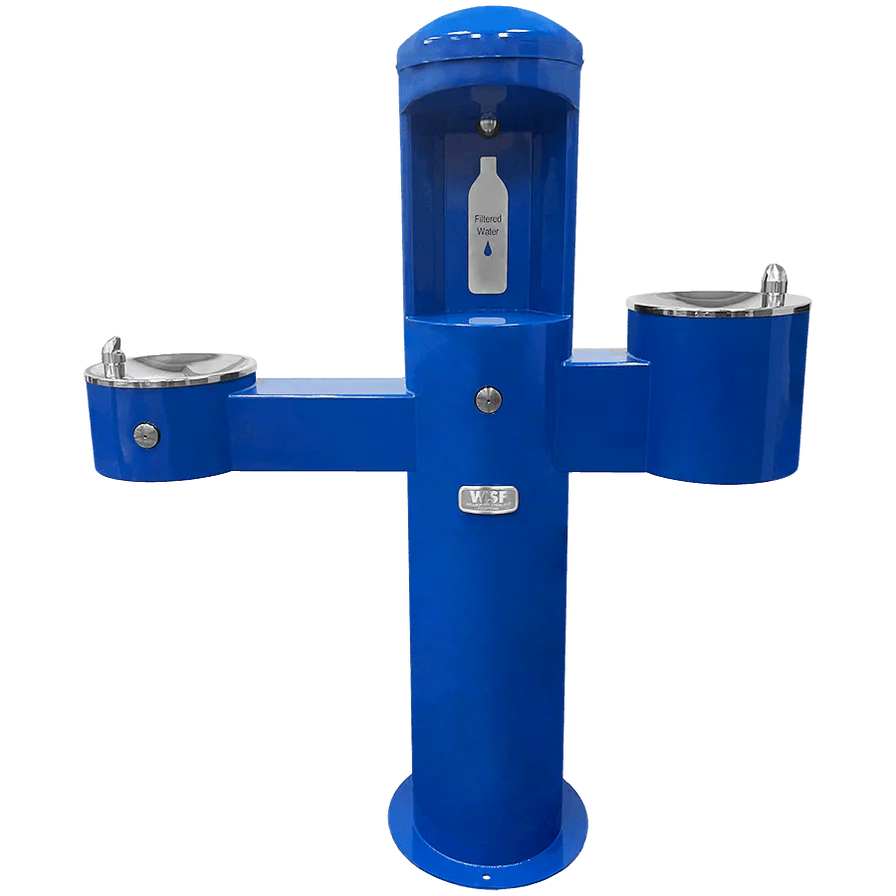

Comprehensive Access Model (CWBF-4ADA): Quad-level station combining bottle filler with Adult ADA-height fountain (HC), Standing Adult height fountain (SAH), and pet-height fountain. Essential for dog parks, trails, and multi-use recreational facilities requiring complete user accommodation.
Dual Drinking Fountain With Bottle Filler Construction Details
Every Willoughby tri-level water fountain bottle filler starts with heavy-duty Type 304 stainless steel construction that provides superior corrosion resistance and vandal protection. The all-welded fabrication creates a monolithic structure that eliminates weak points while the column design protects all plumbing connections from tampering and environmental exposure.
Construction Specifications:
- Material: Type 304 stainless steel, all-welded construction with 10" Schedule 10 main column
- Bowls: High-polished 18-gauge stainless steel with anti-rotation, anti-squirt bubblers
- Fountain Heights: Adult ADA-compliant (HC) and Standing Adult height (SAH) configurations
- Flow Control: Bottle filler flows 1.0 GPM, drinking fountains flow 0.5 GPM each
- Filtration: Replaceable inline charcoal-type water filter on inlet supply
- Mounting: Standard 7-gauge flange mounting with anchoring hardware by others
Activation Method Options:
- Standard Push-Button: Recessed pushbutton activation requiring less than 5 lbs of force
- Infrared Sensor (Optional): Battery-operated touch-free activation for bottle filler
Available Colors: Light Blue, Yellow Green, Yellow, Orange, Red, Violet, Blue, Green, Brown, Beige, White, Silver, Black, Matte White, Graphite (Textured), Black (Textured)
Installation Requirements and ADA Compliance
Professional installation ensures optimal performance and full ADA compliance for your tri-level water fountain bottle filler system. Each unit requires standard flange mounting to a concrete foundation with all plumbing connections made within the protected column base. The integrated design simplifies installation while providing multiple user access points through single utility connections.
Adult ADA configurations meet reach height guidelines when installed at proper rim heights, while standing adult fountains provide comfortable access for users preferring higher access points. The quad-level CWBF-4ADA model adds pet accessibility without compromising human access standards. Optional 316 stainless steel body upgrades are available for saltwater environments.
Routine maintenance involves periodic charcoal filter replacement through accessible service panels and seasonal winterization in cold climates. The lead-free construction adheres to ANSI/NSF 61, Section 9, ANSI A117.1, and American Disabilities Act of 2010 requirements across all access points.
Made to Order — Ships in 8–10 weeks. This item is built just for you, ensuring exceptional craftsmanship and attention to detail.
Property managers nationwide choose Supply-A-City for tri-level hydration solutions that maximize accessibility and functionality while minimizing installation complexity and maintenance requirements. Our authorized dealer status ensures authentic Willoughby quality with comprehensive support and competitive pricing including free shipping.
Contact Supply-A-City today to discuss configuration options and installation requirements for your tri-level water fountain bottle filler system: (833) 746-7688 or info@supplyacity.com
