Wiloughby Stainless Wall-Mounted Bottle Filling Station with Drinking Fountain

$3,395.00 + FREE SHIPPING

Notify me when back in stock

Free shipping

On every order sitewide!

Expert Guidance

Talk with our team

+1 (833) 746-7688

Real-Time Support

Connect with out product specialist via live chat.

Secure Checkouts

100% Encryption for your peace of mind.

Willoughby Wall Mounted Products Flyer with Wiloughby Stainless Wall-Mounted Bottle Filling Station with Drinking Fountain "Indoor Design, Outdoor Durability" with grass and sky background

Wall Mounted Bottle Filler with Drinking Fountain That Commercial Properties Trust

Your visitors notice accessible dual-function hydration that provides both traditional drinking fountain access and efficient bottle filling without consuming valuable floor space or requiring complex foundation work. Instead of managing separate hydration systems with individual utility connections and maintenance schedules, your property will provide comprehensive water access through streamlined wall-mounted installations that maximize functionality while minimizing spatial and infrastructure requirements.

Property managers trust these wall mounted bottle fillers with drinking fountains because they deliver complete hydration solutions in compact installations that eliminate the floor space, foundation costs, and utility complexity associated with ground-mounted systems. As an authorized distributor of USA-manufactured Willoughby fixtures, Supply-A-City offers two proven mounting configurations that provide flexible installation options for parks, recreational facilities, educational campuses, and commercial properties requiring space-efficient hydration access.

Each Willoughby wall mounted bottle filler with drinking fountain features 14-gauge Type 304 stainless steel construction, ADA-compliant access, and factory powder coating in your choice of 16 colors. The vandal-resistant design provides integrated fountain and bottle filling capability through recessed pushbutton activation that requires less than 5 lbs of force while delivering 1.0 GPM flow rate for efficient operation.

Why Properties Choose Wall-Mounted Drinking Fountain with Bottle Filler Station Systems

Ground-mounted hydration systems require dedicated floor space, concrete foundations, and complex utility routing that increases installation costs while limiting placement flexibility. These wall-mounted systems eliminate those constraints by utilizing existing wall surfaces for support while providing comprehensive hydration access through integrated fountain and bottle filling capability in single compact installations.

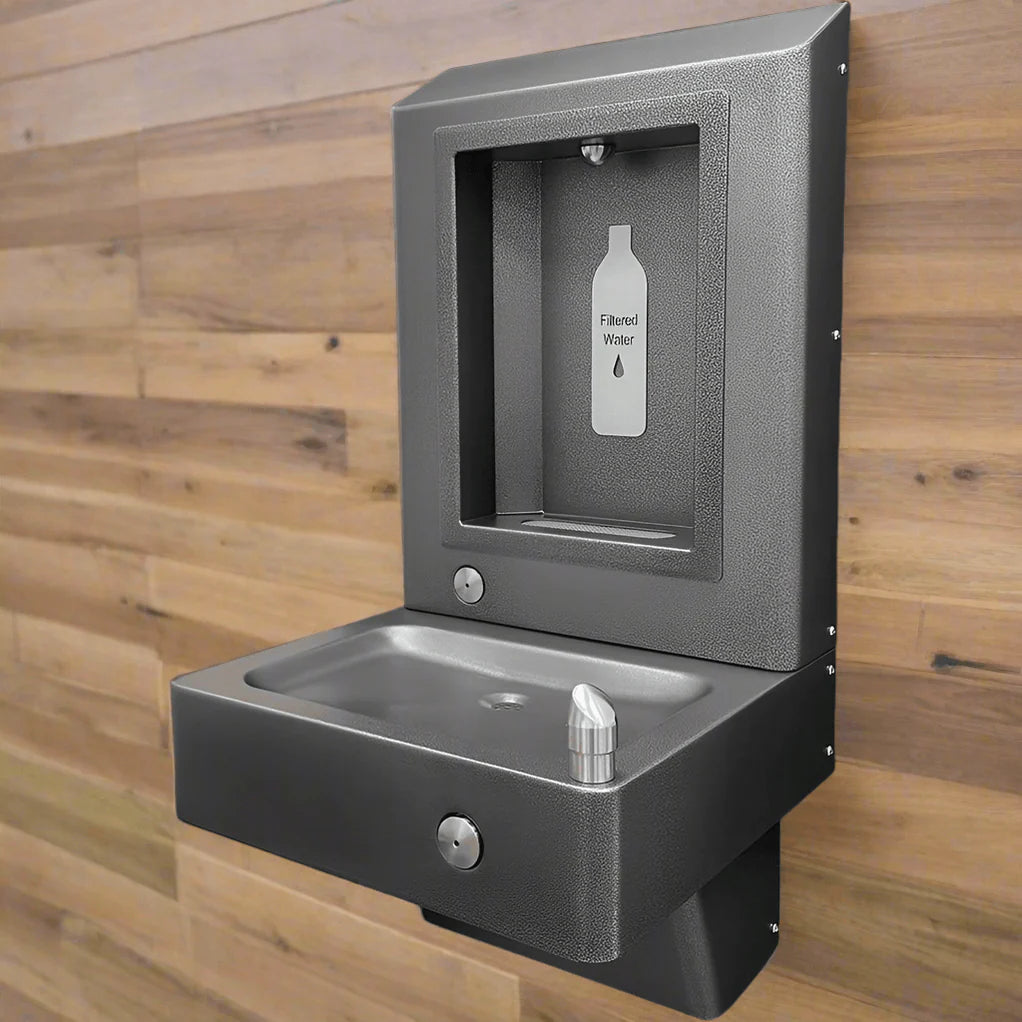

Wiloughby Stainless Wall-Mounted Bottle Filling Station with Drinking Fountain Surface Mounted on wooden Wall Background

The dual-function design accommodates both traditional fountain users and bottle-filling needs without requiring separate installations or utility connections. The wall-mounted configuration provides natural protection from ground-level impact damage while maintaining ADA compliance and enabling installation in locations where floor-mounted systems would be impractical or space-prohibitive.

Key benefits for commercial properties:

  • Space efficiency: Wall-mounted design eliminates floor space requirements and foundation costs
  • Installation flexibility: Can be mounted on existing walls, posts, or structural supports
  • Dual functionality: Integrated drinking fountain and bottle filler serve diverse user preferences
  • ADA compliance: Meets accessibility requirements while conserving installation space
  • Simplified maintenance: Front-access design enables service without wall removal

Two Mounting Configurations for Optimal Installation

Supply-A-City offers two Willoughby mounting configurations to accommodate different wall types, utility routing preferences, and aesthetic requirements. Both models provide identical dual-function capability while offering different installation approaches for maximum project flexibility.

Rear-Mounted Configuration (WOBFDF): Clean front appearance with all plumbing connections routed through the back of the unit, ideal for installations where utility access behind the wall is available and seamless front aesthetics are prioritized.

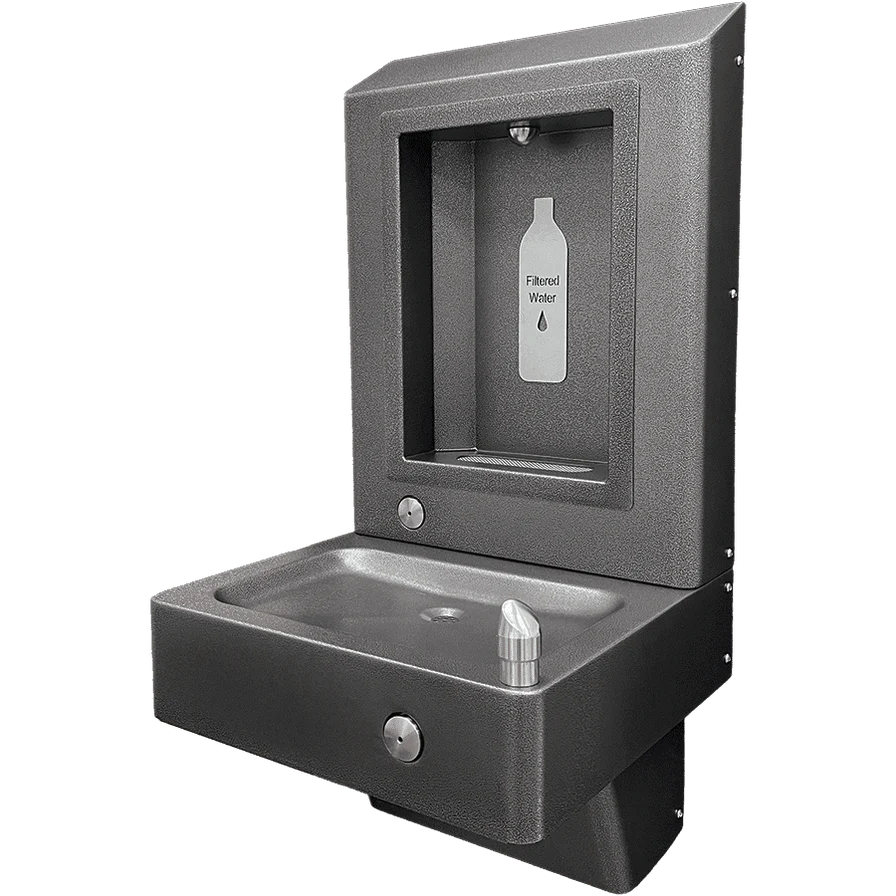

Surface-Mounted Configuration (WOBFDF-FA): Features removable bottom shroud for front-access utility connections, perfect for installations where rear wall access is limited or utility routing requires front-accessible service connections.

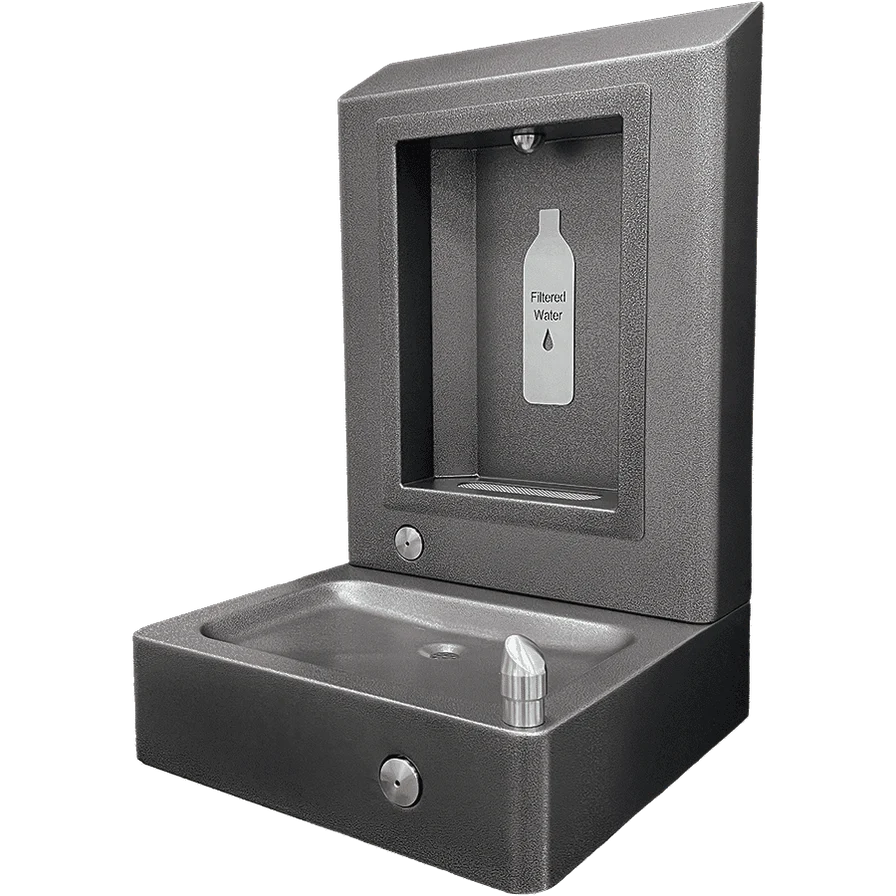

Wiloughby Stainless Wall-Mounted Bottle Filling Station with Drinking Fountain Rear Mounted with a bottle icon labeled 'Filtered Water' on a beige wall.

Commercial-Grade Wall-Mounted Construction

Every Willoughby wall mounted bottle filler with drinking fountain starts with heavy-duty 14-gauge Type 304 stainless steel construction polished to a #4 satin finish that provides superior durability and vandal resistance in wall-mounted applications. The all-welded fabrication creates a unified structure optimized for wall mounting while maintaining structural integrity under user loads.

Construction Specifications:

  • Material: 14-gauge Type 304 stainless steel with #4 satin finish
  • Mounting: Wall-mounted design with choice of rear or surface mounting configurations
  • Flow Rate: 1.0 GPM for efficient bottle filling and fountain operation
  • Activation: Recessed pushbutton requiring less than 5 lbs of force
  • Valve: Lead-free, self-closing valve for automatic shutoff
  • Filtration: Replaceable inline charcoal filter on inlet water supply

Mounting Options:

  • Rear-Mounted (WOBFDF): All connections routed through back of unit for clean front appearance
  • Surface-Mounted (WOBFDF-FA): Removable bottom shroud provides front-access to utility connections

Available Colors: Light Blue, Yellow Green, Yellow, Orange, Red, Violet, Blue, Green, Brown, Beige, White, Silver, Black, Matte White, Graphite (Textured), Black (Textured)

Installation Requirements and ADA Compliance

Professional installation ensures optimal performance and ADA compliance for your wall mounted bottle filler with drinking fountain system. Both mounting configurations require secure attachment to structural walls or supports capable of handling user forces. The choice between rear-mounted and surface-mounted configurations depends on utility access and aesthetic preferences.

The integrated design meets ADA reach height guidelines when installed at proper mounting heights while providing both fountain and bottle filling access through single installations. The wall-mounted configuration maintains required clearances while eliminating the floor space requirements of ground-mounted alternatives.

Routine maintenance involves periodic filter replacement and seasonal winterization in cold climates. The lead-free construction adheres to ANSI/NSF 61, Section 9 requirements. The surface-mounted configuration provides front-access service capability, while rear-mounted units require access from behind the mounting wall for utility connections.

Made to Order — Ships in 8–10 weeks. This item is built just for you, ensuring exceptional craftsmanship and attention to detail.

Property managers nationwide choose Supply-A-City for wall-mounted hydration solutions that maximize functionality while minimizing installation complexity and space requirements. Our authorized dealer status ensures authentic Willoughby quality with comprehensive support and competitive pricing including free shipping.

Contact Supply-A-City today to discuss mounting options and specifications for your wall mounted bottle filler with drinking fountain system: (833) 746-7688 or info@supplyacity.com
